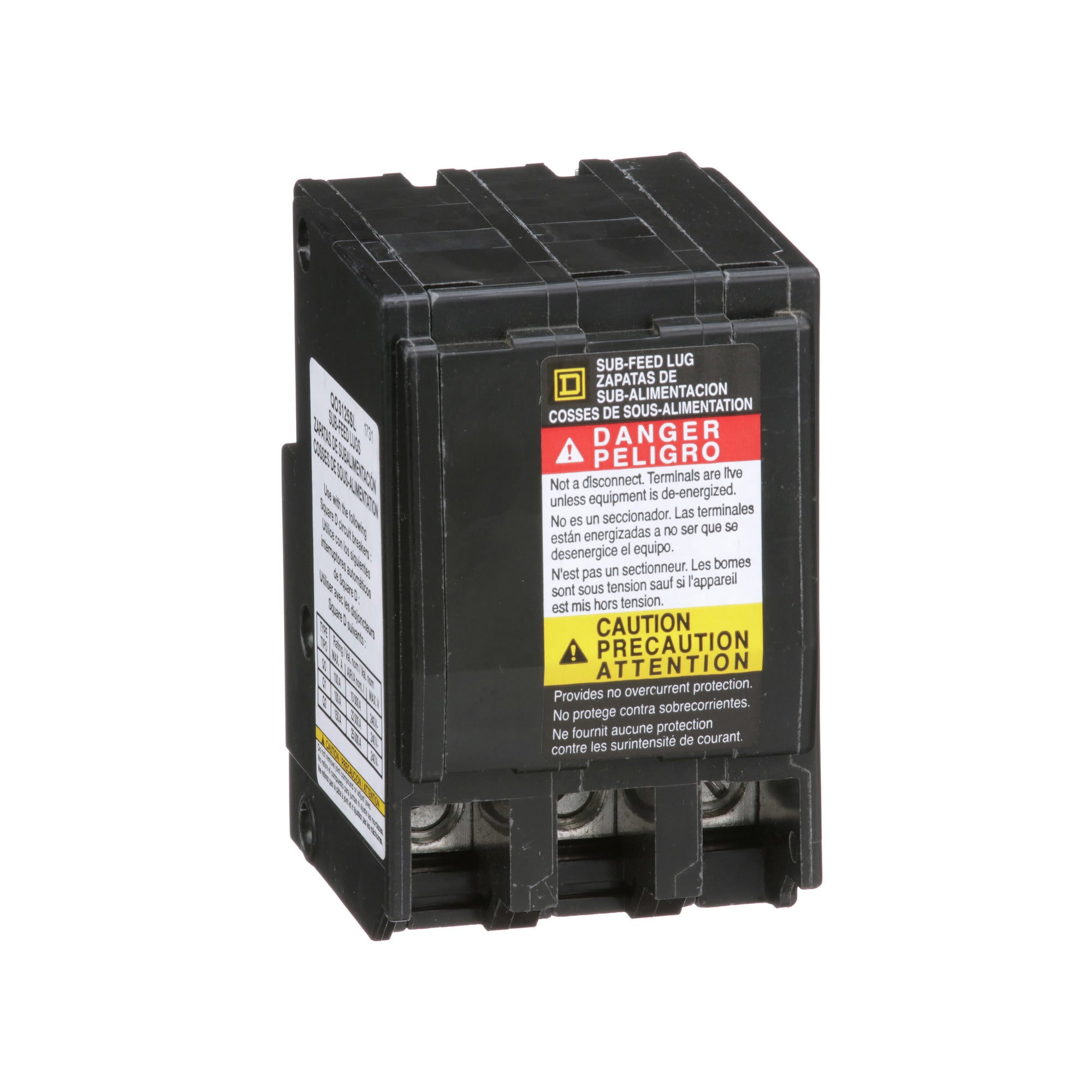

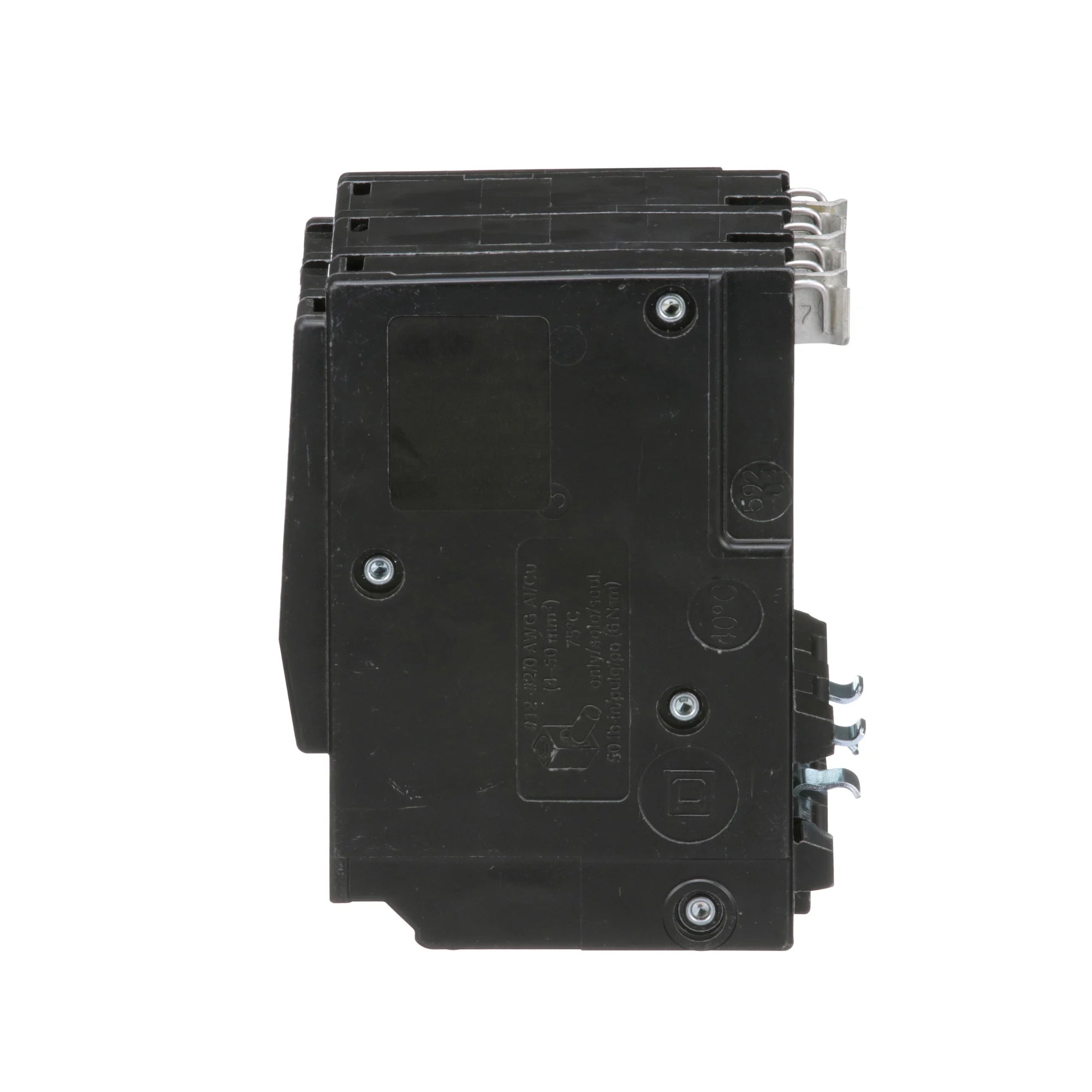

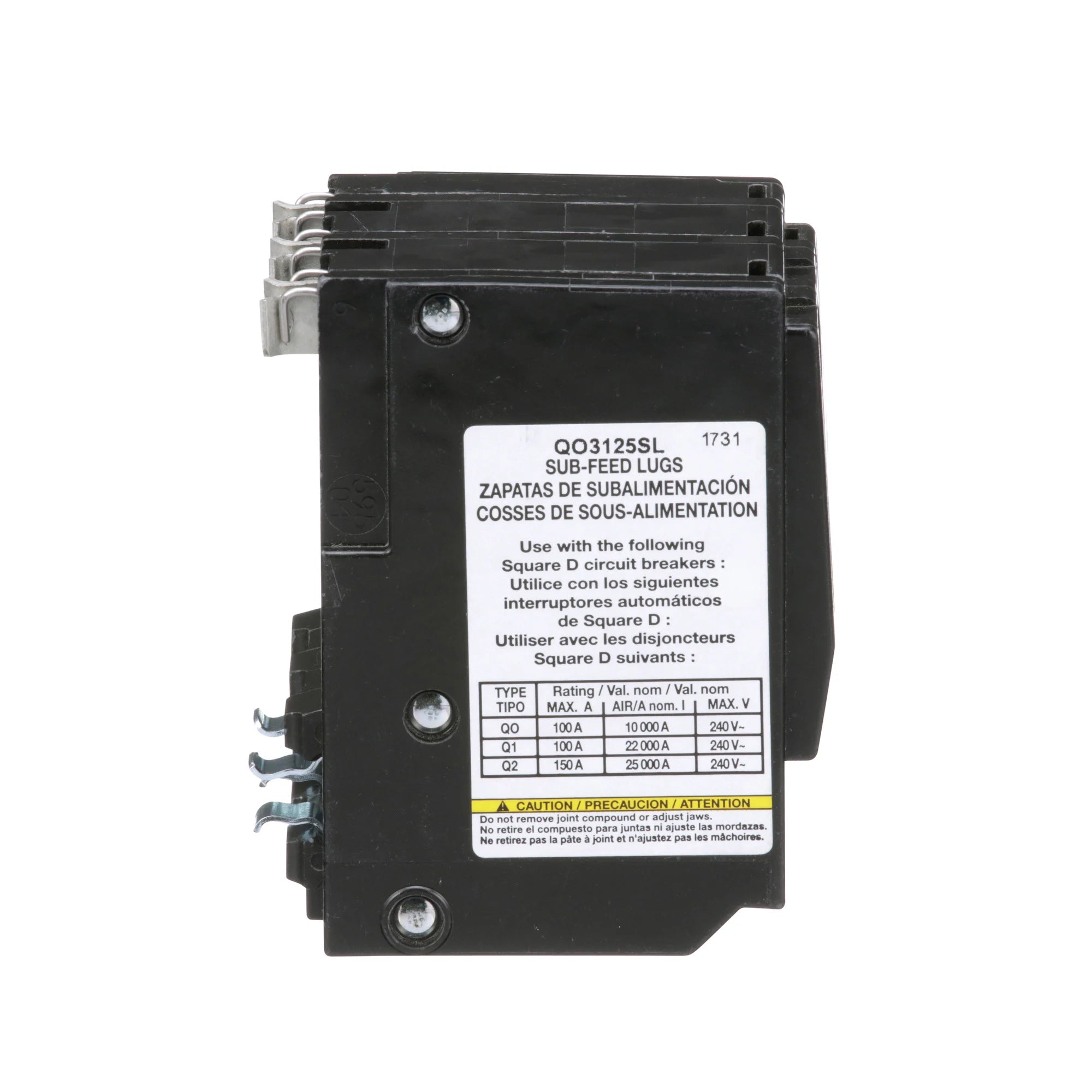

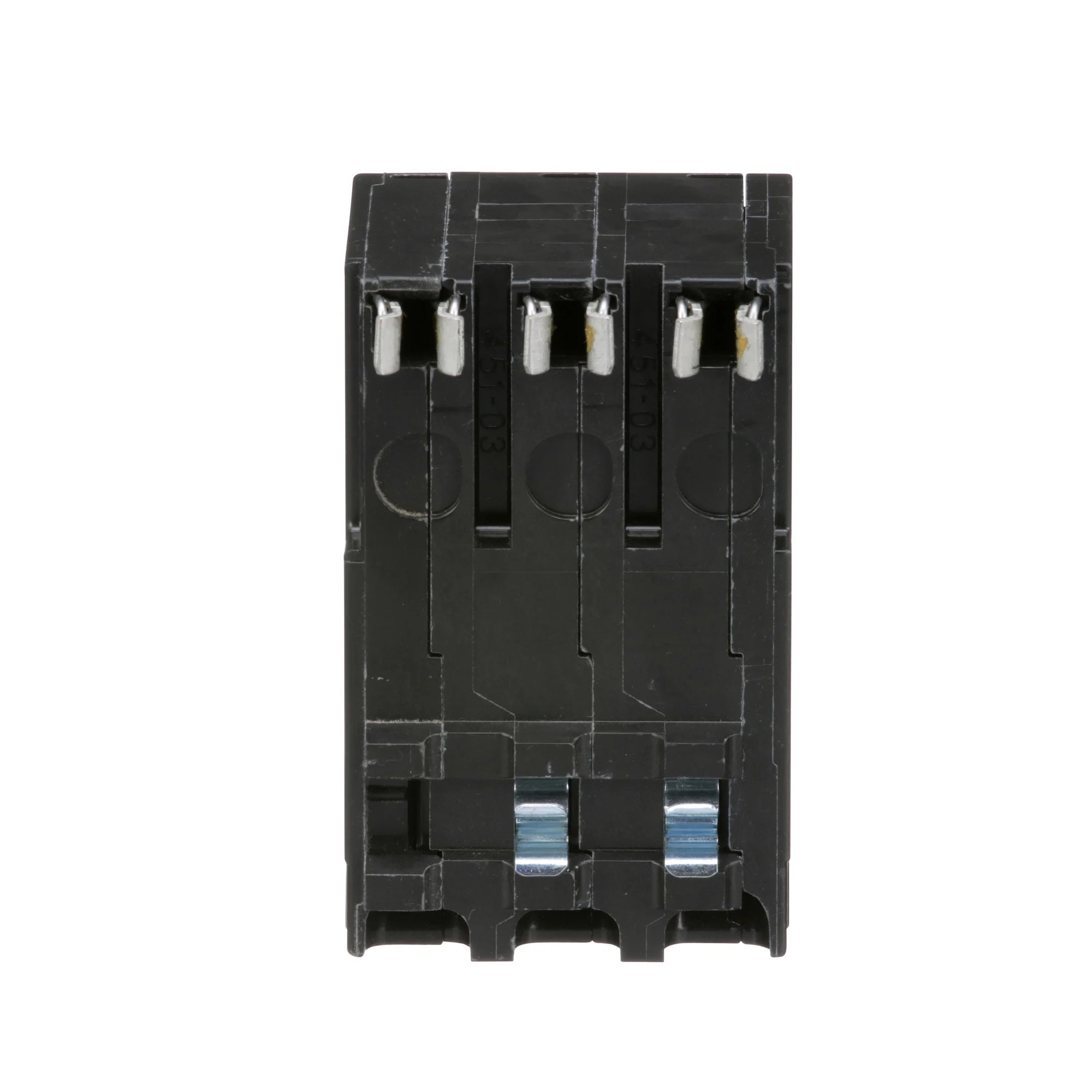

Square D QO3125SL Circuit Breaker Sub Feed Lug

Product Description

The Square D QO3125SL Circuit Breaker Sub Feed Lug is a key accessory for QO Load Centers. This subfeed lug kit is rated for one hundred twenty-five amps and is designed for three poles and three spaces. The QO system accepts various accessories like fault interrupters and surge protectors which enhance functionality.

• Rated for 125 amps and 240 volts.
• Compatible with QO Load Centers for added flexibility.
• Plug-in mounting type for easy installation.

Product Highlights

This subfeed lug kit supports both single-phase and three-phase systems, making it suitable for different installation environments.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO3125SL
• Current Rating: 125 amps
• Voltage Rating: 240 volts
• Number of Poles: 3
• Number of Spaces: 3
• Wire Size Compatibility: AWG 12 to AWG 2/0 copper or aluminum
• Operating Temperature: -5 to 40 degrees Celsius
• Country of Origin: Mexico
• Warranty Length: 18 months
