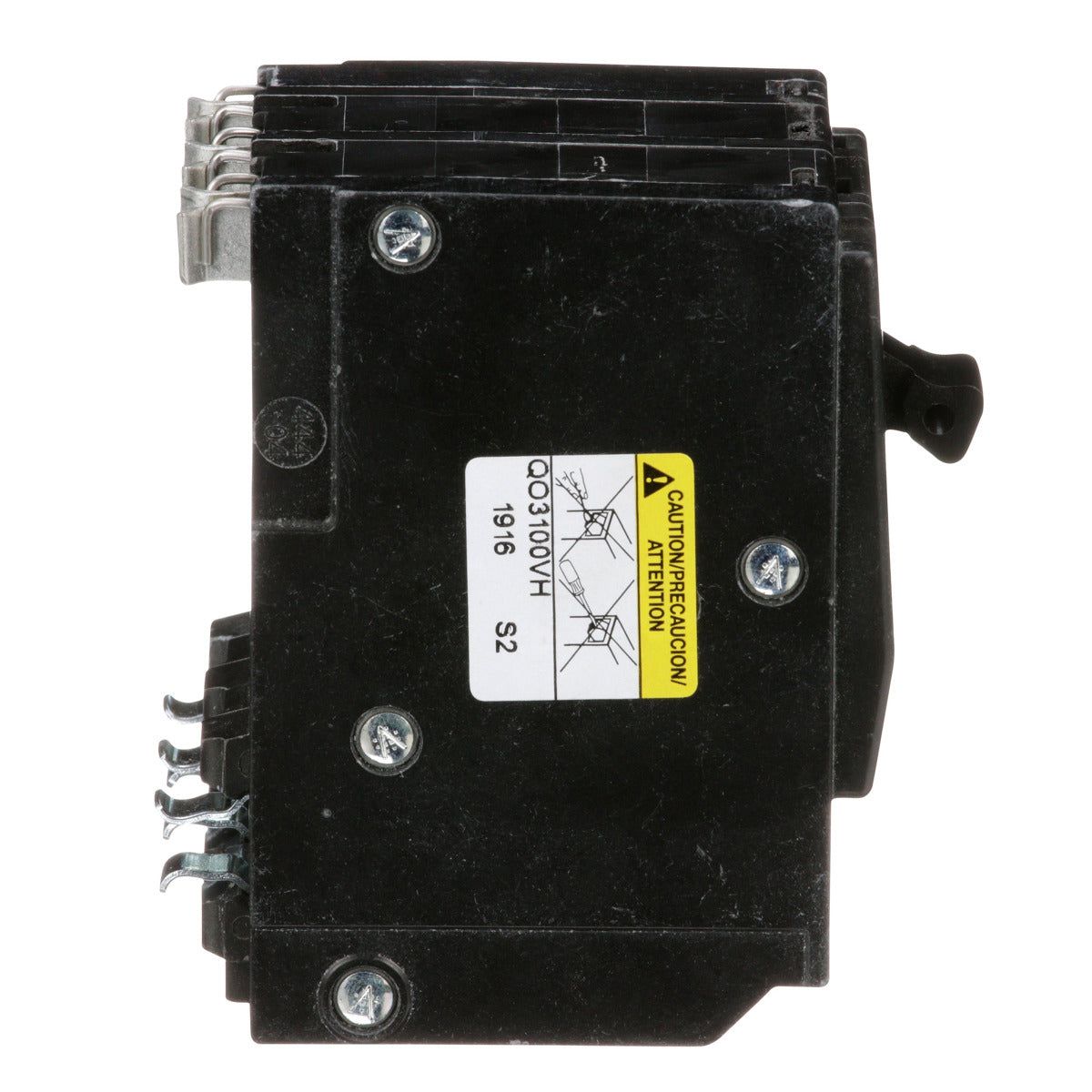

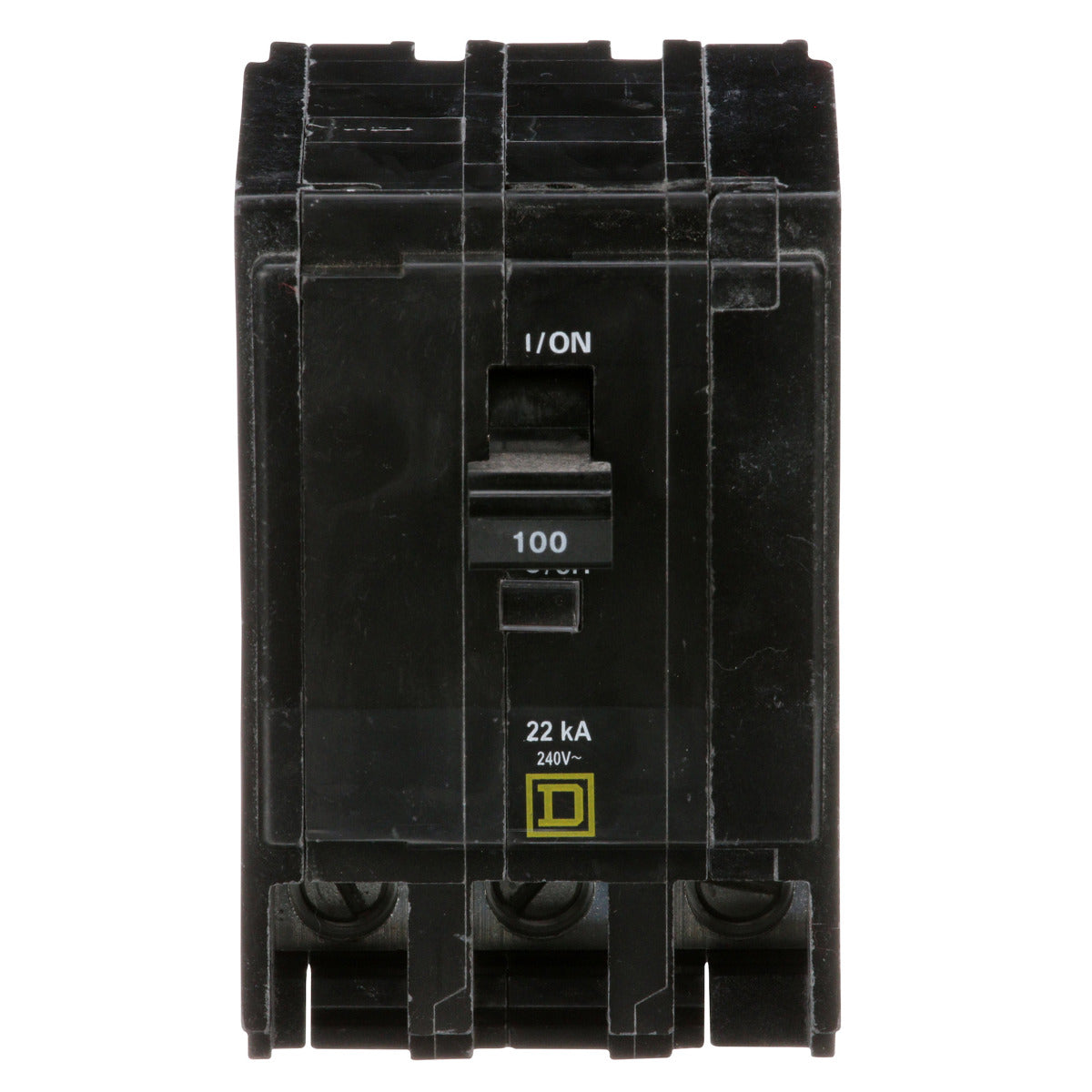

Square D QO3100VH Miniature Circuit Breaker 100 Amp 3 Pole 120/240V

Product Description

Square D QO3100VH is a three-pole miniature circuit breaker rated for one hundred amps at 120/240 volts. This unit provides overcurrent protection for both alternating current (AC) and direct current (DC) systems. The circuit breaker incorporates a trip-free toggle mechanism for quick operation and positive handle indication. It features VisiTrip technology that shows whether the breaker has tripped, ensuring safety during maintenance and inspections.

• Rated 100 amps at 120/240 volts
• 22 kA breaking capacity
• Plug-in mounting for easy installation

Product Highlights

This circuit breaker meets UL and CSA requirements for safety and reliability.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO3100VH
• Type: Miniature circuit breaker
• Current Rating: 100 Amps
• Voltage Rating: 120/240 Volts
• Number of Poles: 3
• Amperage: 100 Amps
• Mounting Type: Plug-in
• Interrupt Rating: 22 kAIC
• Operating Temperature: 40 Degrees C
• Country of Origin: Mexico
• Warranty Length: 18 months
