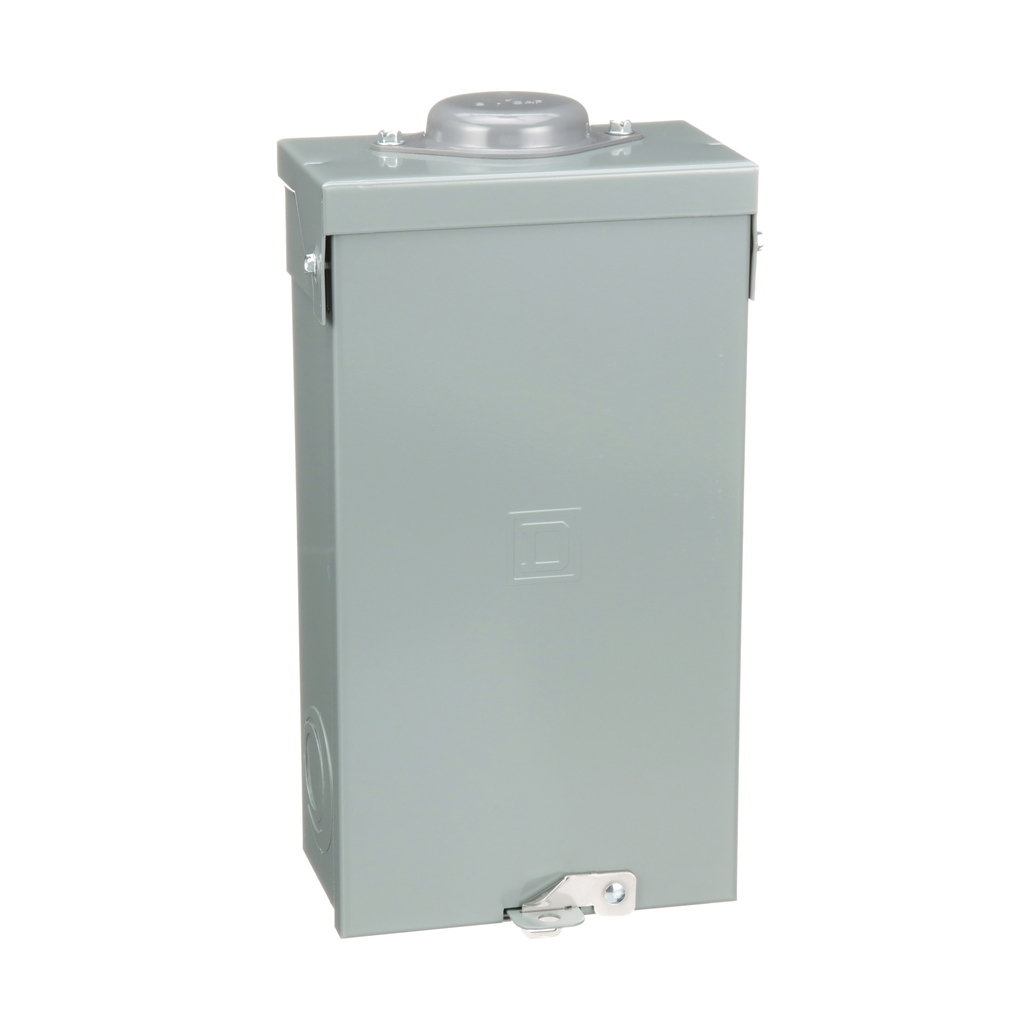

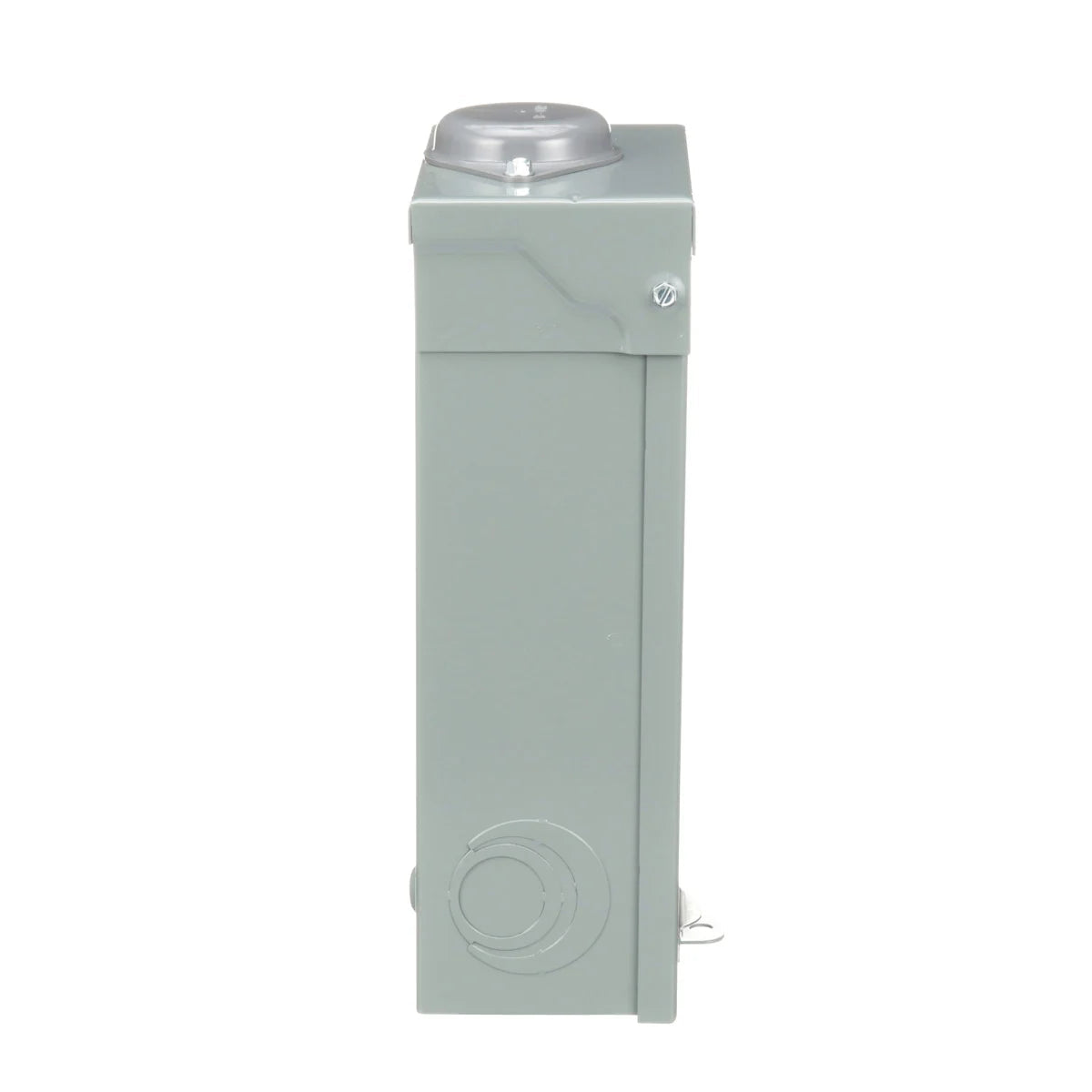

Square D QO3100BNRB 100 Amp Steel NEMA 3R Enclosure

Product Description

Square D QO3100BNRB is a circuit breaker enclosure designed for both indoor and outdoor use. This unit protects electrical systems and equipment and is certified to meet residential, commercial, and industrial requirements. It features thermal magnetic circuit breakers that ensure reliable overcurrent protection. The enclosure is made of steel and has a weatherproof rating suitable for various applications.

• Current Rating: 100 Amps
• Voltage Rating: 240 VAC
• NEMA Type: 3R

Product Highlights

This product is built to protect against environmental factors and safely encase electrical systems for extended use in various settings.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Depth: 4.12 inches
• Width: 176 mm
• Height: 335 mm
• Material: Steel
• Finish: Baked Enamel
• Amperage: 100 Amp
• Operating Temperature: -5 degrees C to 40 degrees C
• Certifications: CSA, UL Listed
