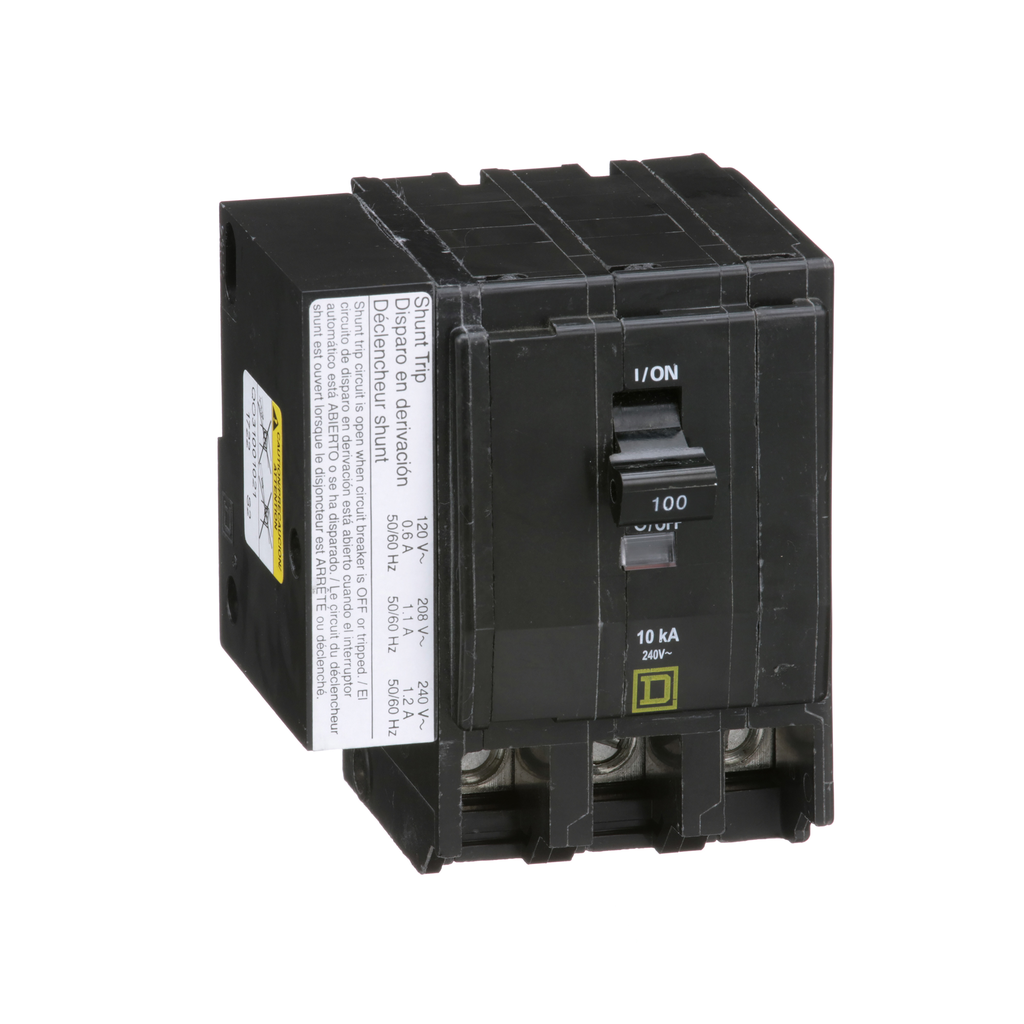

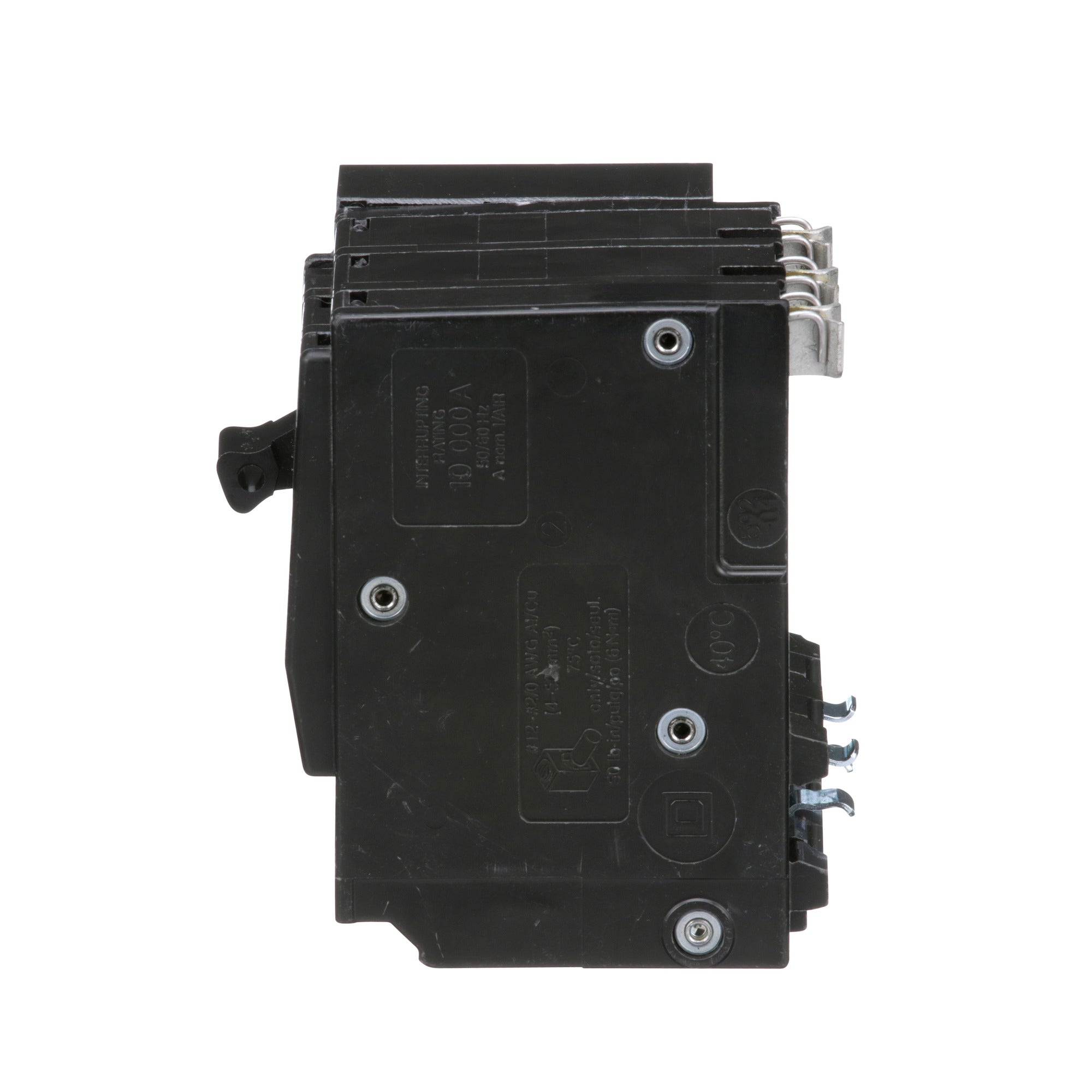

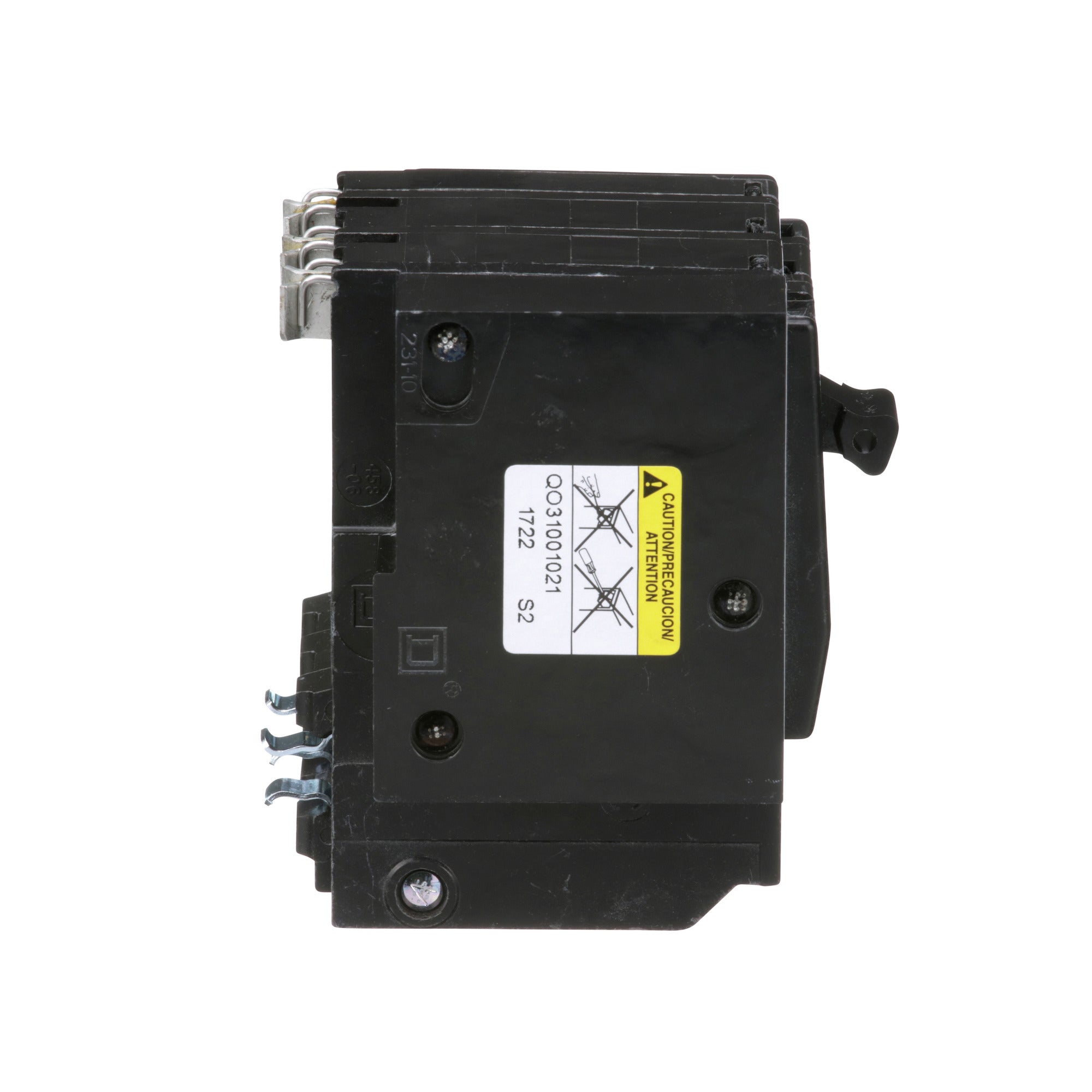

Square D QO31001021 240 Volt 100 Amp Plug-On Miniature Circuit Breaker

Product Description

The Square D QO31001021 is a 240 volt, 100 amp plug-on miniature circuit breaker designed for reliable overcurrent protection in both alternating current and direct current systems. This device features a trip-free toggle mechanism that allows for quick make and break actions, ensuring positive handle indication. It includes VisiTrip technology, which offers visual indication when the breaker has tripped, interrupting the circuit. This product is equipped with a three-pole configuration and is rated for a maximum capacity of 100 amps at 120 or 240 volts AC.

• Type: Miniature Circuit Breaker
• Poles: 3
• Breaking Capacity: 10kA

Product Highlights

This circuit breaker is crafted to meet UL standards and is CSA Certified, making it a suitable choice for various applications. It includes an AC shunt trip and is easy to install with plug-in mounting.

Product Information

Standard Information

• Catalog Number: QO31001021
• Manufacturer: Schneider Electric

Technical Specifications

• Brand: Square D
• Current Rating: 100 Amp
• Voltage Rating: 120/240 Volt
• Mounting Type: Plug-in
• Height: 89 mm
• Width: 76 mm
• Depth: 74 mm
• Country of Origin: Mexico
