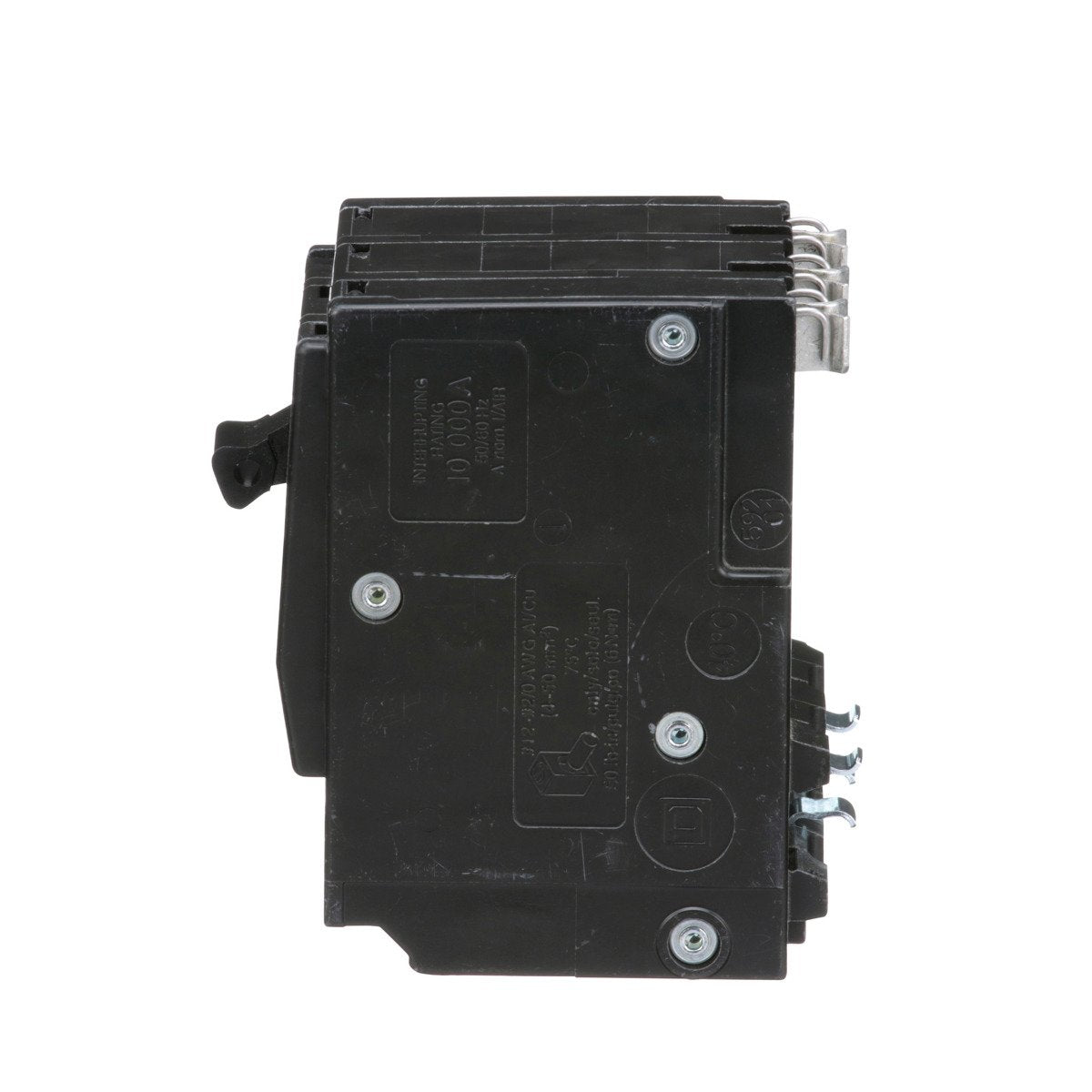

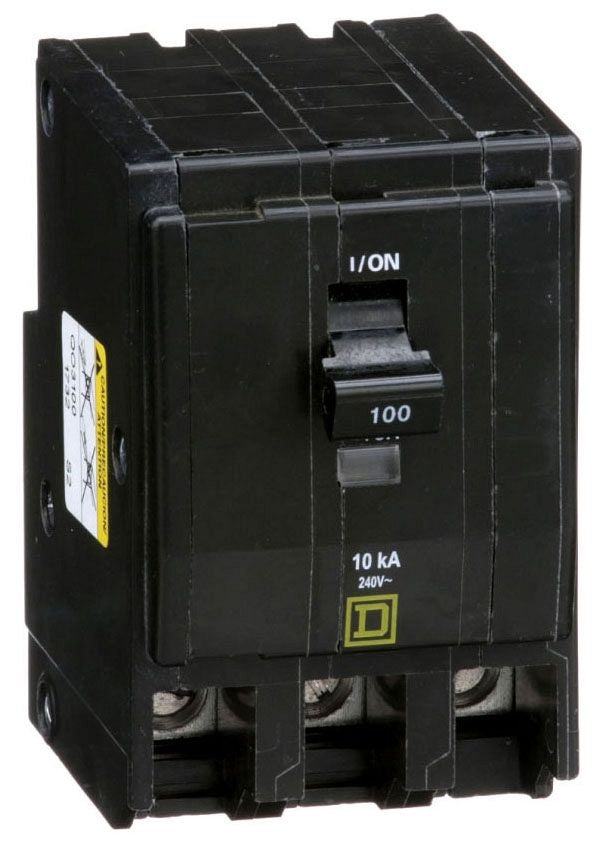

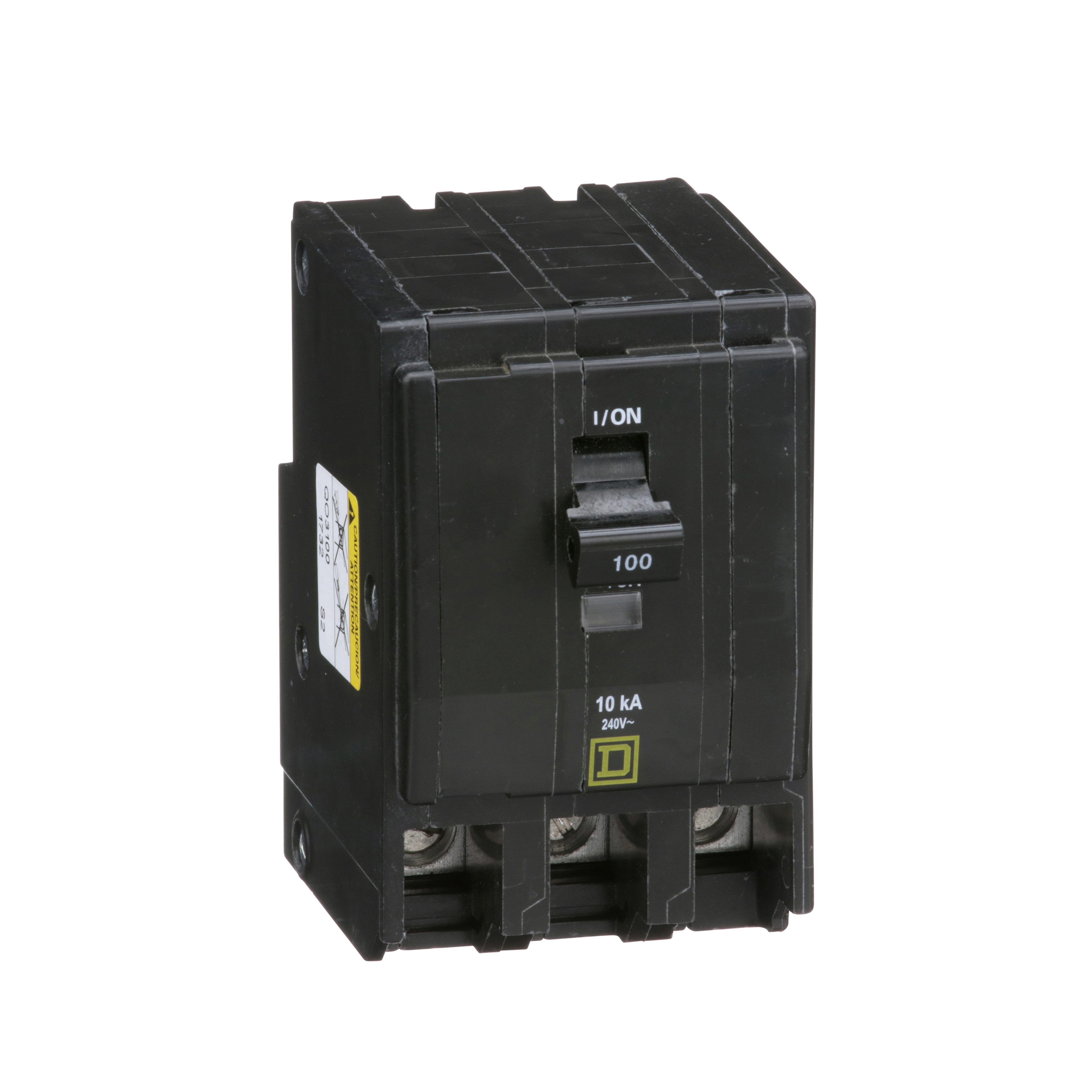

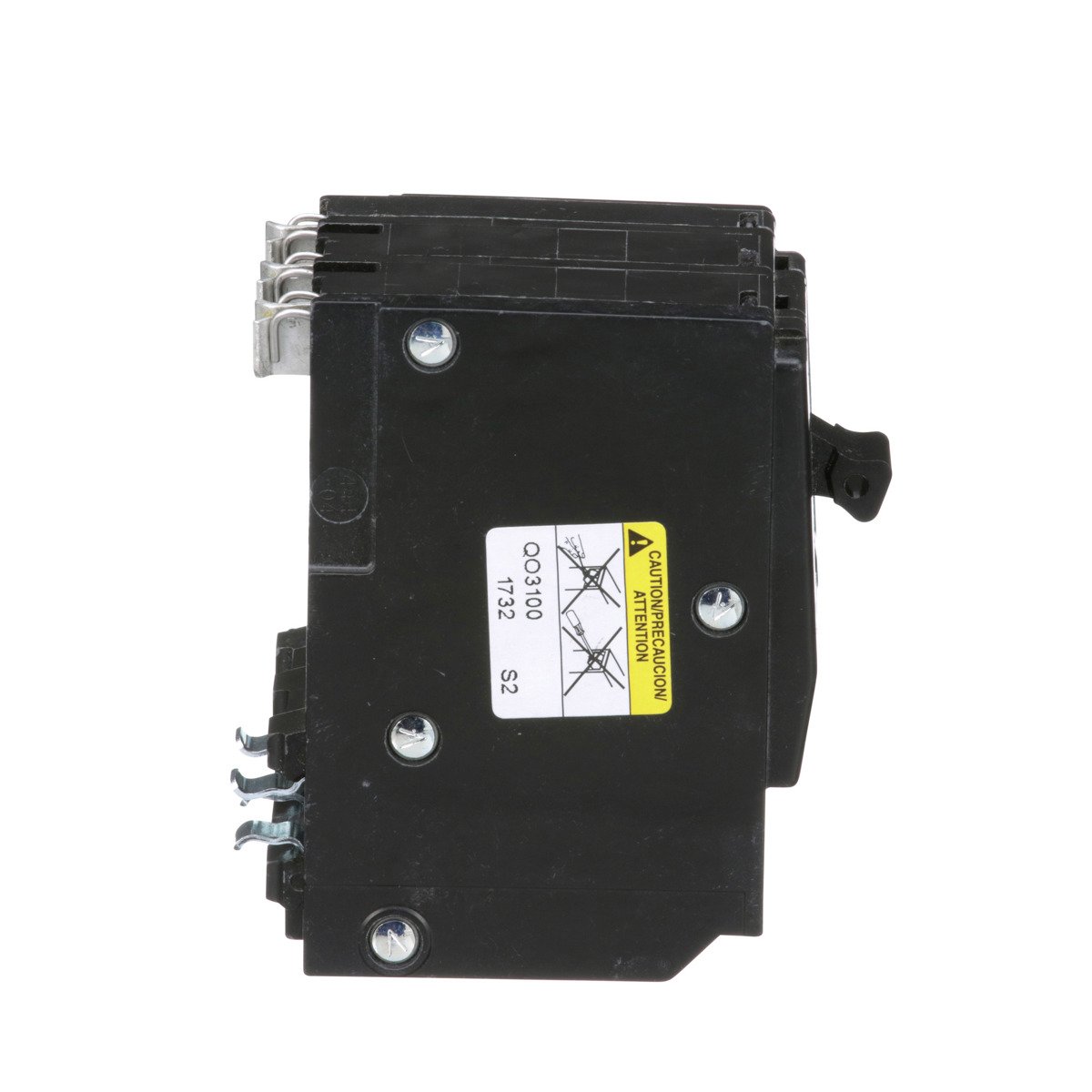

Square D QO3100 Miniature Circuit Breaker 100A 240V 3Ph Plug-On

Product Description

The Square D QO3100 Miniature Circuit Breaker with MPN QO3100 is a reliable device designed for overcurrent protection in electrical systems. This breaker operates at a current rating of 100 amps and is suitable for use in both residential and commercial setups with voltage ratings of 120/240 volts. It features a three-pole configuration and is made for plug-on mounting, making installation straightforward.

• Current Rating: 100A
• Voltage: 120/240VAC
• Type: Thermal Magnetic

Product Highlights

This circuit breaker is equipped with features such as quick make and break action, positive handle indication, and VisiTrip trip indication which alerts users when the breaker has tripped.

Product Information

Standard Information

• Brand: Square D
• MPN: QO3100

Technical Specifications

• Type: Miniature Circuit Breaker
• Number of Poles: 3
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-in
• Wire Size: AWG 4...AWG 2/0 copper or aluminum
• Weight: 0.499 kg
• Country of Origin: Mexico
• Certifications: UL Listed, CSA Certified
