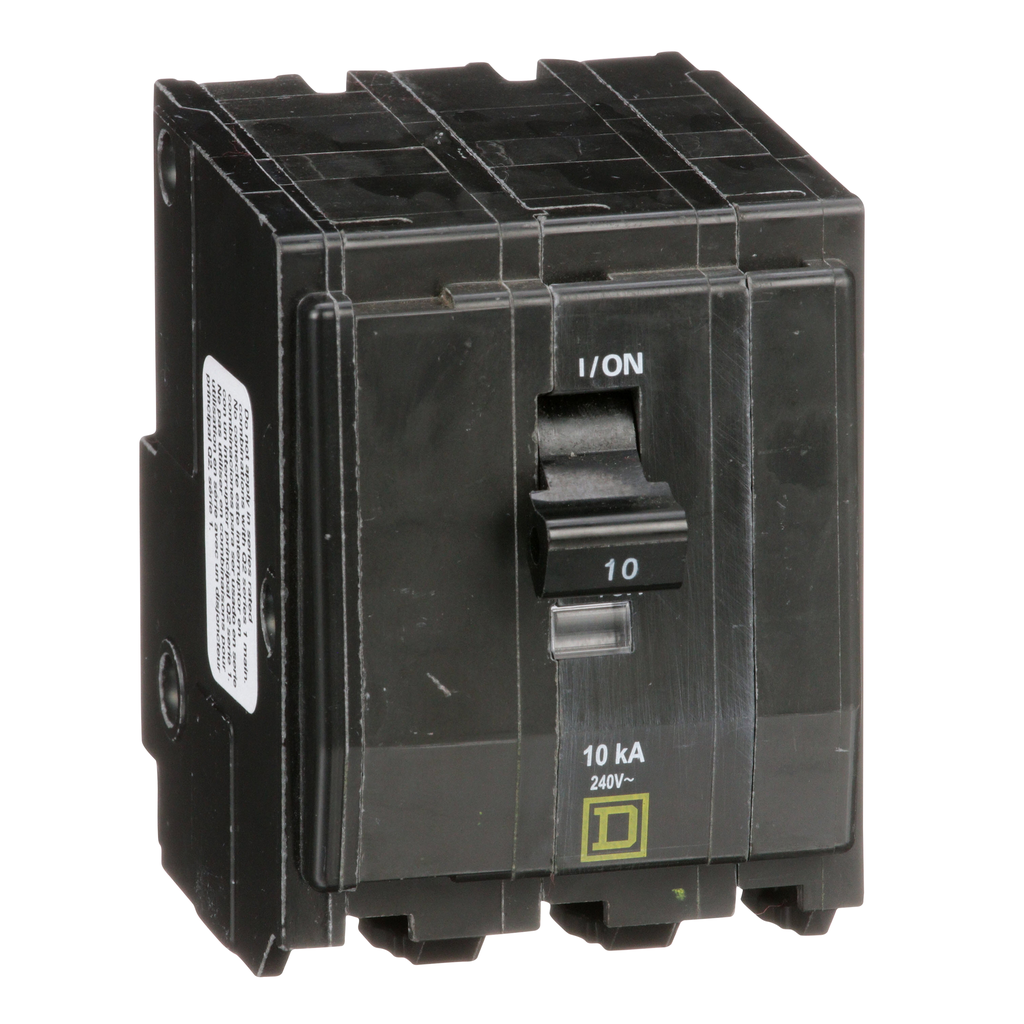

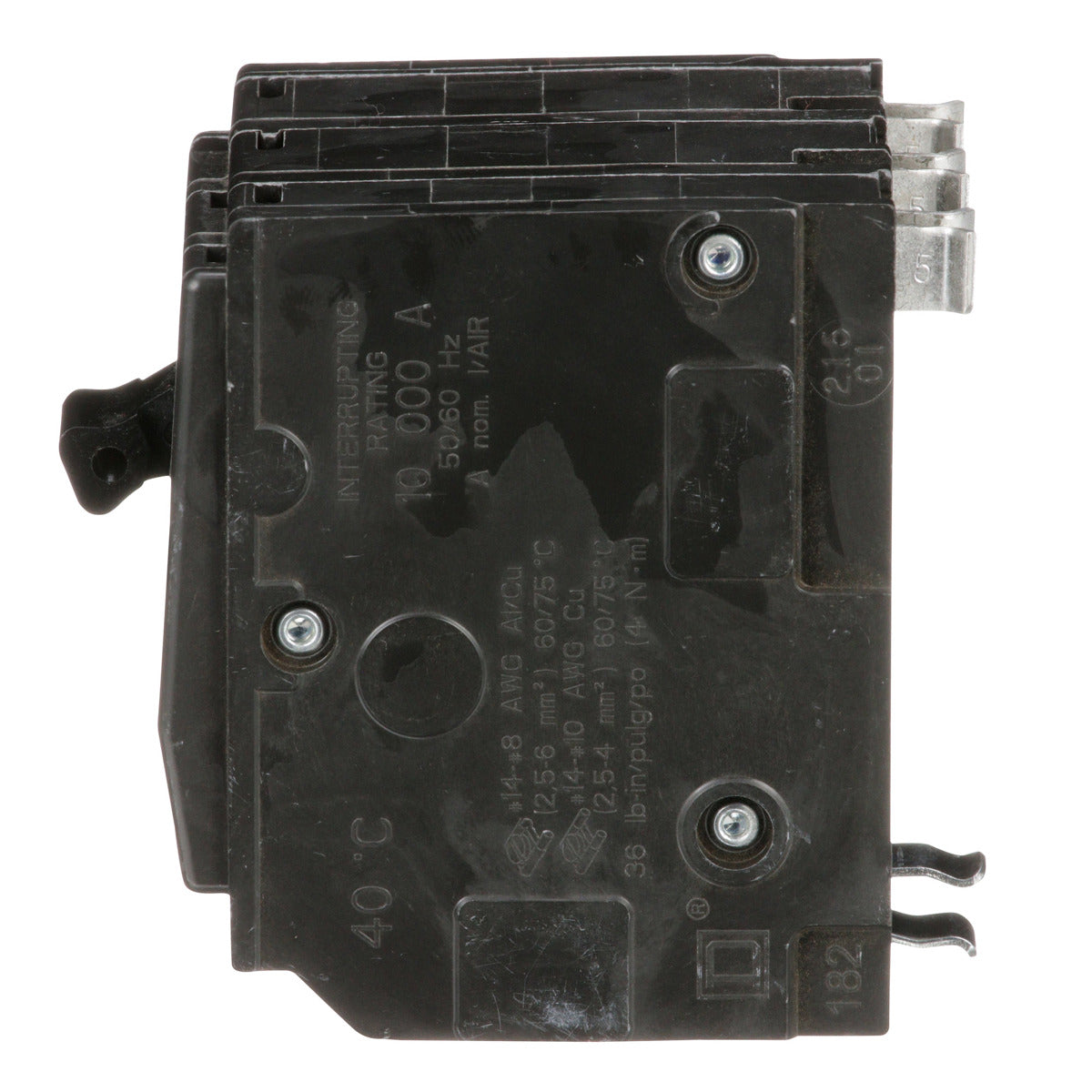

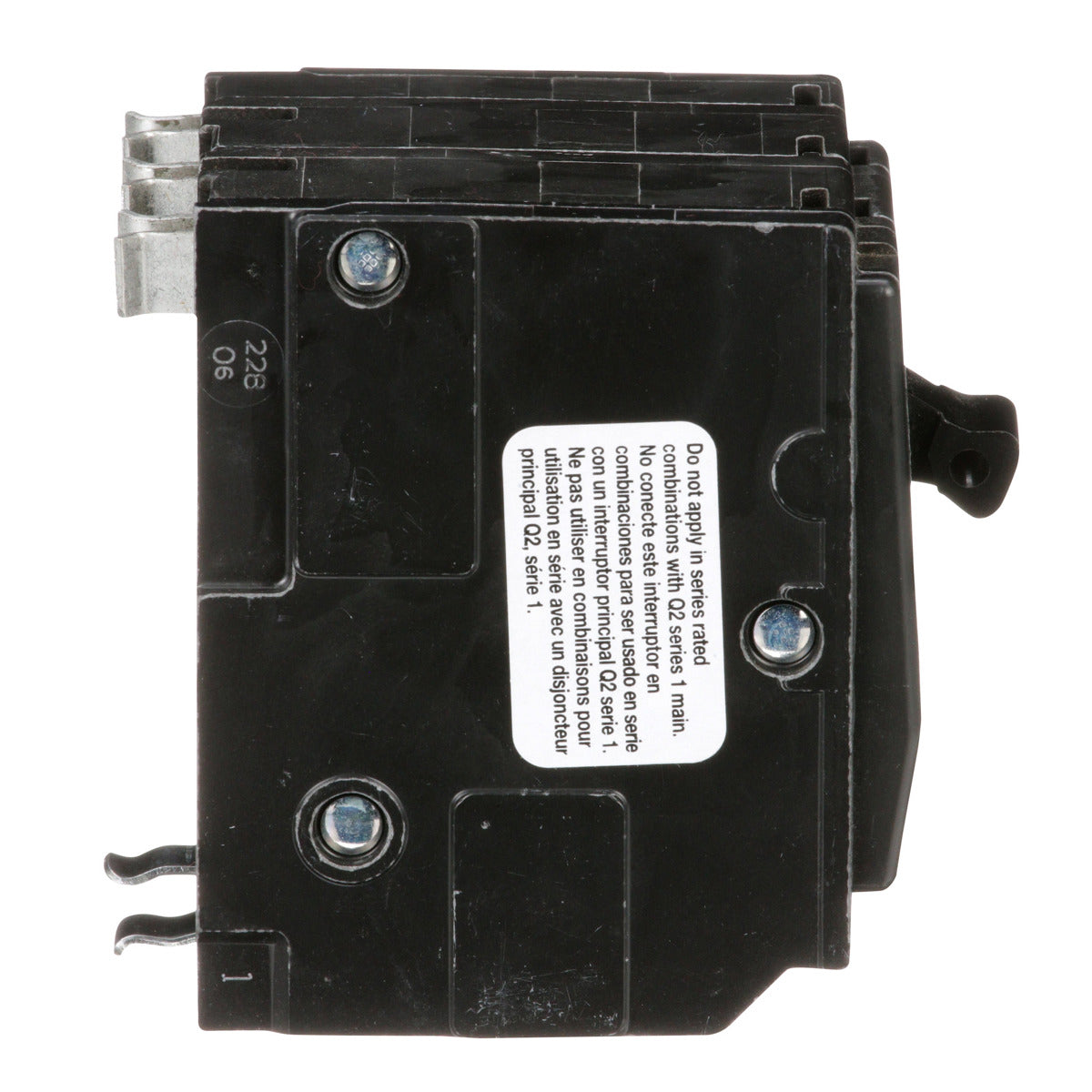

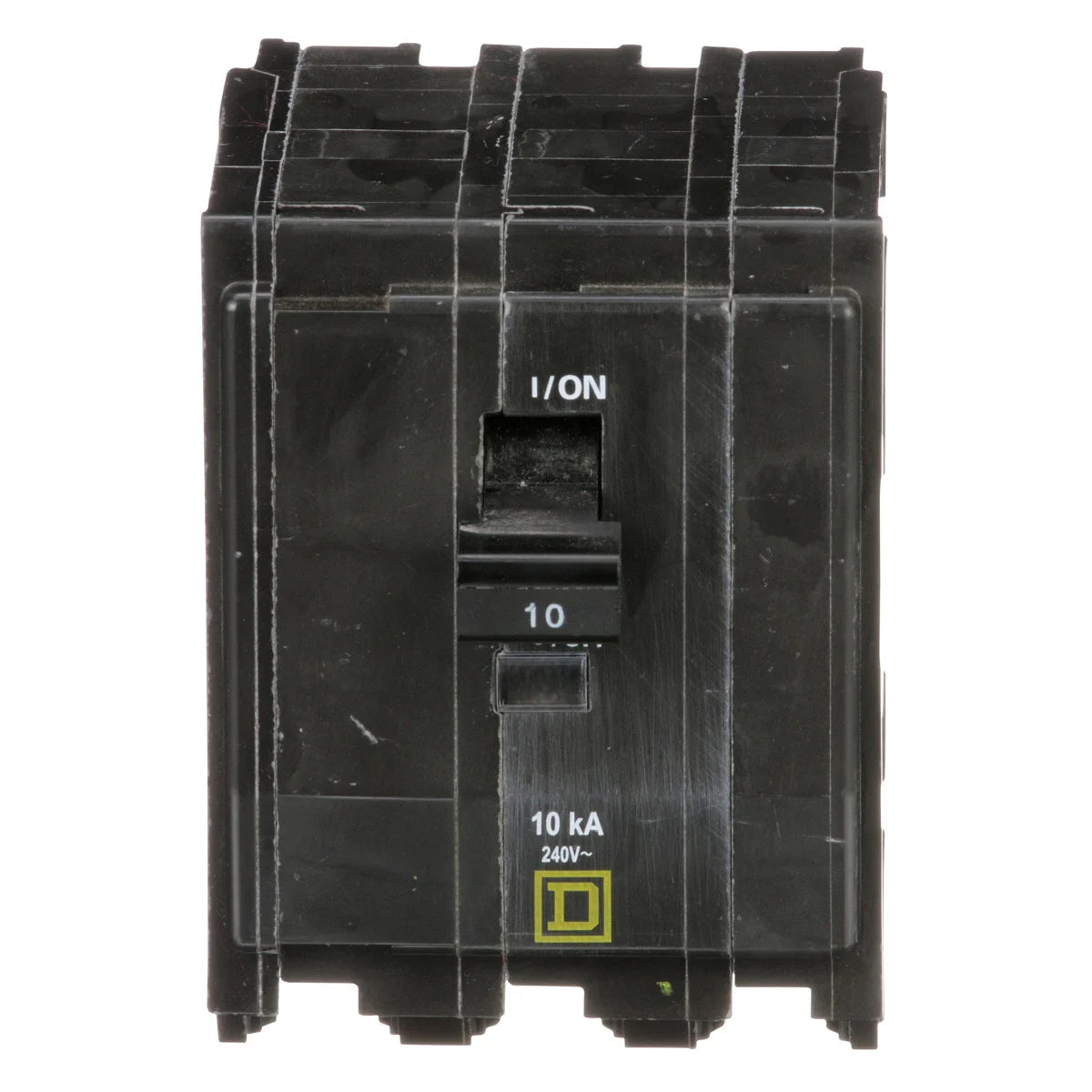

Square D QO310 Miniature Circuit Breaker 10A 240V 3Ph Plug-On

Product Description

Square D QO310 is a miniature circuit breaker with a rating of ten amperes at one hundred twenty to two hundred forty volts, suitable for three-phase applications. This circuit breaker provides essential overcurrent protection and can be used in both AC and DC systems. It features a trip-free toggle mechanism that enables quick make and quick break actions, ensuring reliability in operation. With a visual trip indicator, known as VisiTrip, users can quickly identify when the breaker has tripped.

• Three-pole configuration for versatile installation.
• Plug-on mounting simplifies installation procedures.
• Rated breaking capacity of ten kA for enhanced safety.

Product Highlights

This unit is UL listed and CSA certified, confirming its compliance with safety standards. It is ideal for commercial and residential electrical systems requiring reliable protection.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO310
• Current Rating: 10 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 3 Pole
• Breaking Capacity: 10 kA
• Mounting Type: Plug-in
• Dimensions: Length 2.91 Inch, Width 2.24 Inch, Height 3.00 Inch
• Weight: 0.349 kg
• Country of Origin: Mexico
• Warranty Length: 18 months
• Certifications: UL Listed, CSA Certified
