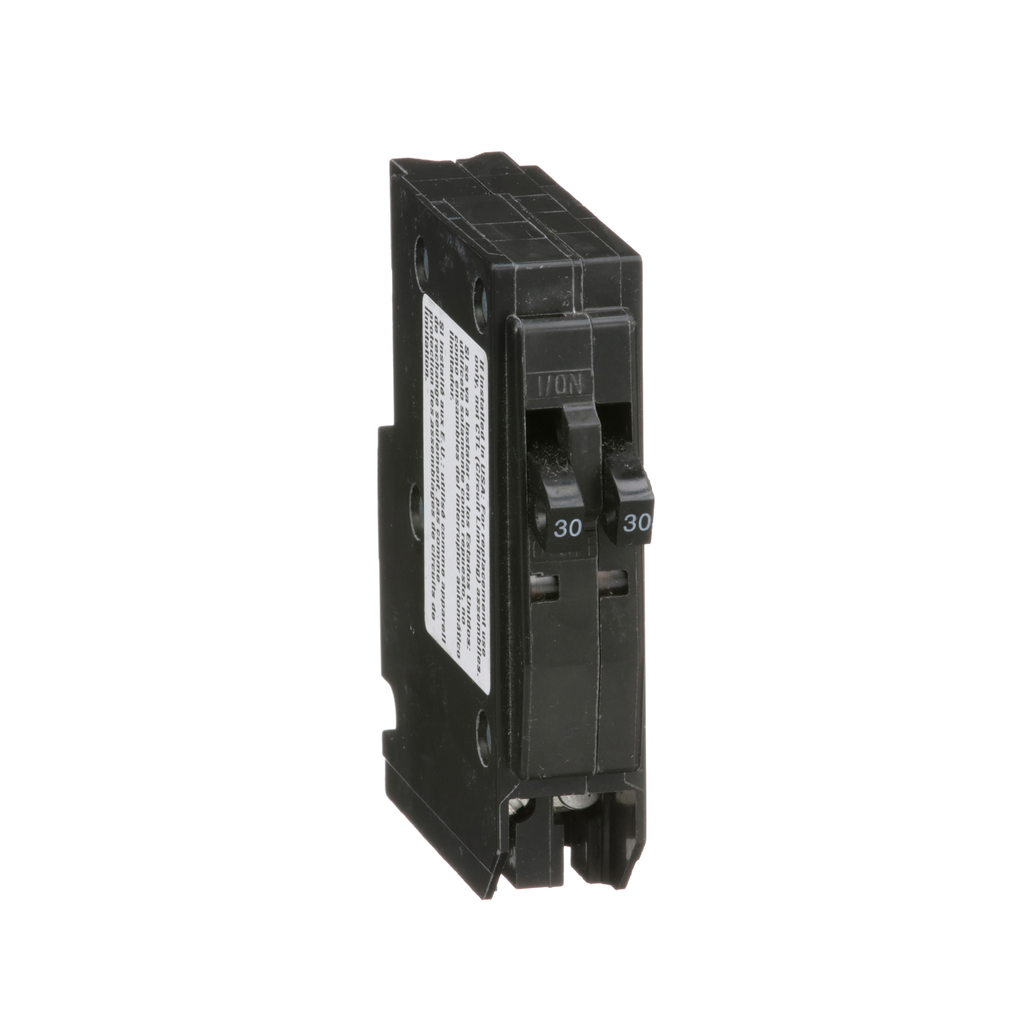

Square D QO3030 Tandem Circuit Breaker 30/30A 120/240V 1Ph

Product Description

The Square D QO3030 is a tandem circuit breaker with the MPN QO3030. This unit features two poles at thirty amps for a voltage of one hundred twenty to two hundred forty volts. It is designed for use in QO load centers and offers reliable overcurrent protection. This breaker provides a ten kiloamp breaking capacity and employs a plug-in mounting method, ensuring easy installation in various scenarios.

• Provides overcurrent protection in AC and DC systems.
• Features a VisiTrip indicator for visual confirmation of tripped status.
• Compatible with various accessories including shunt trips and auxiliary switches.

Product Highlights

This circuit breaker offers robust protection for electrical systems. It is UL listed and CSA certified, ensuring high standards of safety and reliability.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO3030
• Number of Poles: 2
• Current Rating: 30 Amp
• Voltage Rating: 120/240 Volt
• Interrupt Rating: 10 kAIC
• Wire Size Compatibility: AWG 14 to 8
• Weight: 0.154 kg
• Dimensions: 2.91 inches x 3.00 inches x 3.23 inches
• Country of Origin: Mexico
