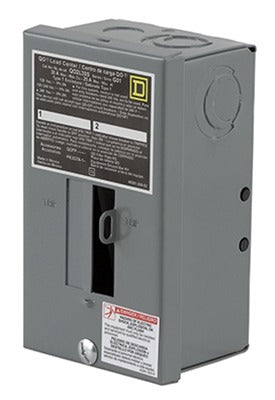

Square D QO2L30SCP 30A Main Lugs Load Center 2 Space

Product Description

The SQUARE D BY SCHNEIDER ELECTRIC QO2L30SCP is a 30-amp main lugs load center designed for single-phase electrical distribution in surface-mount applications. Rated at 120/240 volts, this unit provides 2 spaces accommodating up to 2 single-pole QO circuit breakers. It ships with a solid neutral bar and cover included. Licensed electricians install this panel in residential and light commercial settings where a compact, code-compliant sub-panel or service entrance enclosure is required. When used as a service entrance, the separately available ground bar PK3GTA-1 is required.

This load center is suited for residential sub-panel installations, detached garage feeders, workshop circuits, and other applications where a small, dedicated distribution point is needed. Its surface-mount design makes it appropriate for installations on exposed framing, masonry, or other finished wall surfaces. The unit accepts QO-series breakers, which are a common format in residential electrical systems.

Key Features

• 30-amp main lugs rating for sub-panel or service entrance use
• 2-space panel accepts up to 2 single-pole QO circuit breakers
• 120/240V single-phase configuration for standard residential loads
• Solid neutral bar included; cover included
• Surface-mount enclosure for exposed or finished-surface installation
• Service entrance rated when ground bar PK3GTA-1 is installed (sold separately)

Compatibility

Designed for use with QO-series circuit breakers. When configured as a service entrance, requires the addition of ground bar PK3GTA-1.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream feeder completely before wiring the load center. Verify conductor sizing matches the 30-amp rating before terminating at the main lugs. Do not install as a service entrance without first adding the required ground bar PK3GTA-1.
