Product Description

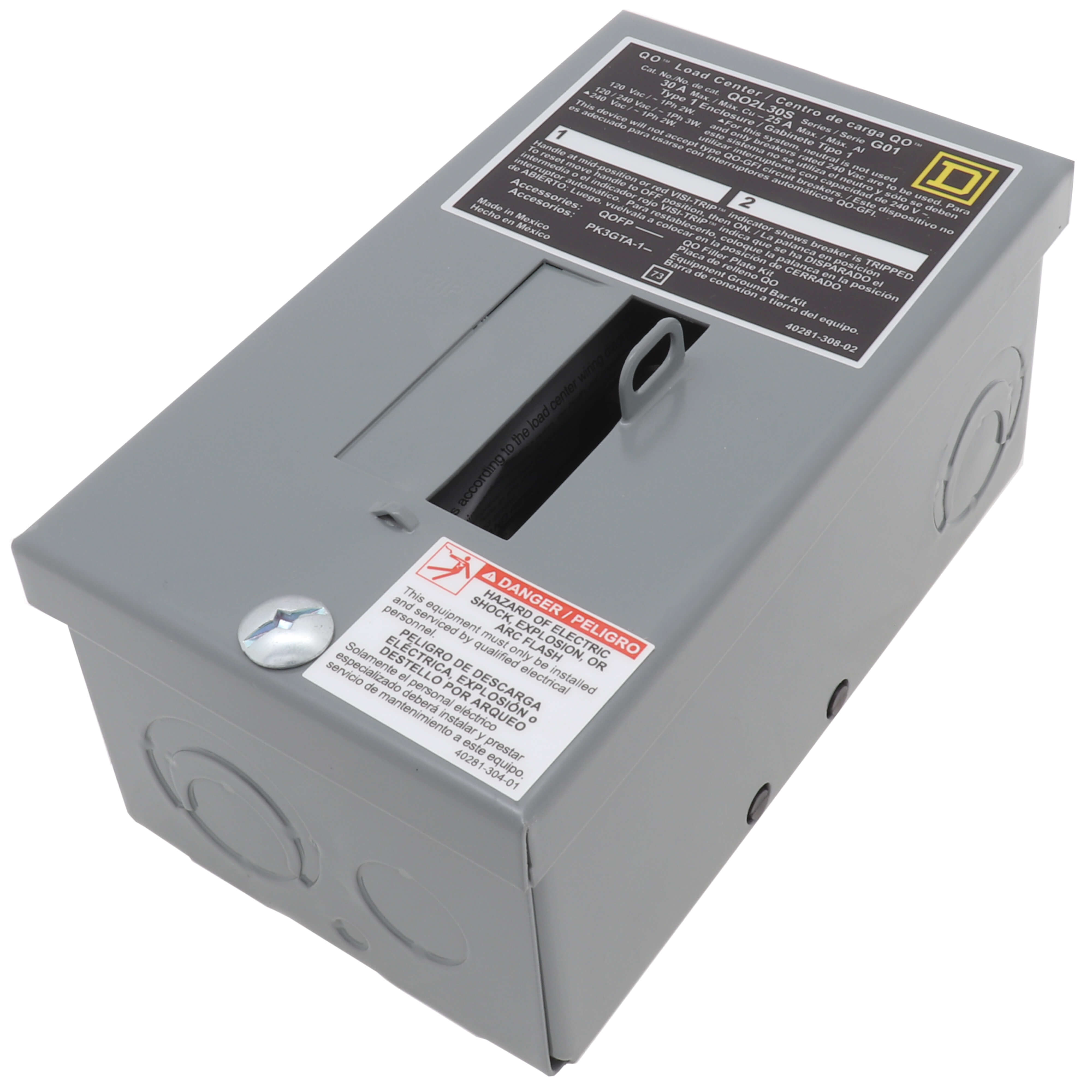

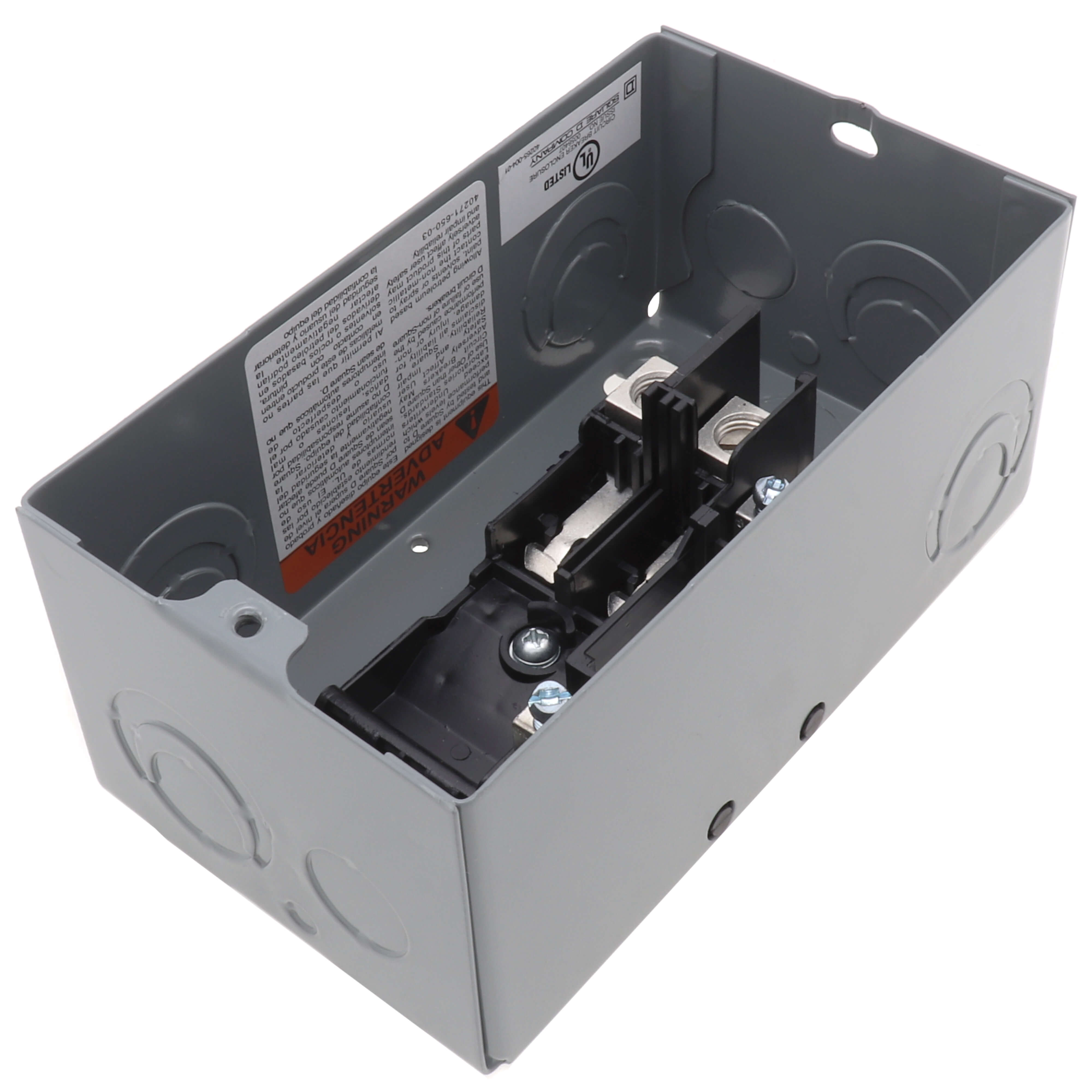

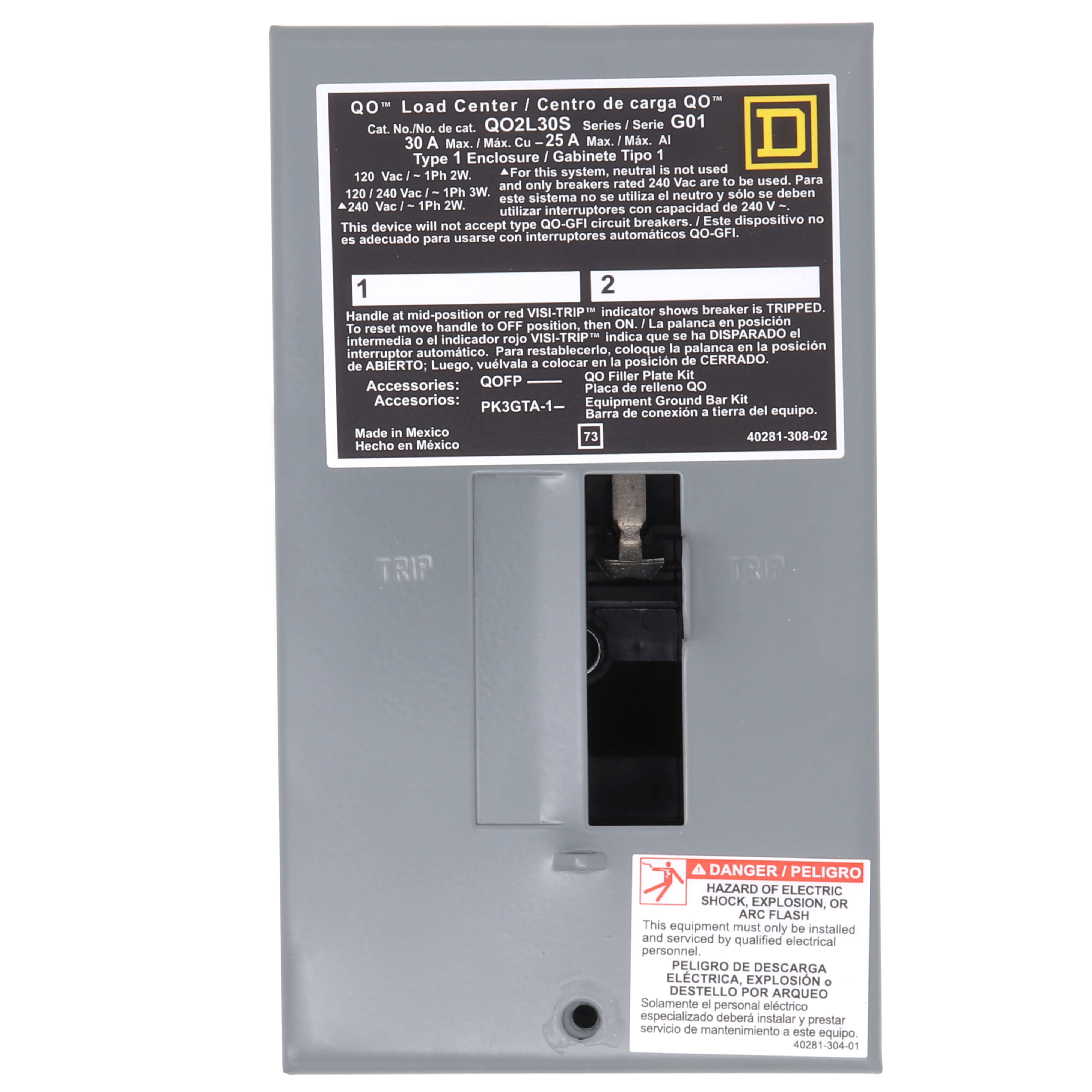

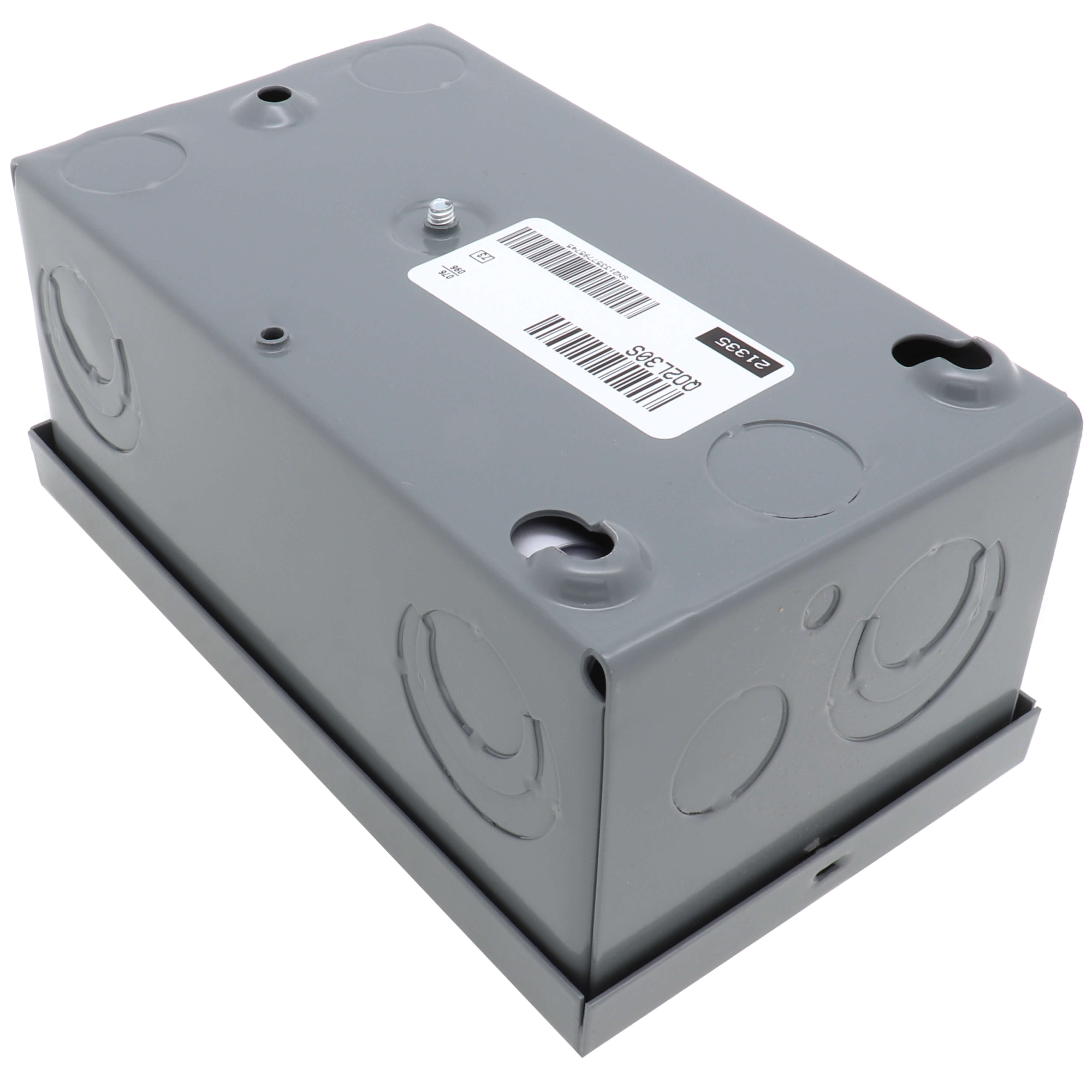

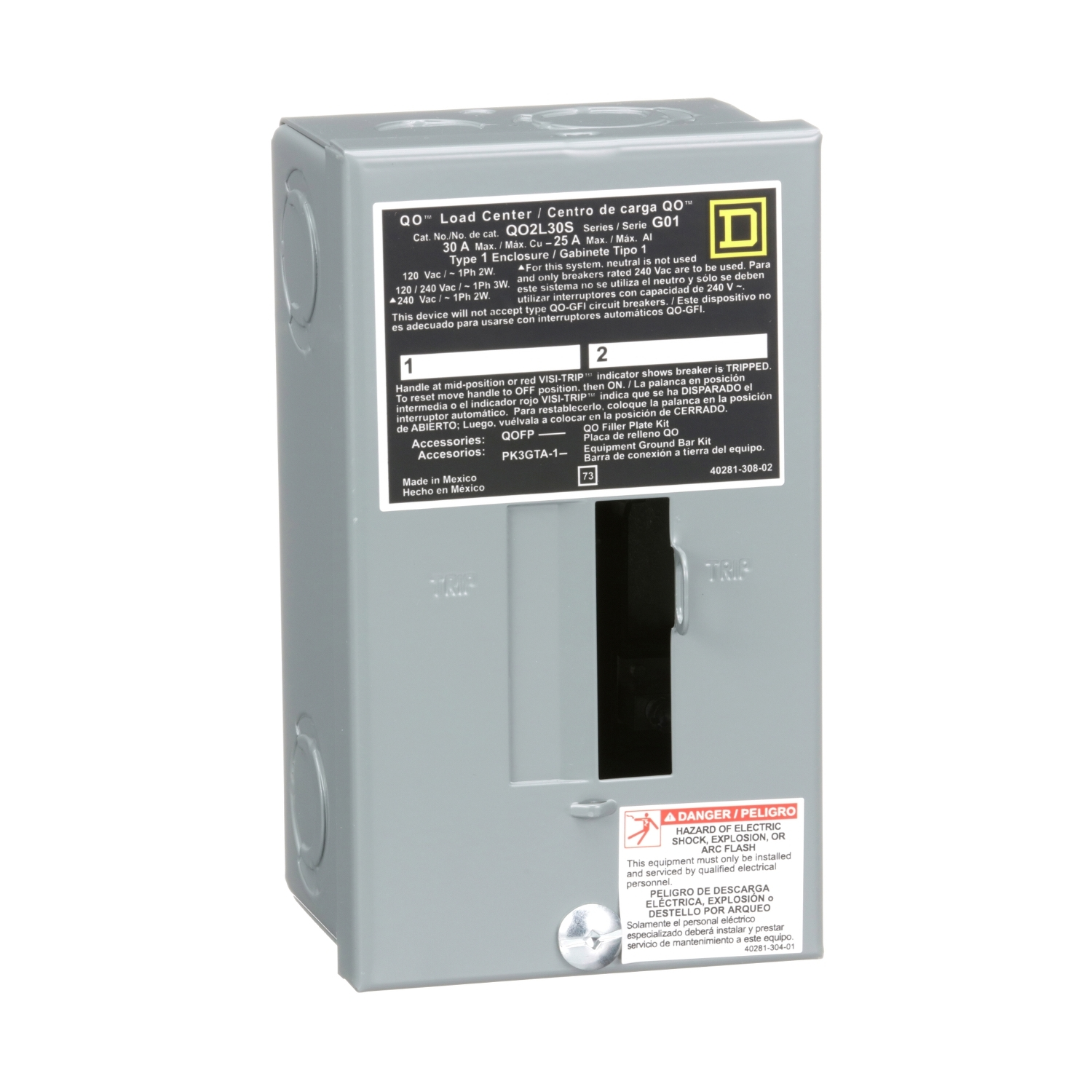

The Square D QO2L30S Load Center is UL Listed and CSA rated. Designed to meet residential, commercial, and industrial requirements, it protects electrical systems, equipment, and people. This load center has a current rating of 30 Amp and a voltage rating of 120/240 Volt. It features a tin-plated aluminum busbar and a NEMA 1 enclosure.
- UL Listed and CSA rated panelboards
- Designed for residential, commercial, and industrial use
- Protects electrical systems, equipment, and people
Product Highlights
The Square D QO2L30S is a reliable load center designed for diverse applications, ensuring the safety and protection of electrical systems.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO2L30S
-
Country of Origin: Mexico
Technical Specifications
-
Type: Load Center
-
Brand: Square D
-
Width: 97 mm
-
Finish: Baked Enamel
-
Height: 171 mm
-
Current: 30 Amp
-
Voltage: 120/240 Volt
-
Amperage: 30 Amp
-
Material: Tin Plated Aluminium: Busbar
-
Enclosure: 1
-
NEMA Size: 1
-
Sub Brand: QO
-
Wire Size: AWG 14...AWG 10 copper;AWG 12...AWG10 aluminium
-
Cable Size: AWG 14...AWG 10 COPPER-AWG 12...AWG10 ALUMINIUM
-
Cover Type: Surface cover
-
Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
-
Certifications: UL
-
Conductor Size: 12-10 AWG (AL)/14-10 AWG (CU)
-
Surface Finish: Baked Enamel Gray
-
Interrupt Rating: 10 kAIC
-
Number of Phases: 1
-
Number of Spaces: 2
-
Country of Origin: Mexico
-
Enclosure Material: Steel
-
Line Rated Current: 30 A
-
Number of Circuits: 2
-
Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
-
Short Circuit Current: 10 kA
-
Phase: 1
-
Item Type: Load Center
-
Enclosure Type: NEMA 1, Indoor
-
Enclosure Size Designation: 1
-
Rated Voltage: 120/240V ac
-
Wiring Configuration: 3-Wire
