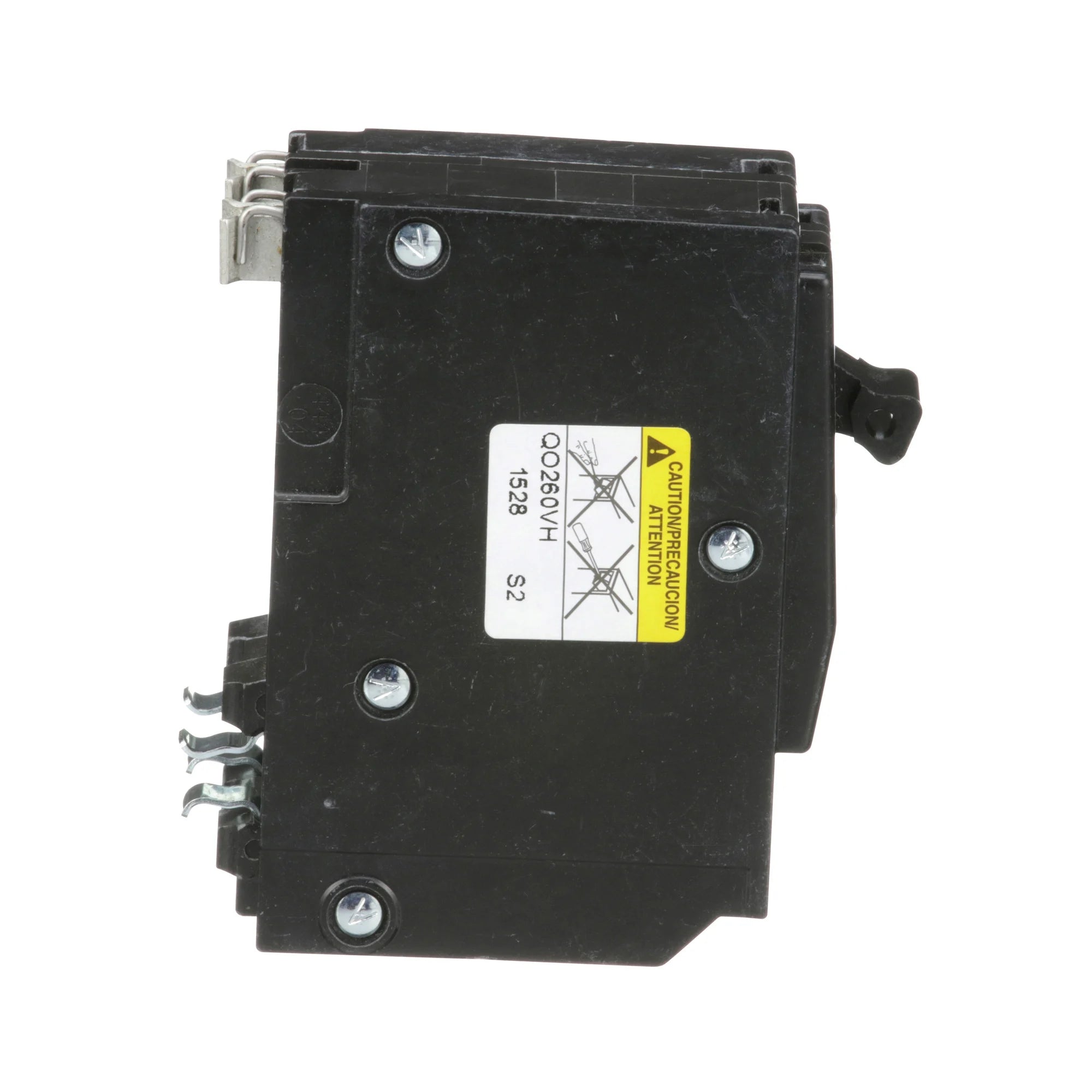

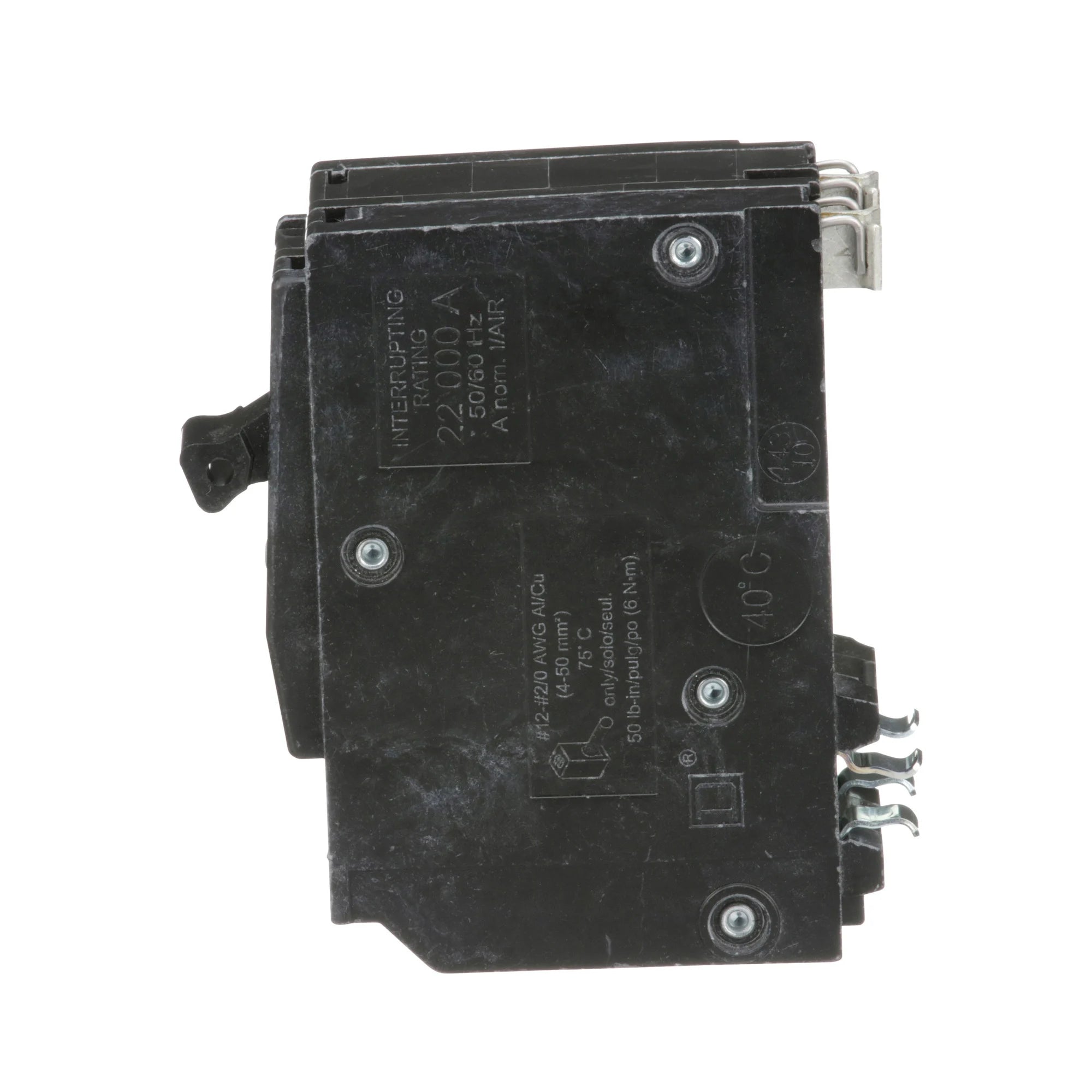

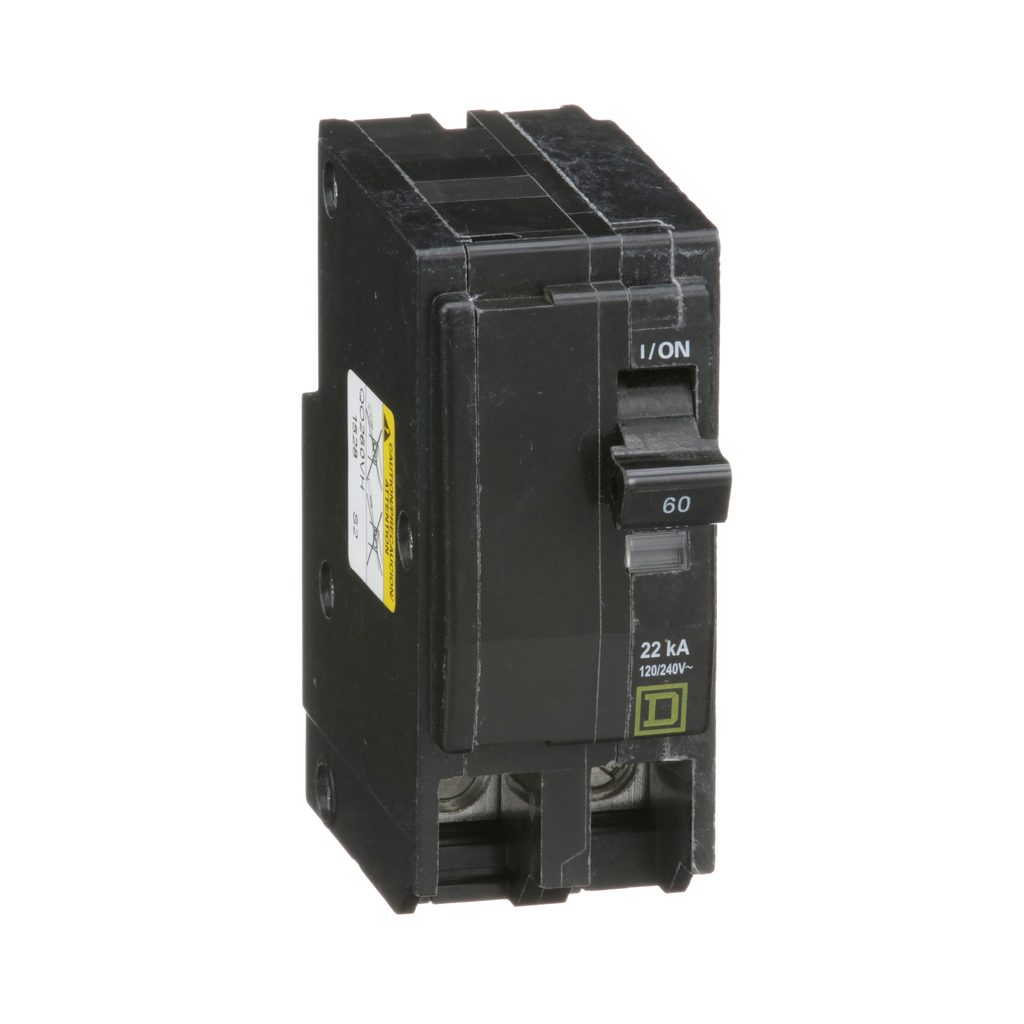

Square D QO260VH Miniature Circuit Breaker 60A 120/240V 2P

Product Description

The Square D QO260VH Miniature Circuit Breaker is designed for reliable overcurrent protection in both alternating current (AC) and direct current (DC) systems. This 60 Amp, 2 pole circuit breaker supports a voltage rating of 120/240V and features a plug-on installation for ease of use.

• Overcurrent and short-circuit protection
• Plug-in mounting for simple installation
• UL and CSA certifications

Product Highlights

This circuit breaker is equipped with a trip-free toggle mechanism and VisiTrip technology, which indicates when a trip occurs. The QO260VH is suitable for use in distribution panels and is rated for HACR applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO260VH
• Voltage Rating: 120/240 VAC
• Current Rating: 60 Amp
• Number of Poles: 2
• Breaking Capacity: 22 kA
• Mounting Type: Plug-in
• Wire Size: AWG 8 to AWG 2 (Copper/Aluminum)
• Warranty: 18 months
