Product Description

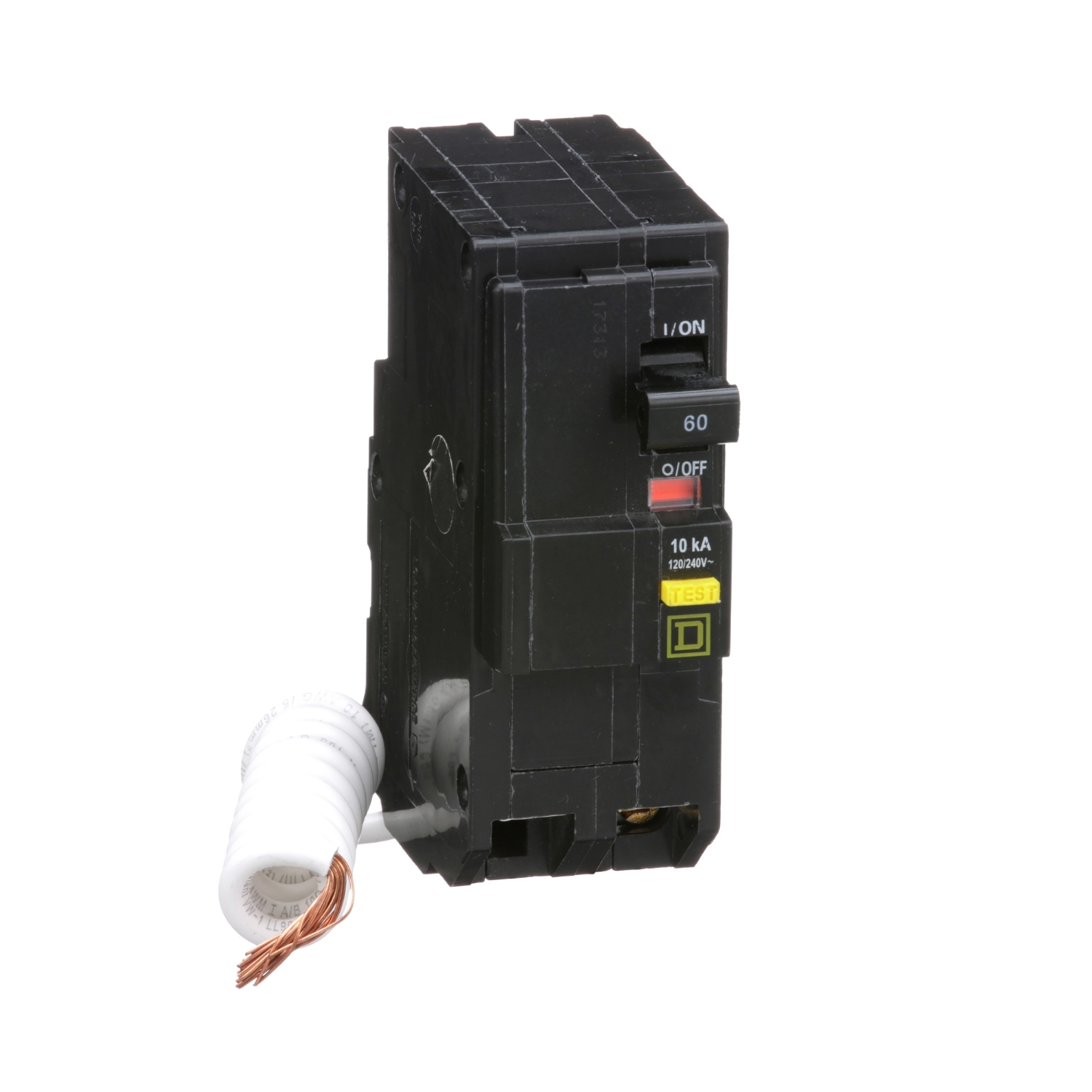

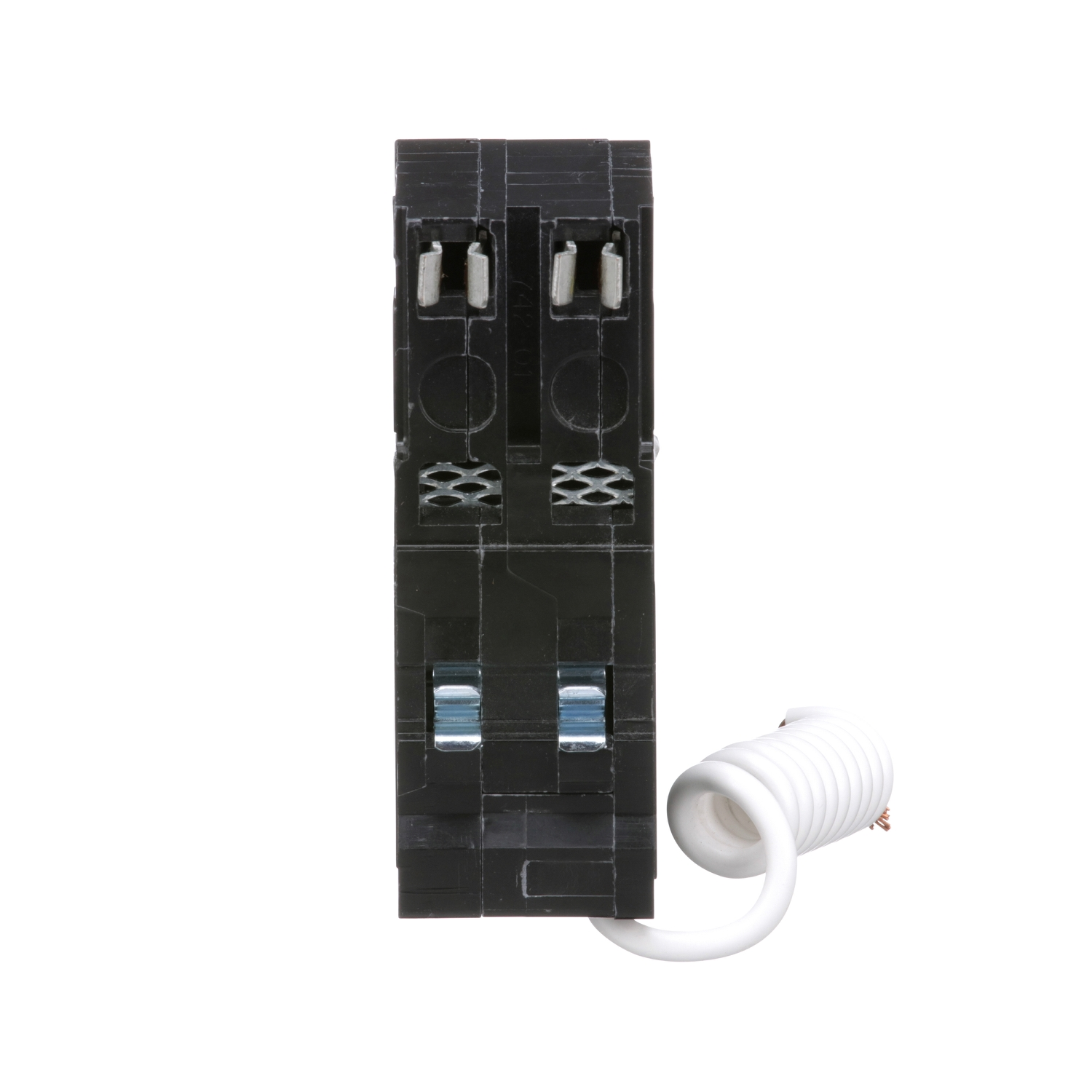

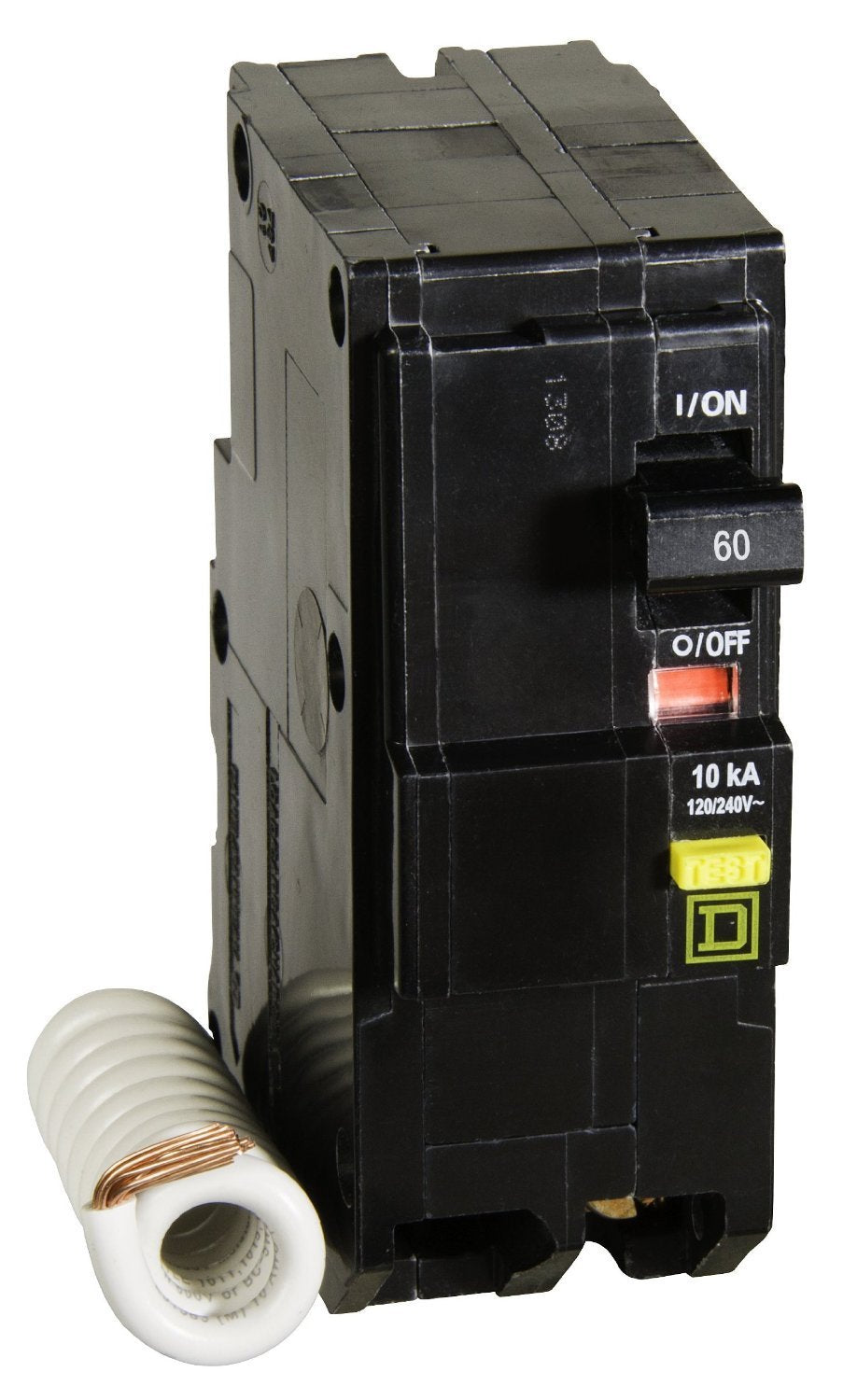

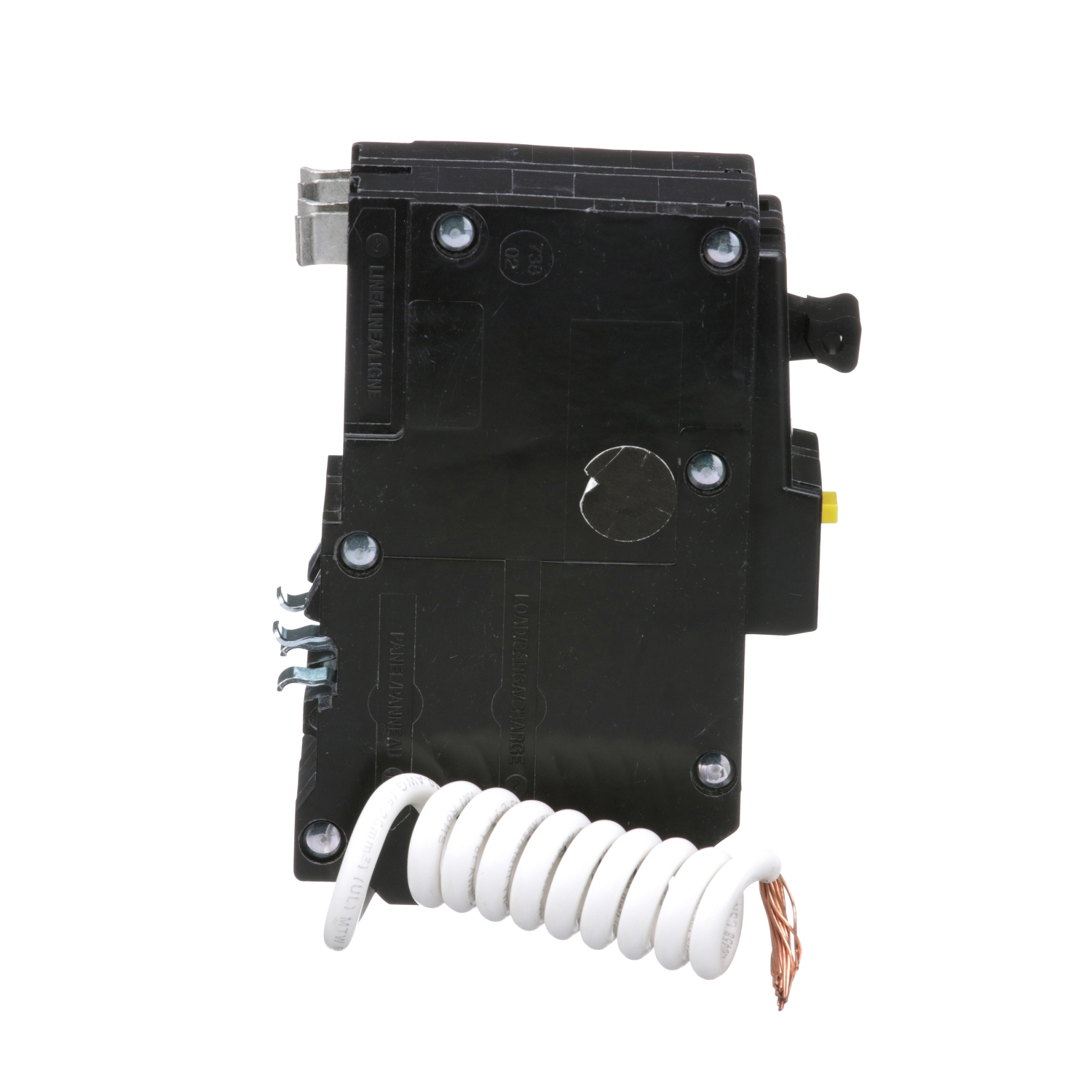

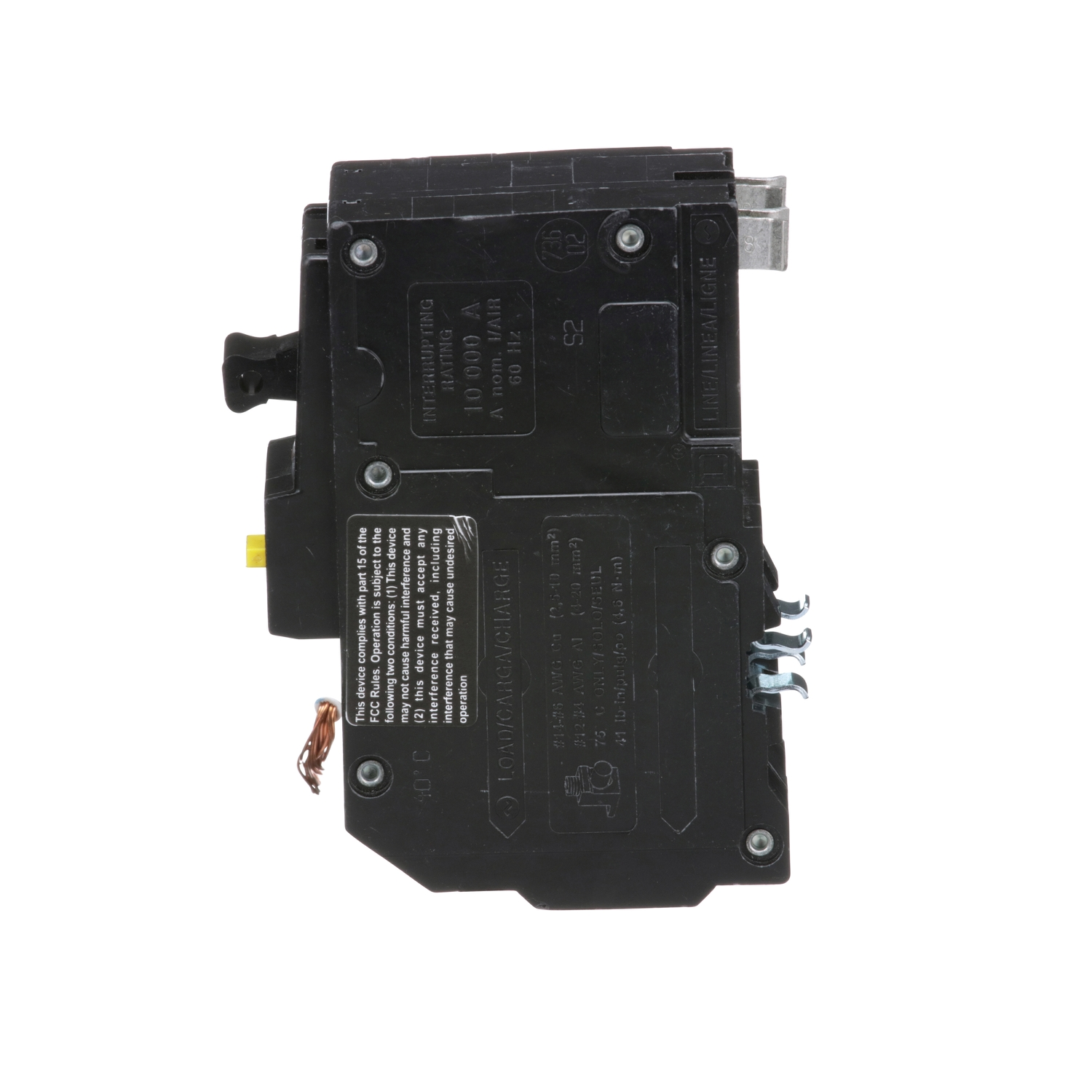

The Square D QO260GFI is a two pole thermal magnetic circuit breaker that provides overcurrent protection and switching on AC and DC systems. This miniature circuit breaker has an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. Rated at 60A, 120/240 VAC with 10 kA breaking capacity and Class A 6mA ground fault protection with pigtail.
- Provides overcurrent protection and switching on AC and DC systems
- Features VisiTrip trip indication
- UL Listed and CSA Certified
Product Highlights
The Square D QO260GFI circuit breaker is suitable for switching 120 Vac fluorescent lighting loads.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO260GFI
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Current: 60 Amp
-
Voltage: 120 Volt
-
Amperage: 60 Amp
-
Sub Brand: QO
-
Wire Size: AWG 12...AWG 4 aluminium;AWG 14...AWG 6 copper NULL
-
Product UPC: 78590176487
-
12-Digit UPC: 785901764878
-
Mounting Type: Plug-in
-
TC Connection: Box lugs
-
Certifications: CSA,UL Listed
-
Conductor Size: 12-4 AWG (AL)/14-6 AWG (CU)
-
Number of Poles: 2 Pole
-
Interrupt Rating: 10 kAIC
-
Line Rated Current: 60 A
-
Circuit Breaker Type: GFCI
-
Short Circuit Current: 10 kA
-
Phase: 1Ph
-
Ground Fault: Class A 6mA with pigtail
-
Wire Size (Copper): 14 AWG to 6 AWG
-
Wire Size (Aluminum): 12 AWG to 4 AWG
-
Voltage Rating: 120/240 VAC
-
Mounting: Plug-On
-
Used On: QO Loadcenter, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
-
Approval: UL, CSA
-
Application: Provides Overload and Short Circuit Protection
-
Frequency: 60 hz
-
Trip Sensitivity: 6 milliampere
-
Poles: 2
-
Frame: QO
-
Trip Type: Thermal Magnetic
-
Amperage Rating: 60
-
Connection Type: Box Lug
-
Frequency Rating: 50/60
-
Temperature Rating: 40
-
Amperage Rating UOM: A
-
Frequency Rating UOM: Hz
-
Interrupt Rating UOM: kA
-
Temperature Rating UOM: deg C
-
Voltage Rating UOM: VAC
-
Series: QO
-
Terminal Connection: Box Lug
-
Min. Wire Size: 12 AWG
-
Max. Wire Size: 6 AWG
-
Item model number: QO260GFI
-
Material: Copper
-
Item Package Quantity: 1
-
Batteries Included?: No
-
Batteries Required?: No
-
Breaker Type: QO
-
SKU: QO260GFI
-
Protection: Thermal Magnetic
-
Trip Functions: LI - Long-Time and Instantaneous
-
AC Voltage Rating: 120/240VAC
-
DC Voltage Rating: 48VDC
-
For Use With: QO Load Centers and NQOD Panelboards
-
Standards: UL Listed, CSA Certified
-
Max. AIR Rating: 10 kA
-
Range Of Product: QO
-
Product Or Component Type: miniature circuit-breaker
-
Circuit Breaker Application: not rated
-
Mounting Mode: plug-in
-
Poles Description: 2P
-
Electrical Connection: box lugs
-
[Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
-
Alternative Part Number: 8161844
-
Current Rating: 60 Amps
