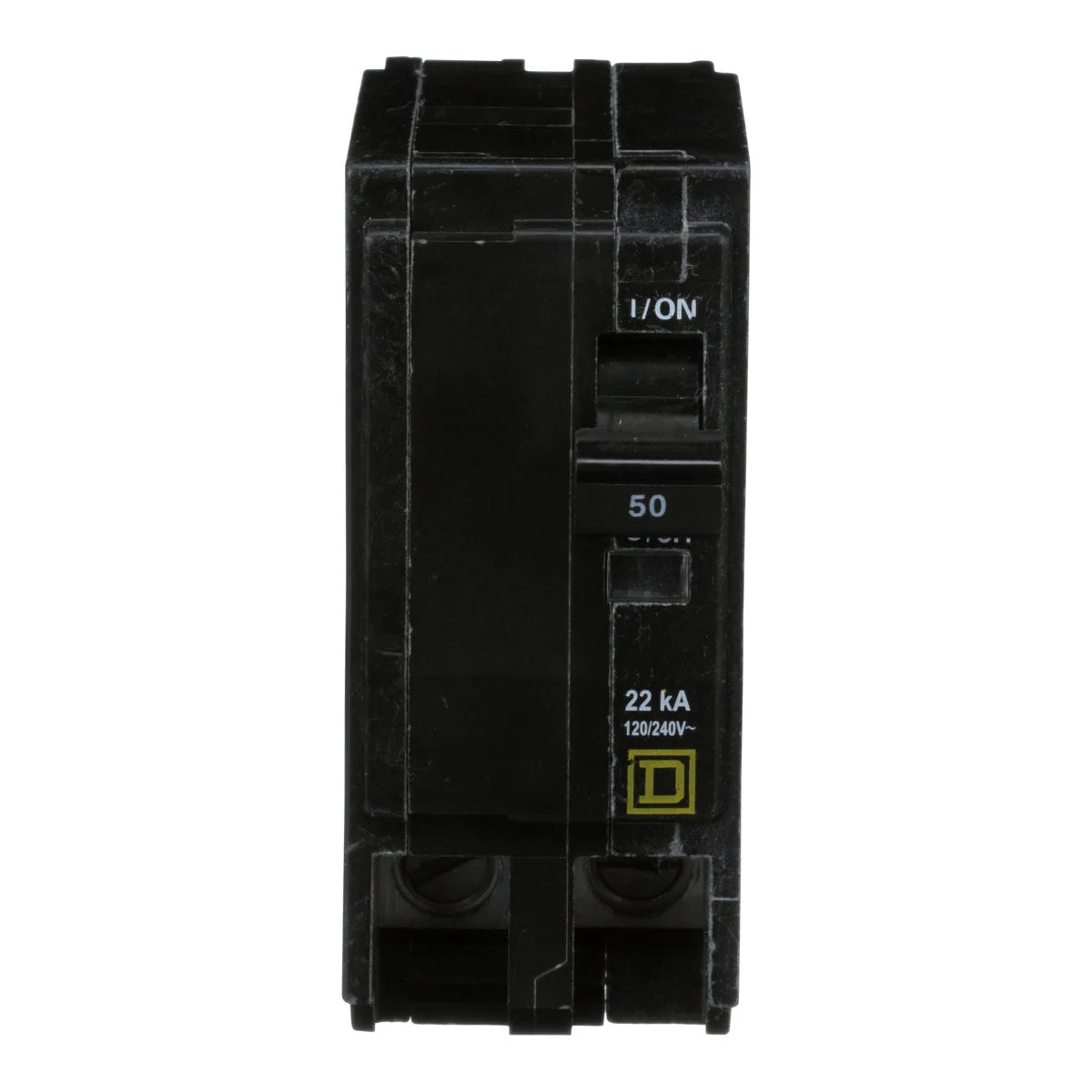

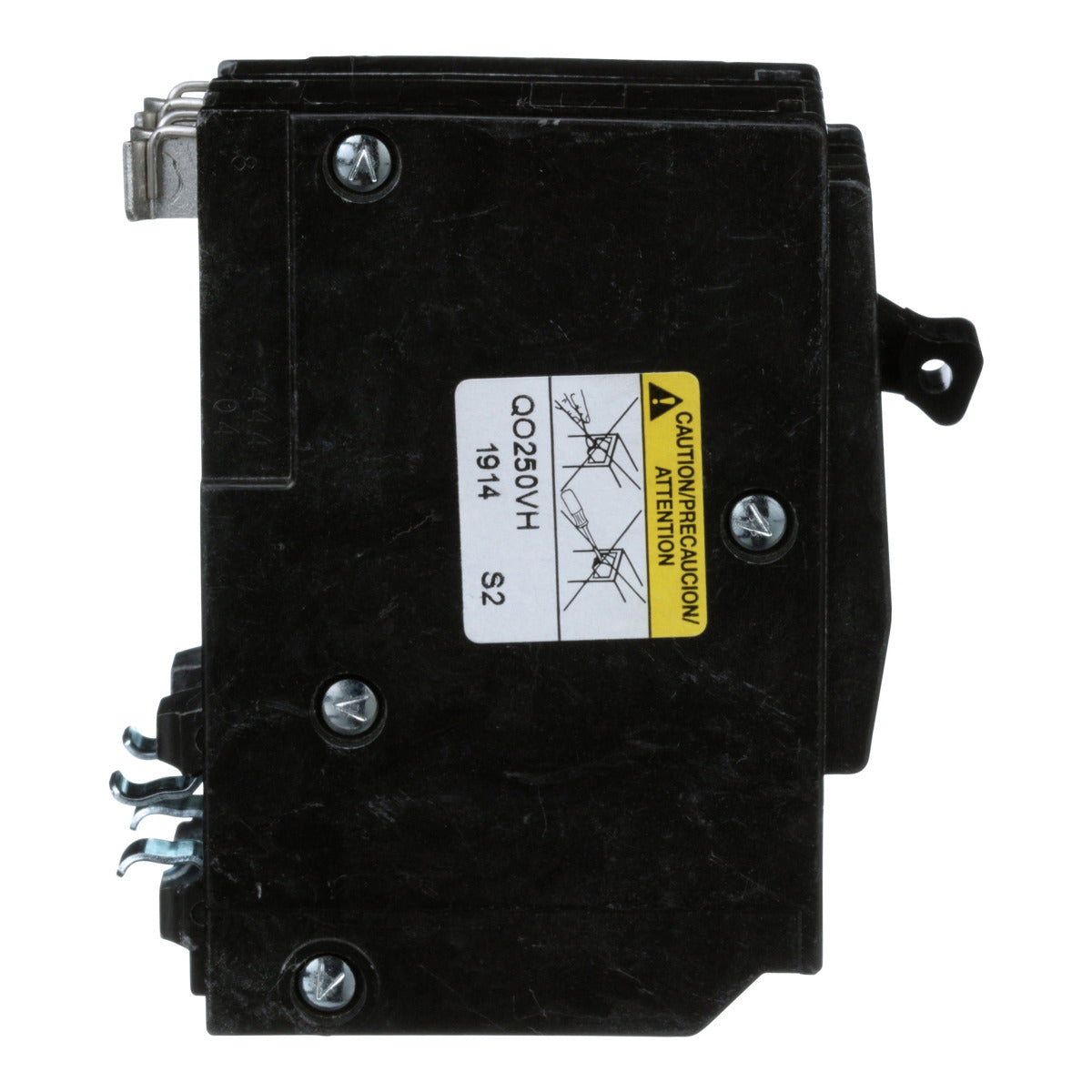

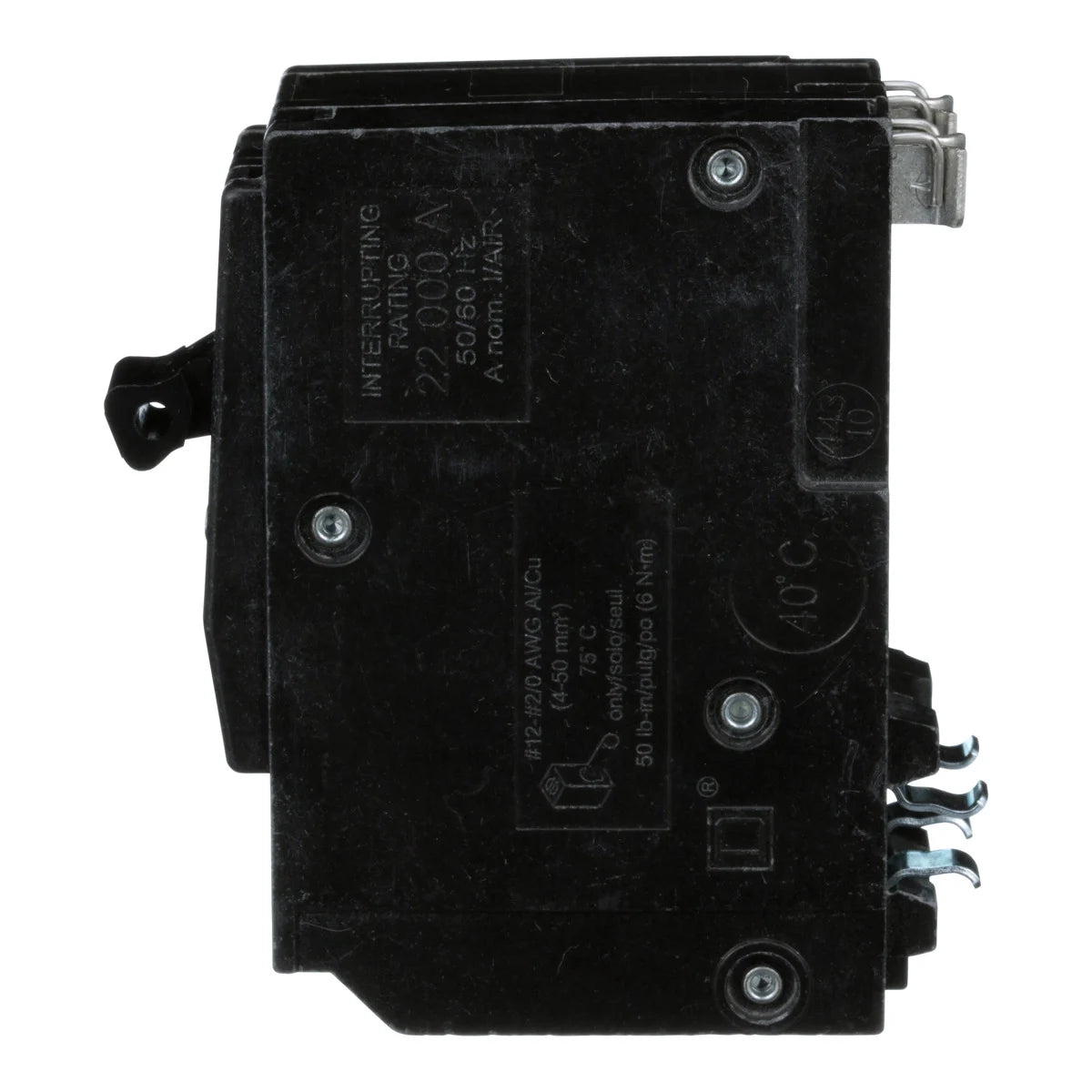

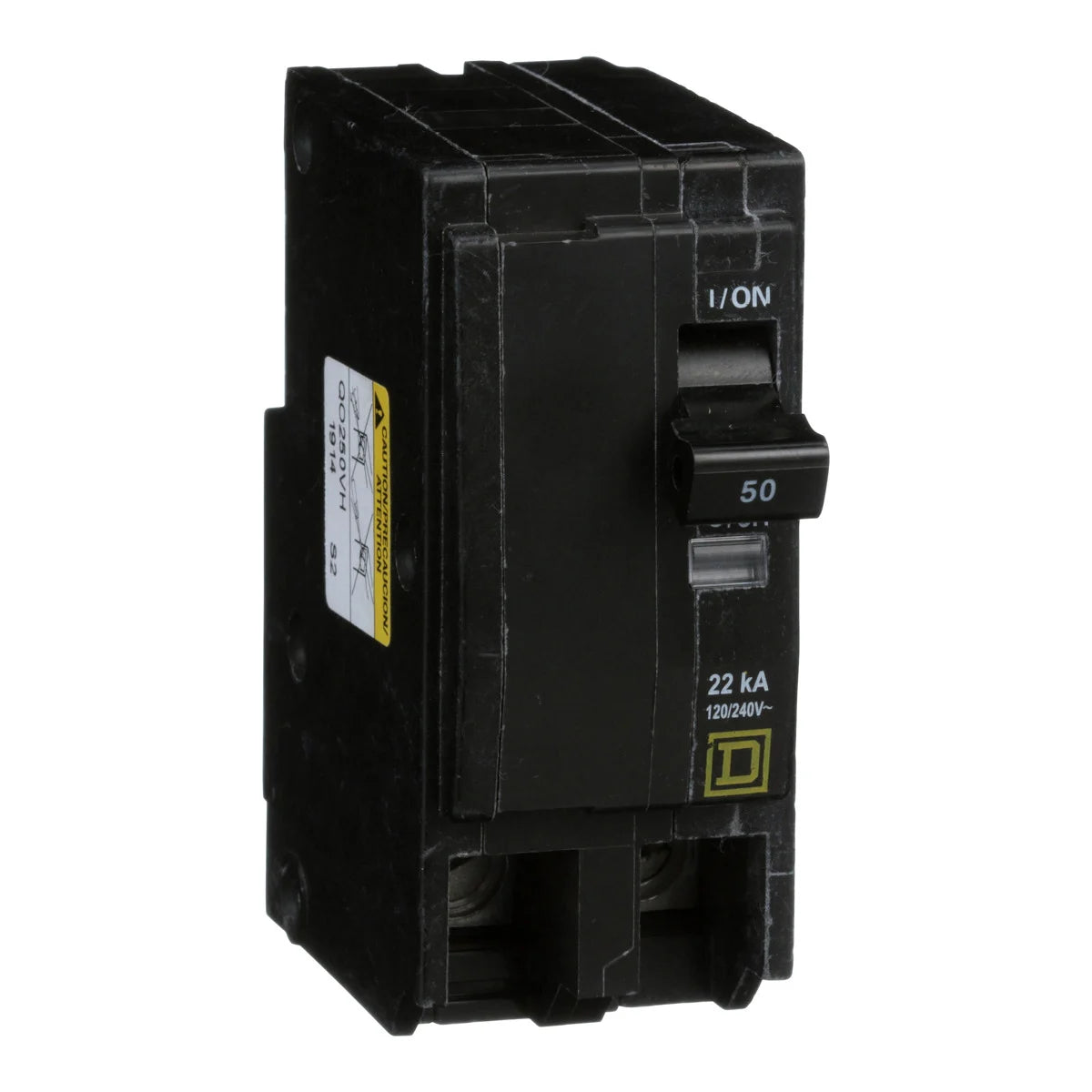

Square D QO250VH Miniature Circuit Breaker 50A 120/240V 1Ph Plug-On

Product Description

The Square D QO250VH miniature circuit breaker is designed to provide reliable overcurrent protection for your electrical systems. With a rating of fifty amps at one hundred twenty to two hundred forty volts, this breaker is suitable for residential and light commercial applications. It features a plug-on design for easy installation, providing a strong connection in your distribution panel.

• Two-pole configuration with a rating of 50A.
• UL Listed and CSA Certified for safety and reliability.
• Features VisiTrip technology for clear trip indication.

Product Highlights

This circuit breaker has a breaking capacity of twenty-two kA which makes it suitable for handling moderate to high electrical loads. Its trip-free toggle mechanism ensures that the circuit is interrupted immediately during an overload or fault condition. Additionally, it can accommodate a wire size range from AWG eight to AWG two for both copper and aluminum conductors.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO250VH
• Current Rating: 50 Amps
• Voltage Rating: 120/240VAC
• Mounting Type: Plug-in
• Number of Poles: 2
• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
• Operating Temperature: 40 Degrees C
