Product Description

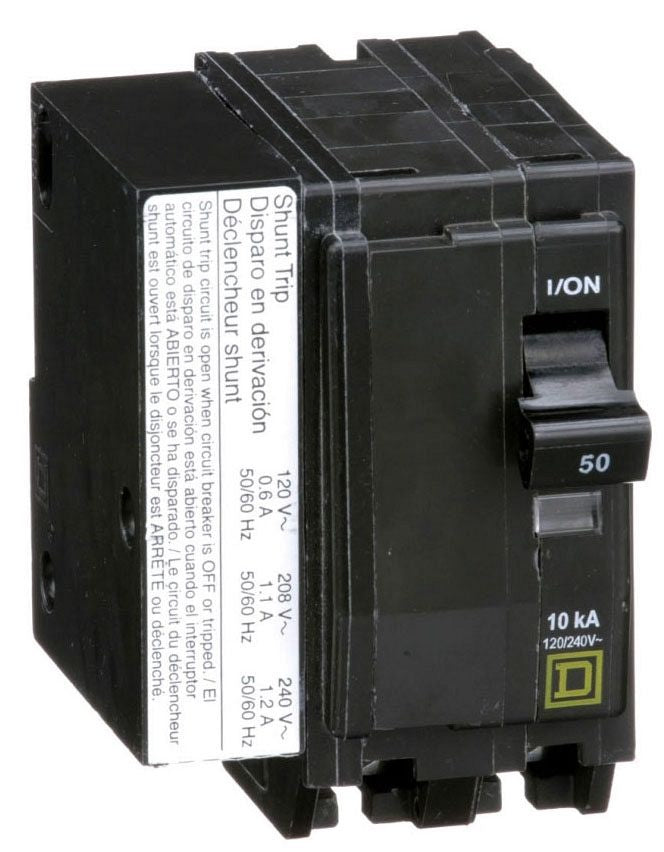

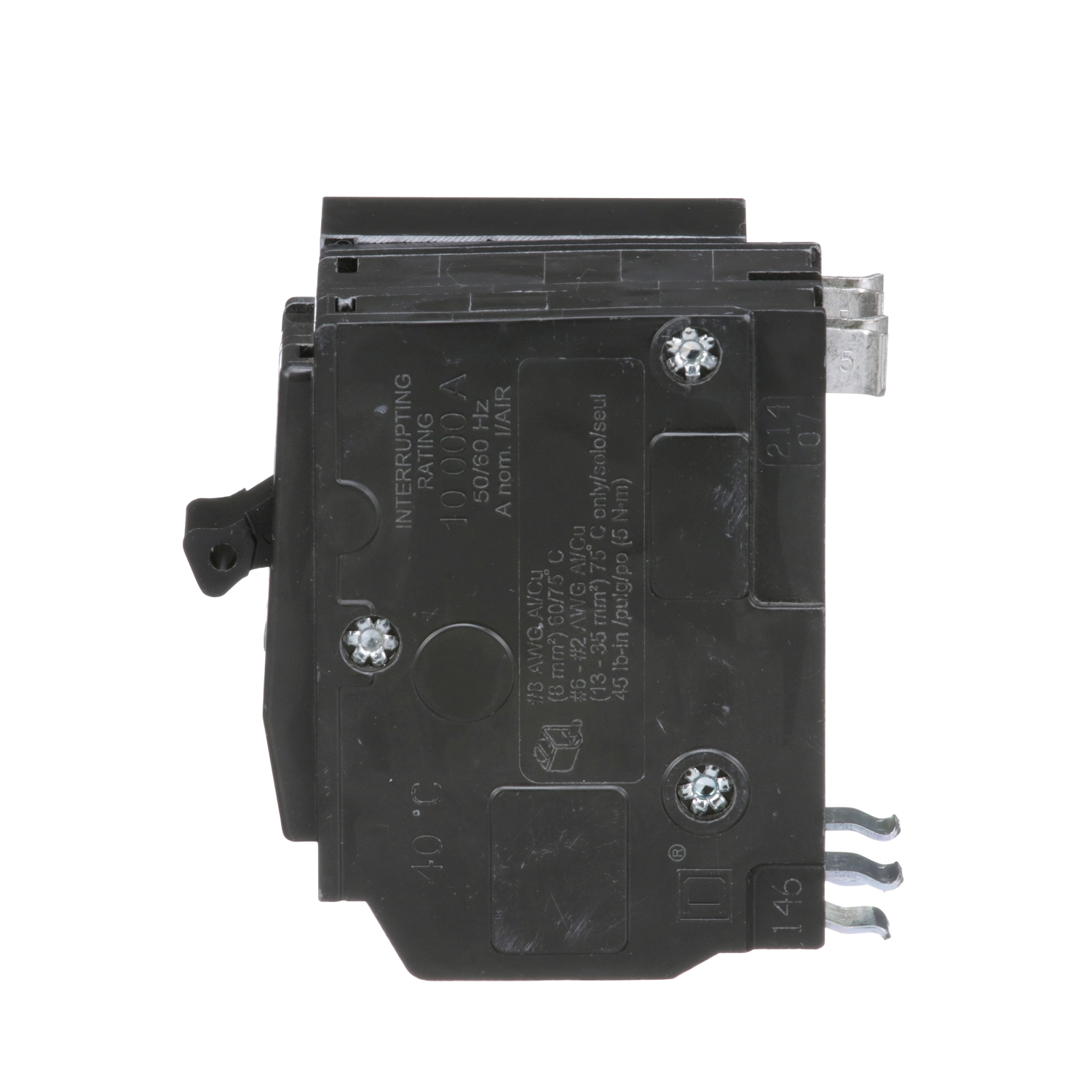

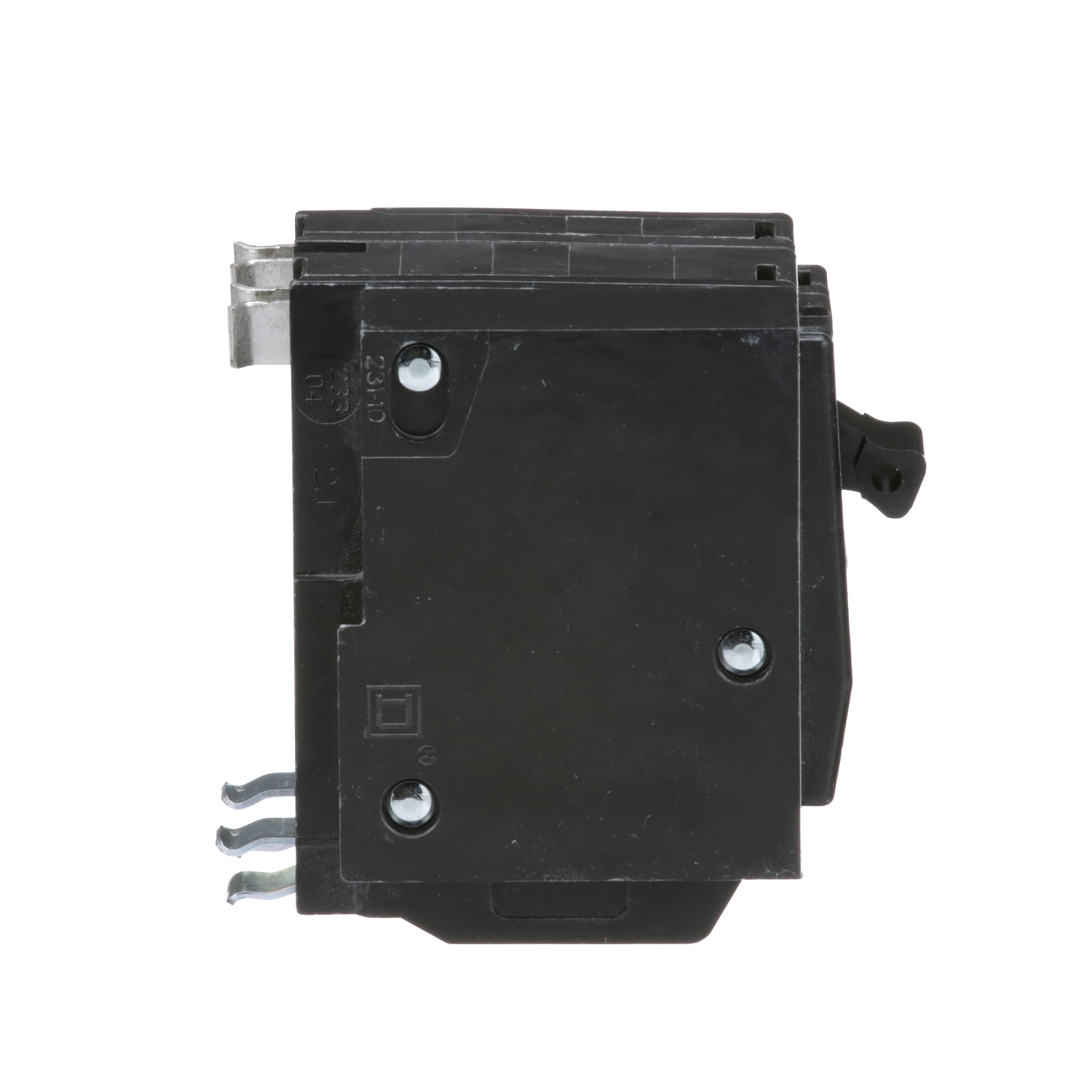

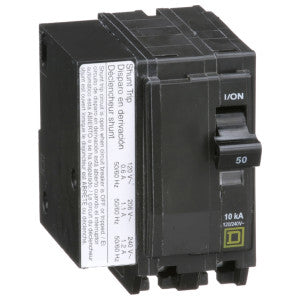

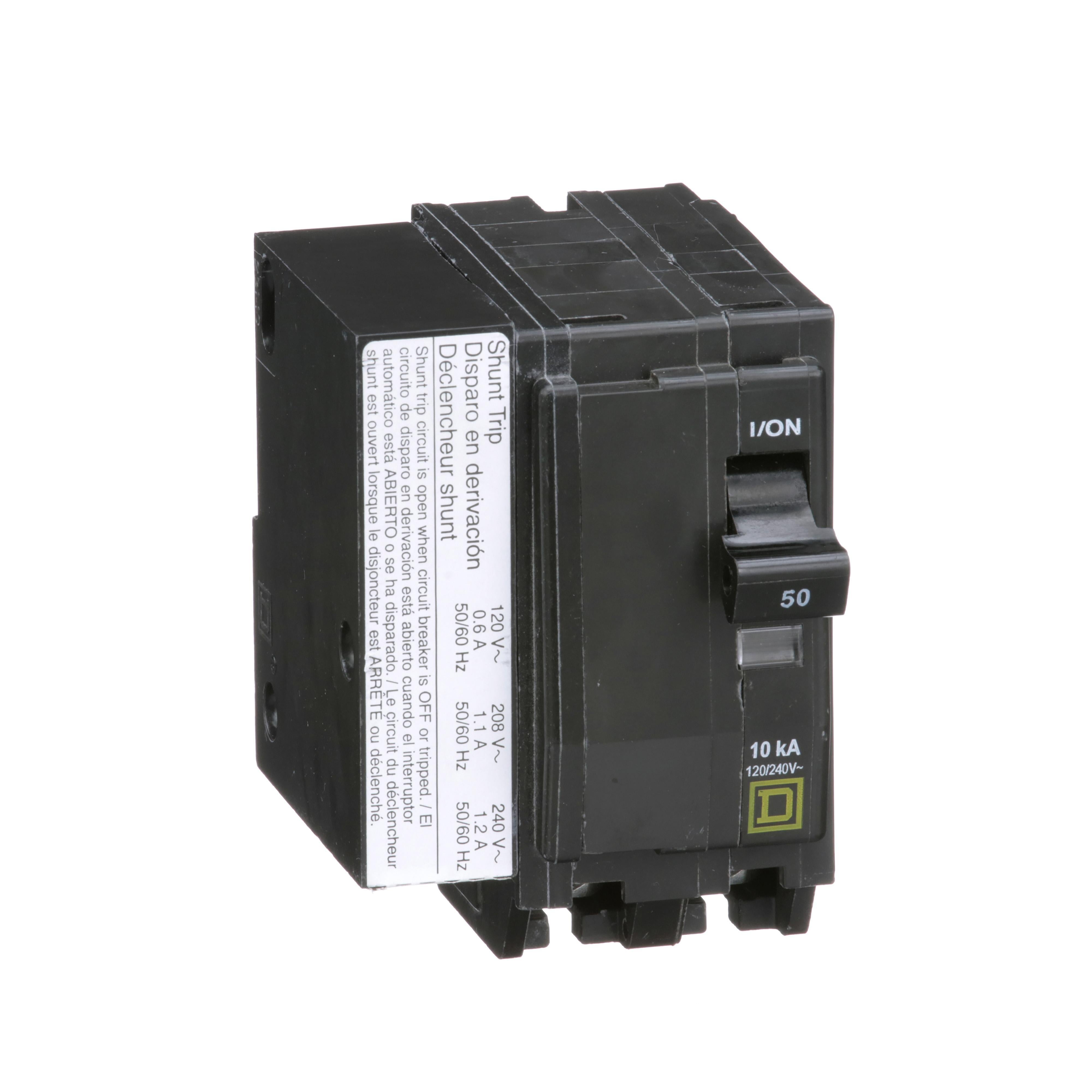

The Square D QO2501021 is a miniature circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 2-pole breaker is rated at 50A at 120/240VAC and has a 10kA breaking capacity with plug-in mounting. It features an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication.
- Provides overcurrent protection and switching on AC and DC systems
- Features VisiTrip trip indication for visual indication of tripped circuit breaker
- UL Listed and CSA Certified
Product Highlights
The Square D QO2501021 miniature circuit breaker offers reliable circuit protection with a shunt trip, quick installation, and clear trip indication.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO2501021
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Current: 50 Amp
-
Voltage: 120/240 VAC
-
Amperage: 50 Amp
-
Sub Brand: QO
-
Wire Size: AWG 8...AWG 2 copper or aluminium
-
Product UPC: 78590149401
-
12-Digit UPC: 785901494010
-
Applications: HACR rated
-
Mounting Type: Plug-in
-
TC Connection: Box lugs
-
Certifications: CSA,UL Listed
-
Conductor Size: 8-2 AWG
-
Number of Poles: 2 Pole
-
Interrupt Rating: 10 kA
-
Line Rated Current: 50 A
-
Circuit Breaker Type: Standard
-
Short Circuit Current: 10 kA
-
UPC: 785901494010
-
GTIN: 00785901494010
-
Terminal Type: Box Lug
-
Mounting: Plug On
-
Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
-
Approval: UL, CSA
-
Frequency Rating: 50/60 Hz
-
Phase: 1
-
Alternative Part Number: 8070628
-
Series: QO
-
AWG Range: AWG 8...AWG 2
-
Current Rating: 50A
-
Rated Voltage: 120/240V ac
-
Torque: 5-5 N.m
-
Electrical Connection: box lugs
-
Breaking Capacity: 10 kA 120/240 V AC || 10 kA 120 V AC
-
AWG Gauge: AWG 8...AWG 2 copper or aluminium
-
Number Of Spaces Required: 3
-
Tightening Torque: 5-5 N.m
-
Product Certifications: UL Listed || CSA
-
Ambient Air Temperature For Operation: 40 °C
-
Material: Fiberglass Filled Thermoset
-
Trip Type: Shunt/Thermal Magnetic
-
Connection: Box Lug Connection
-
Wire: 8 to 2 AWG Wire
-
Poles: 2 Pole
