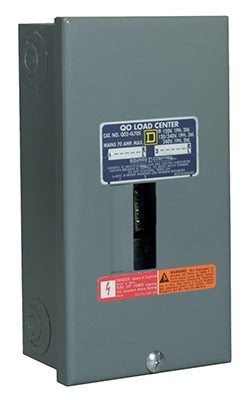

Square D QO24L70SCP 70A Main Lug Load Center 2 Space

Product Description

The Square D QO24L70SCP is a 70-amp main lug load center designed for surface-mount installation in single-phase electrical distribution applications. Rated at 120/240 volts, it provides 2 spaces and supports up to 4 single-pole circuit positions using QO-series circuit breakers. The enclosure includes a solid neutral bar and a cover, making it a complete unit ready for installation. A licensed electrician installs this panel in residential or light commercial settings where a main breaker is located upstream. When configured as a service entrance, the separately available ground bar kit PK4GTA is required.

This load center is suited for residential subpanel installations and small service applications where a compact, surface-mounted distribution point is needed. It accepts QO-style circuit breakers and is listed as suitable for use as service equipment. When serving as a service entrance panel, installers must add the PK4GTA ground bar kit to meet code requirements for separated neutral and ground buses. Typical applications include garages, outbuildings, and additions fed from a main panel.

Key Features

• 70-amp main lug rating for use with an upstream disconnect or main breaker
• Surface-mount enclosure with cover included
• 2 spaces, accommodating up to 4 single-pole QO circuit breakers
• 120/240-volt single-phase solid neutral configuration
• Listed as service equipment when used with the PK4GTA ground bar kit
• Compatible with Square D QO-series branch circuit breakers

Compatibility

Designed for use with Square D QO-series circuit breakers. When used as a service entrance panel, the PK4GTA ground bar kit is required. Refer to the manufacturer documentation for the full list of compatible QO breaker types.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream feed and verify the circuit is dead with a meter before working inside the enclosure. This is a main lug panel, so a separate upstream disconnect or main breaker is required. When configuring as a service entrance, install the PK4GTA ground bar kit to maintain proper separation of neutral and ground conductors as required by NEC.
