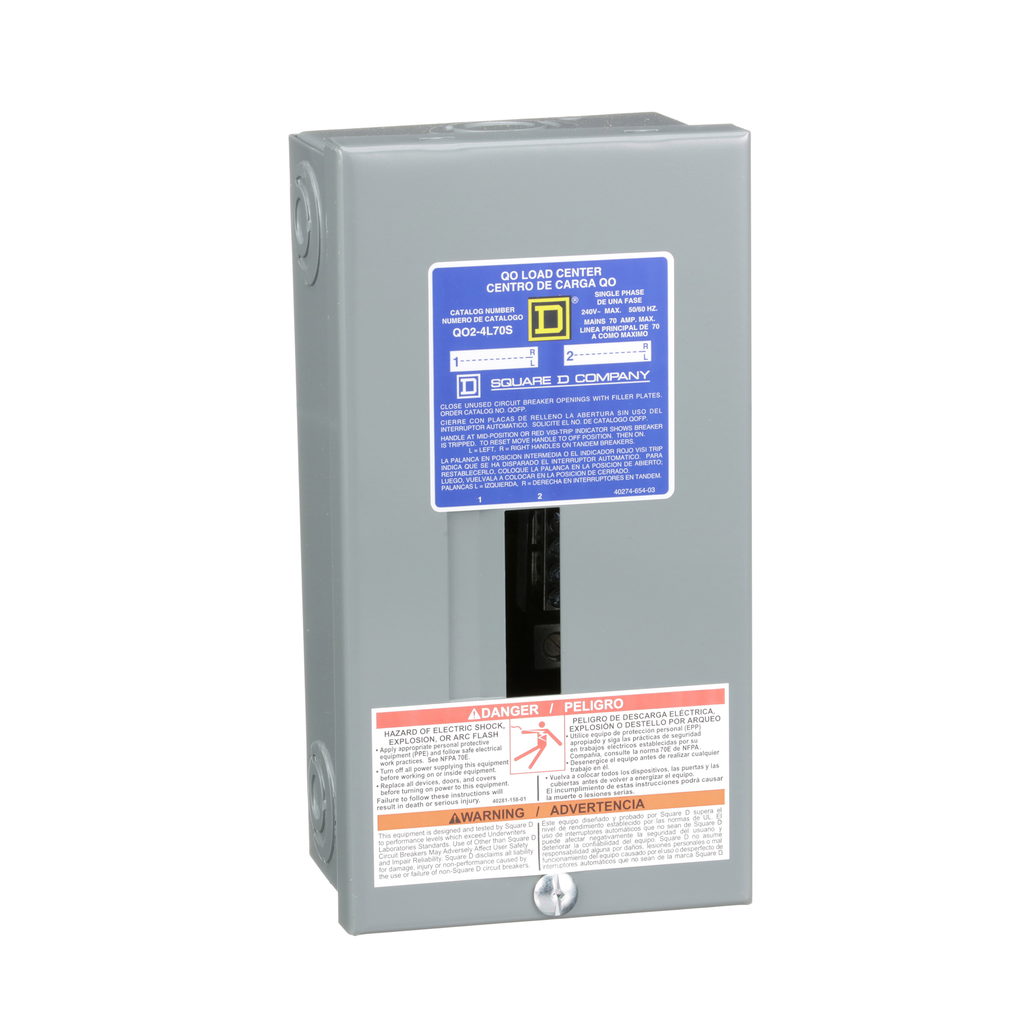

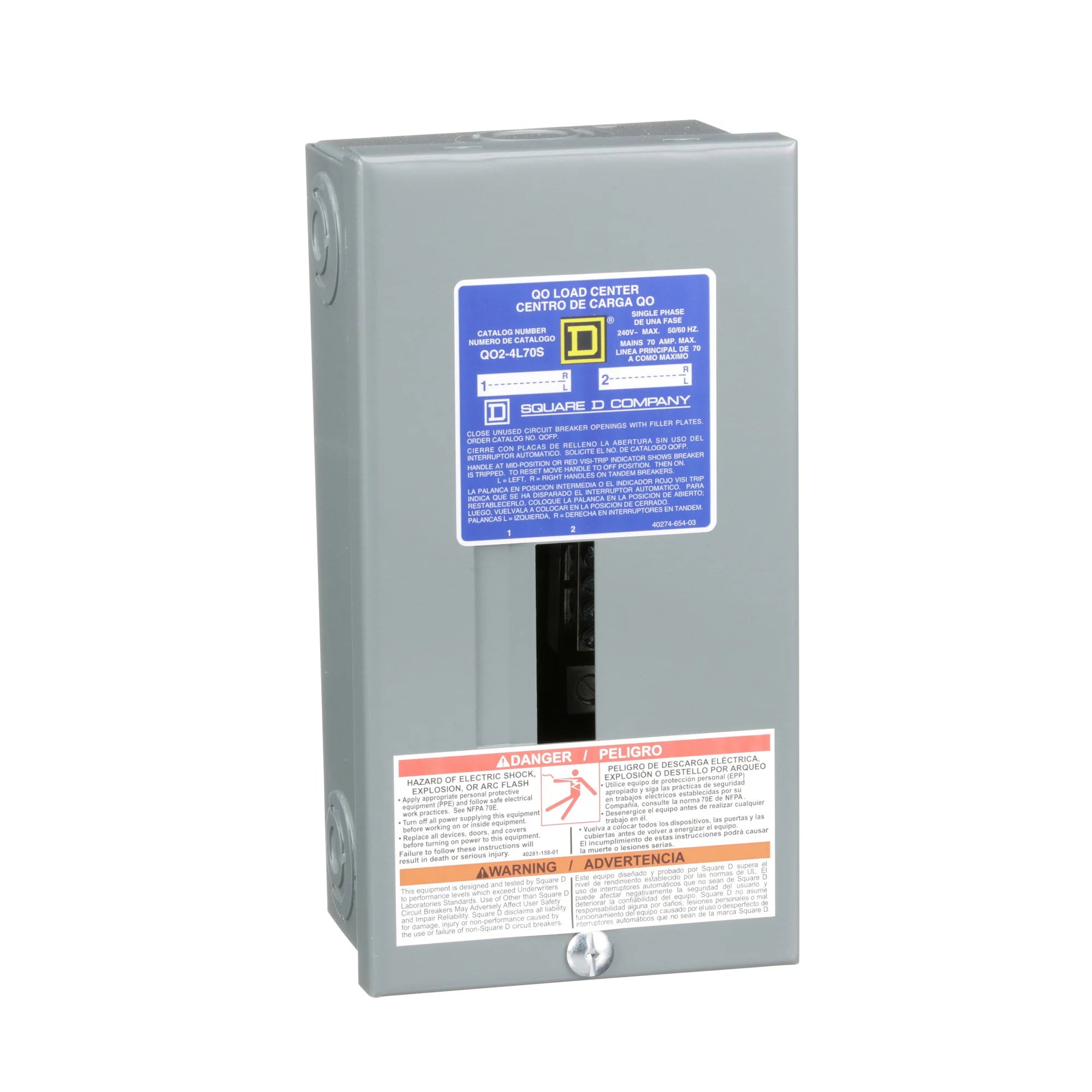

Square D QO24L70S Load Center SFC 70A 120/240V 1Ph 2SP NEMA-1

Product Description

The Square D QO24L70S Load Center is a reliable solution for managing electrical systems. This load center is rated for seventy amps and supports a voltage of one hundred twenty to two hundred forty volts single phase. It includes two spaces and is equipped with a surface cover. Designed for both residential and industrial applications, this product provides effective protection for electrical systems and equipment.

• Includes fixed main rated at 70A 120/240VAC
• 65 kA breaking capacity
• Surface cover with NEMA 1 indoor rating

Product Highlights

The QO Load Center supports installation of QO breakers, ground fault interrupters, and surge arresters, making it versatile for various environments. It allows for easy access to circuit management and can accommodate a variety of wiring configurations and accessories.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO24L70S
• Current Rating: 70 Amp
• Voltage Rating: 120/240 Volt
• Number of Spaces: 2
• Dimensions: Height 9.30 inches, Width 4.81 inches, Depth 3.19 inches
• Wire Size Compatibility: AWG 12 to AWG 3 aluminum; AWG 14 to AWG 4 copper
• Enclosure Material: Steel
• Certification: UL Listed
