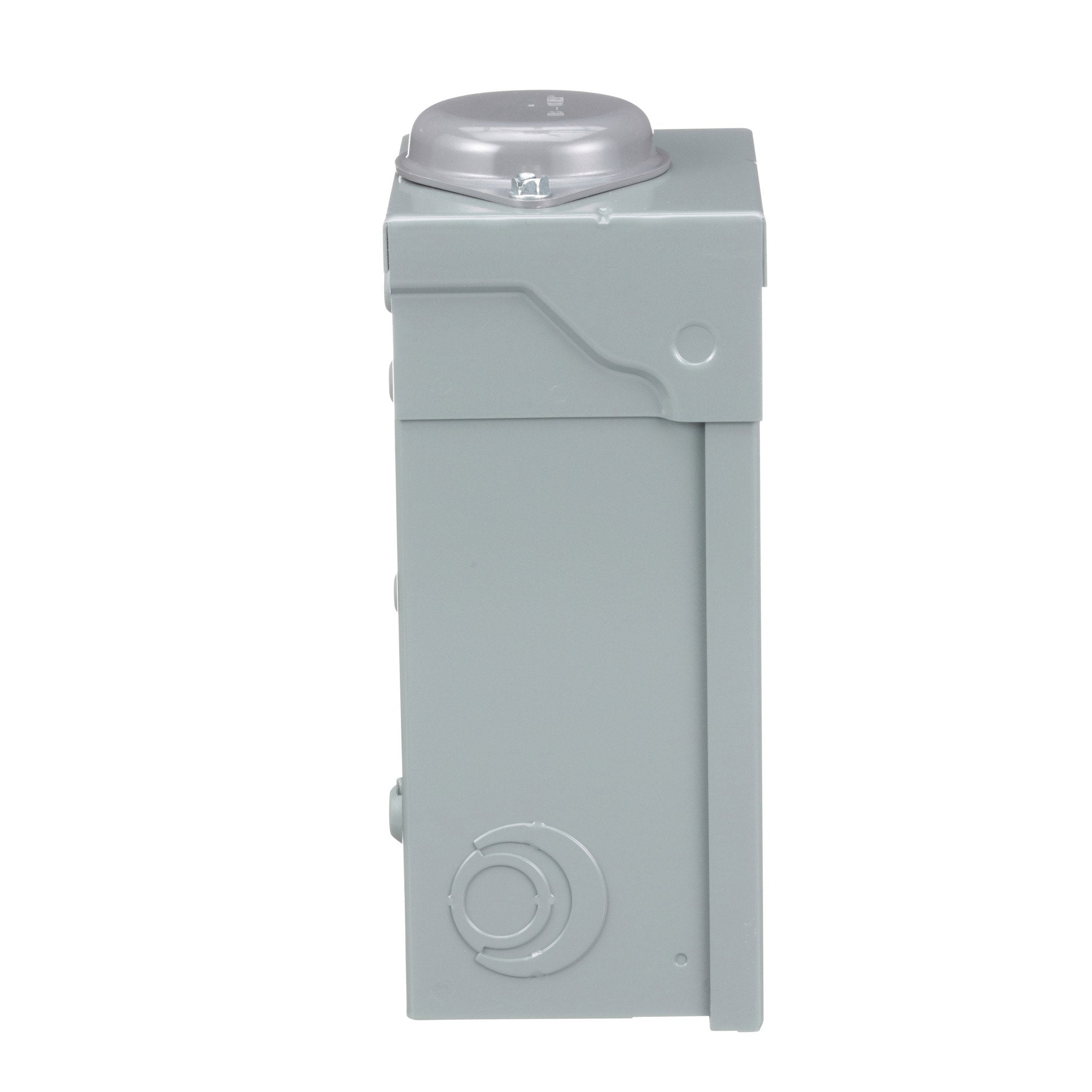

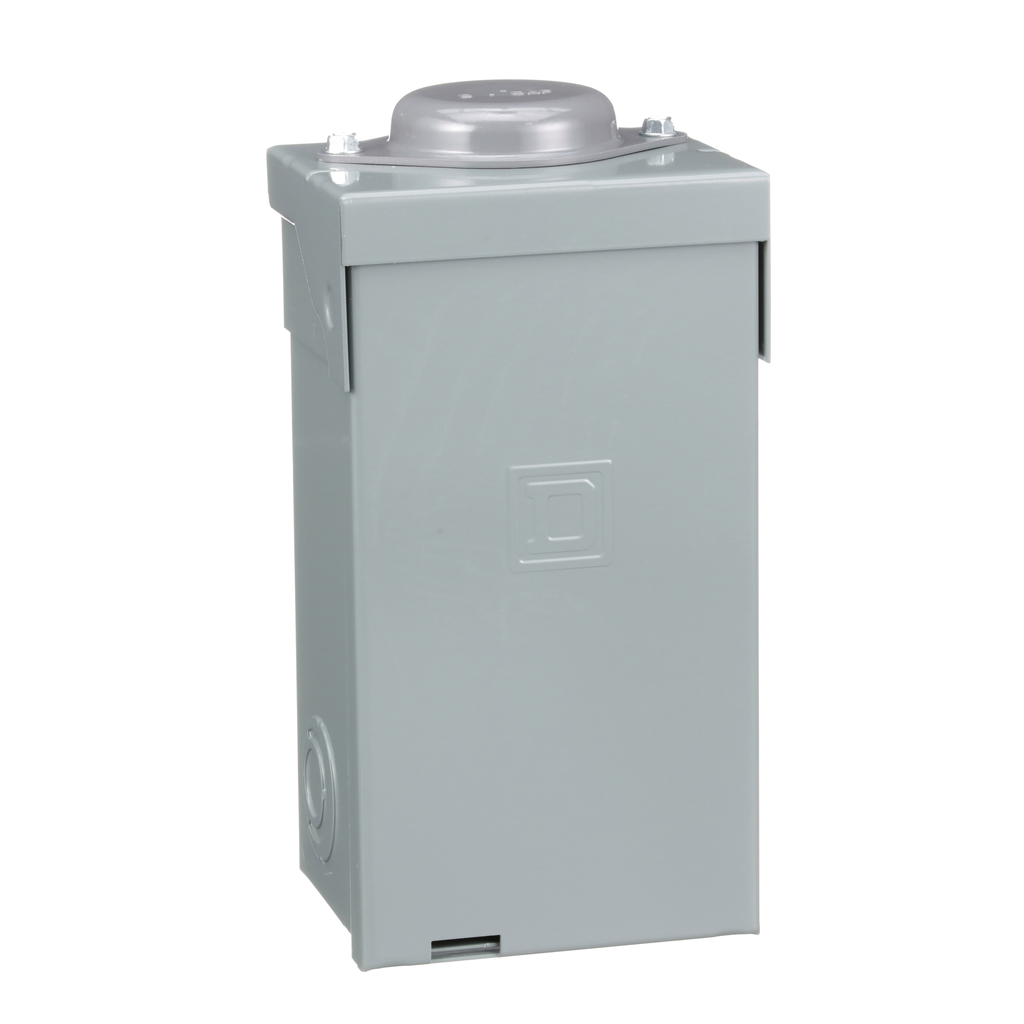

Square D QO24L70RB Load Center MLO 70A 120/240V 1Ph 2SP NEMA-3R

Product Description

The Square D QO24L70RB Load Center MLO is a reliable panelboard designed for various electrical applications. With a rated current of seventy amperes, it is suited for residential, commercial, and industrial use. This load center features a NEMA three R enclosure, ensuring durability and protection against environmental elements.

• UL Listed and CSA rated for safety and compliance.
• Two spaces and four circuits for flexibility in electrical configuration.
• Enclosure allows for both indoor and outdoor installations.

Product Highlights

The QO series load centers are designed to safeguard electrical systems while offering multiple configuration options. The load center supports a range of wire sizes and is compatible with various circuit breakers for customized installation.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Type: Load Center

Technical Specifications

• Catalog Number: QO24L70RB
• Current Rating: 70 Amp
• Voltage Rating: 120/240 Volt
• Number of Spaces: 2
• Number of Circuits: 4
• Enclosure Rating: NEMA 3R
• Dimensions: Width: 124 mm; Height: 238 mm
• Material: Welded galvannealed steel with baked enamel finish
