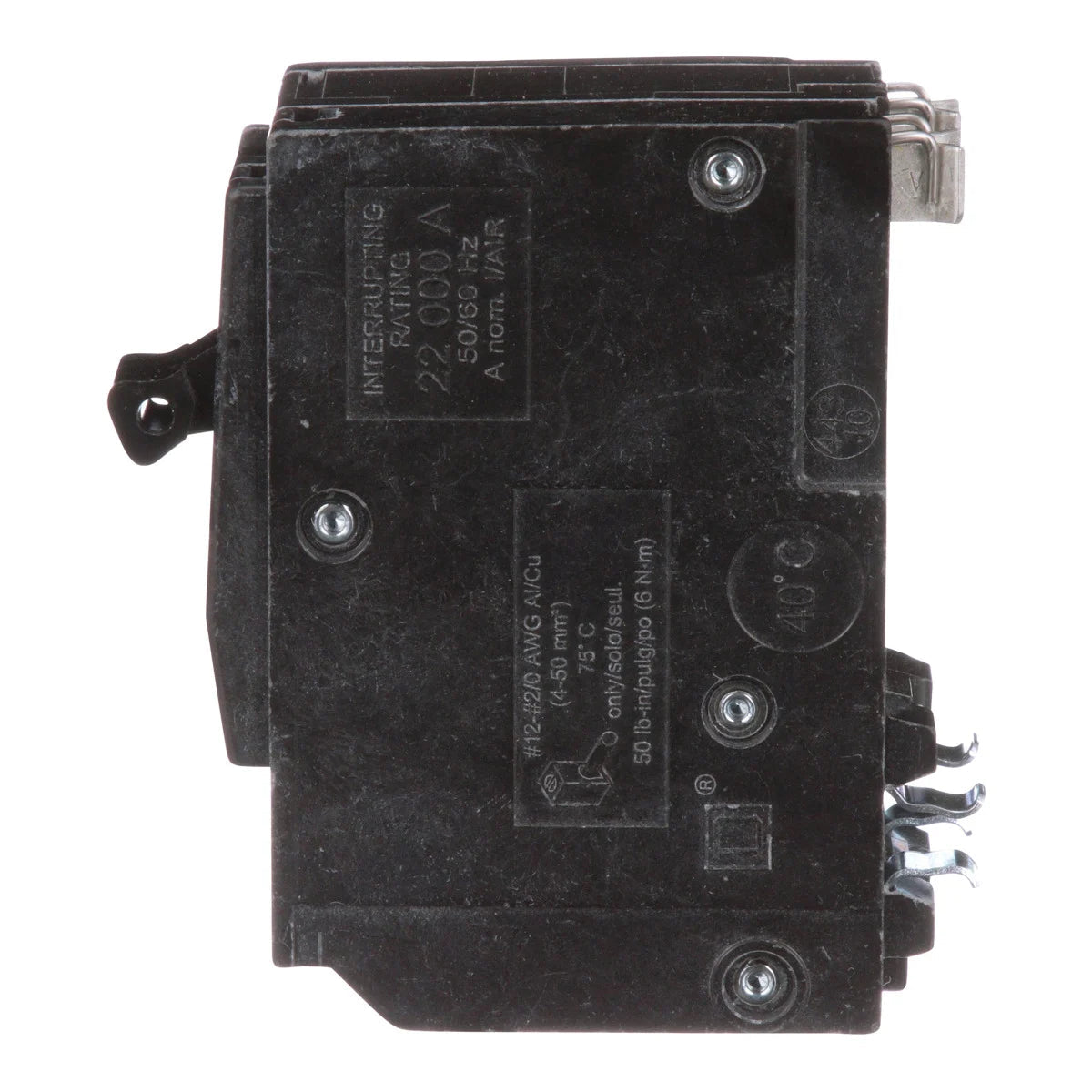

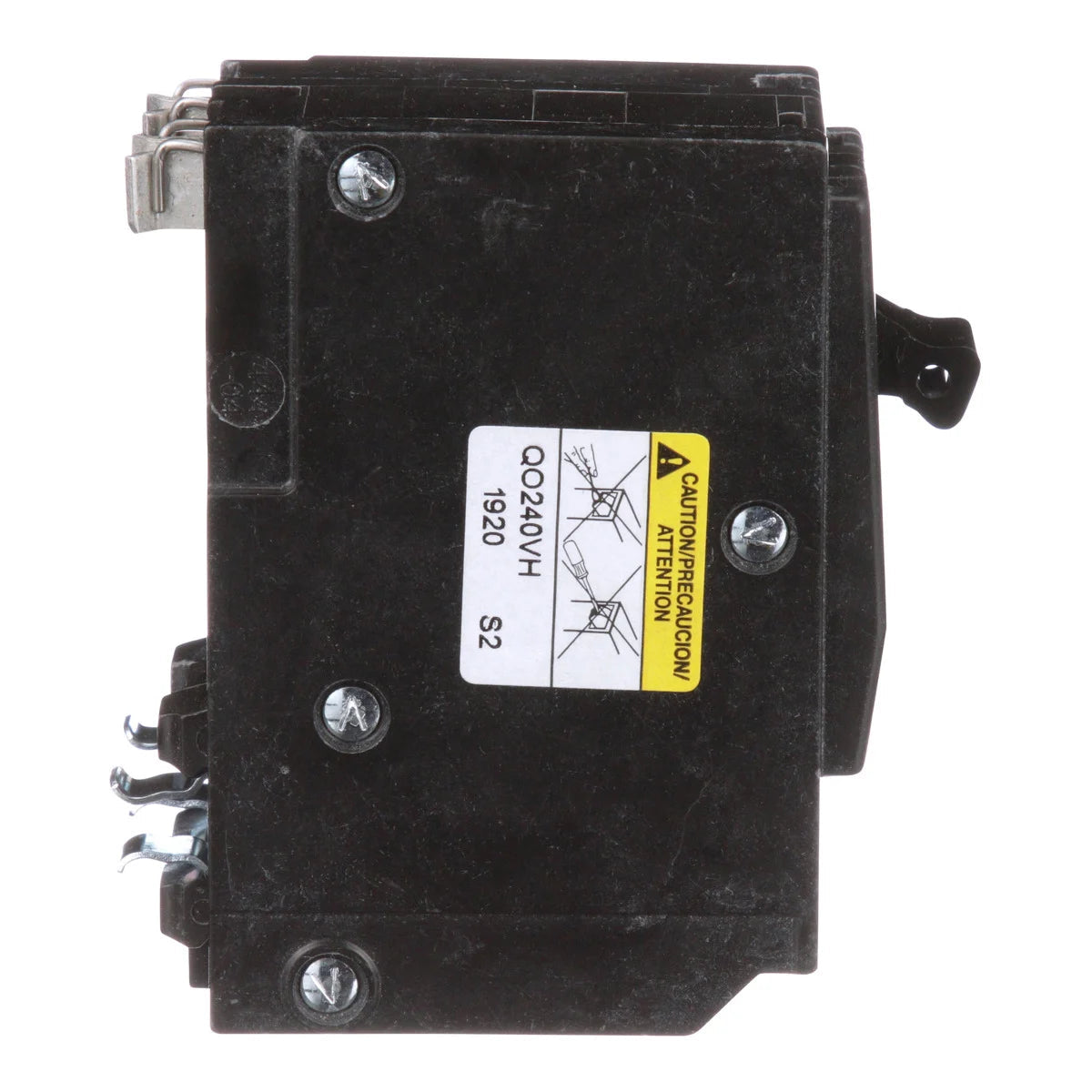

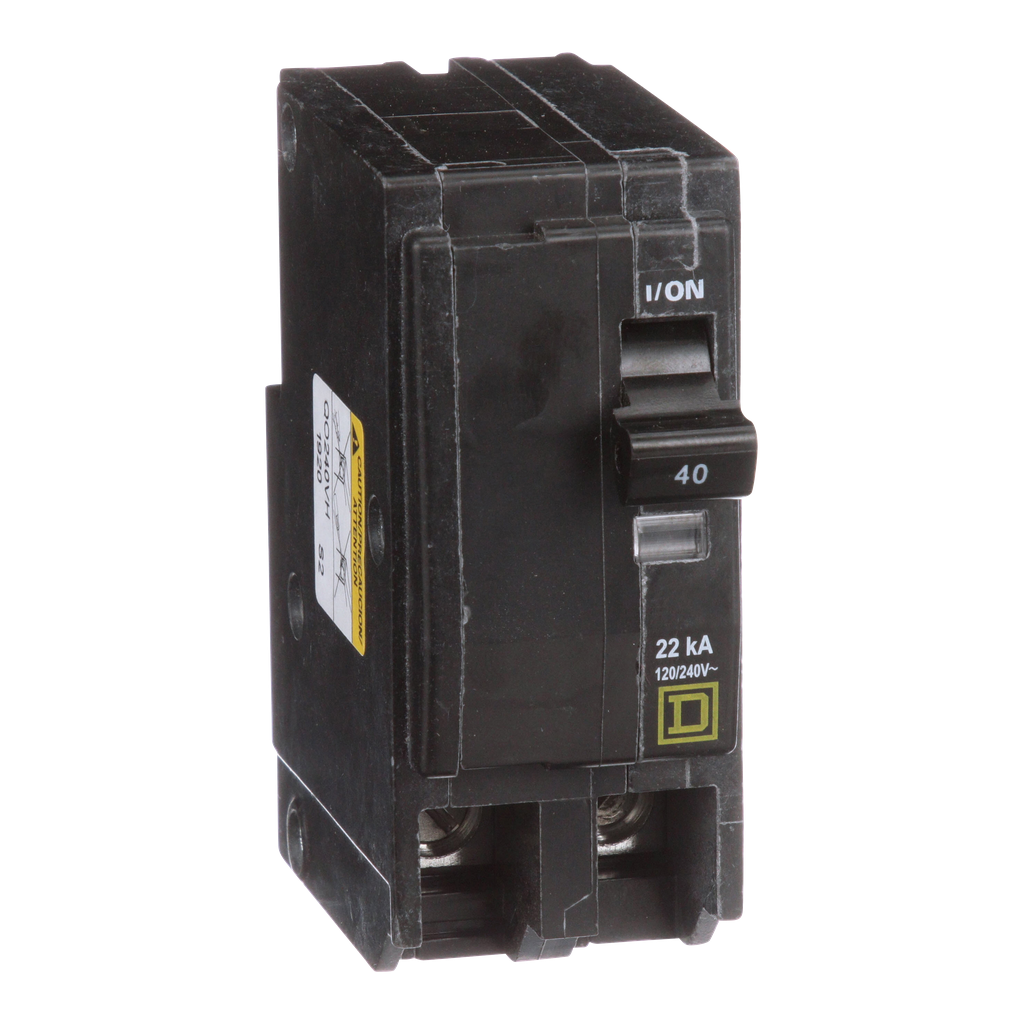

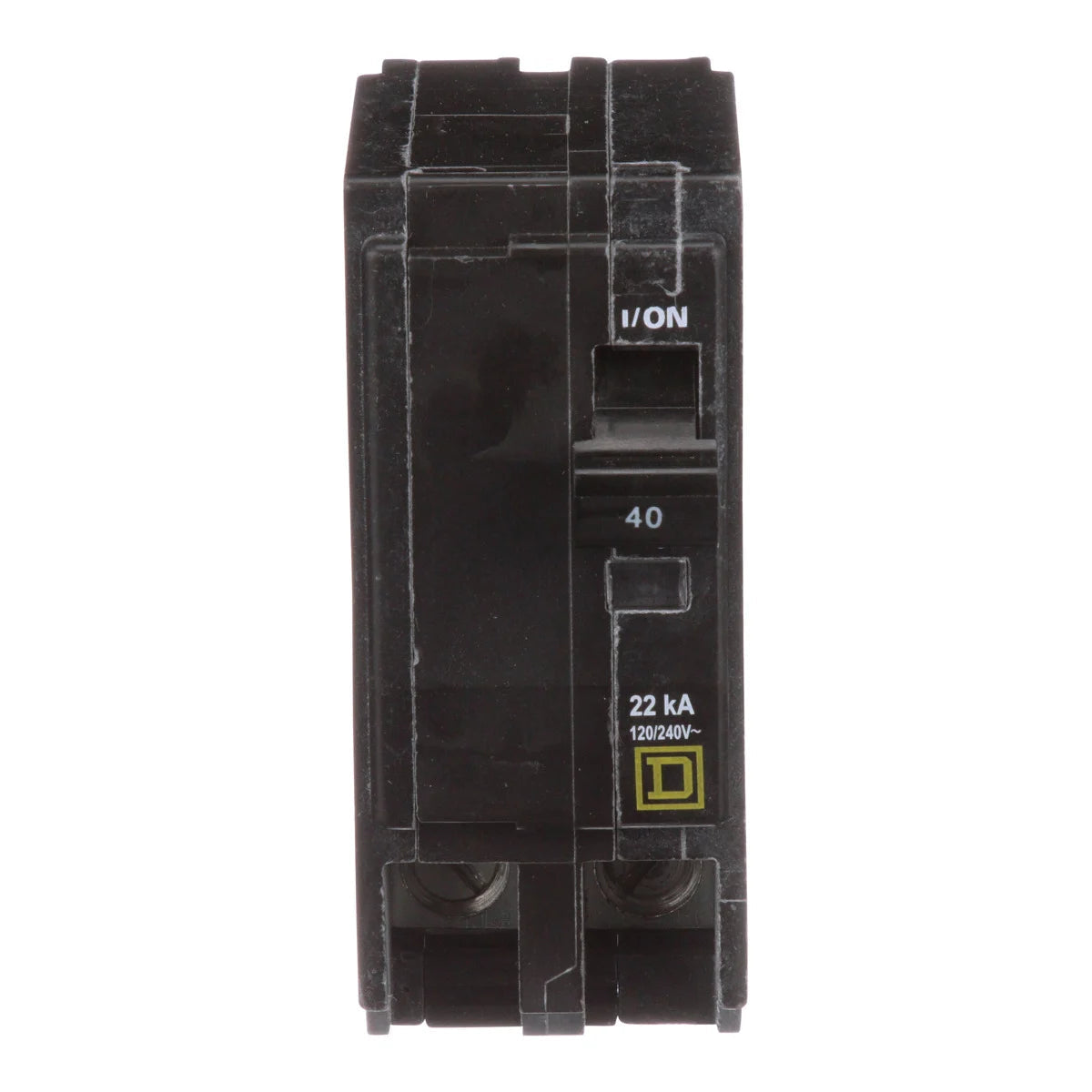

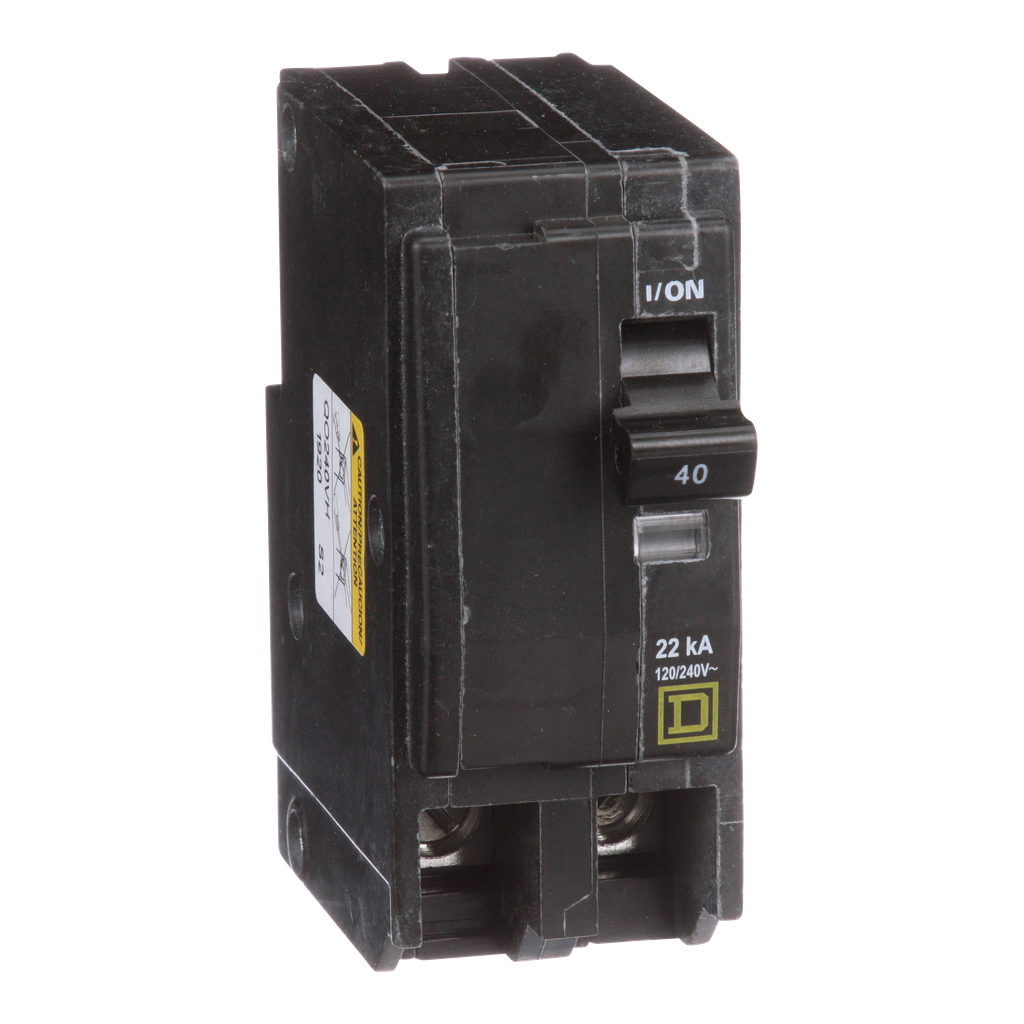

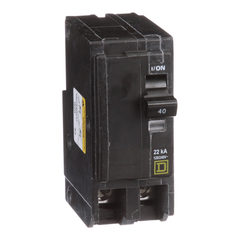

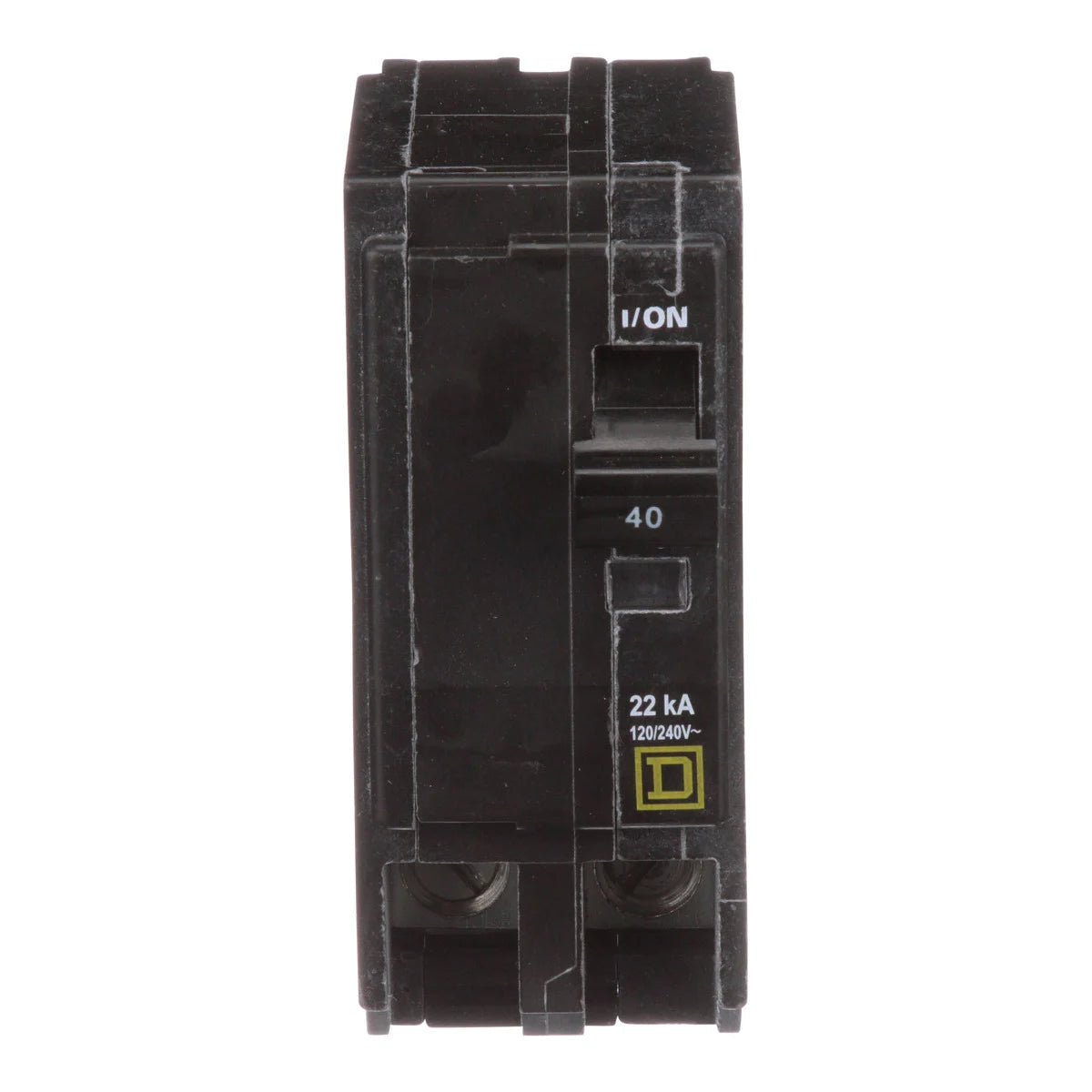

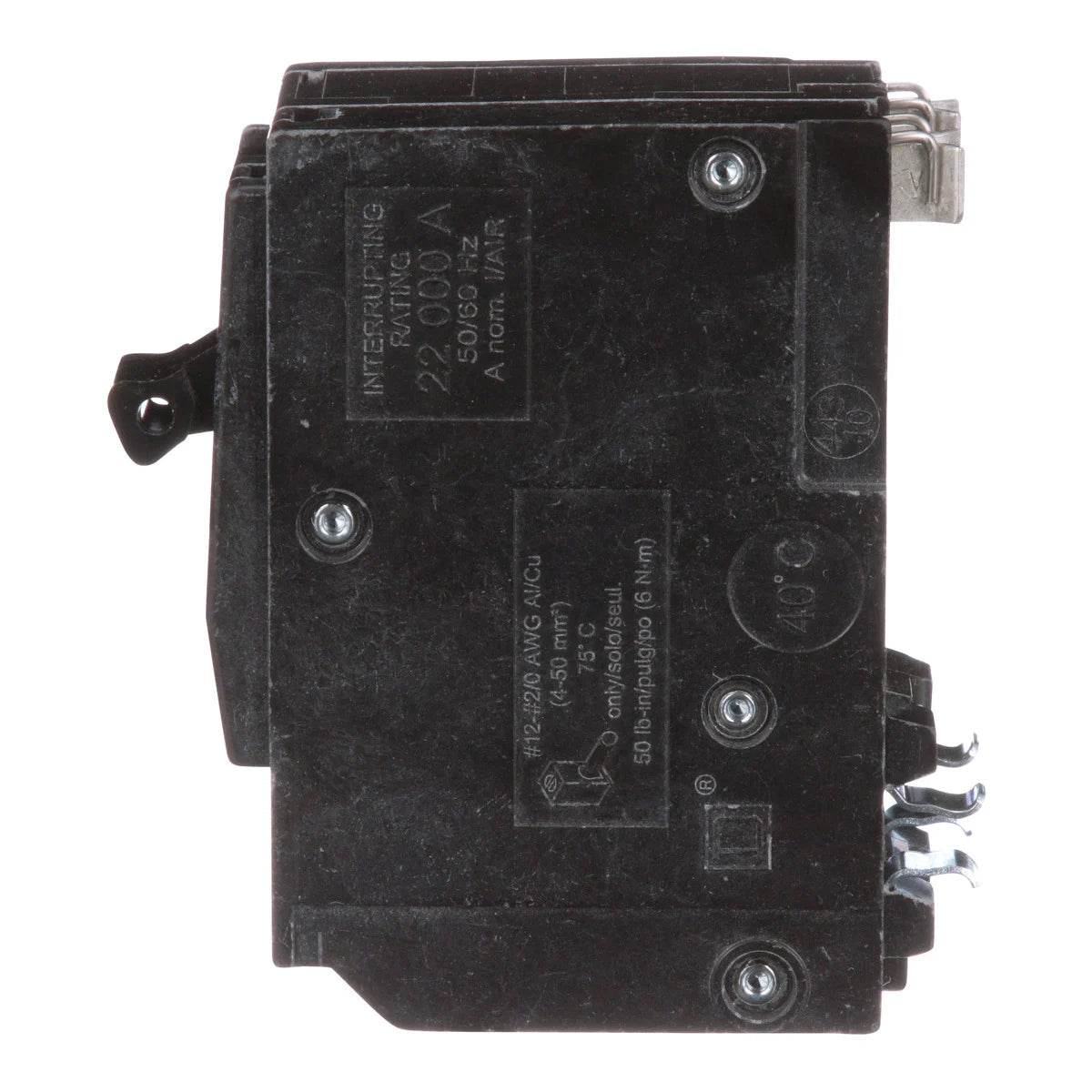

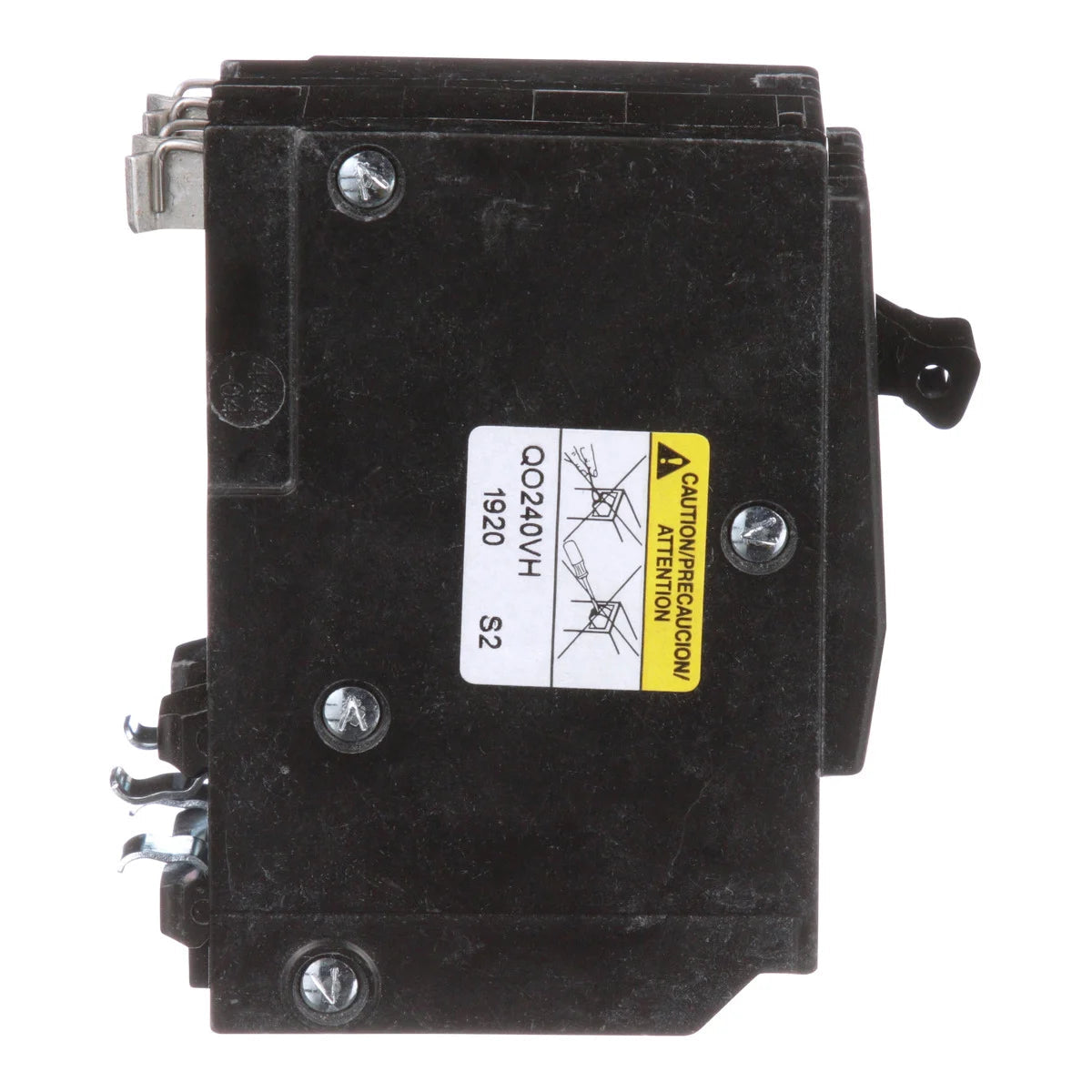

Square D QO240VH Miniature Circuit Breaker 40 Amp 120/240 Volt

Product Description

The Square D QO240VH is a 2-pole, 40 Amp, 120/240 Volt plug-on thermal magnetic miniature circuit breaker. This circuit breaker provides overcurrent protection for AC and DC systems. It features a trip-free toggle mechanism that allows quick make and break actions, ensuring user safety. The VisiTrip indication gives a visual cue when tripped, which aids in identifying circuit issues immediately.

• UL Listed and CSA Certified
• 22kA breaking capacity
• Compatible with AWG 8 to AWG 2 copper or aluminum wire

Product Highlights

This circuit breaker is suitable for a variety of applications, including HACR-rated systems. It has plug-in mounting for easy installation. The unit is designed to operate effectively in environments rated at up to forty degrees Celsius.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO240VH
• Type: Miniature circuit breaker
• Current: 40 Amp
• Voltage: 120/240 Volt
• Width: 1.5 inches
• Height: 3.1 inches
• Depth: 2.9 inches
• Breaking Capacity: 22 kAIC
• Wire Size: 8-2 AWG
• Country of Origin: Mexico
• Warranty Length: 18 months
• Operating Temperature: 40 degrees C
• Interrupt Rating: 22 kA
