Product Description

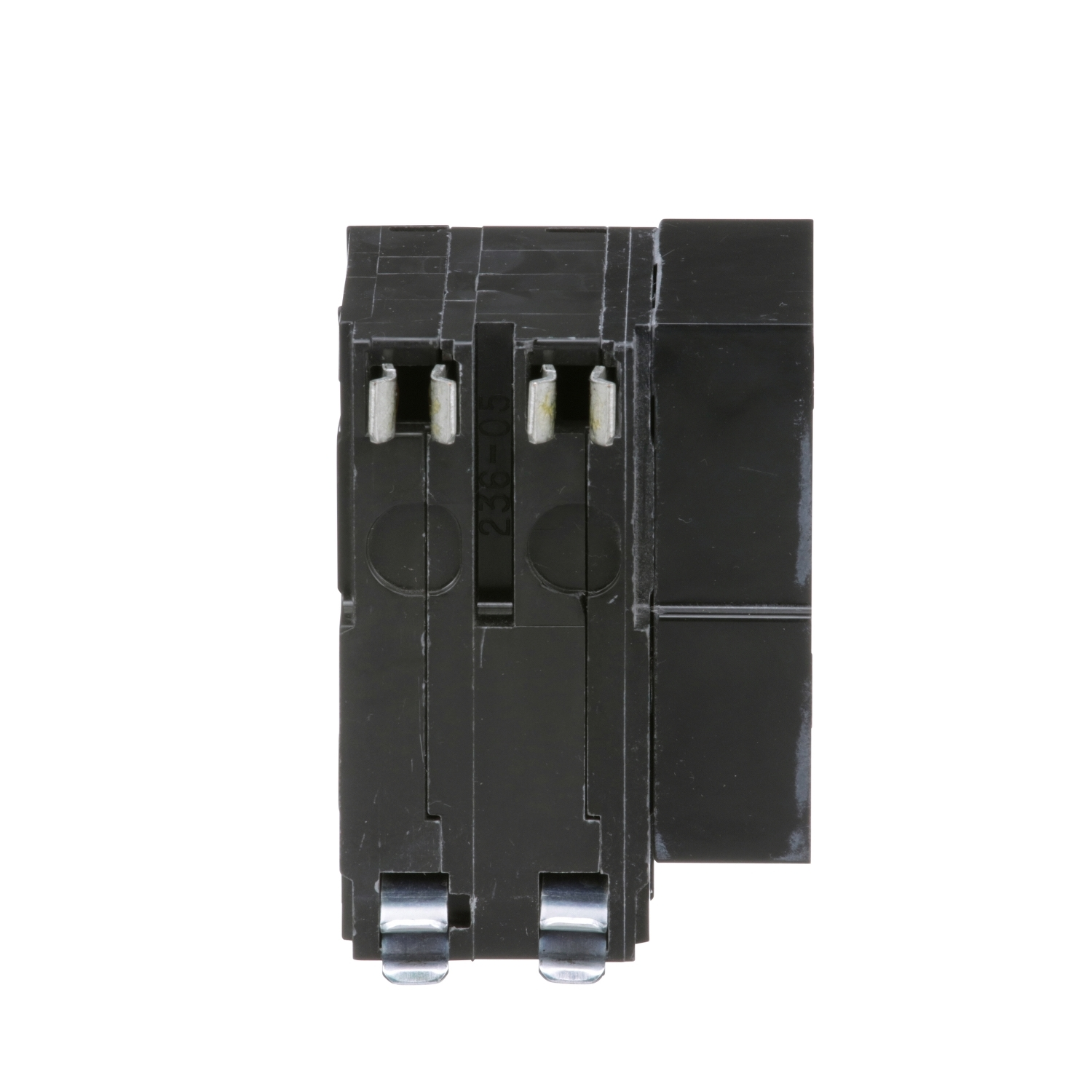

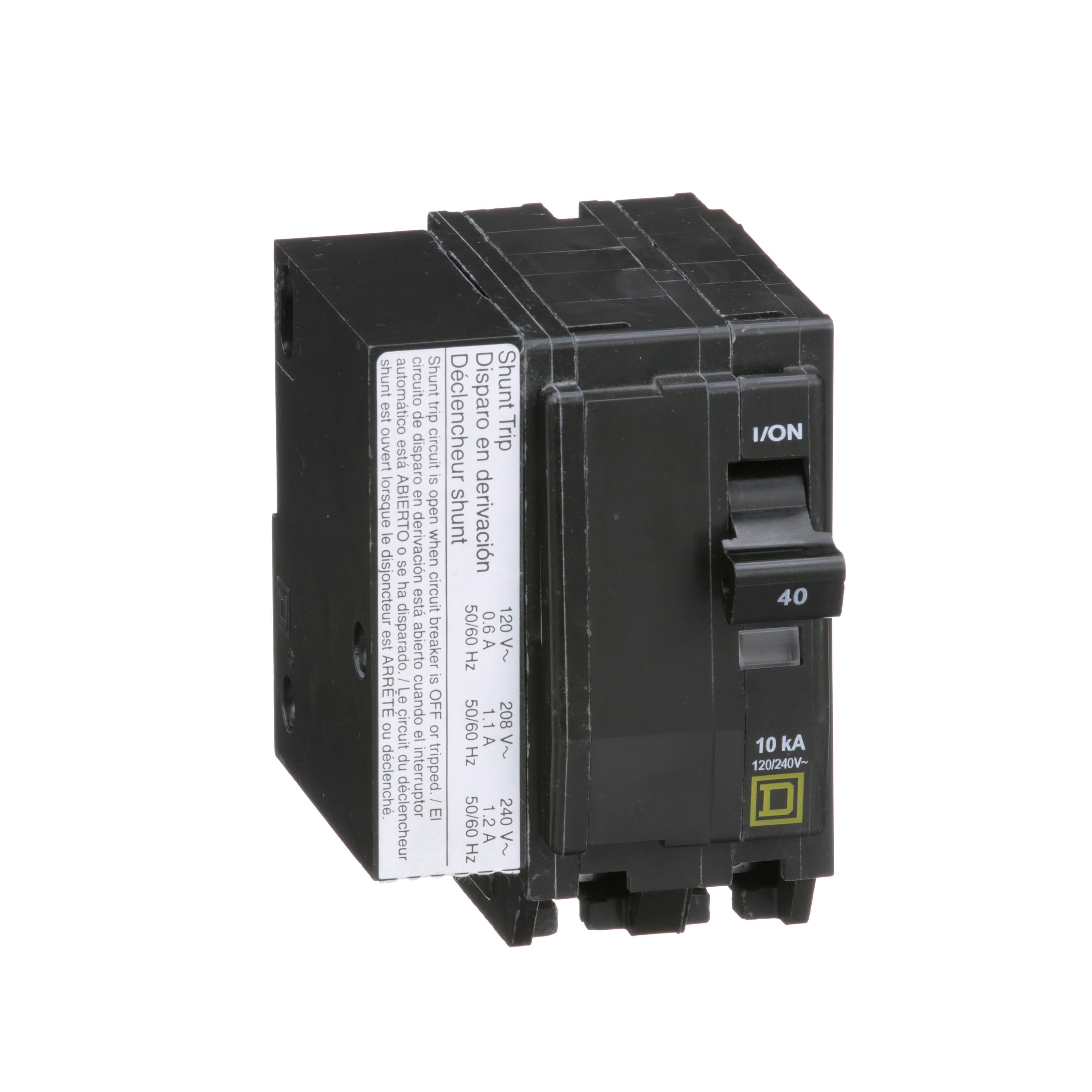

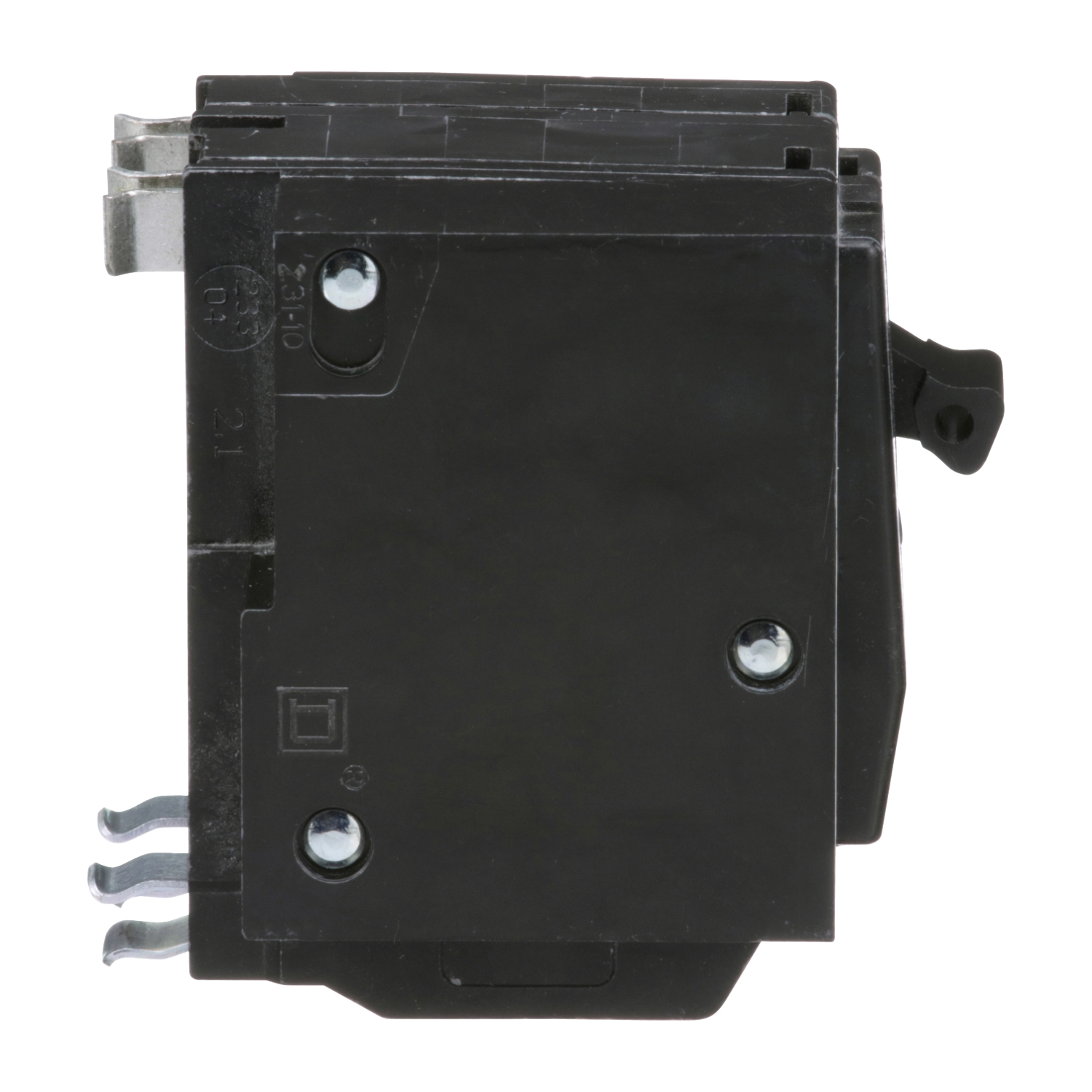

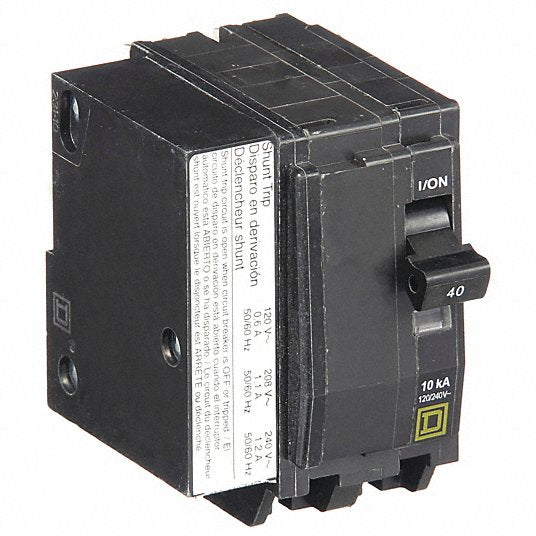

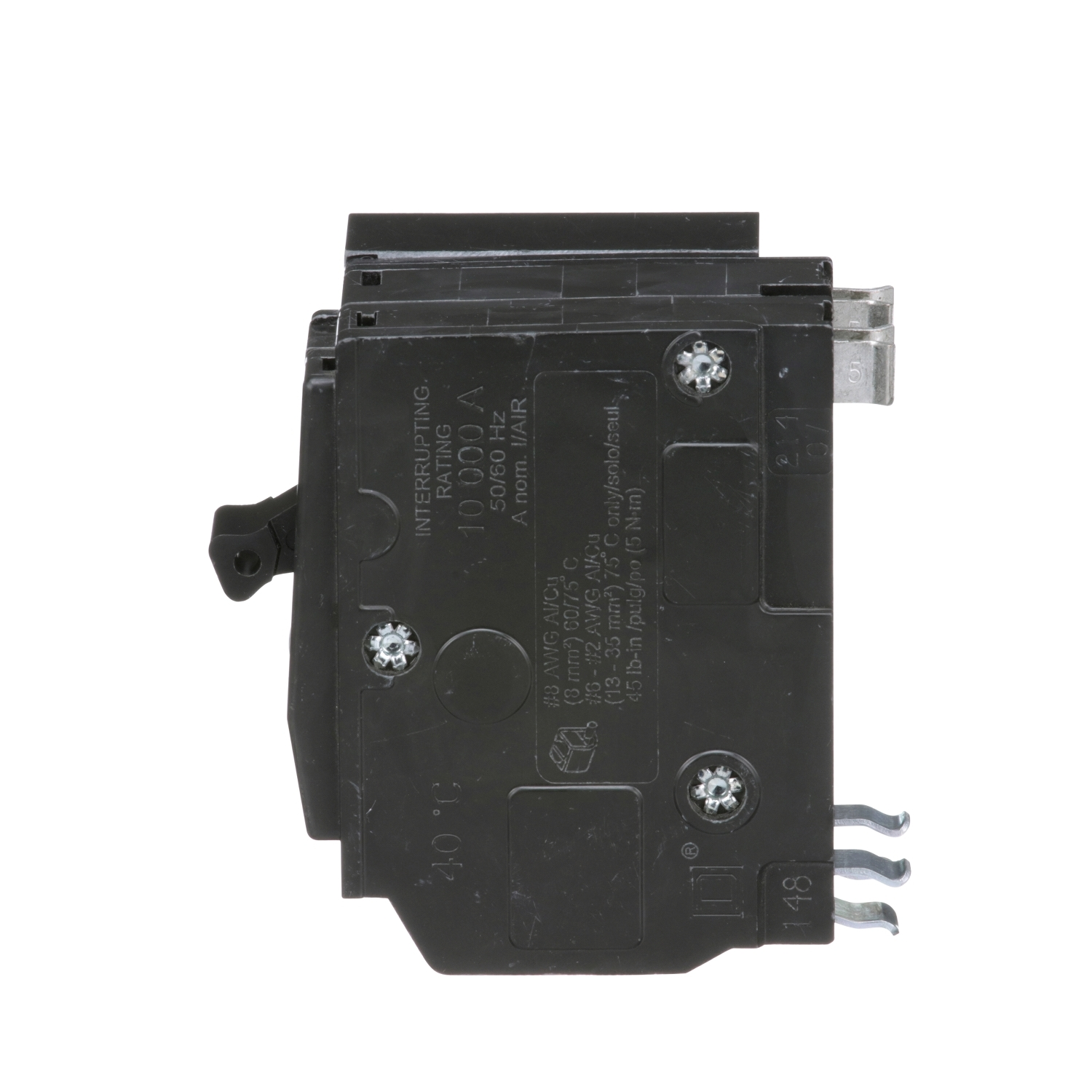

The Square D QO2401021 is a miniature circuit breaker designed for overcurrent protection and switching in AC and DC systems. This 2-pole breaker is rated at 40A and 120/240VAC, with a 10kA breaking capacity and plug-in mounting. It features a trip-free toggle mechanism, quick make/break action, and VisiTrip trip indication. Includes an AC shunt trip.
- Provides overcurrent protection and switching on AC and DC systems.
- Features a trip-free toggle mechanism and quick make/break action.
- Offers VisiTrip trip indication for visual identification of tripped circuits.
Product Highlights
This Square D miniature circuit breaker provides reliable overcurrent protection with quick installation and clear trip indication.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO2401021
-
Country of Origin: Mexico
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
MPN: QO2401021
-
Current: 40 Amp
-
Voltage: 120/240 VAC
-
Amperage: 40 Amp
-
Sub Brand: QO
-
Wire Size: AWG 8...AWG 2 copper or aluminium
-
Applications: HACR rated
-
Mounting Type: Plug-in
-
TC Connection: Box lugs
-
Certifications: CSA,UL Listed
-
Conductor Size: 8-2 AWG
-
Number of Poles: 2 Pole
-
Interrupt Rating: 5, 10 kAIC
-
Line Rated Current: 40 A
-
Circuit Breaker Type: Standard
-
Short Circuit Current: 10 kA
-
Voltage Rating: 120/240 VAC at 50/60 Hz
-
Current Rating: 40 Ampere
-
Interrupting Rating: 10 Kiloampere
-
Terminal Type: Box Lug
-
Mounting: Plug On
-
Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
-
Approval: UL, CSA
-
Electrical Connection: box lugs
-
[Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
-
Breaking Capacity: 10 kA 120/240 V AC || 10 kA 120 V AC
-
Awg Gauge: AWG 8...AWG 2 copper or aluminium
-
Product Certifications: UL Listed || CSA
-
Series: NQ
-
Application: APPLIANCE, LIGHTING
-
Poles: 2 POLE(S)
-
Frame Type: Q
-
Tripping Method: THERMAL MAGNETIC, COMMON TRIP
-
Wire Range: 14 TO 8 AWG (ALUMINUM/COPPER)
-
Features: WITH VISI-TRIP[R] INDICATOR, 120/208/240 VAC SHUNT TRIP
-
Frequency: 50/60 Hz
-
Trip Type: Thermal/Magnetic Trip
-
Phase: 1 ph
-
Connection: Box Lug Connection
-
Standards: CSA C22.2 File No. 5|CSA Certified|Federal/Specification W-C-375B/GEN|HACR Rated|NEMA AB1|NOM/ANCE Certified|PROP65: Cancer and reproductive harm - www.P65warnings.ca.gov|RoHS Compliant|UL File No. 489 File No. E84967|UL Listed
-
AC Voltage Rating: 120/240V AC
-
DC Voltage Rating: 48V DC
-
Circuit Breaker Actuator: Paddle
-
Circuit Breaker Mounting Style: Plug In
-
Compatible Panelboard/Load Center Series: QO
-
Max. AIR Rating: 10kA at 120/240V AC
-
For Use With: QO Load Centers and NQ Panelboards
-
Terminal Connection: Lug
-
Frame Size: 100A/QO
-
Min. Wire Size: 8 AWG
-
Max. Wire Size: 8 AWG
