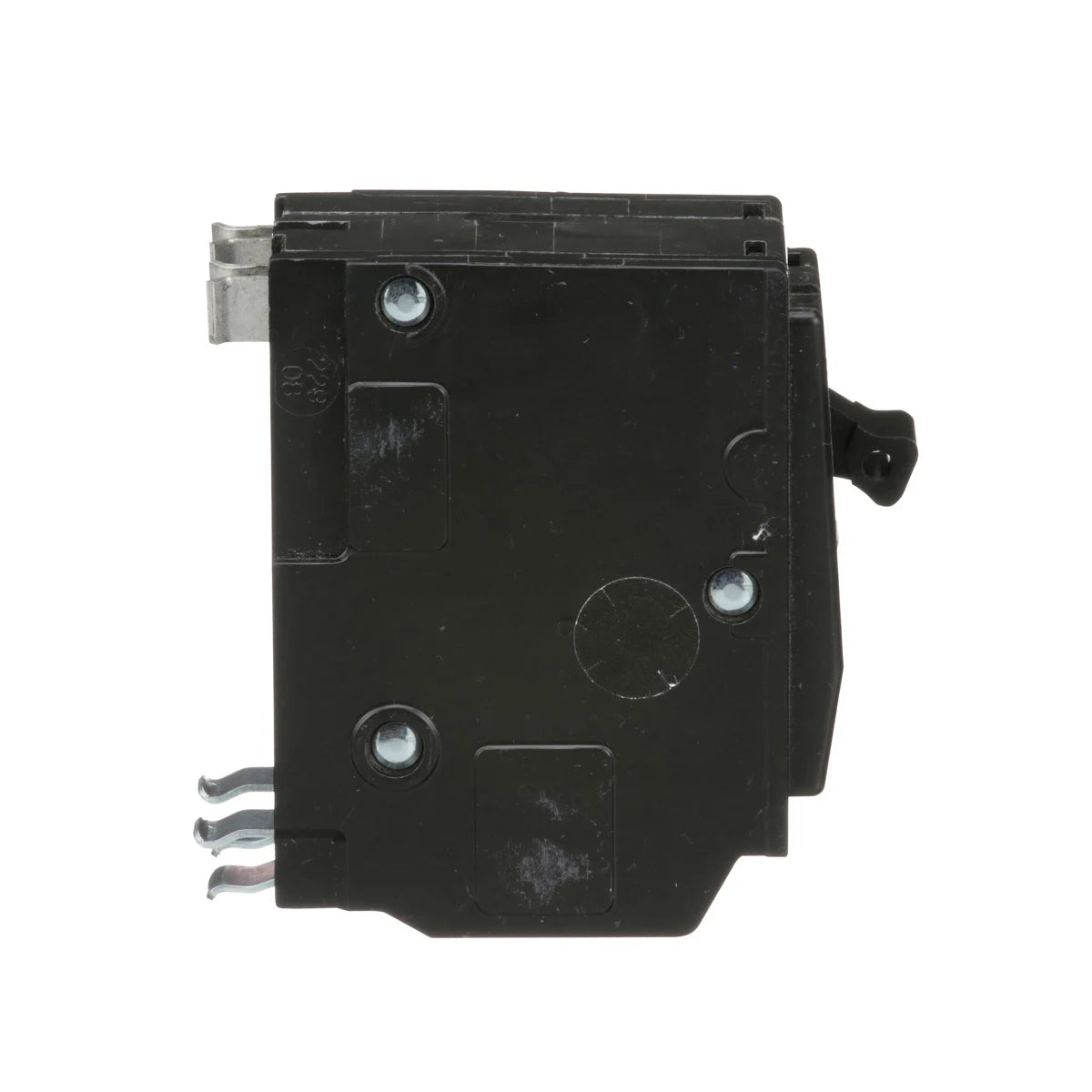

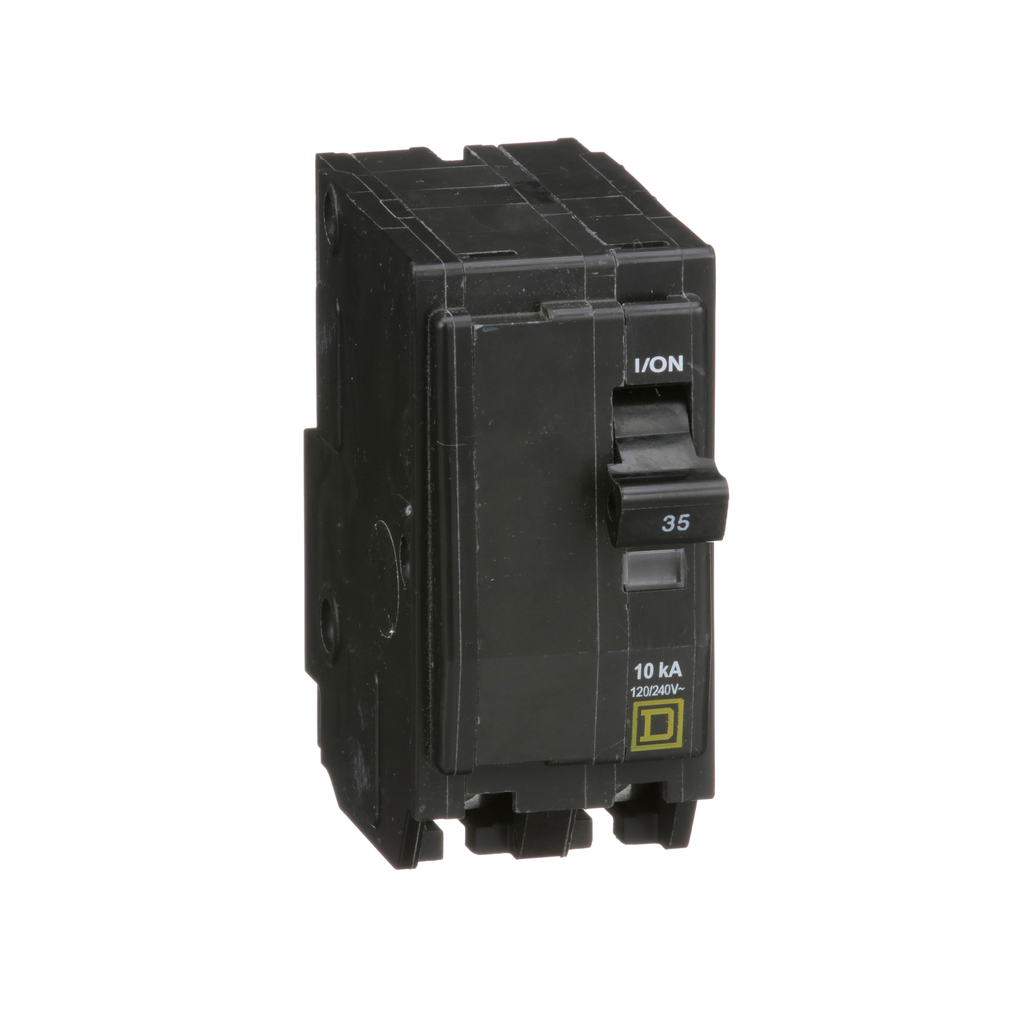

Square D QO235 Miniature Circuit Breaker 35A 120/240V 2P

Product Description

The Square D QO235 Miniature Circuit Breaker is designed for overcurrent protection in single-phase AC and DC systems. This 35 amp, two-pole breaker works with 120/240 volts. It features a plug-on mounting for easy installation in QO load centers. The breaker includes a trip-free toggle mechanism for reliable operation and quick reset capability. The VisiTrip indicator provides visual feedback in case of tripping, ensuring efficient identification of issues.

• Rated at 35A for 120/240V AC
• 10kA breaking capacity
• UL Listed and CSA Certified

Product Highlights

The QO235 is suitable for both residential and light commercial applications, ensuring safety and compliance with UL and CSA standards.

Product Information

Standard Information

• Brand: Square D
• MPN: QO235

Technical Specifications

• Type: Miniature circuit breaker
• Voltage: 120/240V AC
• Amperage: 35A
• Number of Poles: 2
• Interrupt Rating: 10kA
• Mounting Type: Plug-in
• Wire Size: AWG 8 to AWG 2 copper or aluminum
• Country of Origin: Mexico
