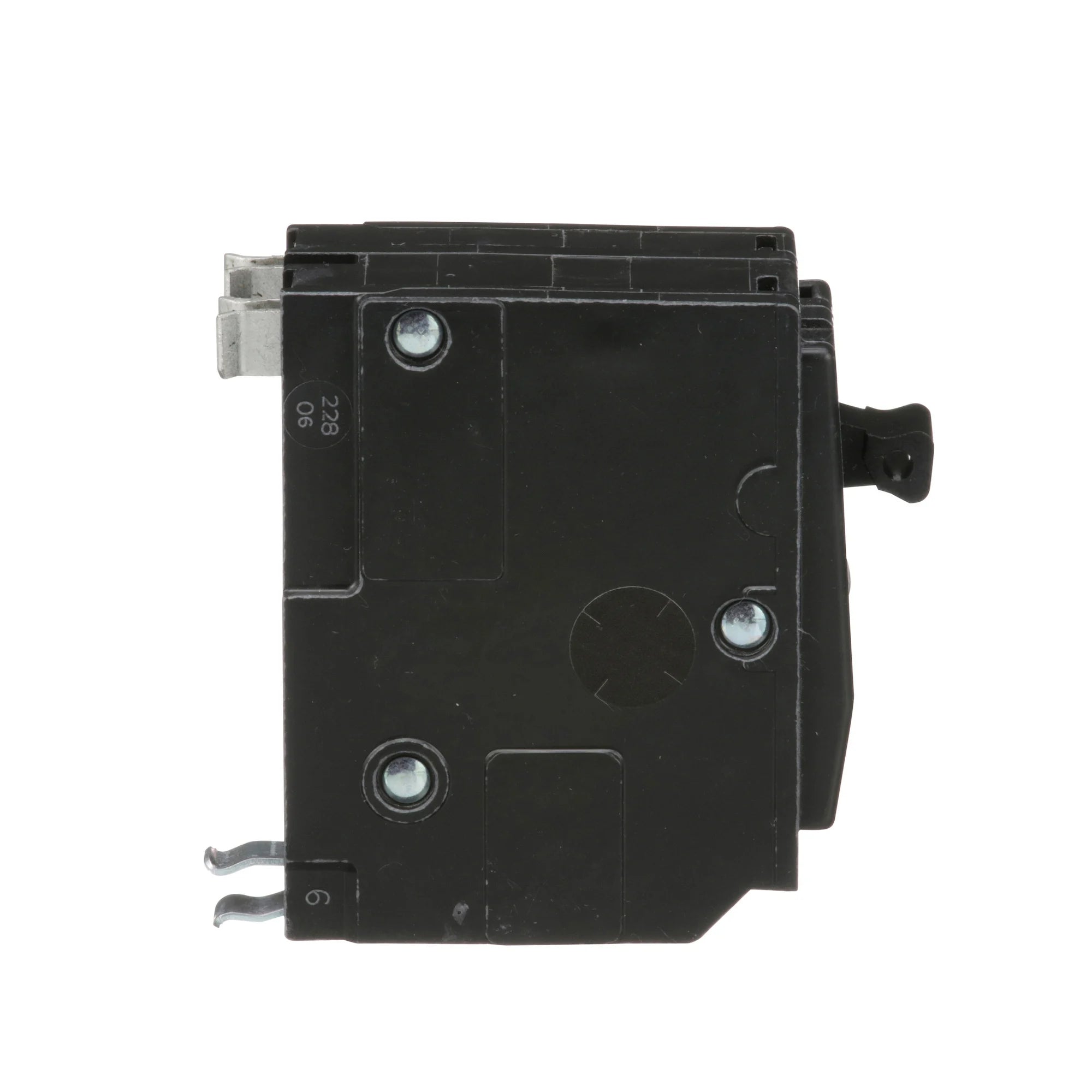

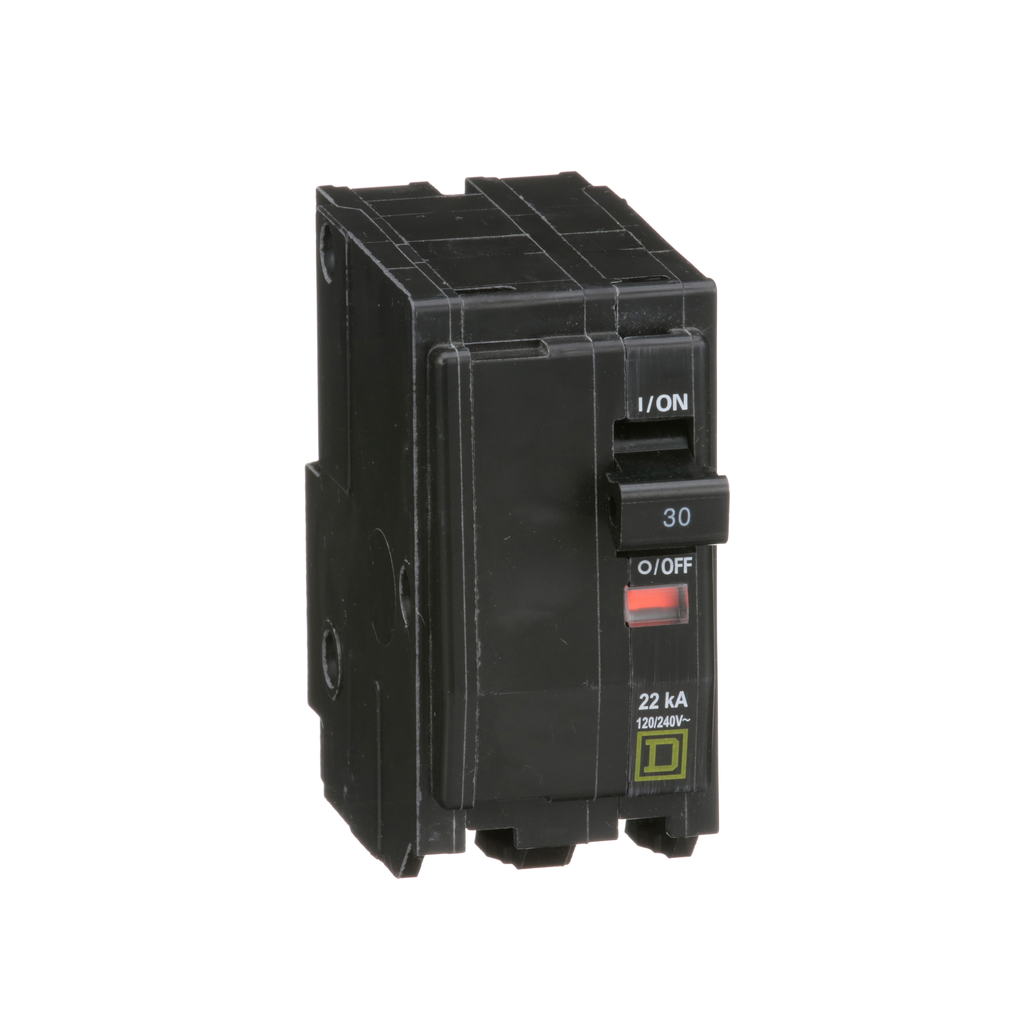

Square D QO230VH 30 Amp Miniature Circuit Breaker 120/240 Volt

Product Description

The Square D QO230VH is a 30 Amp miniature circuit breaker designed for 120/240 Volt systems. This unit features overcurrent protection for AC and DC applications. It includes a trip-free toggle mechanism for reliable operation. The design offers VisiTrip trip indication, allowing users to quickly identify if the circuit breaker has tripped.

• Rated at 30A at 120/240VAC
• 22kA breaking capacity
• Plug-in mounting for easy installation

Product Highlights

This miniature circuit breaker provides essential safety features for electrical circuits, making it suitable for residential and commercial use.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO230VH
• Voltage: 120/240 Volt
• Current: 30 Amp
• Number of Poles: 2 Pole
• Depth: 74 mm
• Width: 38 mm
• Height: 76 mm
• Mounting Type: Plug-in

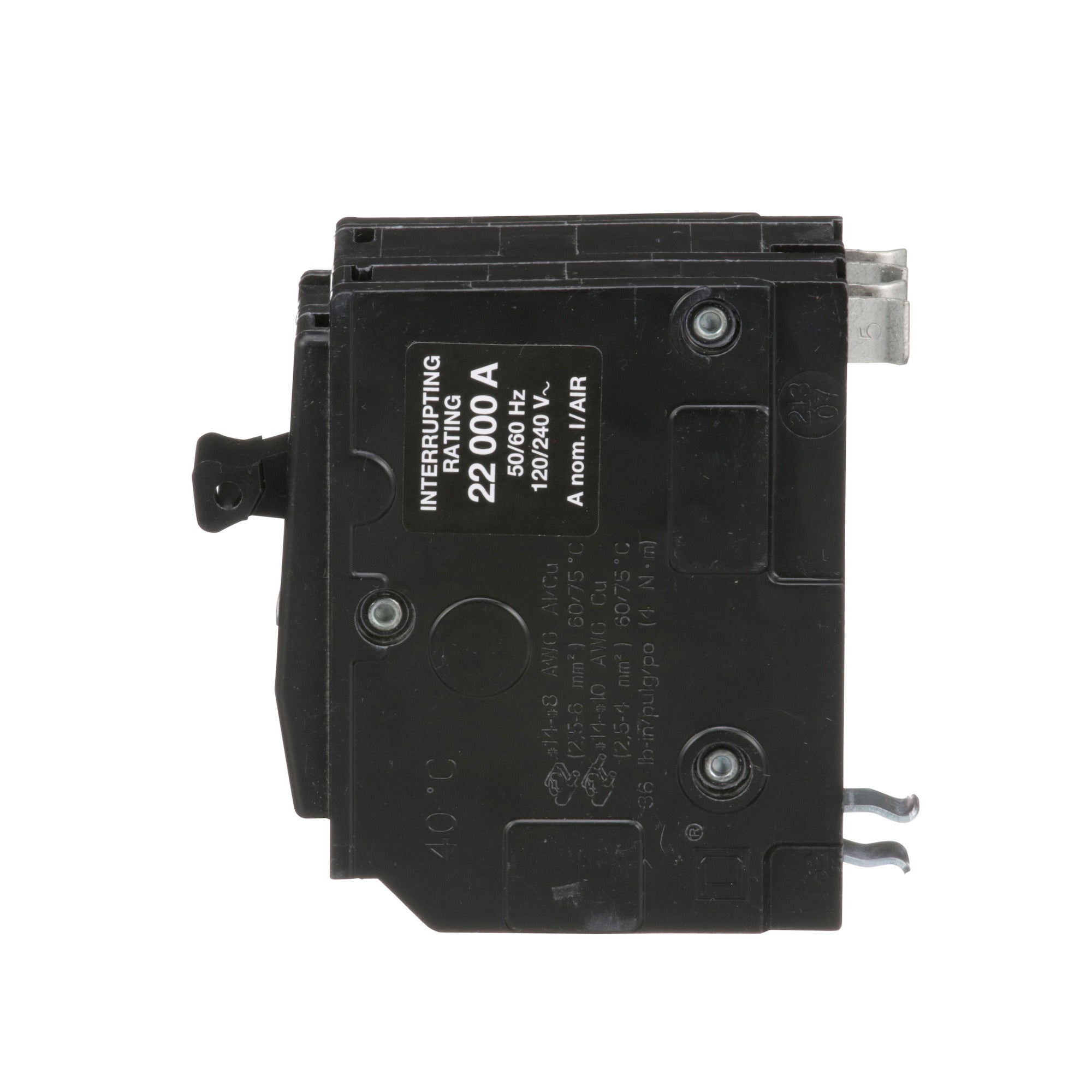

• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
• Warranty: 18 months
