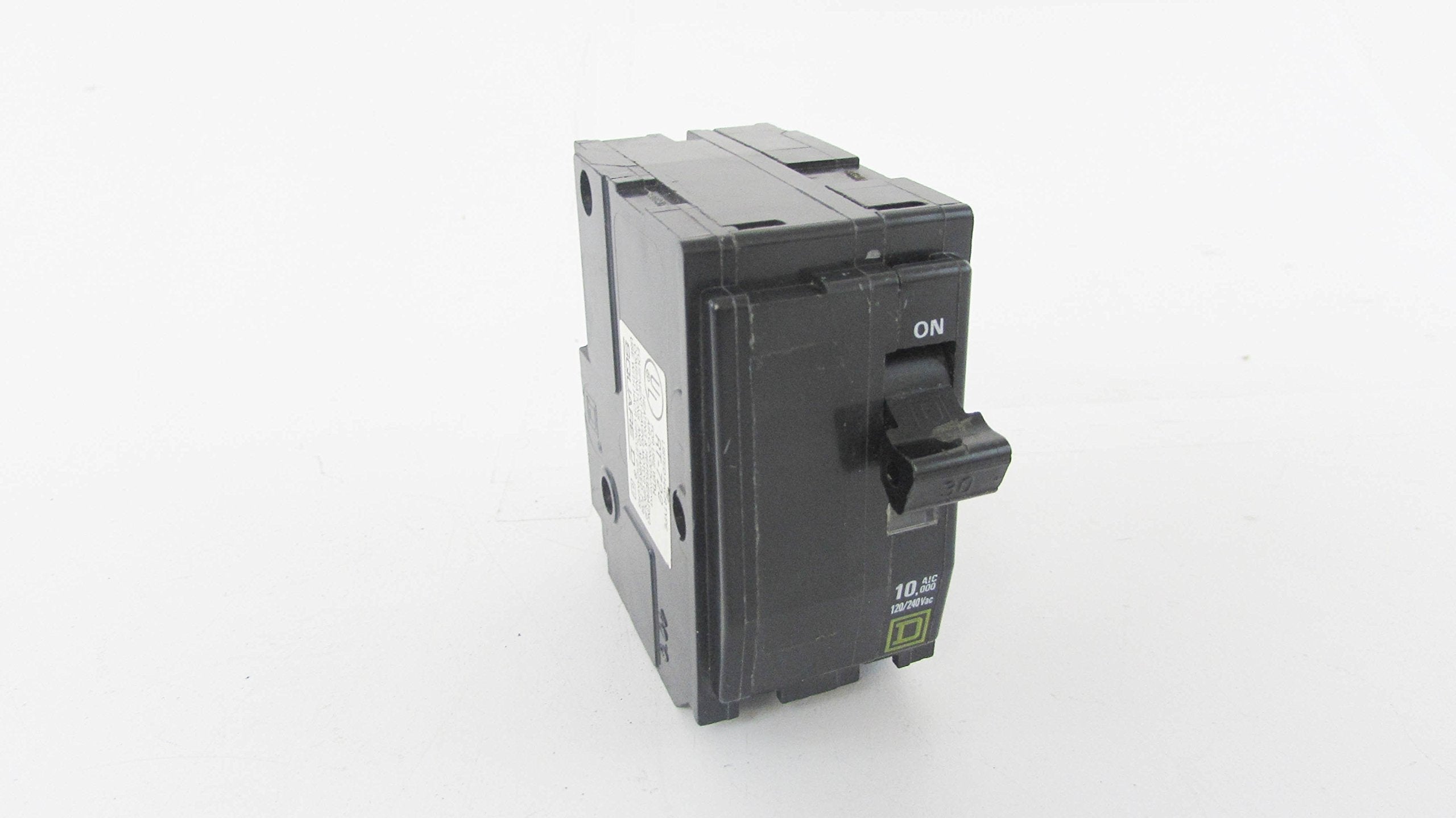

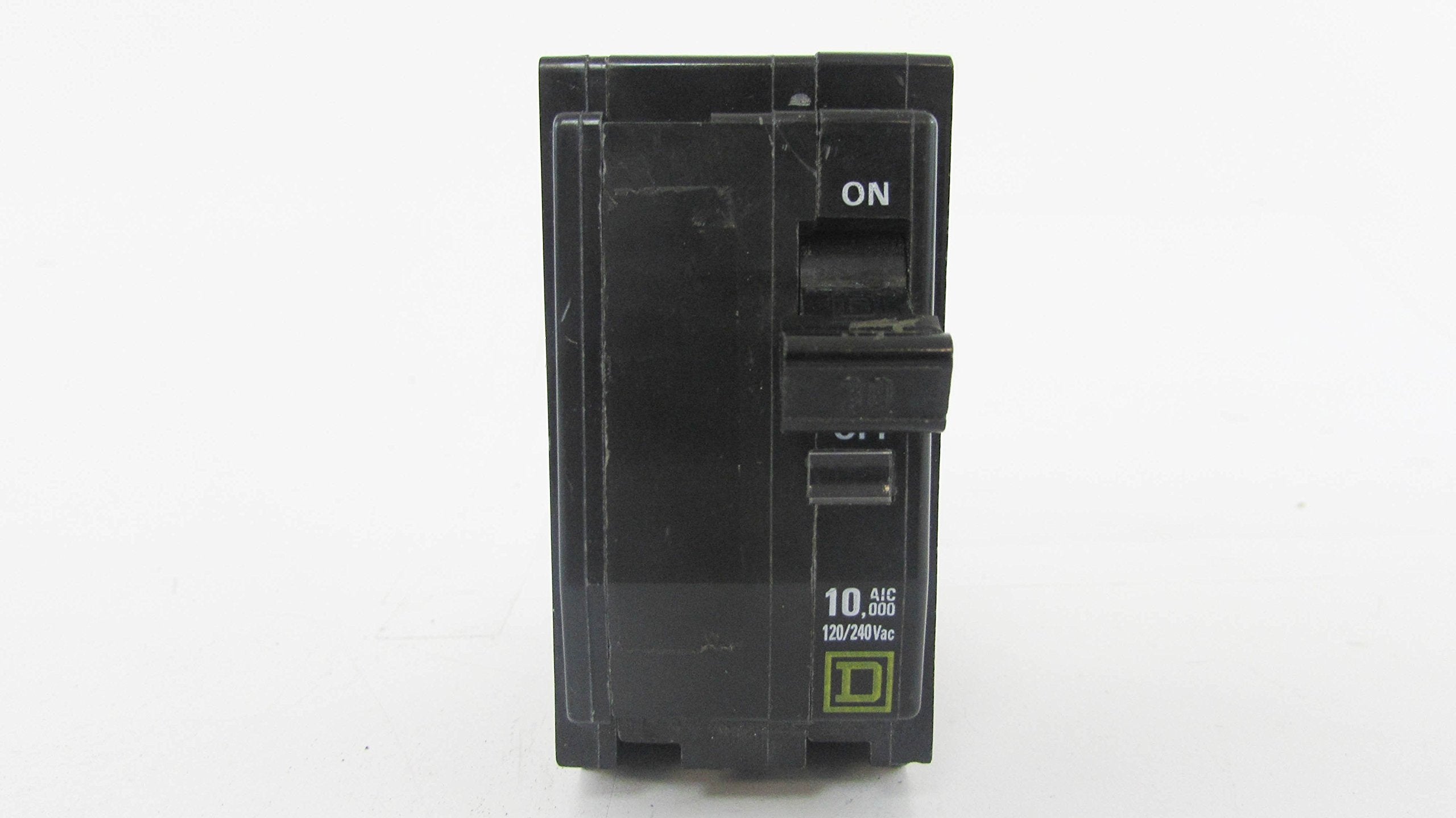

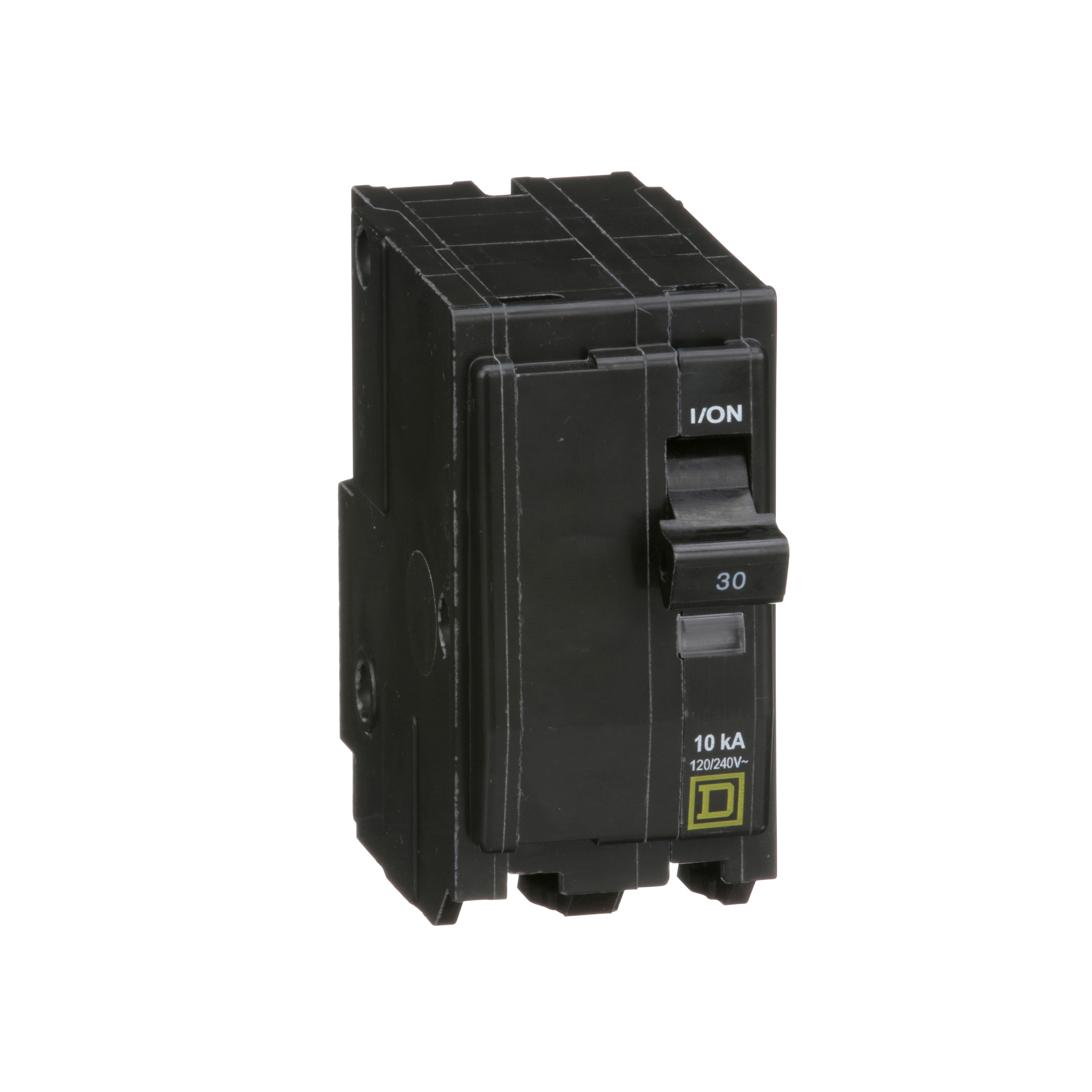

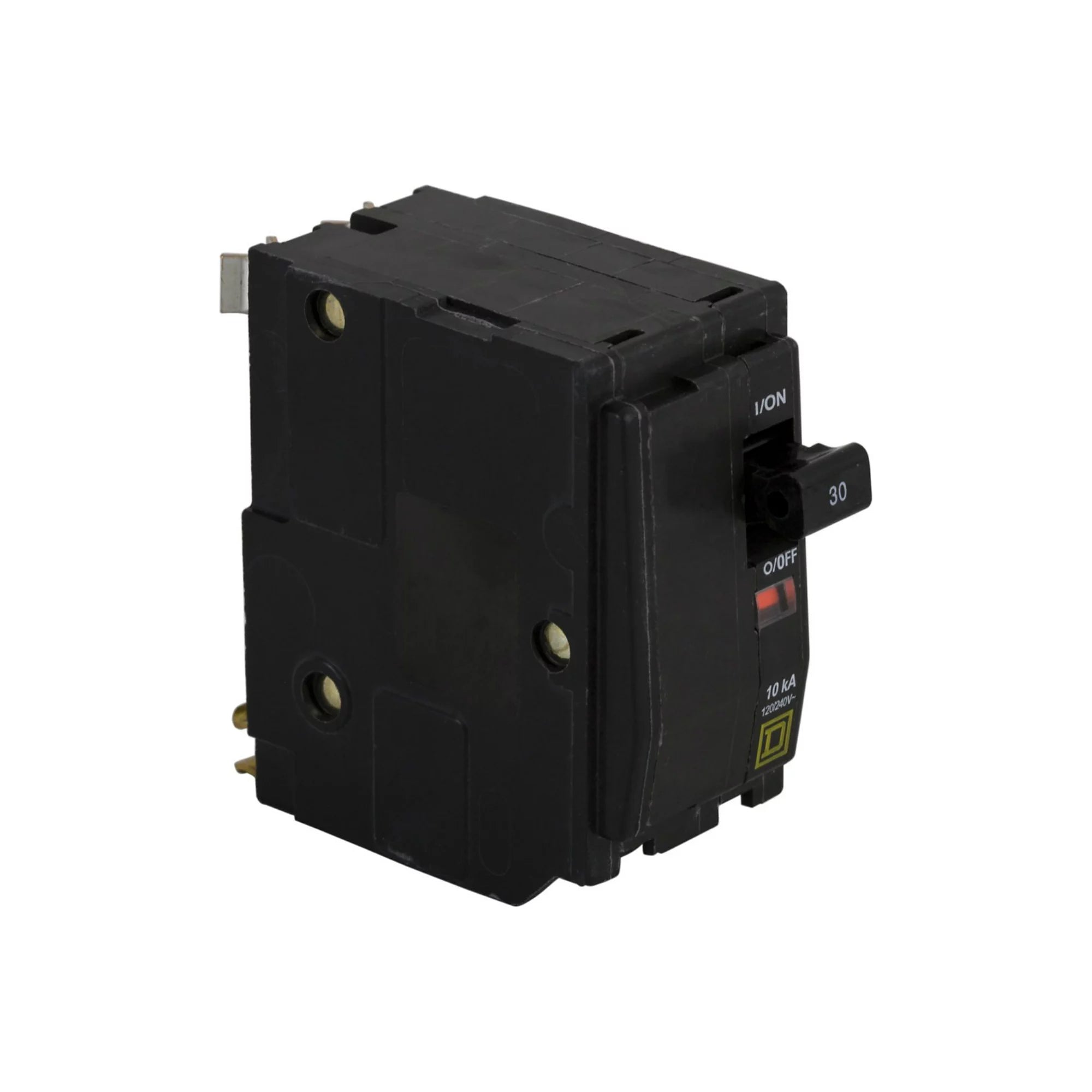

Square D QO230 Miniature Circuit Breaker 30 A, 2 Pole, 120/240 VAC

Product Description

The Square D QO230 is a miniature circuit breaker designed for overcurrent protection and switching on AC and DC systems. This 2-pole breaker features a thermal magnetic trip and a quick-make, quick-break mechanism. It has VisiTrip trip indication for visual confirmation of tripped circuits and a 10 kA breaking capacity. It is rated at 30A and 120/240 VAC.

• Provides overcurrent protection and switching on AC and DC systems.
• Features a trip-free toggle mechanism with quick make, quick break action.
• VisiTrip trip indication provides visual indication of tripped circuit.

Product Highlights

The Square D QO230 offers reliable circuit protection with visual trip indication and a compact design for various electrical applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO230
• Country of Origin: Mexico

Technical Specifications

• Mounting Type: Plug On Mount
• Current Rating: 30 Amps
• Number Of Poles: 2
• Circuit Breaker Type: Standard
• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 30 Amp
• Amperage: 30 Amp
• Sub Brand: QO
• Wire Size: (1) 14 to 8 AWG (Copper/Aluminum)
• Applications: HACR rated
• Mounting: Plug-in
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 14-8 AWG
• Interrupt Rating: 5, 10 kAIC
• Line Rated Current: 30 A
• Short Circuit Current: 10 kA
• Interrupting Rating: 10 Kiloamp

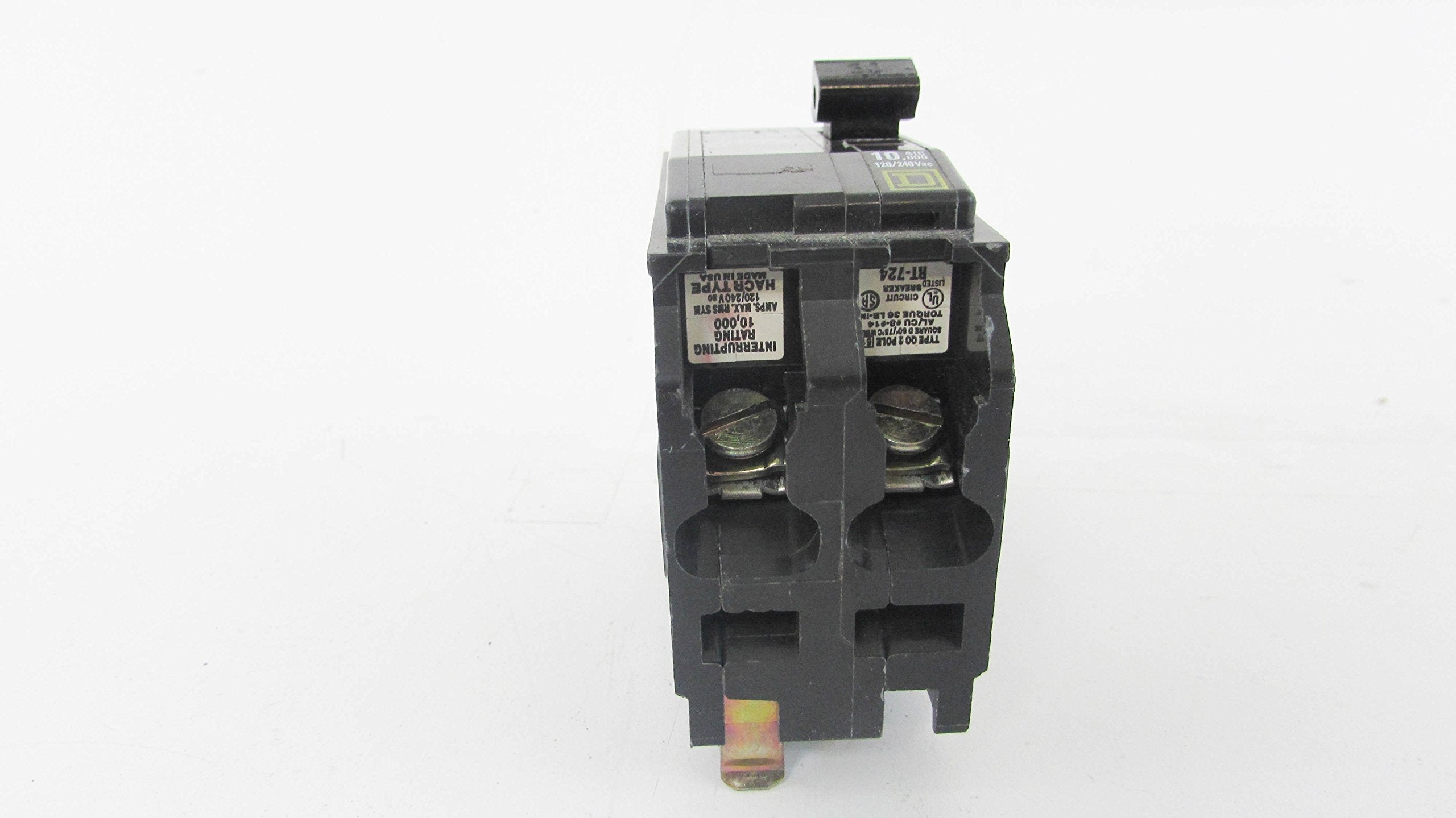

• Terminal Type: Pressure Plate
• Used On: Load Center
• Poles: 2
• Voltage Rating: 120/240V
• Tightening Torque: 4-4 N.m
• Number Of Spaces Required: 2
• Cycle/Hertz: 50/60 Hz
• Maximum Voltage: 240 VAC
• Phase: Single
• UL Listed: Yes
• UL Recognized: Yes
