Square D QO225GFI 120/240 Volt 25 Amp Miniature Circuit Breaker

Product Description

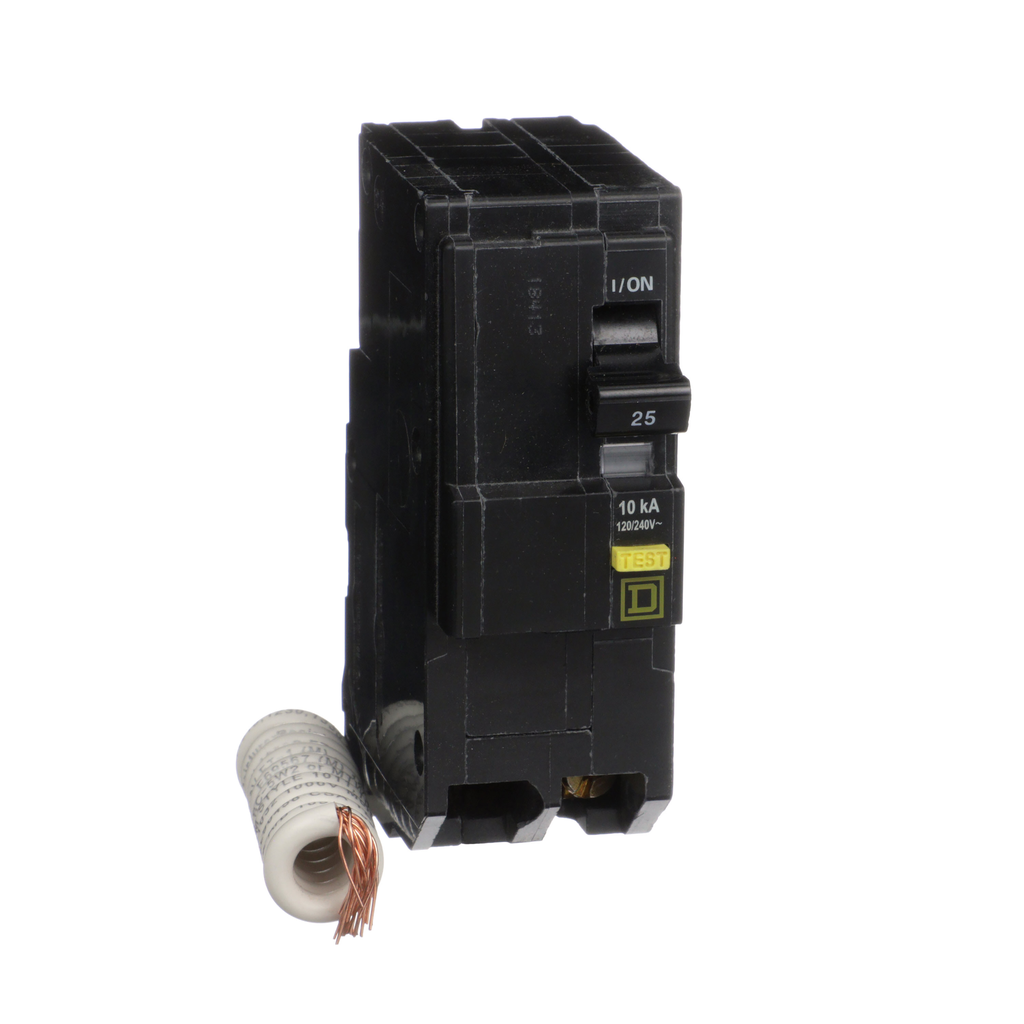

The Square D QO225GFI is a 120/240 Volt 25 Amp miniature circuit breaker designed for protecting your electrical circuits. This two-pole thermal magnetic circuit breaker provides reliable overcurrent protection for AC and DC systems. It features a trip-free toggle mechanism, ensuring quick make and break action.

• Voltage Rating: 120/240 Volt
• Current Rating: 25 Amp
• 10 kA breaking capacity

Product Highlights

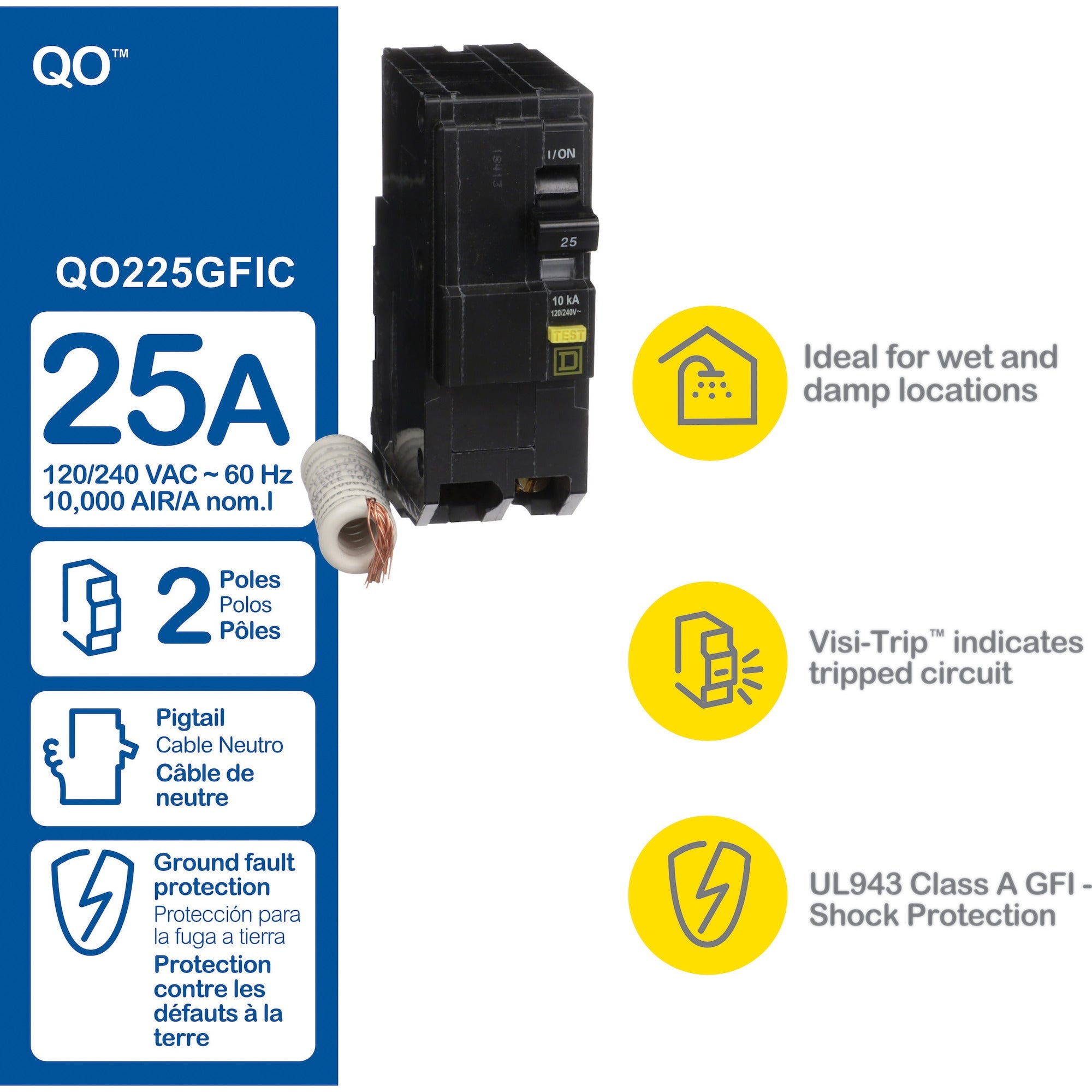

This circuit breaker includes visual trip indication via VisiTrip, which helps you quickly check if the breaker has tripped. The device is suitable for plug-in mounting, simplifying installation. It also incorporates a ground fault protection feature with a six-milliamp rating.

Product Information

Standard Information

• Catalog Number: QO225GFI
• Brand: Square D

Technical Specifications

• Depth: 2.91 inches
• Width: 1.5 inches
• Height: 4.13 inches
• Current: 25 Amp
• Voltage: 120 Volt
• Mounting Type: Plug-in
• Country of Origin: Mexico
• Interrupt Rating: 10 kAIC
