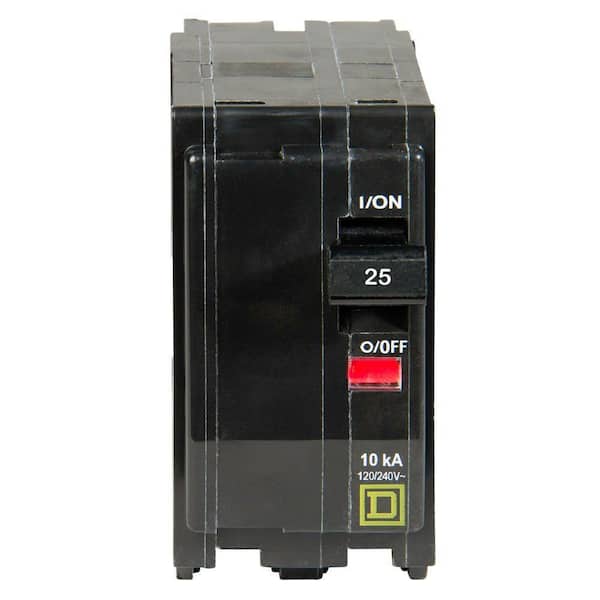

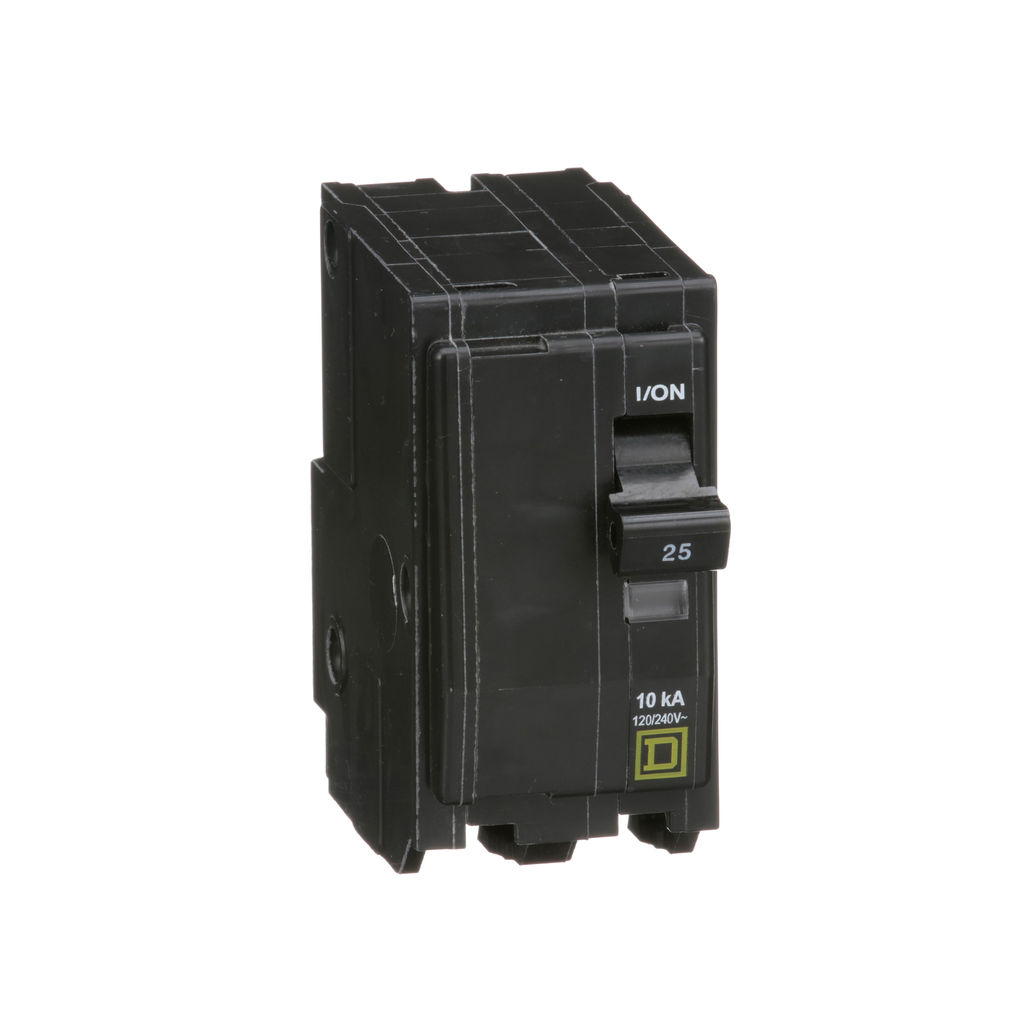

Square D QO225CP mini circuit breaker, Q, 25A, 2 pole

Product Description

The Square D QO225CP mini circuit breaker provides overcurrent protection and switching on AC and DC systems. This 2-pole circuit breaker is rated at 25A at 120/240VAC and provides 10kA breaking capacity with plug-in mounting. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication. This unit is UL Listed and CSA Certified.

• Provides overcurrent protection
• Suitable for switching on AC and DC systems
• Features VisiTrip trip indication

Product Highlights

The Square D QO225CP is a 25A, 2-pole mini circuit breaker with a plug-in design, ideal for overload and short-circuit protection in electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO225CP
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 74 mm
• Width: 38 mm
• Height: 76 mm
• Length: 2.91 Inch
• Current: 25 Amp
• Voltage: 120 Volt
• Amperage: 25 Amp
• Wire Size: AWG 14...AWG 8 copper or aluminium
• Applications: HACR rated
• Mounting Type: Plug-In
• TC Connection: Pressure plate;AWG 14...AWG 8 copper or aluminium
• Certifications: CSA,UL Listed
• Number of Poles: 2
• Interrupt Rating: 10 kAIC
• Country of Origin: Mexico
• Line Rated Current: 25 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Manufacturer: Schneider Electric
• Made in USA: No
• Max. Wire Size: 8 AWG (Cu/Al)
• Min. Wire Size: 14 AWG (Cu/Al)
• Max. AIR Rating: 10 kA
• AC Voltage Rating: 120/240V AC
• Terminal Connection: Pressure Plate
• Amperage (amps): 25
• Voltage (volts): 120/240
• Interrupting Capacity: 10,000 AIR
• Compatible with: Square D QO load centers, CSED devices, and NQOD
• Current Rating: 25 Amps
• Part Number: QO225CP
• Item model number: QO225CP
• Item Package Quantity: 1
• Number of Handles: 1
• Included Components: Circuit Breaker
• Batteries Included?: No
• Batteries Required?: No
• Maximum Amperage (A): 25 A
• Interruption Type: Standard Trip
• Pack Size: 1
