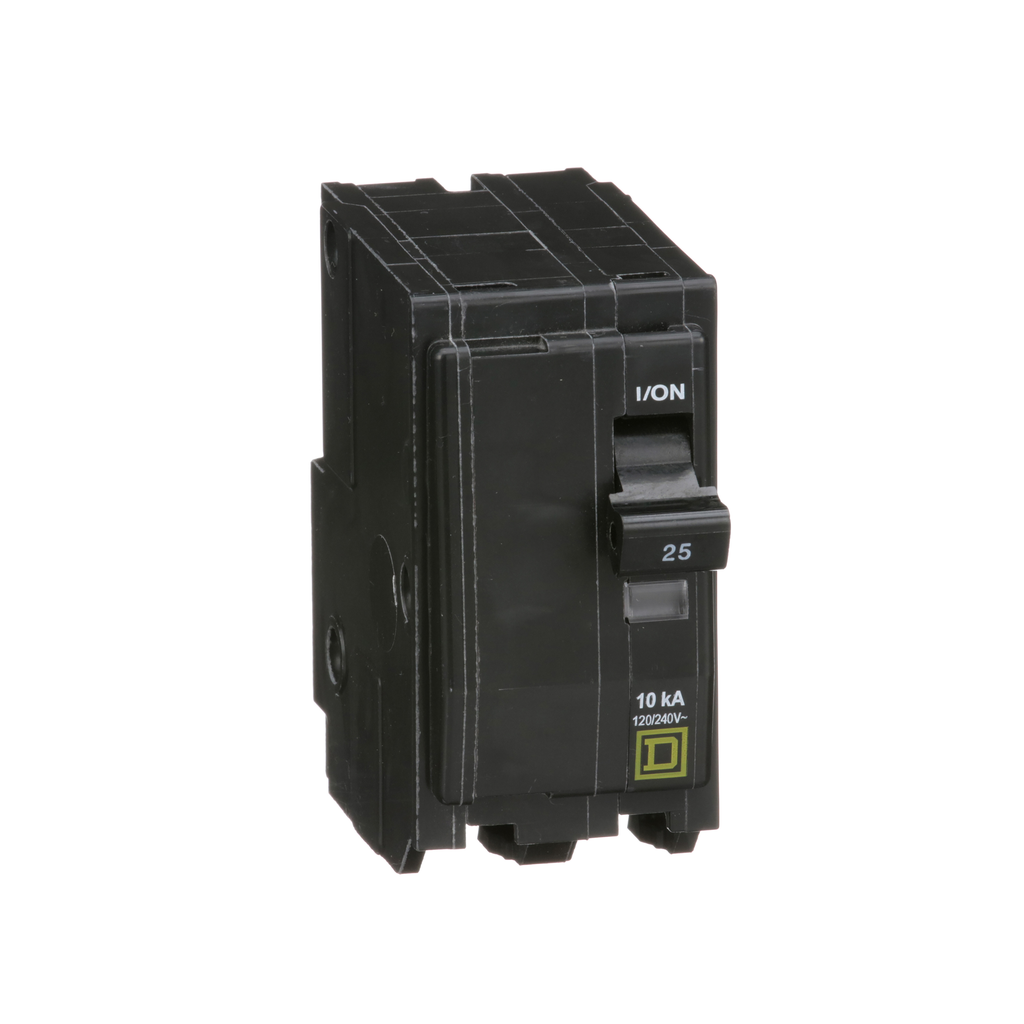

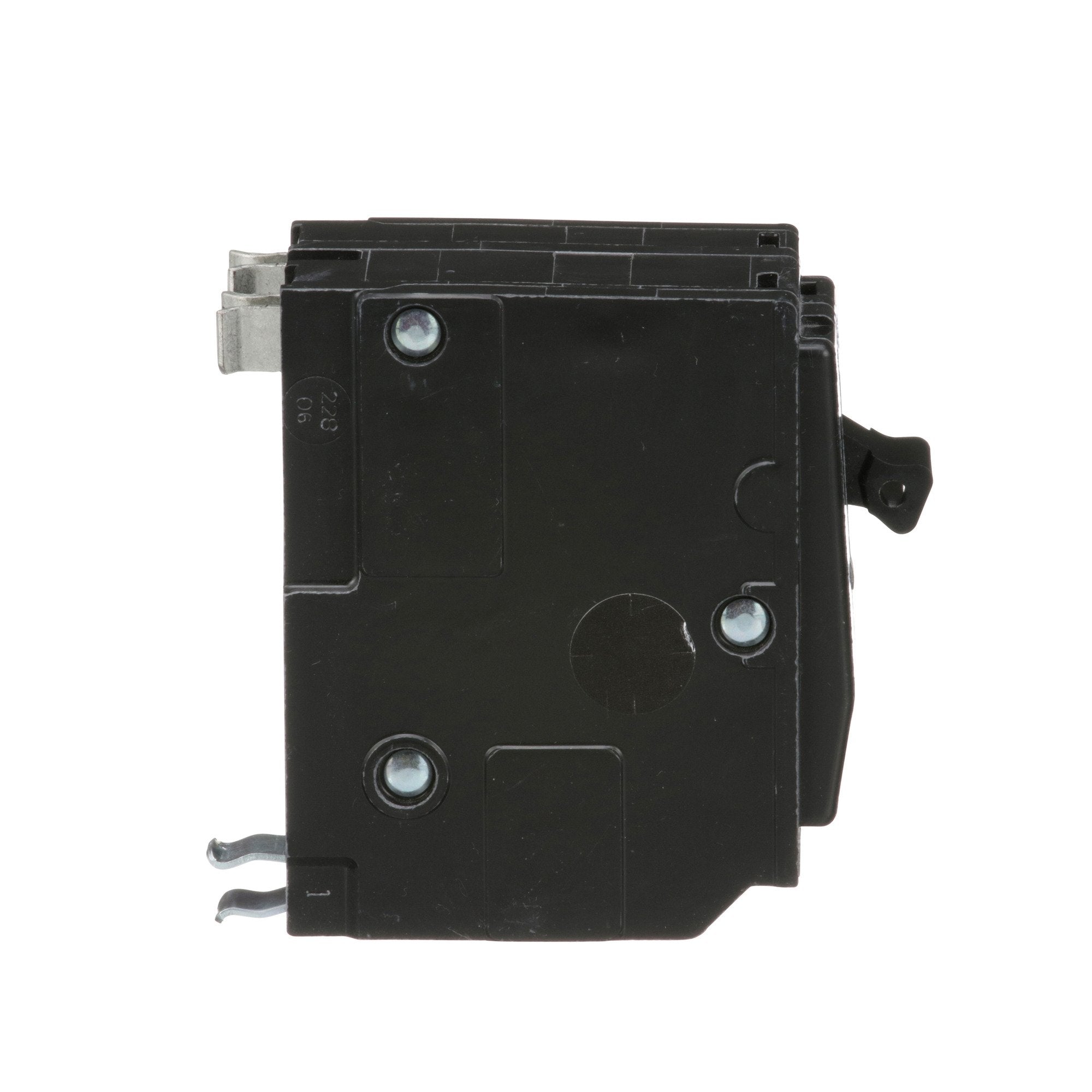

Square D QO225 Miniature Circuit Breaker 25A 120/240V 2P

Product Description

The Square D QO225 is a miniature circuit breaker with a rating of 25 Amps and operates on 120/240 Volts AC. This 2-pole breaker is designed for plug-in use within QO load centers. It features a trip-free toggle mechanism for reliable operation that ensures quick make and break action. The device includes VisiTrip indication, signaling when the breaker has tripped and interrupted the circuit.

• 25 Amp current rating
• 120/240 VAC voltage rating
• 10 kA breaking capacity

Product Highlights

These circuit breakers are ideal for overcurrent protection in HVAC applications and residential circuits. They are compact, which allows them to fit into smaller panel installations.

Product Information

Standard Information

• Brand: Square D
• MPN: QO225

Technical Specifications

• Current Rating: 25 Amp
• Voltage Rating: 120/240 Volt AC
• Number of Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Plug-in
• Conductor Size: AWG 14 to AWG 8
• Warranty: 18 months
• Certifications: UL Listed, CSA Certified
