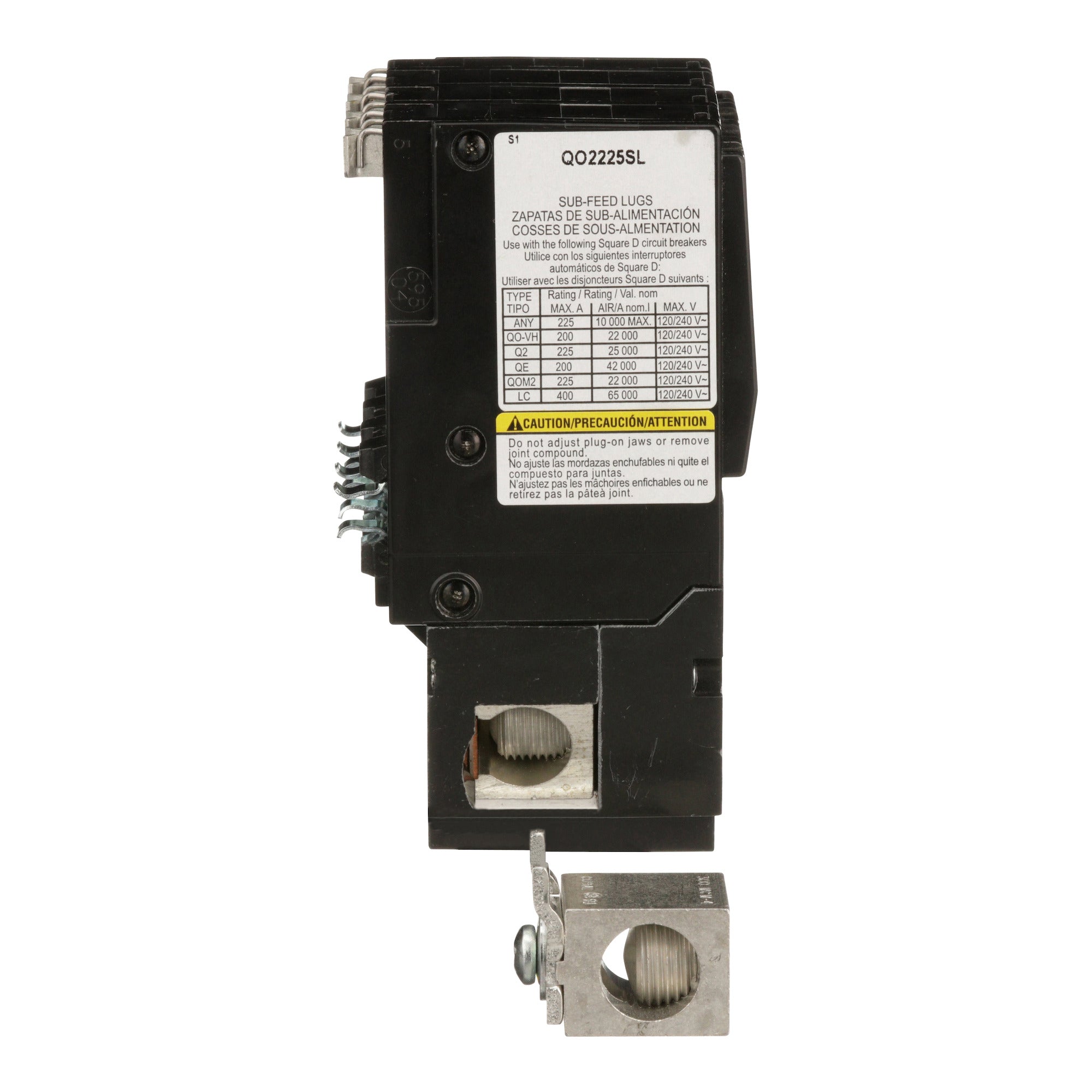

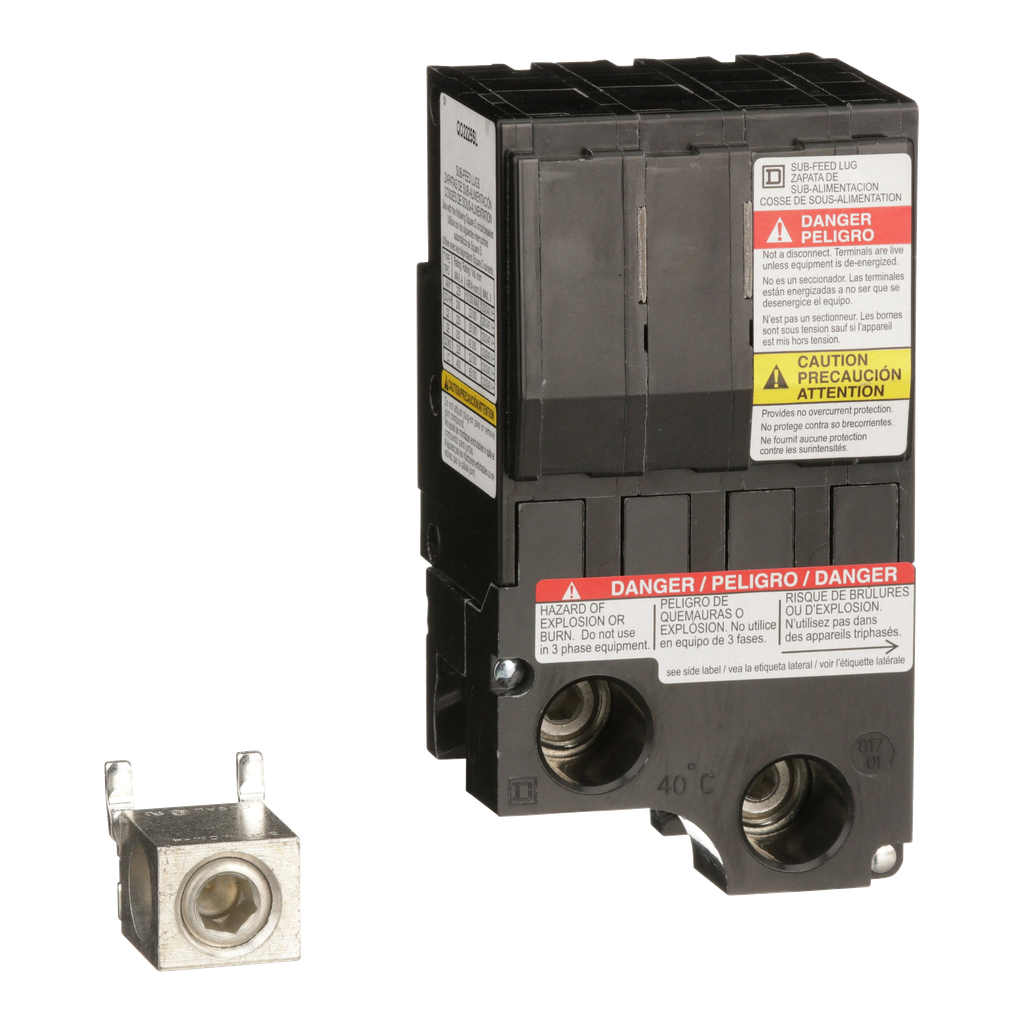

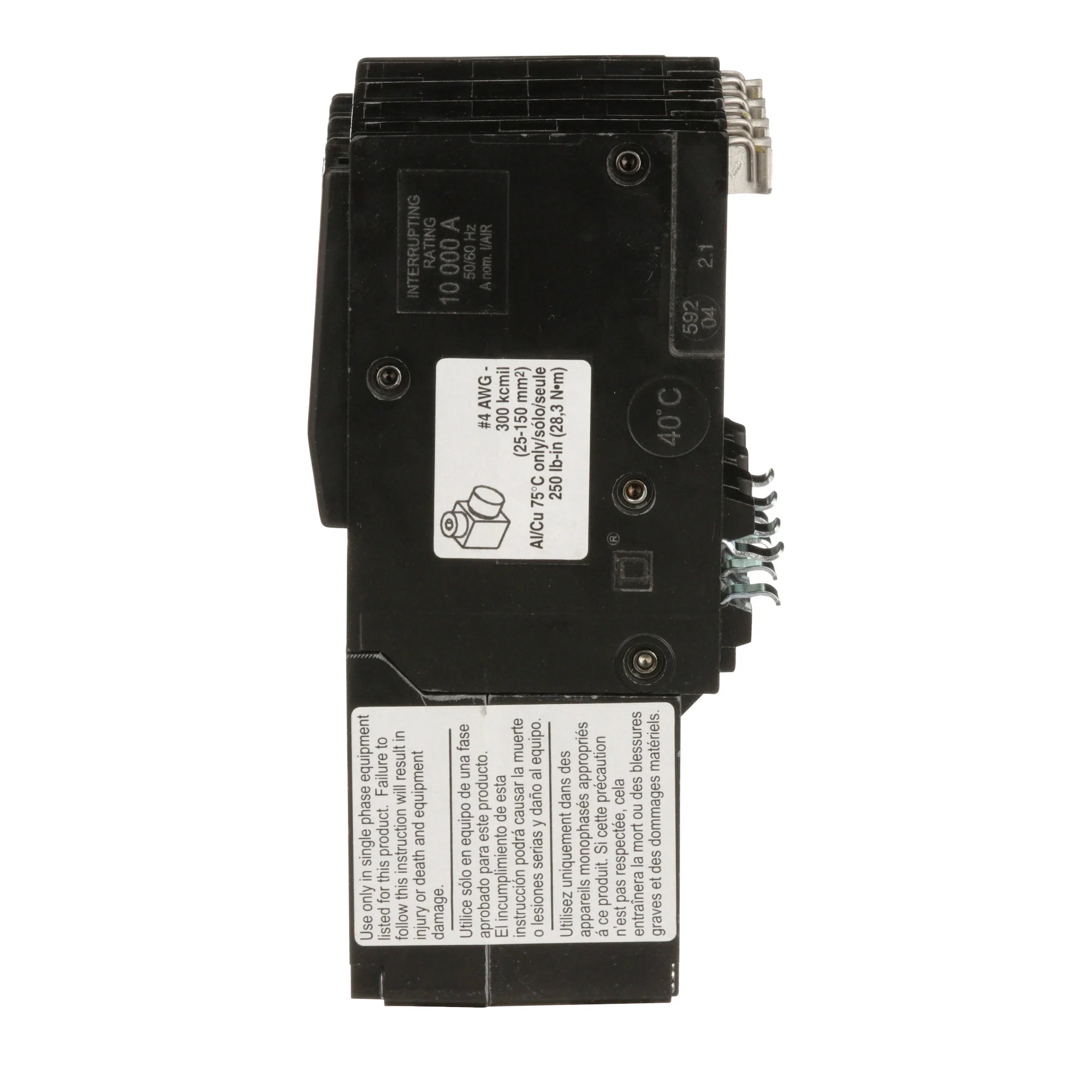

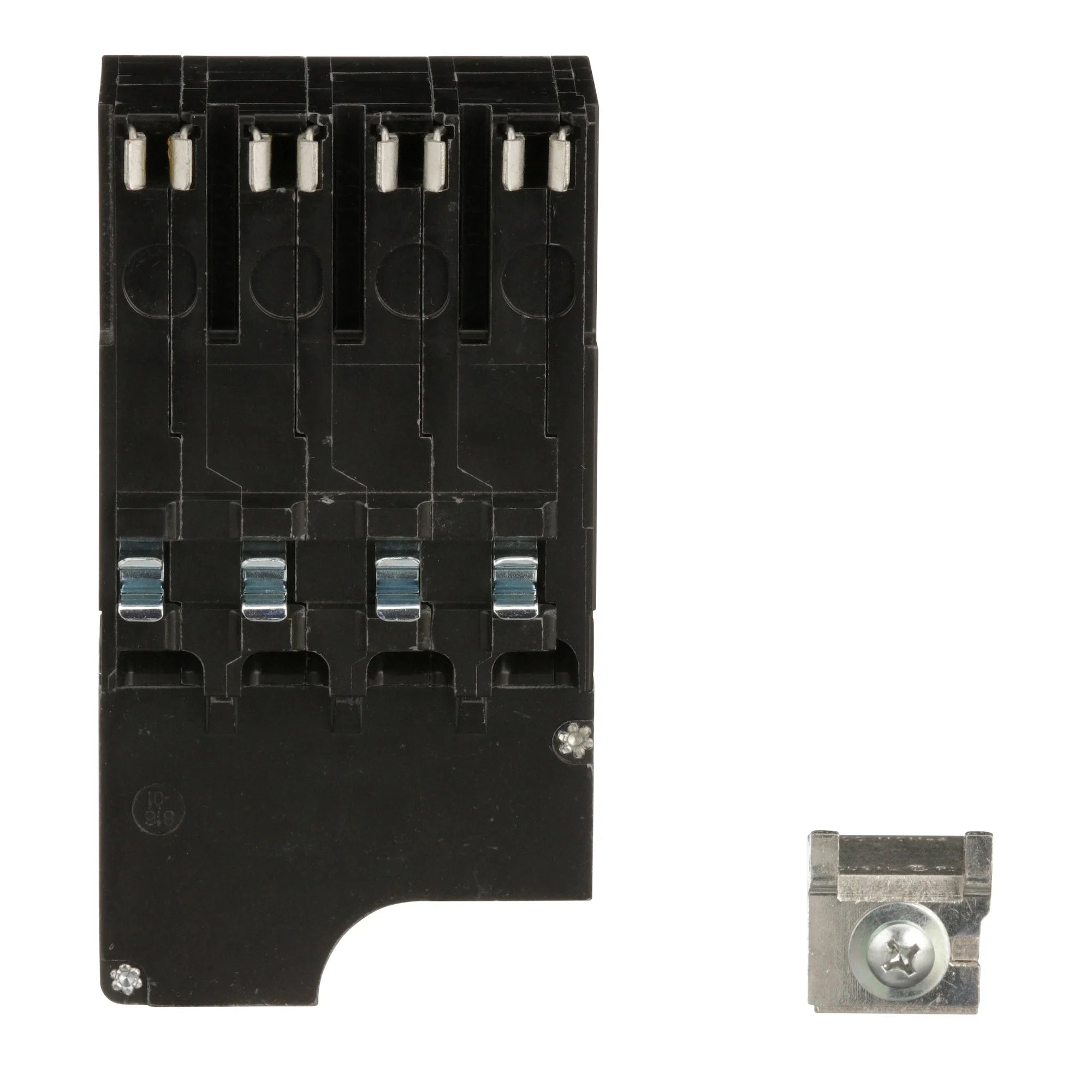

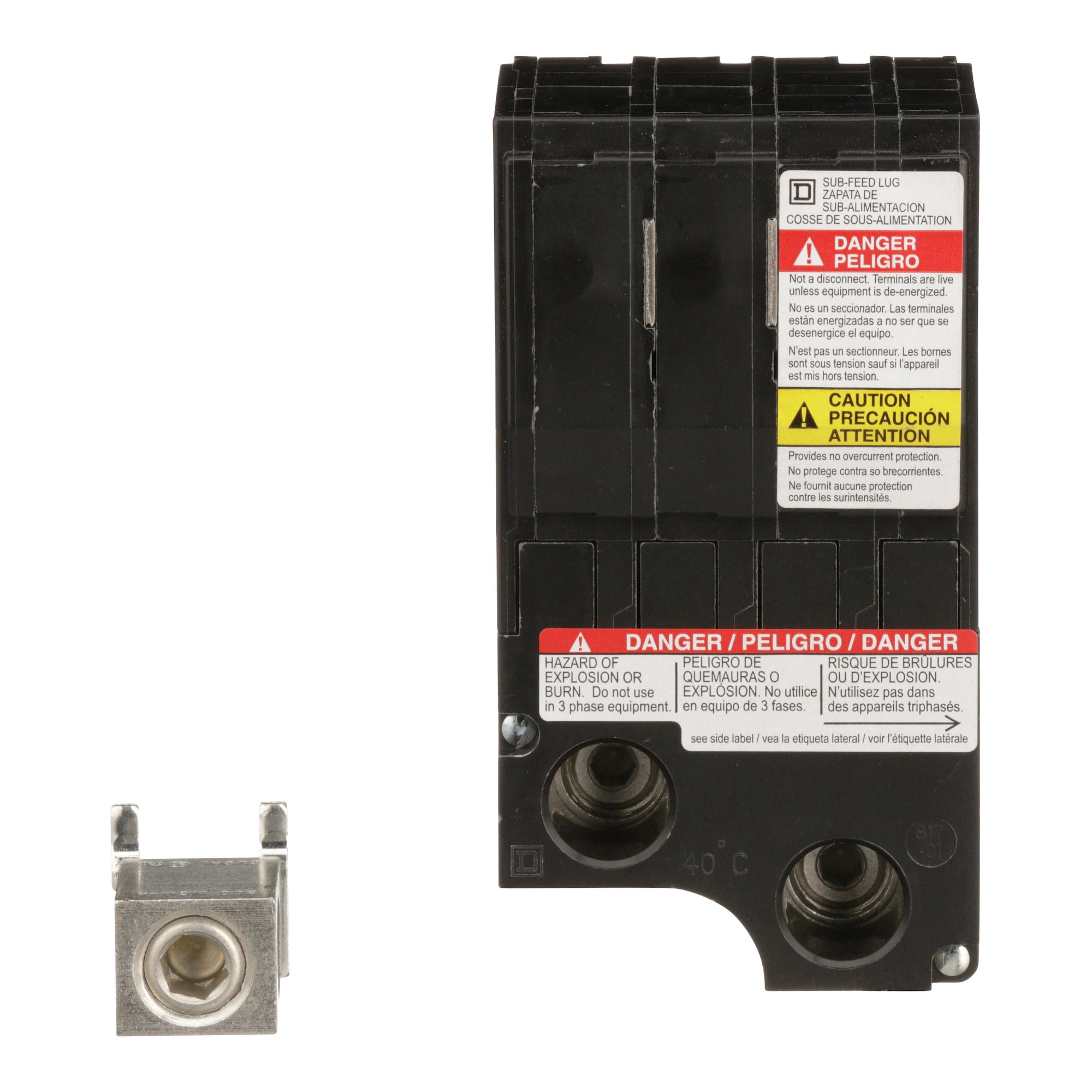

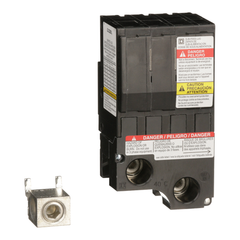

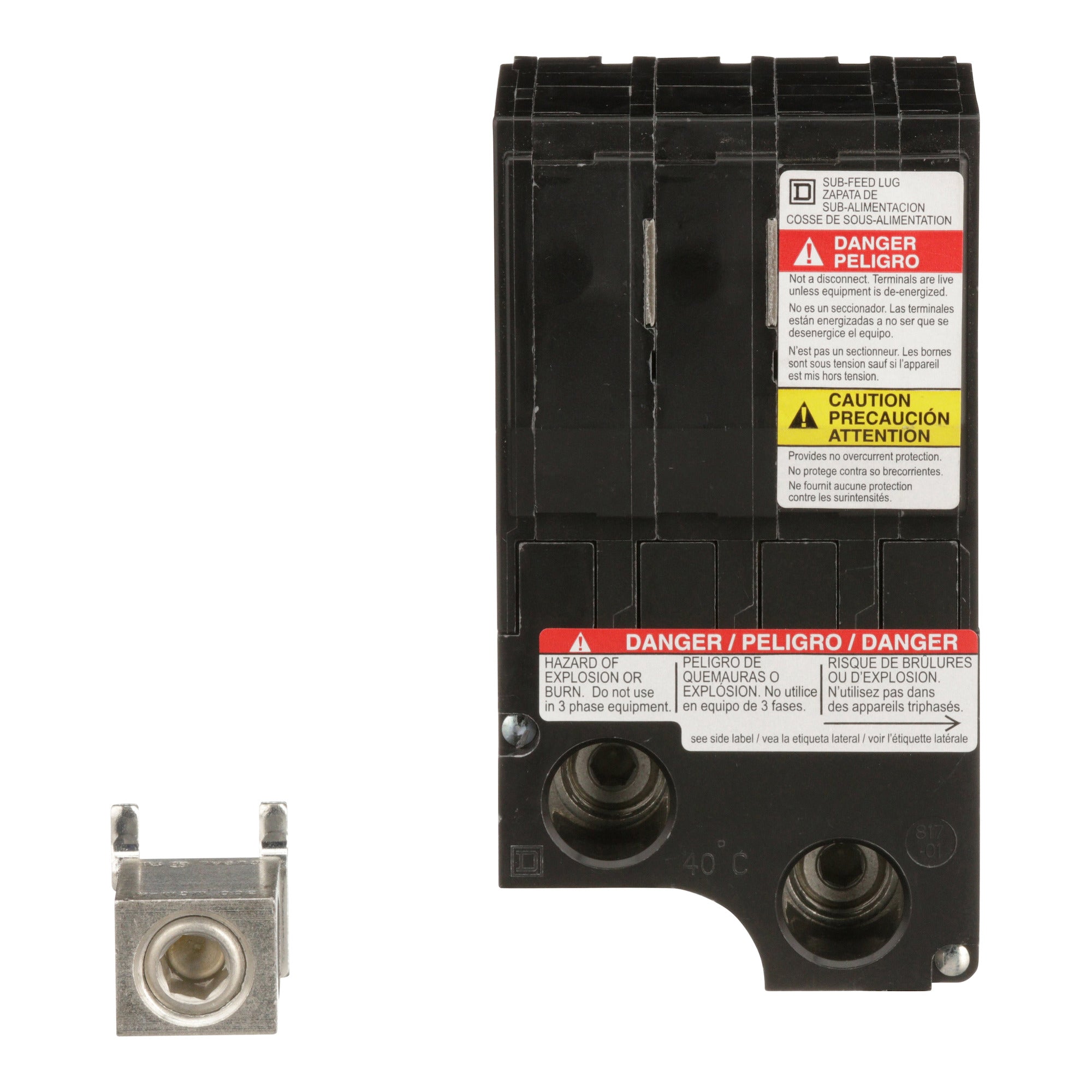

Square D QO2225SL Circuit Breaker Sub-Feed Lug

Product Description

Square D QO2225SL circuit breaker sub-feed lug provides robust overcurrent protection for both AC and DC systems. It has a trip-free toggle mechanism and quick action for safe operation. This model is rated for two poles with a capacity of two hundred twenty-five amps. It includes lugs that accommodate four AWG up to three hundred kcmil aluminum or copper wire, ensuring versatile connections.

• Rated for 225 amps and 120/240 volts
• Compatible with 4 AWG to 300 kcmil wire sizes
• Includes VisiTrip indicator for circuit status

Product Highlights

The QO and QOB series miniature circuit breakers are designed for efficient performance in power distribution systems. The positive handle indication contributes to safe usage by confirming the position of the breaker.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO2225SL
• Current: 225 Amp
• Voltage: 120/240 Volt
• Number of Poles: 2 Pole
• Number of Spaces: 4
• Operating Temperature: 23 to 104 degrees F
• Interrupt Rating: 10 kAIC
• Country of Origin: Mexico
