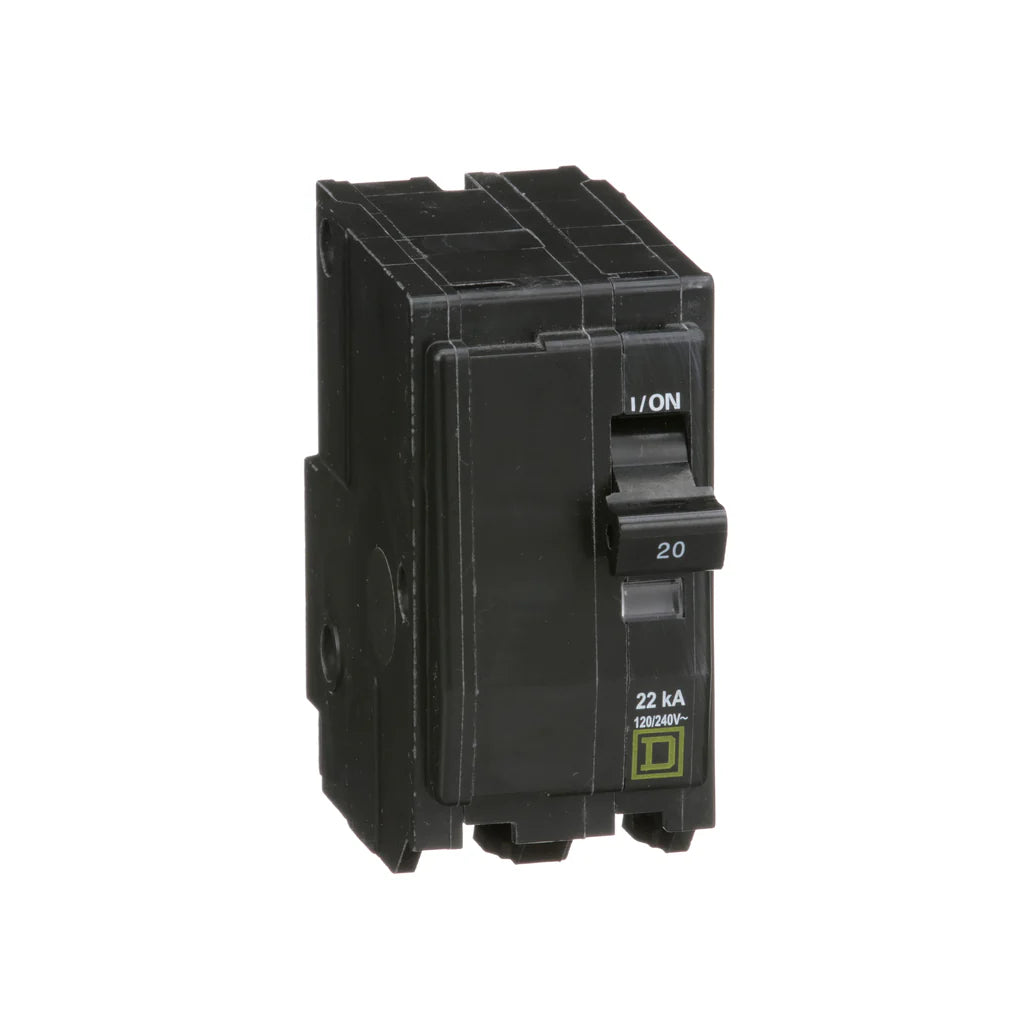

Square D QO220VH Miniature Circuit Breaker 20A 120/240V 2P

Product Description

The Square D QO220VH Miniature Circuit Breaker provides reliable overcurrent protection for AC and DC systems. It is rated at twenty amps and operates on a voltage of one hundred twenty to two hundred forty volts. This breaker features a plug-on design for easy installation and has a breaking capacity of twenty-two kiloamperes. The quick make and break action of the breaker ensures a positive handle indication along with the VisiTrip feature for clear visual feedback when it has tripped.

• Two pole construction
• UL Listed and CSA Certified performance
• Suitable for HACR rated applications

Product Highlights

The QO220VH circuit breaker is suitable for residential and commercial use, ensuring safety in various electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO220VH
• Type: Miniature circuit-breaker
• Rated Current: 20 Amps
• Voltage: 120/240 Volts
• Number of Poles: 2
• Breaking Capacity: 22 kAIC
• Depth: 74 mm
• Width: 38 mm
• Height: 76 mm
• Mounting Type: Plug-in
• Country of Origin: Mexico
• Warranty Length: 18 months

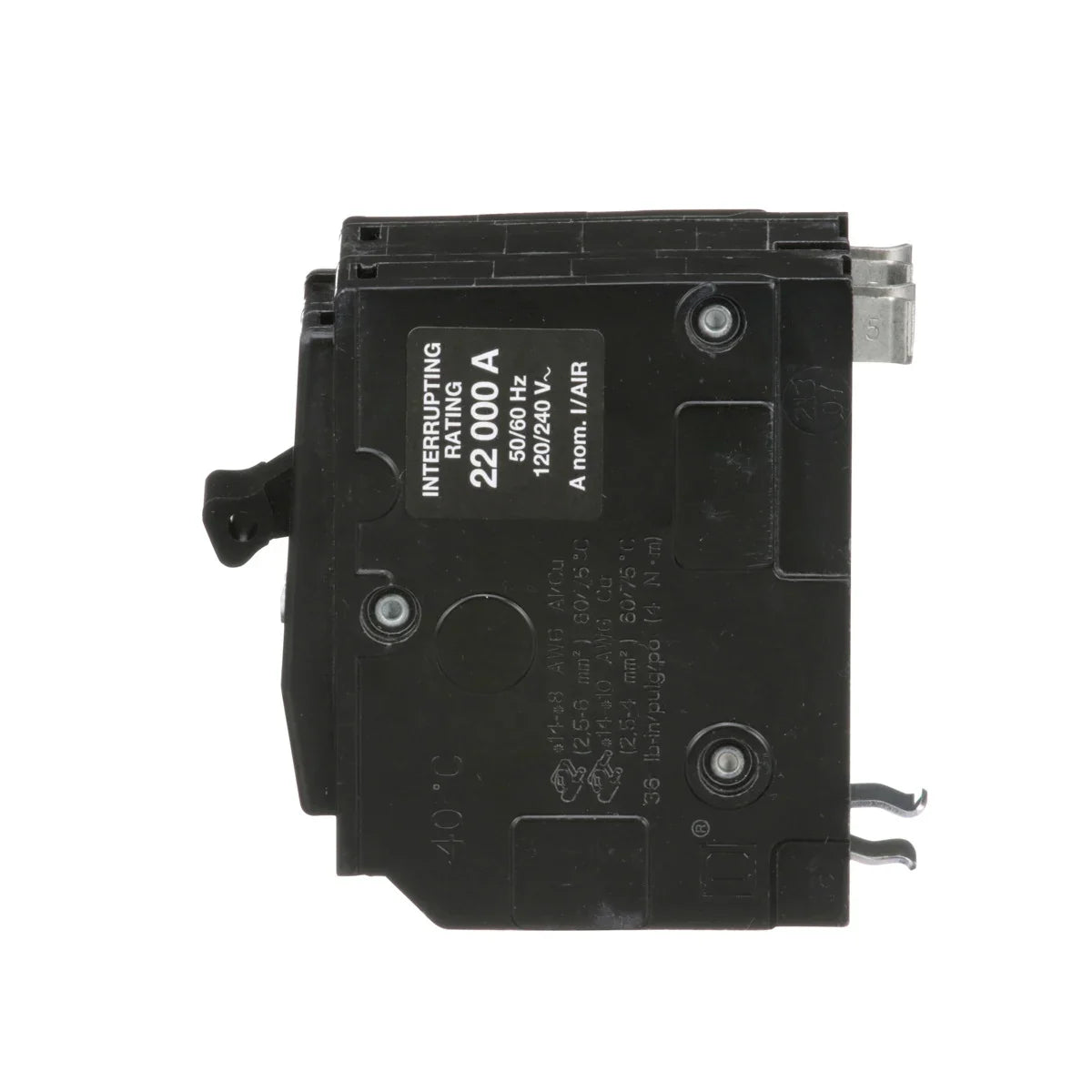

• Interrupt Rating: 22 kA
• Operating Temperature: 40 Degrees C
• Conductor Size: 14-8 AWG
