Square D QO220SWN Miniature Circuit Breaker 20 Amp 2 Pole 120 Volt

Product Description

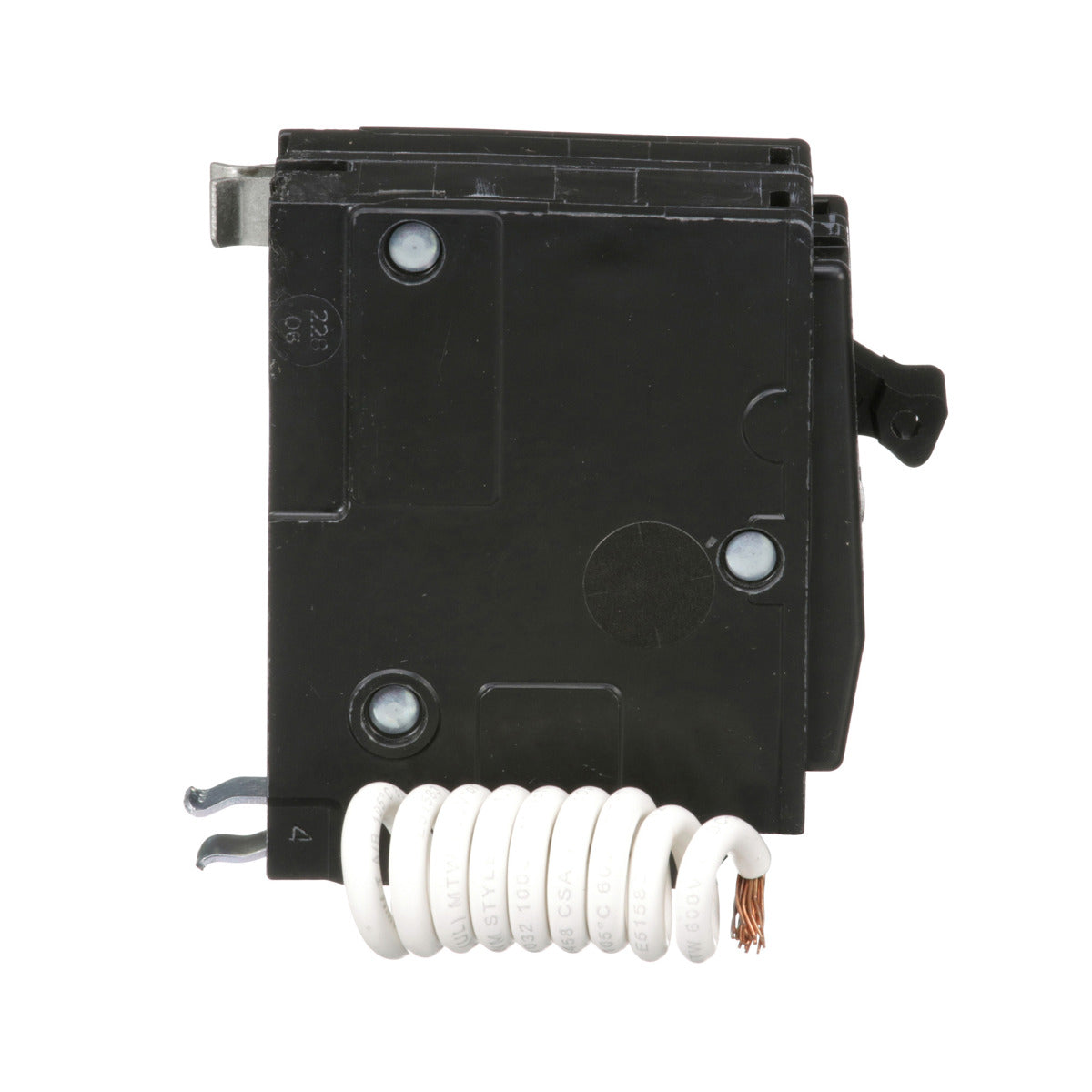

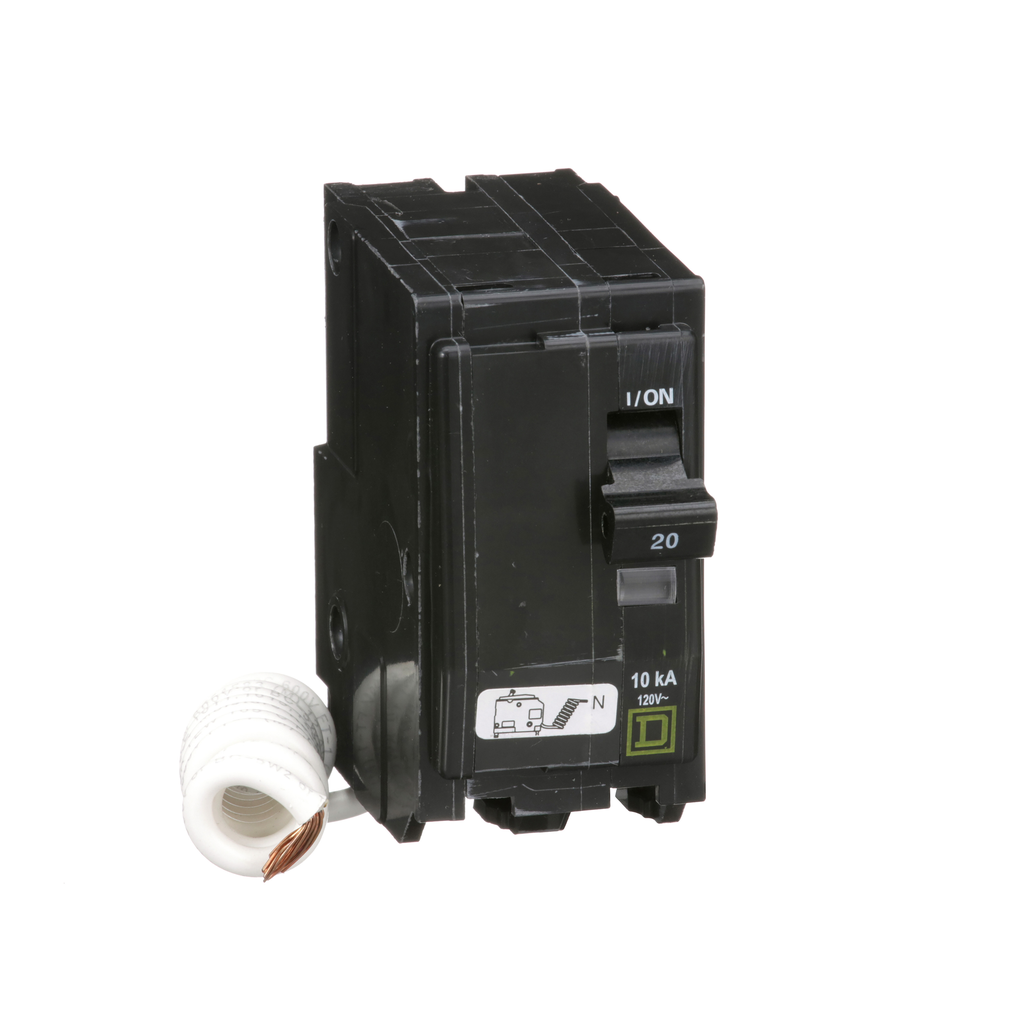

Square D QO220SWN is a miniature circuit breaker designed for ac and dc systems. It provides reliable overcurrent protection and enables safe switching. This two-pole breaker is rated for twenty amps at one hundred twenty volts. The unit features a quick make, quick break action with positive handle indication. A visual VisiTrip trip indication alerts you when the breaker is tripped. The QO series allows for easy plug-in mounting and accommodates a variety of factory-installed accessories.

• Two-pole design rated for twenty amps at one hundred twenty volts
• Ten kA breaking capacity
• UL Listed and CSA Certified for safety

Product Highlights

This circuit breaker is essential for protection in residential and commercial applications, ensuring devices are shielded from overloads and short circuits.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO220SWN
• Current Rating: 20 Amp
• Voltage Rating: 120 Volt
• Number of Poles: 2 Pole
• Breaking Capacity: 10 kAIC
• Mounting Type: Plug-in
• Weight: 0.277 kg
• Operating Temperature: 40 Degrees C
