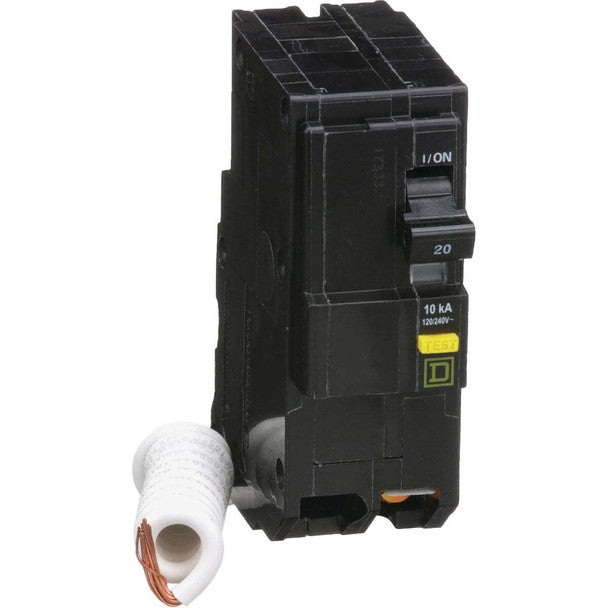

Square D QO220GFICP miniature circuit breaker 20A

Product Description

The Square D QO220GFICP miniature circuit breaker provides overcurrent protection and switching on AC and DC systems. This 2-pole QO circuit breaker is rated at 20A at 120/240VAC and provides 10kA breaking capacity with plug-in mounting. Includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed and CSA Certified.

• Provides overcurrent protection and switching on AC and DC systems
• Features VisiTrip trip indication for visual indication of tripped circuit
• UL Listed and CSA Certified

Product Highlights

The Square D QO220GFICP is a 2-pole, 20A miniature circuit breaker with 10kA breaking capacity and plug-in mounting.

Product Information

Standard Information

• Brand: Square D
• Manufacturer Part Number: QO220GFICP
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Depth: 74 mm
• Width: 38 mm
• Height: 105 mm
• Voltage: 120/240 Volt AC
• Mounting Type: Plug-In
• TC Connection: Pressure plate;AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Certifications: CSA,UL Listed
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 20 A
• Circuit Breaker Type: Ground Fault Protecting Class A 6 MA
• Manufacturer: Schneider Electric
• Country of Origin: Mexico
• Maximum Amperage: 20 A
• Amps: 20 Amps
• Volts: 240 VAC
• Model: QO220GFICP
