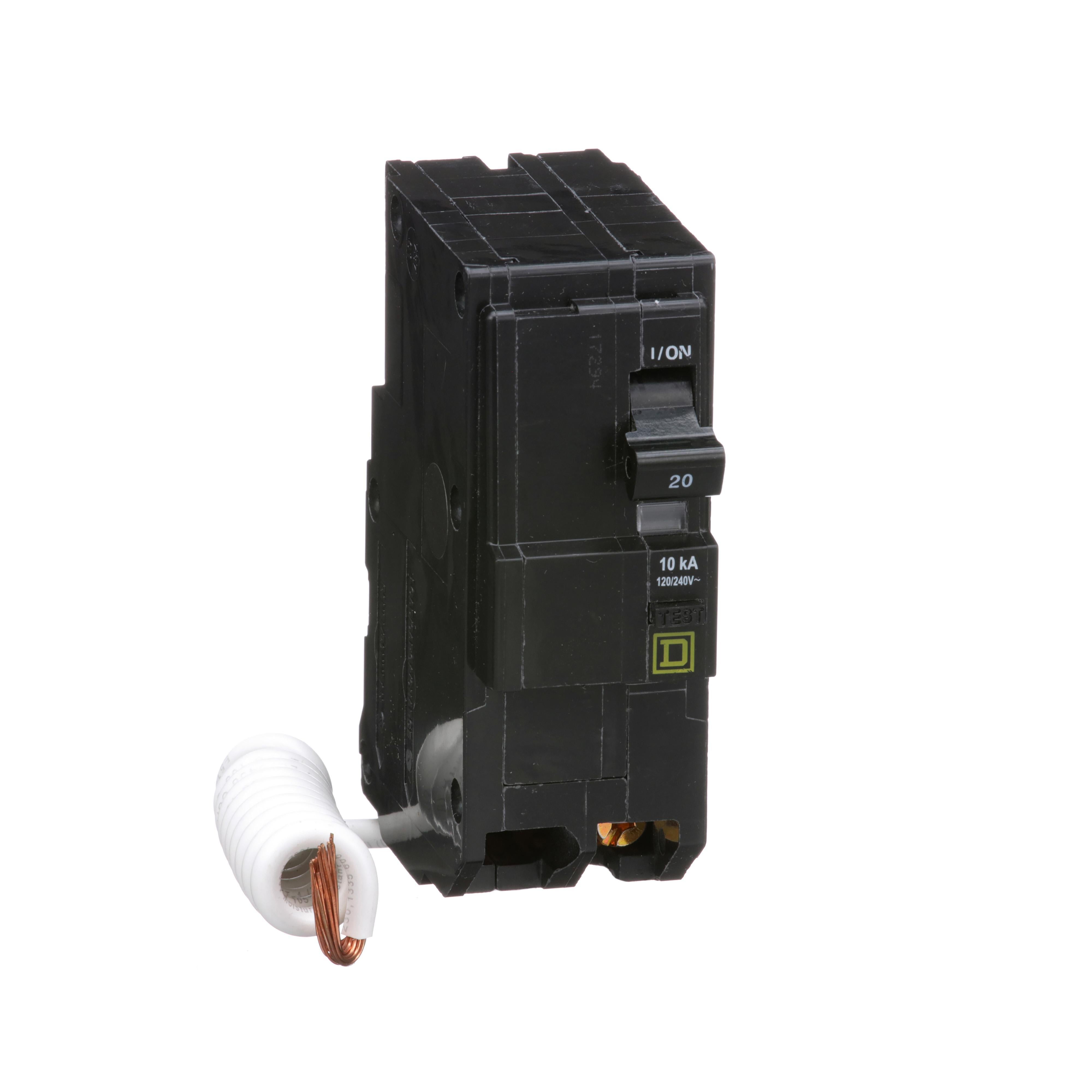

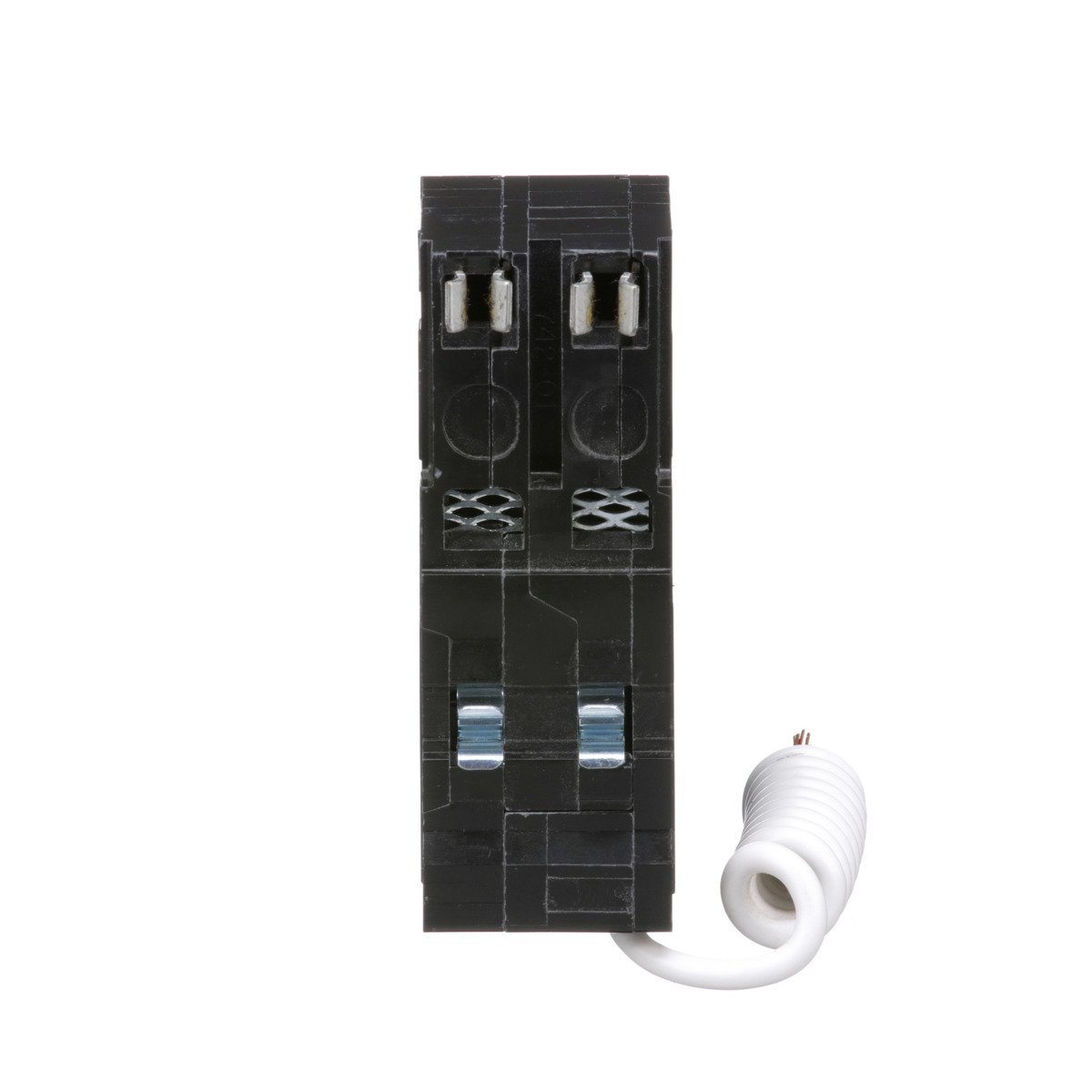

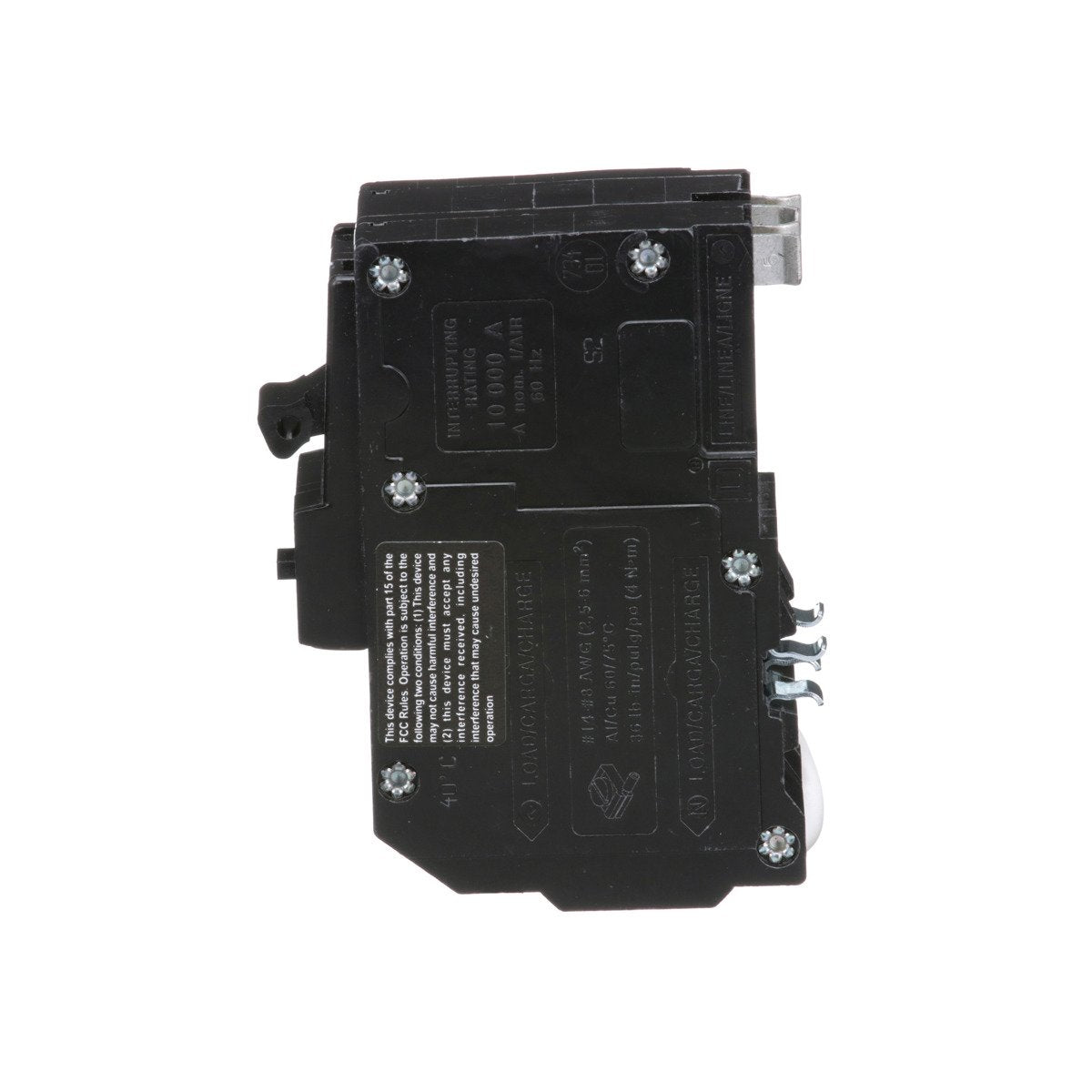

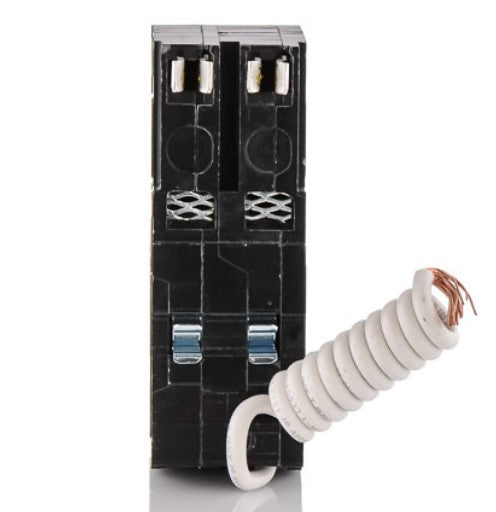

Square D QO220EPD miniature circuit breaker 20 amp

Product Description

The Square D QO220EPD is a miniature circuit breaker designed for overcurrent protection and switching on AC and DC systems. This 2-pole thermal magnetic circuit breaker features a trip-free toggle mechanism and VisiTrip trip indication. Rated at 20A at 120/240VAC with a 10kA breaking capacity and plug-in mounting, it includes 30mA ground fault B protection.

• Provides overcurrent protection
• Features a trip-free toggle mechanism with quick make, quick break action
• Includes VisiTrip trip indication

Product Highlights

Offers reliable circuit protection with easy installation and clear trip indication.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO220EPD
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• MPN: QO220EPD
• Current: 20 Amp
• Voltage: 120 Volt
• Amperage: 20 Amp
• Sub Brand: QO
• Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
• Mounting Type: Plug-in
• TC Connection: Pressure plate
• Certifications: CSA,UL Listed
• Conductor Size: 12-8 AWG (AL)/14-8 AWG (CU)
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 20 A
• Circuit Breaker Type: Ground Fault Protecting Class B 30 MA
• Short Circuit Current: 10 kA
• Voltage Rating: 120/240 VAC at 50/60 Hz (UL/CSA)
• Trip Sensitivity: 30 Milliampere
• Terminal Type: Pressure Plate
• Mounting: Plug-On
• Used On: QO Loadcenter, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
• Approval: UL, CSA
• Application: Provides Overload and Short Circuit Protection
• Connection type: Pressure Plate
• Mounting type: Plug-On
• AC Voltage Rating: 120/240V AC
• DC Voltage Rating: Not Rated
• Circuit Breaker Actuator: Paddle
• Circuit Breaker Mounting Style: Plug In
• Compatible Panelboard/Load Center Series: NQ, QO
• Electrical Connection: Pressure plate
• Inturrupt Rating: 10 kA at: 120/240 V AC 50/60 Hz, 10 kA at: 120 V AC 50/60 Hz
• Ambient Rating: 104 Degree F (40 Degree C)
• Poles: 2
• Breaking Capacity: 10kA
• Ground Fault Protection: 30mA
• Frame Size: 100A/QO
• Max. Wire Size: 8 AWG
• Min. Wire Size: 12 AWG (Al), 14 AWG (Cu)
• Max. AIR Rating: 10kA at 120V AC
• Item: Miniature Circuit Breaker
• Phase: Single
• Series: QO
• Features: Mercury Free
• Standards: CSA Certified, UL Listed
• Curve Type: B
• For Use With: QO Load Centers and NQ Panelboards
• Product Type: Miniature Circuit Breaker
• Number of Panel Spaces: 2
• Range: QO
• System Voltage: 120 V AC, 120/240 V AC
