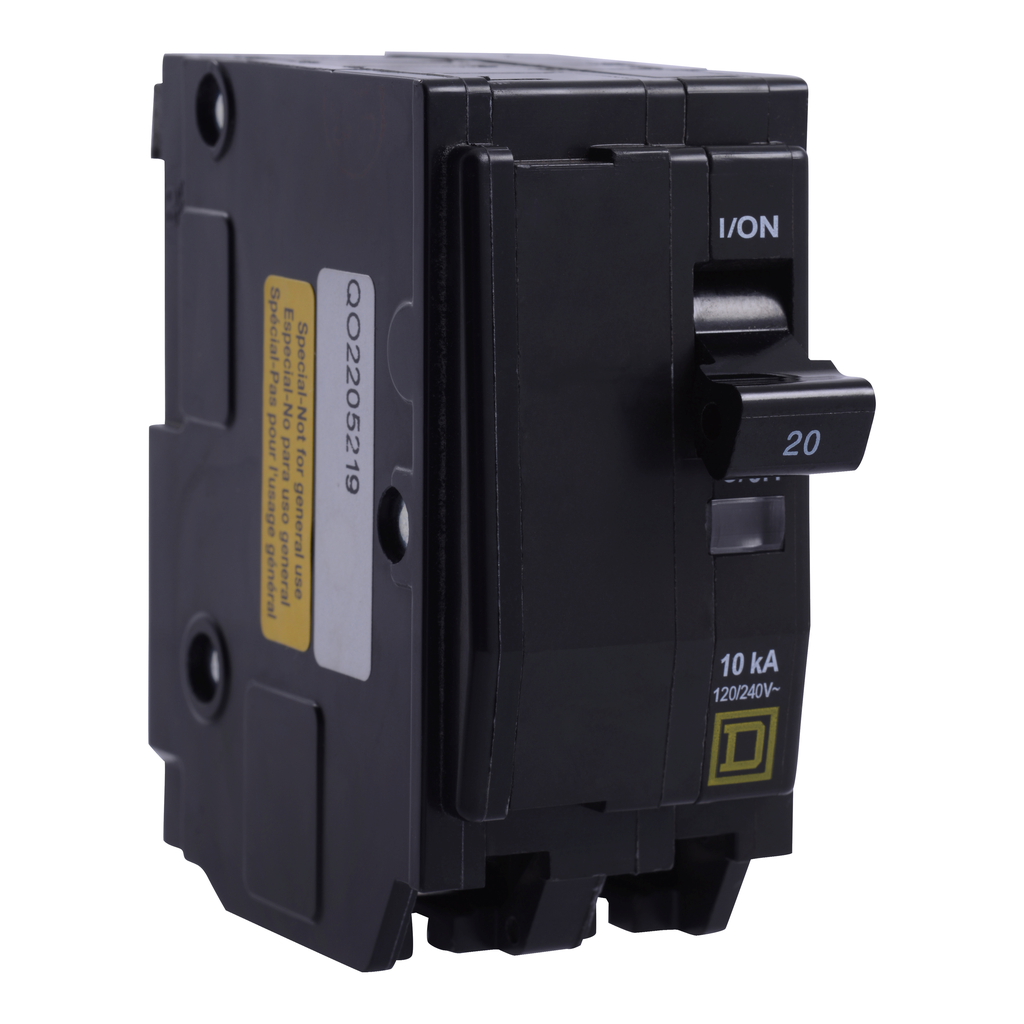

Square D QO2205219 Mini Circuit Breaker 20A 120/240VAC

Product Description

The Square D QO2205219 Mini Circuit Breaker is designed to provide overcurrent protection for AC and DC systems. This model features a two-pole design rated at 20 amps for 120/240 volts. The circuit breaker utilizes a thermal magnetic mechanism that ensures quick and reliable operation.

• Trip free toggle mechanism for reliable operation
• Includes visual trip indication for easy monitoring
• UL Listed and CSA Certified for safety

Product Highlights

This circuit breaker supports plug-in mounting and comes with high amp lugs for effective connections. It is suitable for various applications, making it a reliable choice for electrical systems.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Square-D / Schneider

Technical Specifications

• GTiN: 00785901322986
• Type: Miniature Circuit Breaker
• Depth: 2.91 inches
• Width: 1.5 inches
• Height: 3 inches
• Current: 20 Amps
• Voltage: 120 Volts
• Wire Size: AWG 8 to AWG 2 copper or aluminum
• Net Weight: 0.268 kg
• Certifications: CSA, UL Listed
• Warranty Length: 18 months
• Interrupt Rating: 10 kA
• Number of Poles: 2 Pole
• Country of Origin: Mexico
