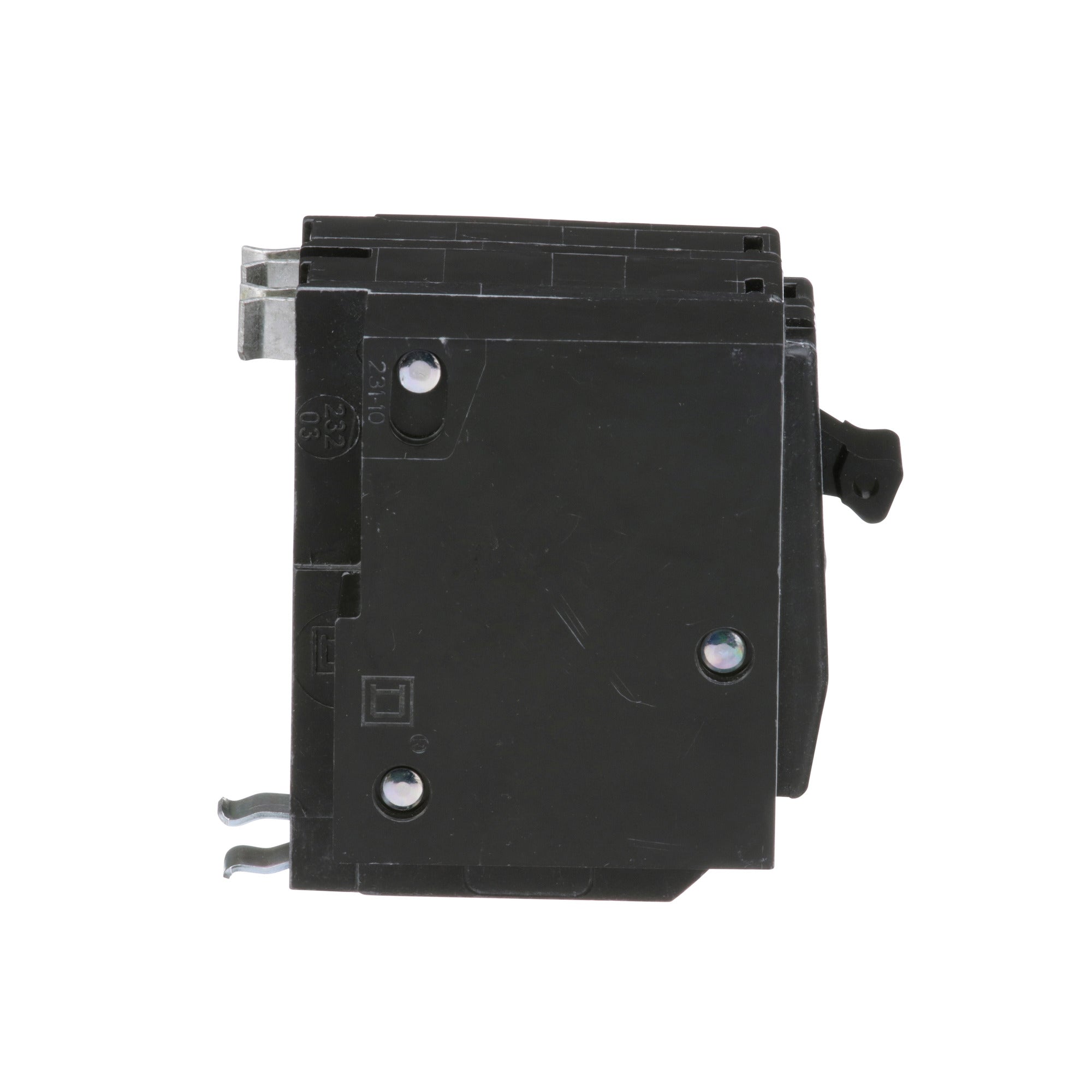

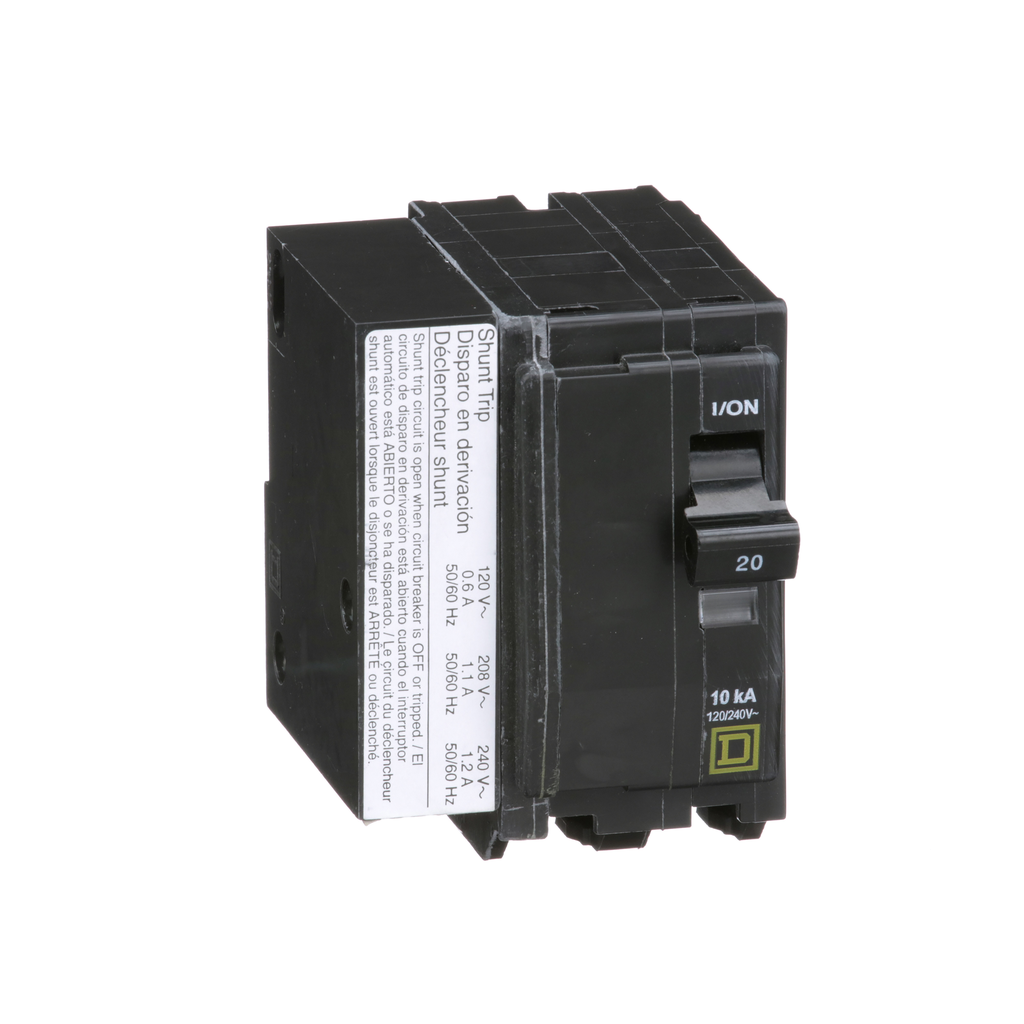

Square D QO2201021 Plug-On Miniature Circuit Breaker 20 Amp 120/240 Volt

Product Description

The Square D QO2201021 is a 20 Amp plug-on miniature circuit breaker designed for 120/240 Volt systems. This thermal magnetic circuit breaker provides reliable overcurrent protection for AC and DC circuits. It features a trip-free toggle mechanism that ensures quick make and break action, with clear handle indications of the circuit status. Designed for easy installation, this unit has a compact size for efficient use in electrical panels.

• Rated at 20 Amps for 120/240 Volt applications
• 10kA breaking capacity
• Includes AC shunt trip for additional safety

Product Highlights

The QO circuit breakers include VisiTrip indicators for clear visual feedback when tripped, limiting downtime and ensuring safety. With a plug-in mount and compatibility for various load requirements, they are suitable for numerous applications in residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D

Technical Specifications

• Catalog Number: QO2201021
• Type: Miniature circuit-breaker
• Current Rating: 20 Amp
• Voltage Rating: 120 Volt
• Number of Poles: 2 Pole
• Mounting Type: Plug-in
• Height: 76 mm
• Width: 57 mm
• Depth: 74 mm
• Weight: 0.408 kg
• Interrupt Rating: 10 kA
• Certifications: UL Listed, CSA Certified
• Operating Temperature: 40 Degrees C
• Country of Origin: United States
