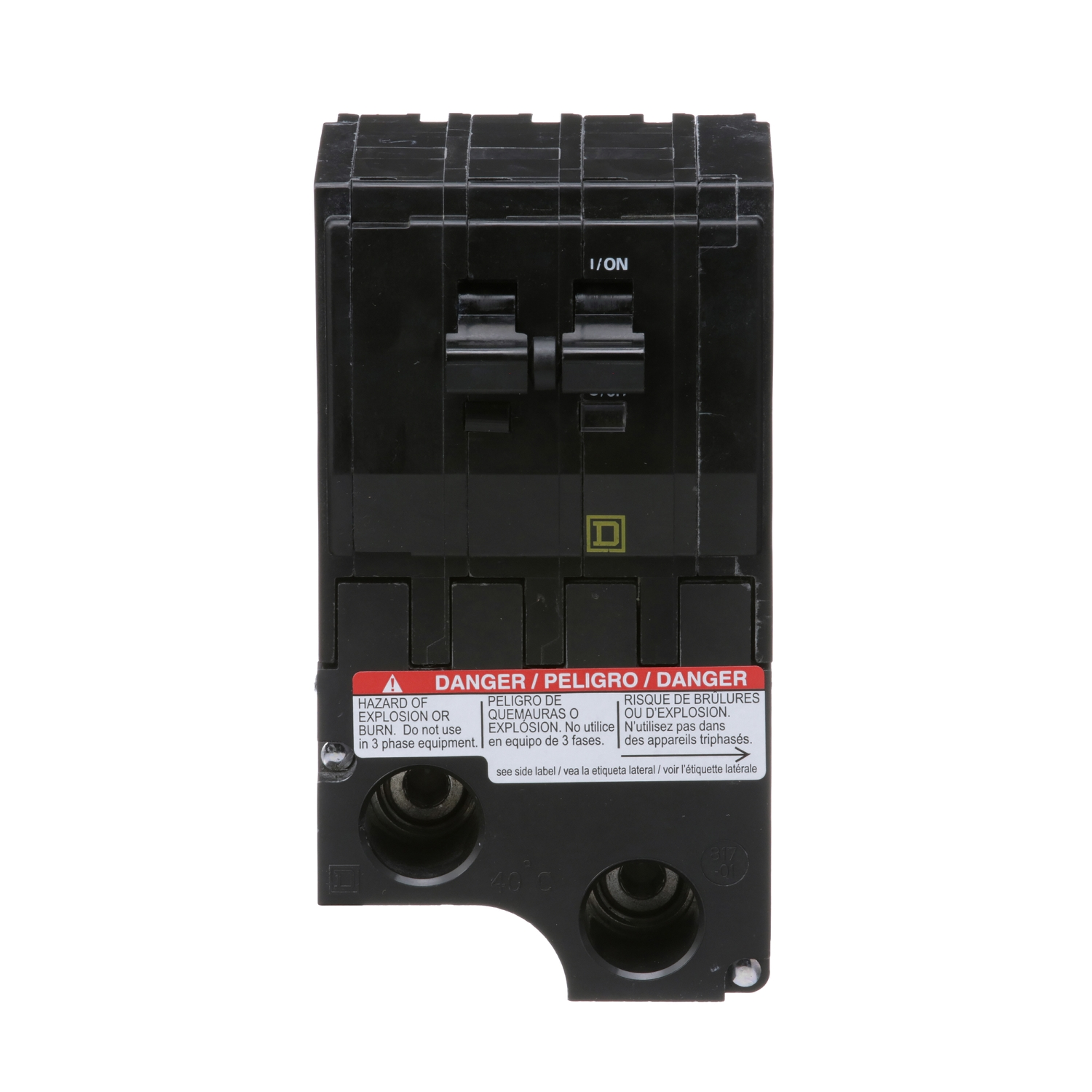

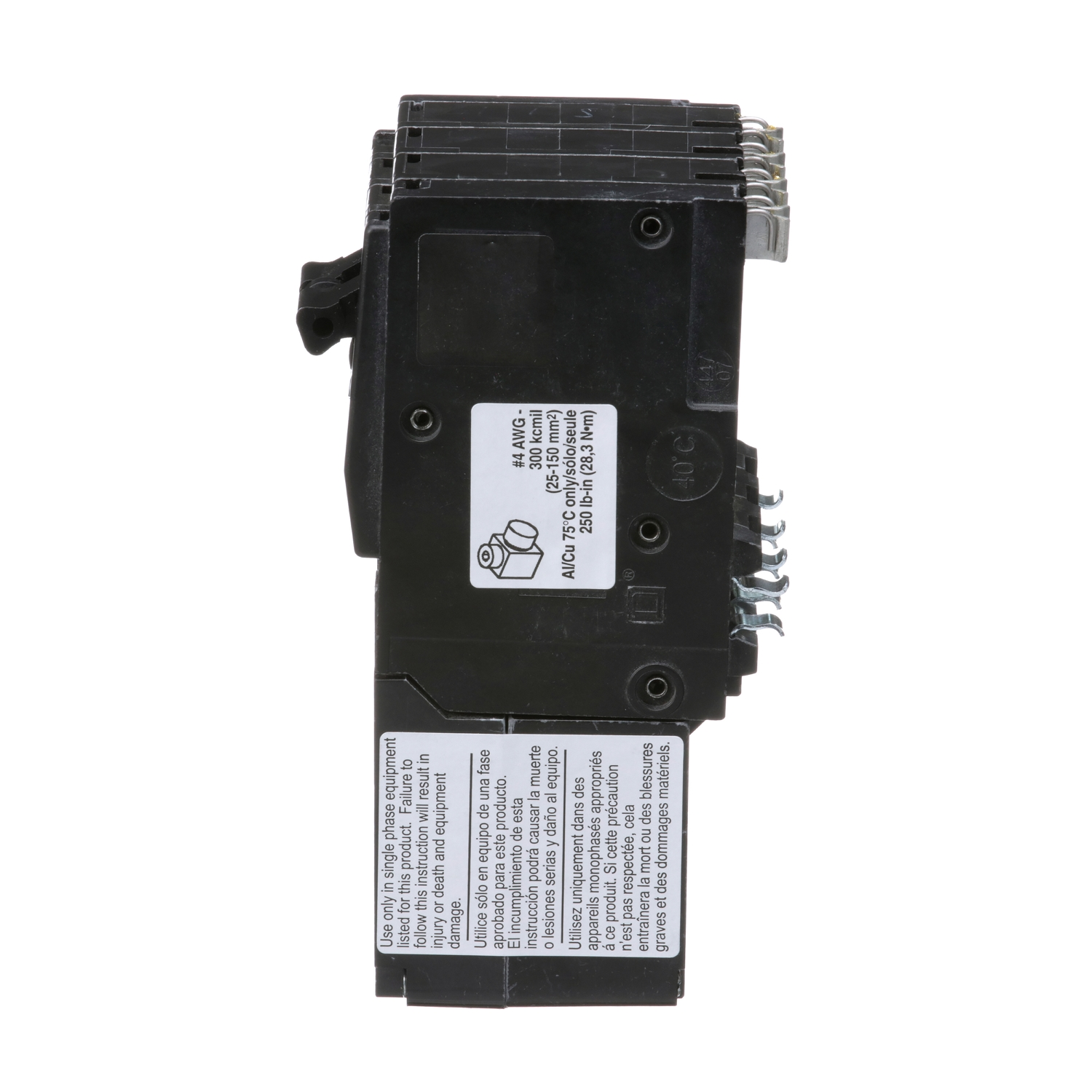

Square D QO2200VH Miniature Circuit Breaker 200A 120/240V 2P Plug-On

Product Description

The Square D QO2200VH is a miniature circuit breaker that provides overcurrent protection and switching on AC and DC systems. This 2-pole circuit breaker is rated at 200A at 120/240VAC with a 22kA breaking capacity and plug-in mounting. It features a trip-free toggle mechanism with quick make, quick break action, and positive handle indication, as well as VisiTrip trip indication.

• Provides overcurrent protection
• Suitable for switching on AC and DC systems
• Features VisiTrip trip indication

Product Highlights

The Square D QO2200VH offers reliable circuit protection with quick installation and clear trip indication.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO2200VH
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 200 Amp
• Voltage: 120/240 Volt
• Amperage: 200 Amp
• Material: Fiberglass
• Sub Brand: QO
• Wire Size: AWG 1...300 kcmil copper or aluminium
• Product UPC: 78590160892
• Applications: HACR rated
• Mounting Type: Plug-in
• TC Connection: Box lugs
• Certifications: CSA,UL Listed
• Conductor Size: 1 AWG-300 kcmil
• Number of Poles: 2
• Interrupt Rating: 22 kAIC
• Country of Origin: Mexico
• Line Rated Current: 200 A
• Circuit Breaker Type: Standard
• Operating Temperature: CALIBRATED FOR USE AT 40 DEGREES C. SEE DATA BULLETIN 0100DB0101 FOR RE-RATING INFORMATION.
• Short Circuit Current: 22 kA
• Voltage Rating: 120/240 VAC at 50/60 HZ
• Terminal Type: Box Lug
• Mounting: Plug On
• Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
• Approval: UL, CSA
• Includes: Visi-Trip Indicator
• Poles Description: 2P
• Electrical Connection: box lugs
• [Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
• Tightening Torque: 28.3-28.3 N.m
• Number Of Spaces Required: 4
• Breaking Capacity: 22 kA 120/240 V AC || 22 kA 120 V AC
• Awg Gauge: AWG 1...300 kcmil copper or aluminium
• Ambient Air Temperature For Operation: 40 °C
