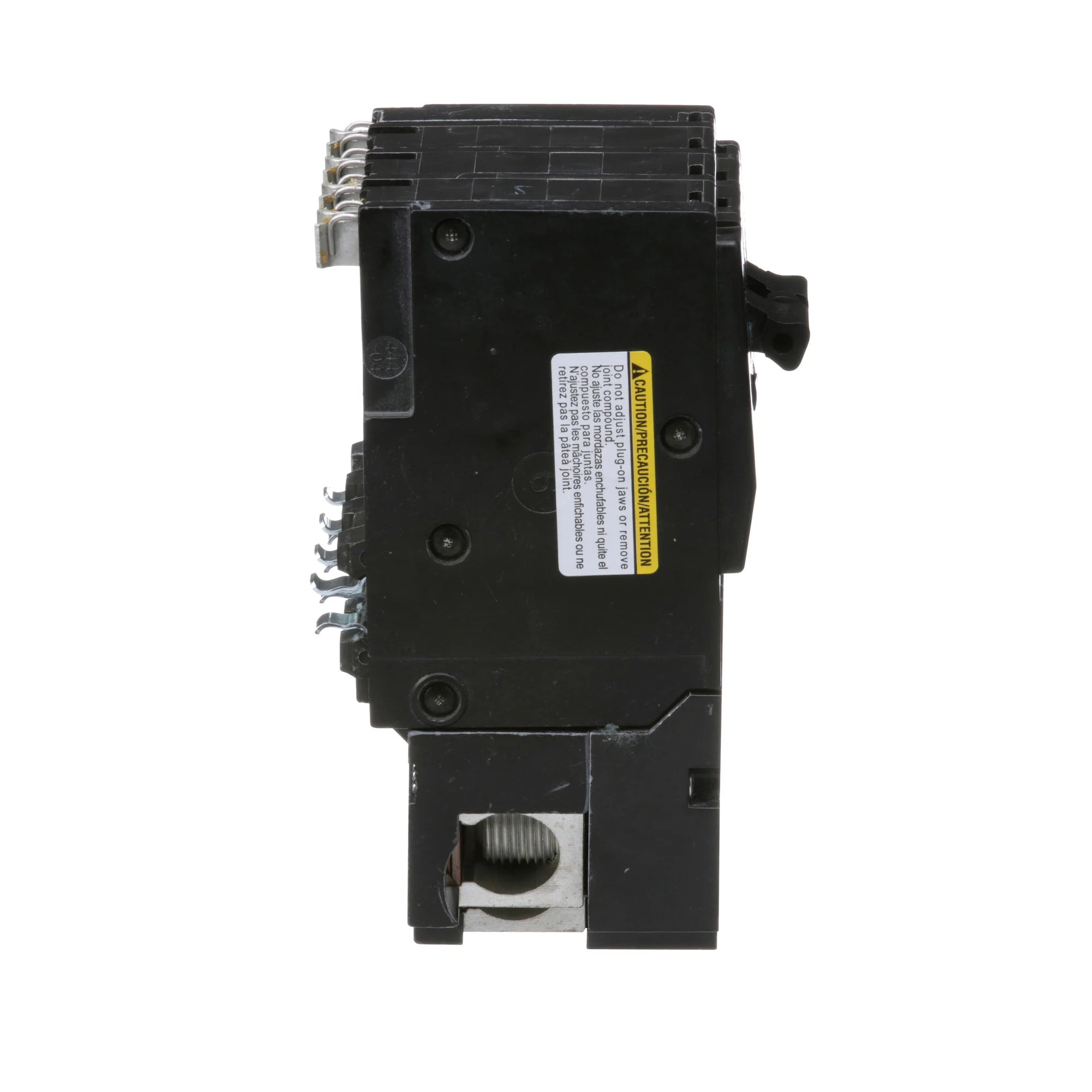

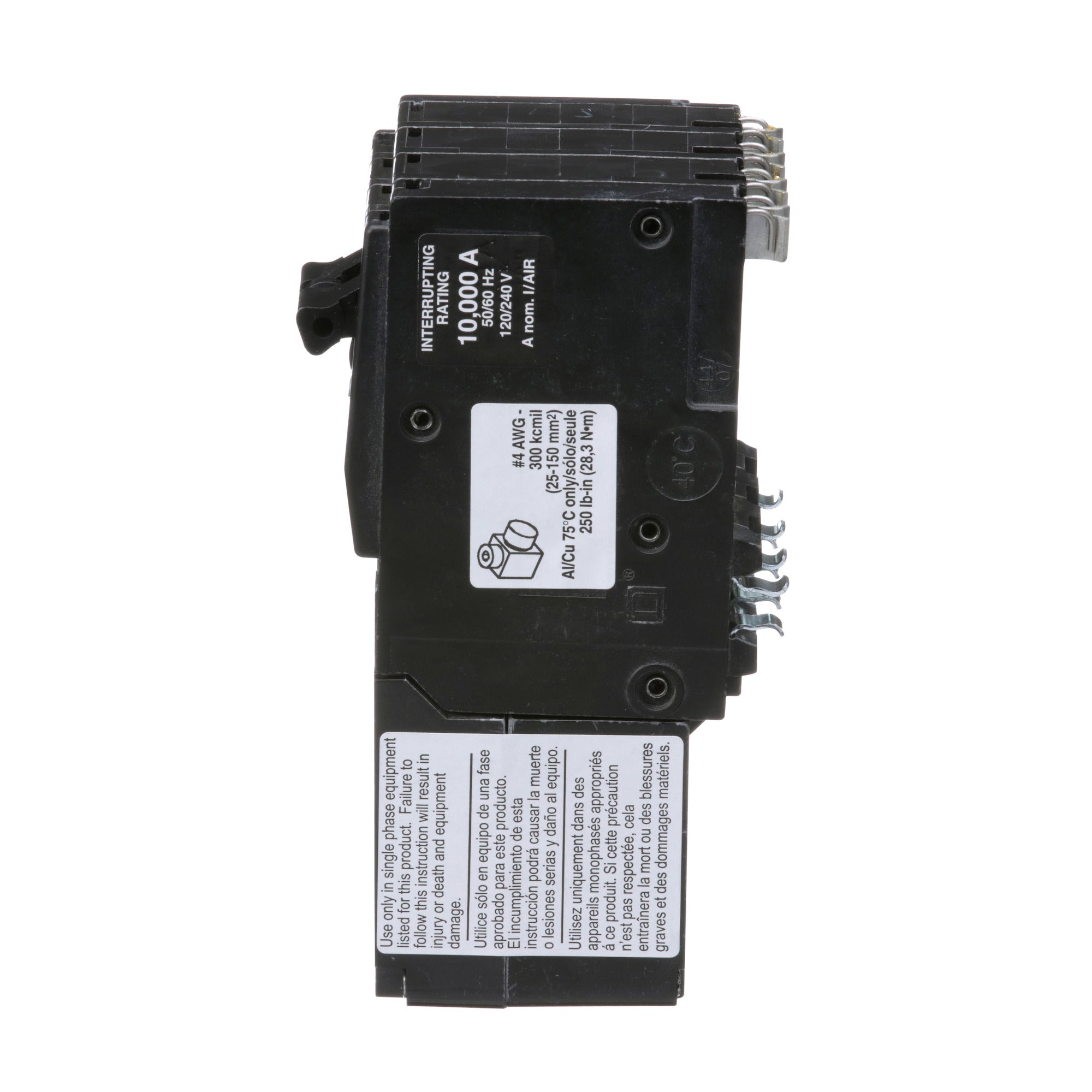

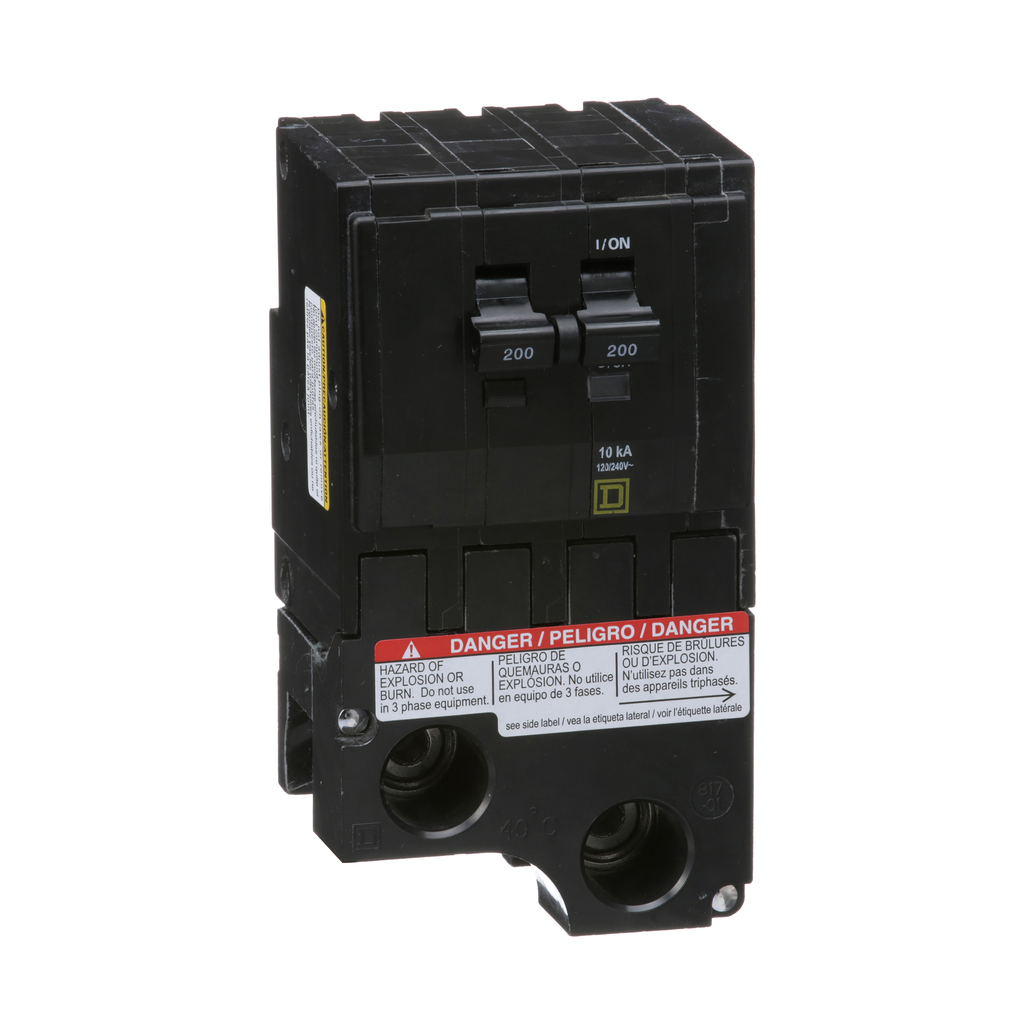

Square D QO2200 Miniature Circuit Breaker 200A 120/240V 2P

Product Description

The Square D QO2200 Miniature Circuit Breaker with MPN QO2200 is designed for reliable circuit protection in both AC and DC systems. It can handle a maximum current of two hundred amps at one hundred twenty to two hundred forty volts. The circuit breaker features a trip-free toggle mechanism, providing quick make and break capabilities. This ensures that you can quickly reset the circuit when necessary, even after it has tripped due to an overload.

• Two pole design for 200A applications.
• UL Listed and CSA certified for safety and compliance.
• Plug-in installation simplifies setup and maintenance.

Product Highlights

Ideal for use in load centers and residential applications, the QO2200 circuit breaker supports HVAC and general electrical loads.

Product Information

Standard Information

• Catalog Number: QO2200
• Brand: Square D

Technical Specifications

• Type: Miniature circuit-breaker
• Current Rating: 200 Amp
• Voltage Rating: 120/240 Volt
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Mounting Type: Plug-in
• Dimensions: 2.91 inches length x 1.50 inches width x 3.50 inches height
• Weight: 1.157 kg
