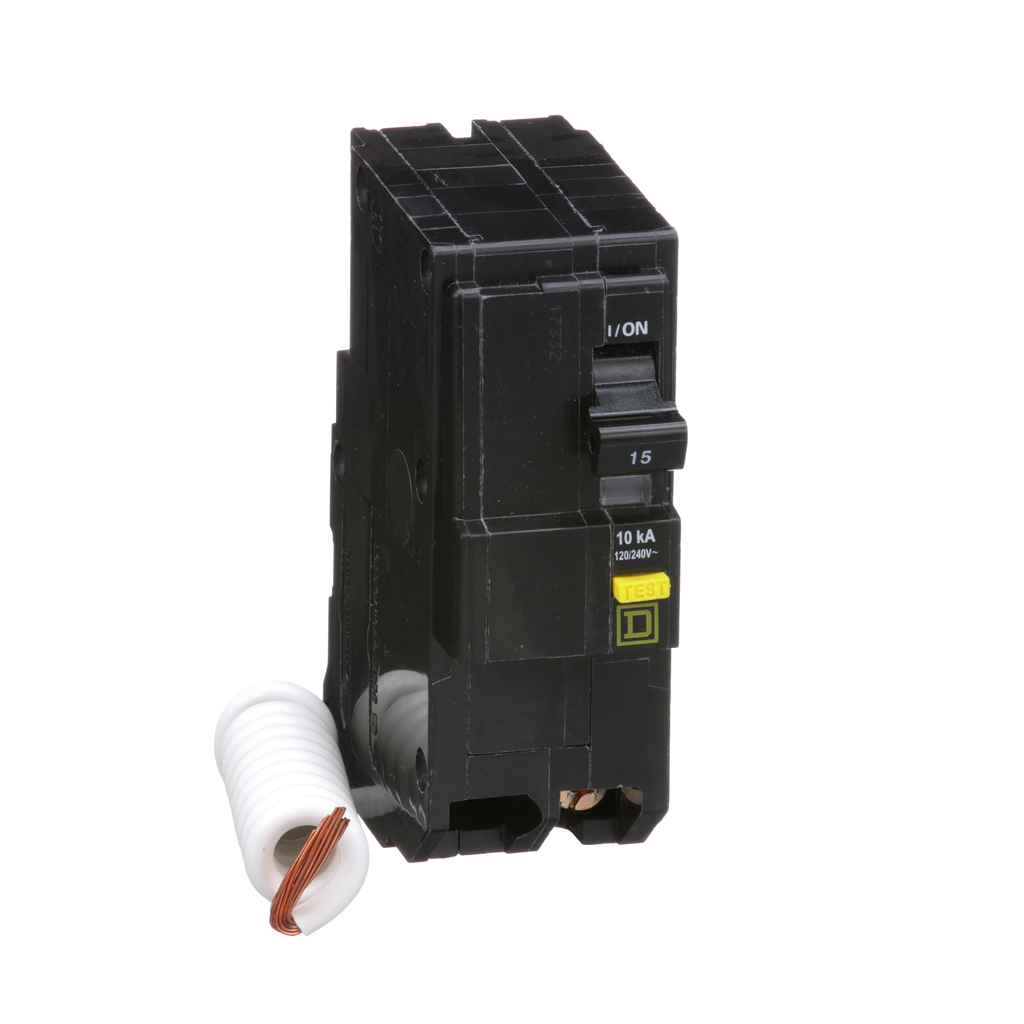

Square D QO215GFI Miniature Circuit Breaker W/GFI 15A 120/240V 2P

Product Description

The Square D QO215GFI Miniature Circuit Breaker is designed for current protection and switching in both AC and DC systems. This circuit breaker operates with a quick make and break action and features a trip-free toggle mechanism. It has a visual trip indicator, known as VisiTrip, which alerts when the circuit has tripped. This two-pole circuit breaker is rated for 15 amperes and operates at voltages of one hundred twenty to two hundred forty volts. It offers a breaking capacity of ten kiloamperes and uses plug-in mounting for easy installation.

• UL Listed under UL File E84967
• Includes 6mA ground fault protection with pigtail
• Factory-installed accessories such as alarm switches available

Product Highlights

This breaker provides reliable overload protection and is suitable for residential and commercial applications.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Catalog Number: QO215GFI

Technical Specifications

• Type: Miniature circuit breaker
• Current Rating: 15 Amp
• Voltage: 120/240 Volt
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Width: 1.5 inches
• Length: 2.91 inches
• Height: 4.13 inches
• Country of Origin: Mexico
• Warranty Length: 18 months
