Product Description

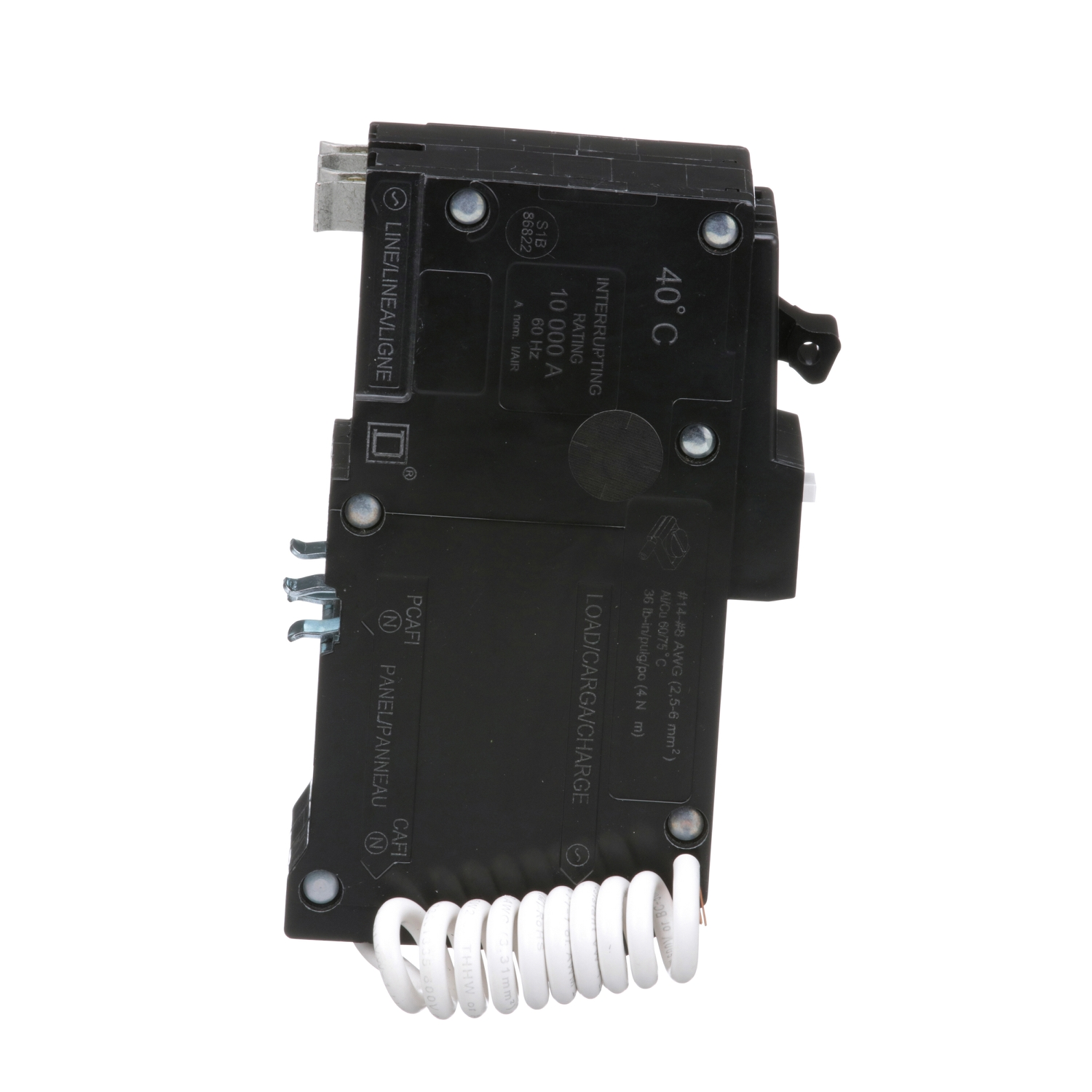

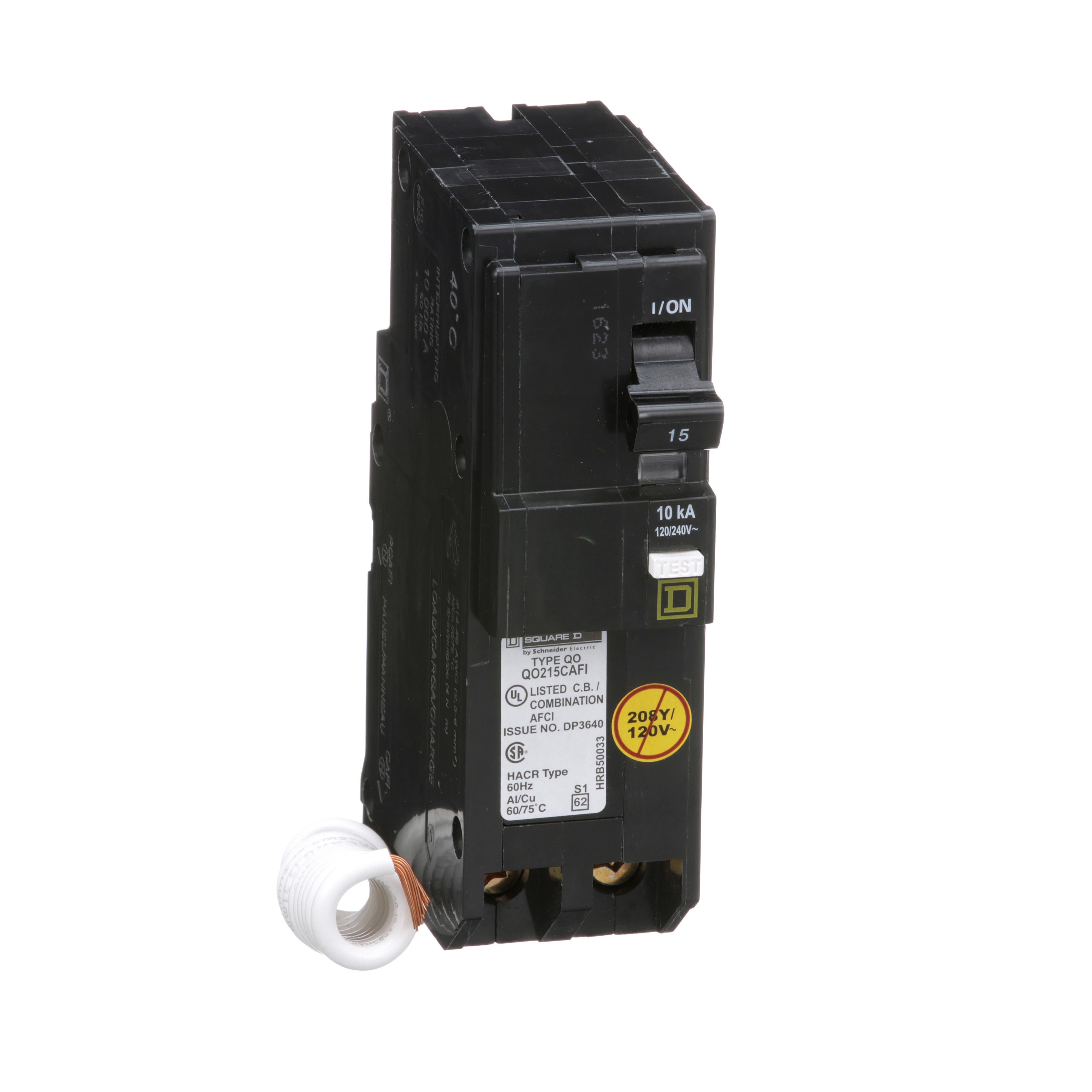

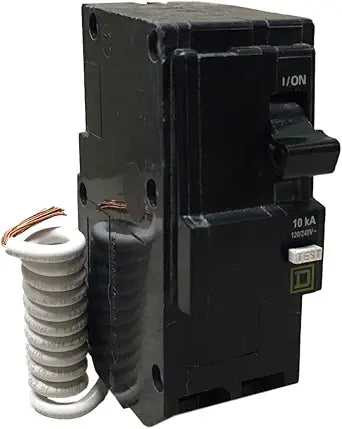

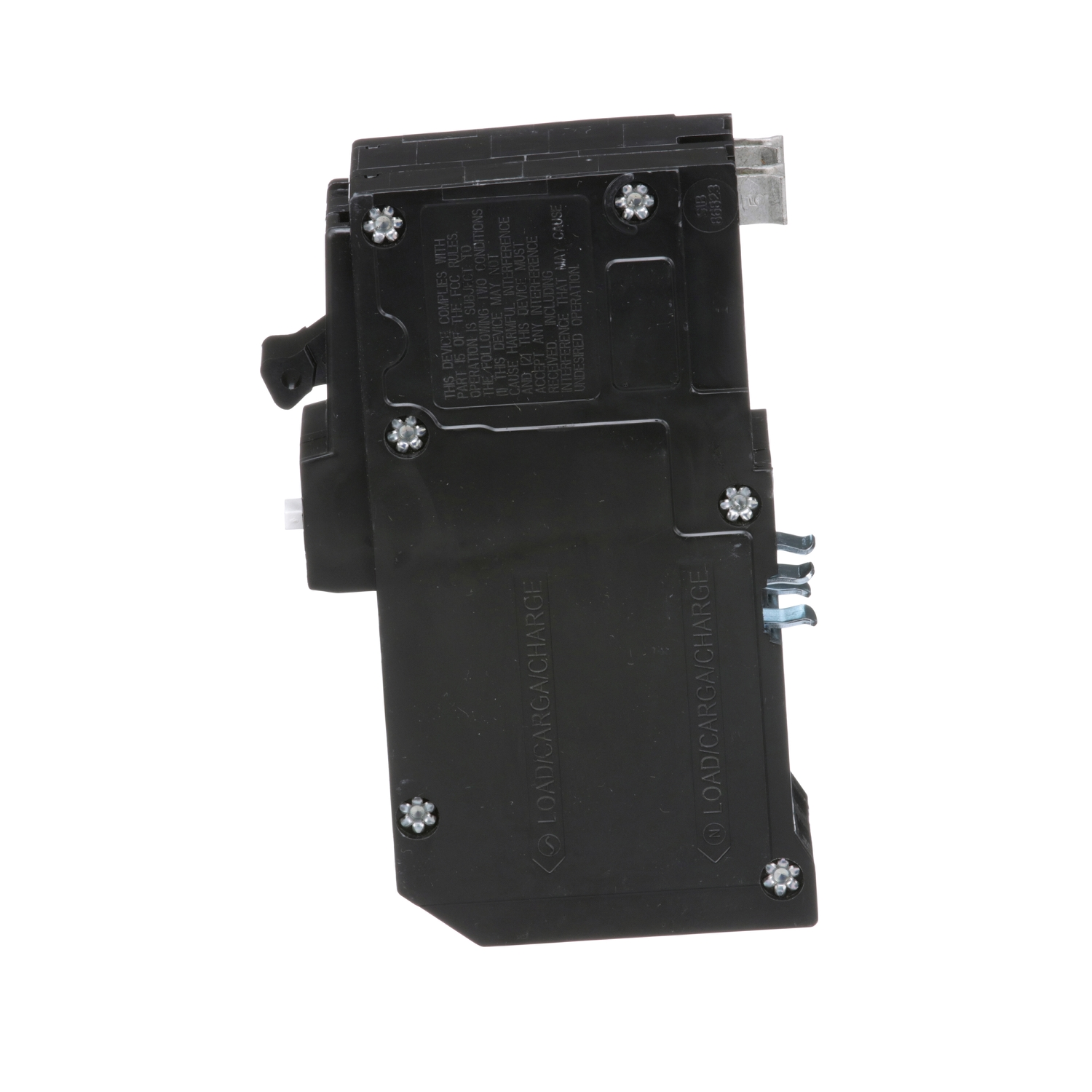

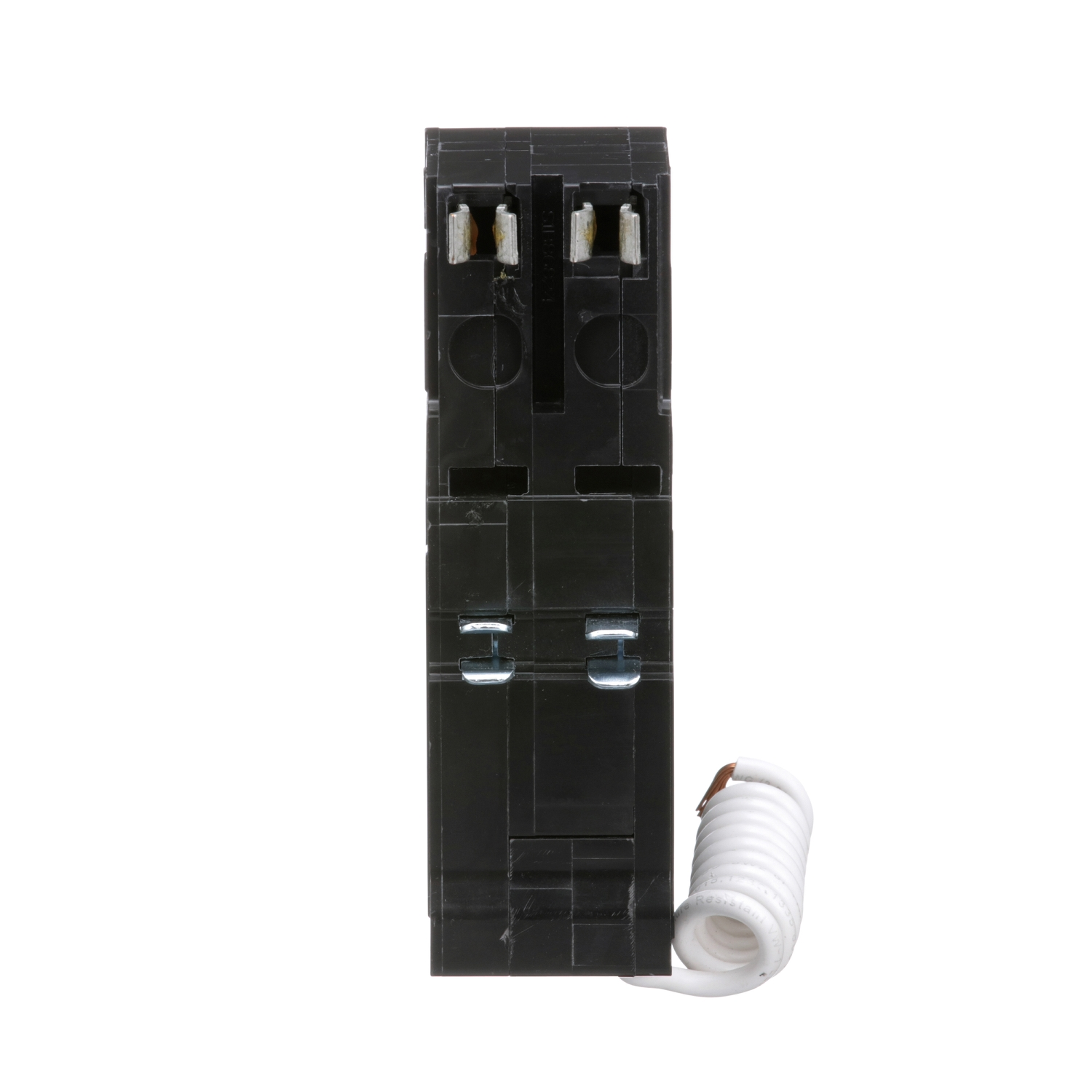

The Square D QO215CAFI is a miniature circuit breaker that comes in a plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. It is equipped with combination ground and arc-fault interrupter with pigtail neutral and is UL listed.
- Plug-in mounted version
- Combination ground and Arc-fault interrupter (Pigtail Neutral)
- UL listed
Product Highlights
The Square D QO215CAFI is ideal for AC and DC systems, providing overcurrent protection and switching. It features a trip-free toggle mechanism and VisiTrip trip indication.
Product Information
Standard Information
-
Brand: SQUARE D
-
Manufacturer Part Number: QO215CAFI
-
Country of Origin: United States
Technical Specifications
-
Type: Miniature circuit-breaker
-
Brand: Square D
-
Current: 15 Amp
-
Voltage: 120 Volt
-
Amperage: 15 Amp
-
Sub Brand: QO
-
Wire Size: AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
-
Product UPC: 78590138851
-
12-Digit UPC: 785901388517
-
Mounting Type: Plug-in
-
TC Connection: Pigtail neutral;Pressure plate
-
Certifications: CSA,UL Listed
-
Conductor Size: 12-8 AWG (AL)/14-8 AWG (CU)
-
Number of Poles: 2 Pole
-
Interrupt Rating: 10 kAIC
-
Line Rated Current: 15 A
-
Circuit Breaker Type: Combination ARC-fault
-
Short Circuit Current: 10 kA
-
Manufacturer: Schneider Electric
-
Made in USA: Yes
-
UPC: 785901388517
-
GTIN: 00785901388517
-
Poles: 2
-
Voltage Rating: 120/240 Volt AC
-
Current Rating: 15 Amps
-
Mounting: Plug-In
-
Used On: QO Arc-Fault Circuit Breaker
-
Approval: UL, CSA
-
RoHS Compliant: True
-
Electrical Connection: Pressure Plate
-
Temperature Rating: 104 Deg F
-
Family / Style: QO
-
Volts AC: 120/240
-
Amps: 15
-
Interrupt Rating AC: 10 kA
-
ECCN: EAR99
-
Series: QO
-
AWG Range: AWG 14...AWG 8
-
Rated Voltage: 120/240V ac
-
Item model number: QO215CAFI
-
Material: Copper
-
Batteries Required?: No
-
Connections - Terminals: pigtail neutral
-
Range Of Product: QO
-
Product Or Component Type: miniature circuit-breaker
-
Circuit Breaker Application: HACR rated
-
Mounting Mode: plug-in
-
Poles Description: 2P
-
[Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
-
Breaking Capacity: 10 kA 120/240 V AC || 10 kA 120 V AC
-
Tightening Torque: 4-4 N.m
-
Number Of Spaces Required: 2
-
Product Certifications: UL Listed || CSA
-
Ambient Air Temperature For Operation: 40 °C
-
Frame: QO
-
Trip Type: Thermal Magnetic
