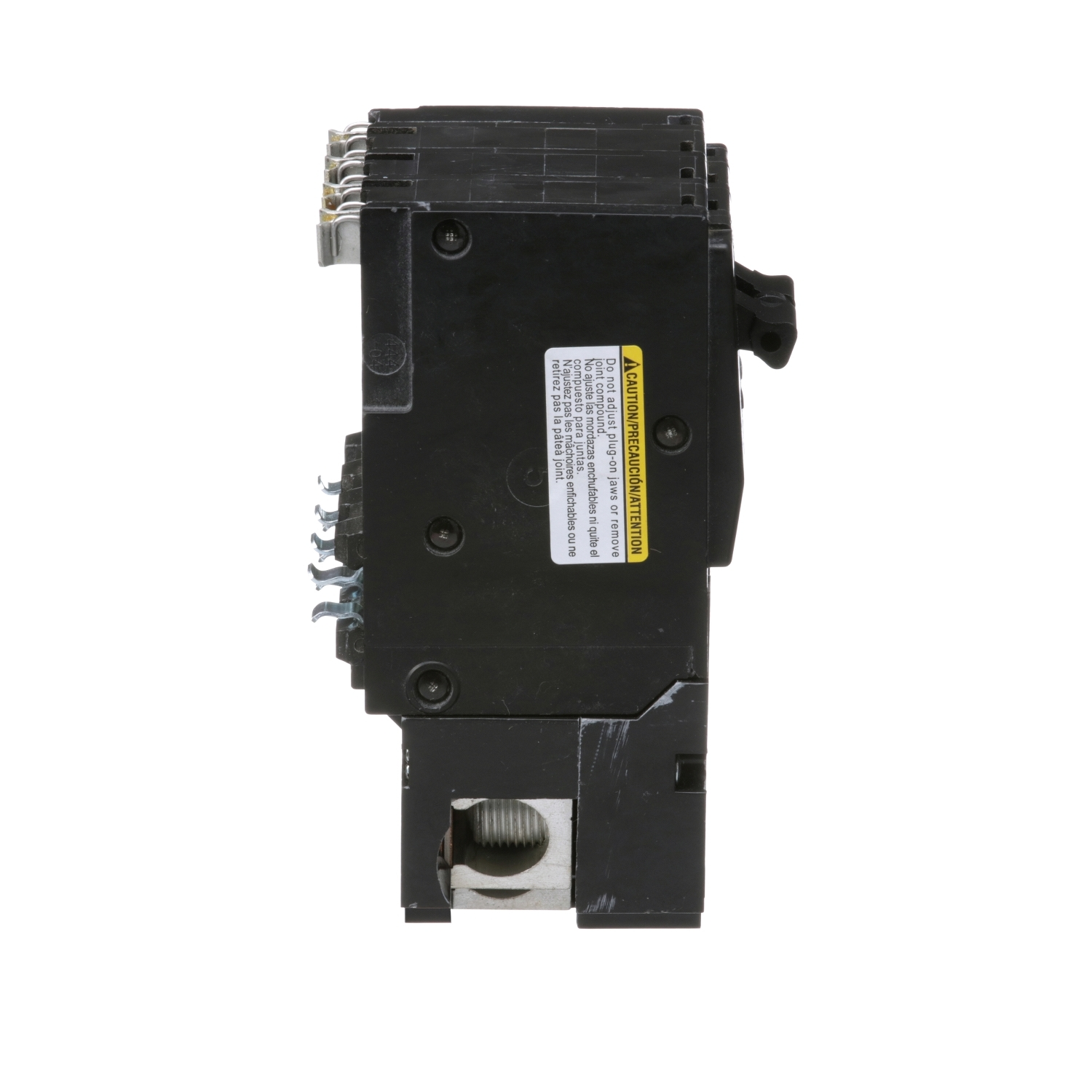

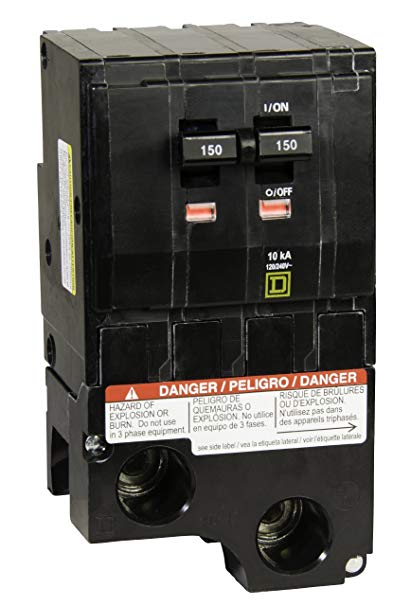

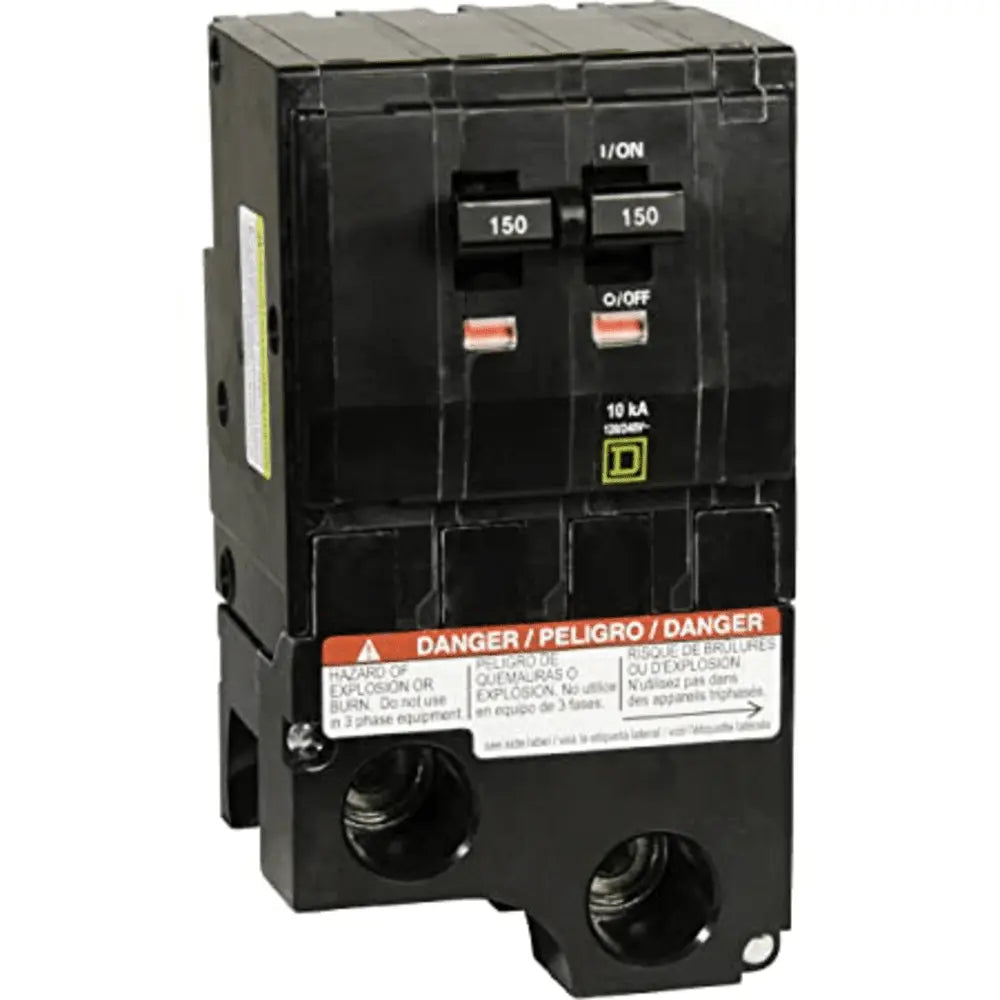

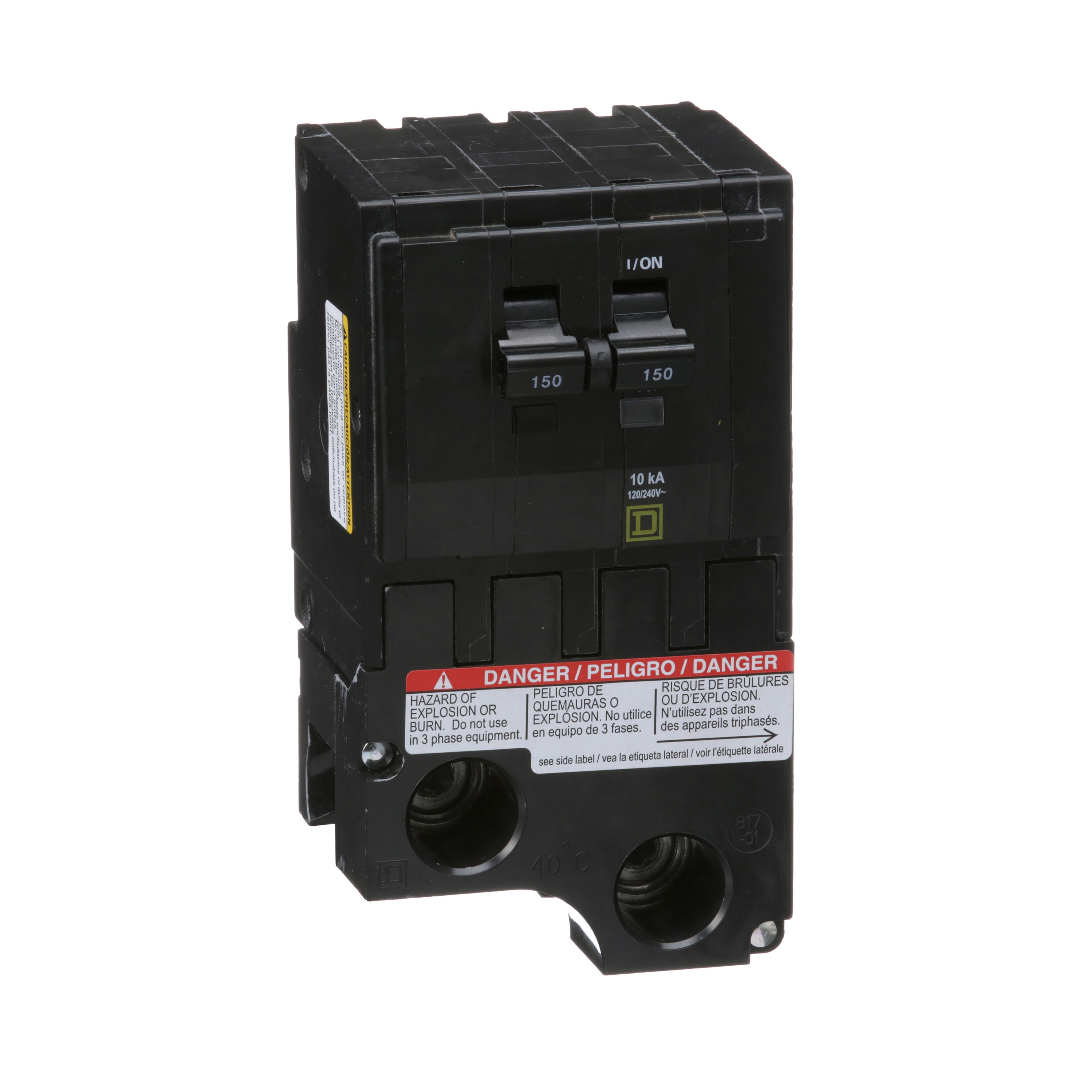

Square D QO2150 Type QO Plug-In Mini Circuit Breaker, 150A, 2-Pole, 120/240 VAC

Product Description

The Square D QO2150 is a type QO plug-in mini circuit breaker designed for overcurrent protection and switching on AC and DC systems. This 2-pole breaker is rated at 150A and 120/240 VAC. It features an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication.

• Provides overcurrent protection and switching on AC and DC systems
• Features VisiTrip trip indication for visual confirmation of tripped circuits
• Offers 10kA breaking capacity and plug-in mounting

Product Highlights

The Square D QO2150 mini circuit breaker ensures reliable circuit protection with quick response and easy installation in QO load centers.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO2150
• Country of Origin: US

Technical Specifications

• Type: Plug In - Standard Trip
• Depth: 2.91 Inches
• Width: 1.50 Inches
• Height: 3.50 Inches
• Material: Thermoplastic
• Standard: UL Listed, CSA
• Connection: Screw terminal
• Voltage Rating: 120/240 VAC
• Amperage Rating: 150 Amperes
• Number Of Poles: 2-Pole
• Interrupt Rating: 10 kAIC
• Brand: Square D
• Sub Brand: QO
• Wire Size: AWG 1...300 kcmil copper or aluminium
• Applications: HACR rated
• Mounting Type: Plug-in
• TC Connection: Box lugs
• Certifications: CSA,UL Listed
• Conductor Size: 1 AWG-300 kcmil
• Line Rated Current: 150 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Poles: 2-Pole
• Mounting: Plug On
• Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
• Includes: Visi-Trip Indicator
• Frame: QO
• Trip Type: Thermal Magnetic
• Range: QO
• Phase: 1 ph
• Number Of Spaces Required: 4
• Product Certifications: UL Listed || CSA
• Ambient Air Temperature For Operation: 40 °C
• ECCN: EAR99
• UNSPSC: 39121603
• Series: QO
• AWG Range: AWG 1...300 kcmil
• Current Rating: 150A
• Rated Voltage: 120/240V ac
