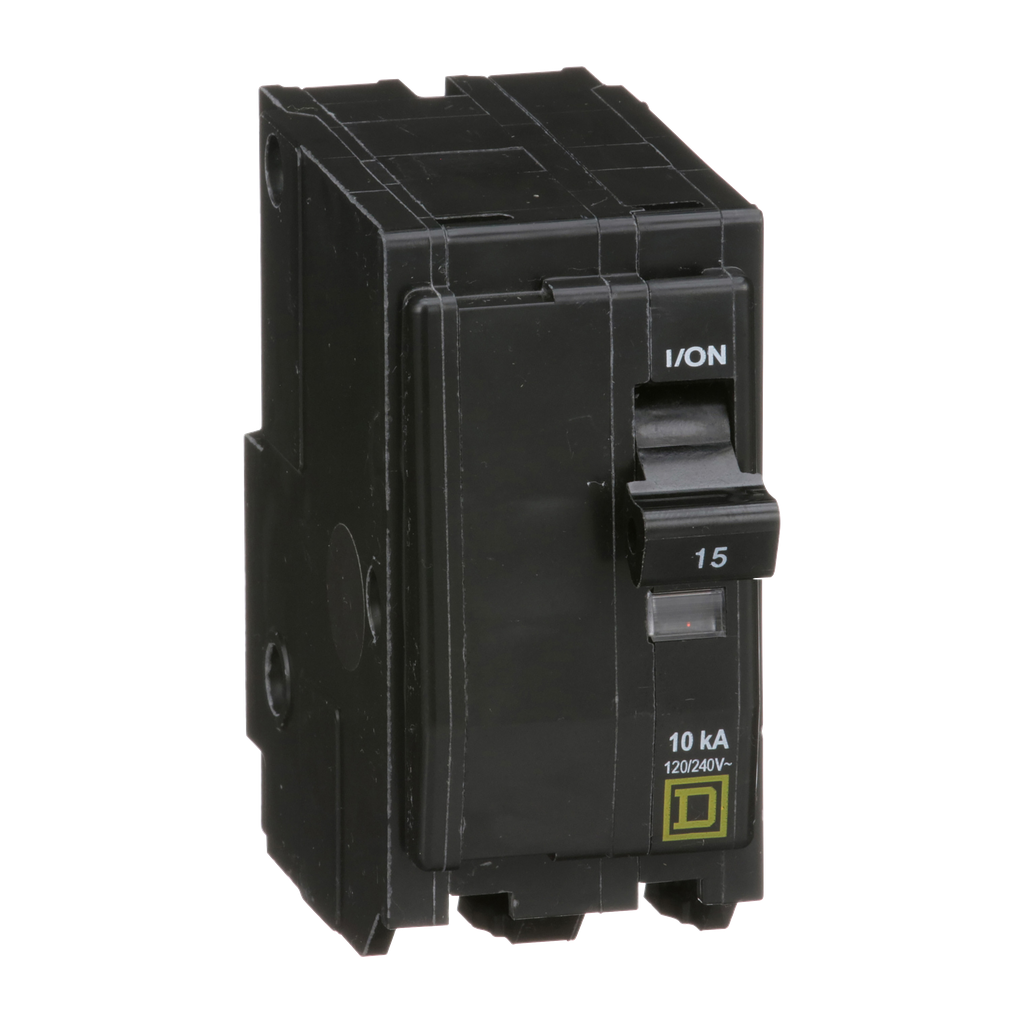

Product Description
The Square D QO215 Miniature Circuit Breaker with MPN QO215 is designed for reliable overcurrent protection. This unit is a plug-on type that fits various distribution panels. Rated at 15 amperes with a 120/240 volt capability, it supports both single-phase applications.
- Two-pole design for enhanced circuit protection
- Quick installation with plug-in mounting
- UL listed and CSA certified for safety
Product Highlights

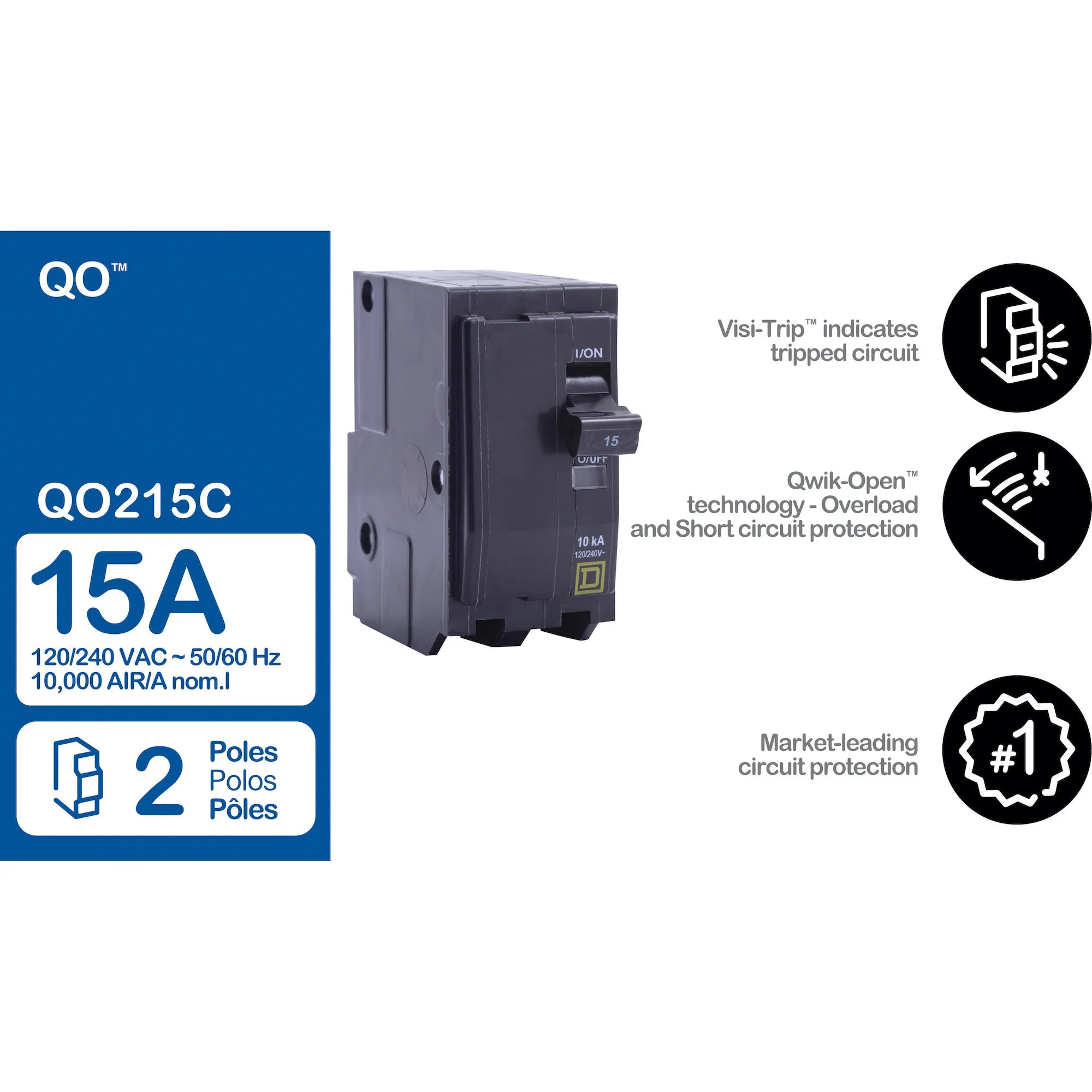

This circuit breaker features a VisiTrip indicator, which gives a clear visual alert if the breaker has tripped. It provides a 10 kA interrupting capacity and is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications.
Product Information
Standard Information
-
Catalog Number: QO215
-
Manufacturer: Schneider Electric
Technical Specifications
-
Current Rating: 15 Amps
-
Voltage Rating: 120/240 Volts AC
-
Number of Poles: 2
-
Interrupting Rating: 10 kA
-
Mounting Type: Plug-in
-
Wire Size: 14-8 AWG
-
Width: 2.91 inches
-
Height: 3.12 inches
