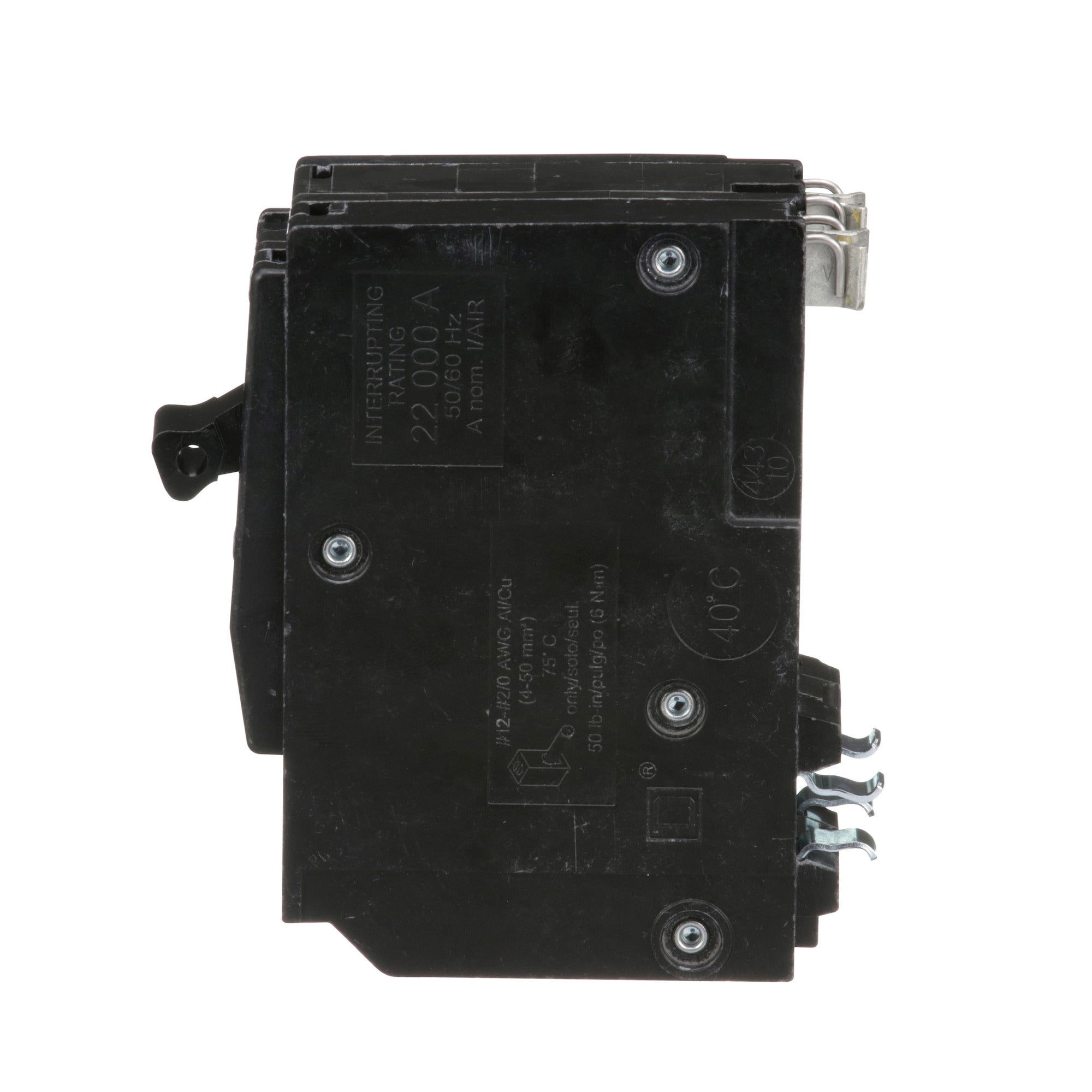

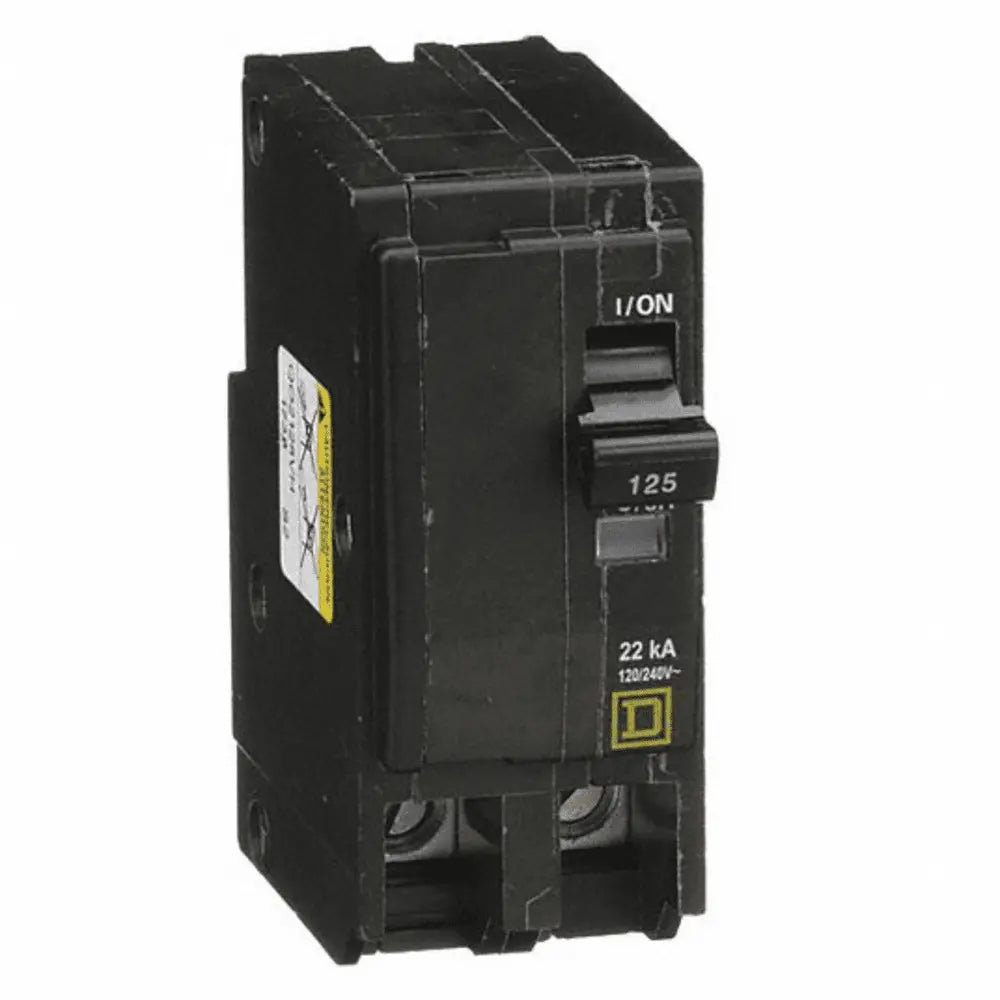

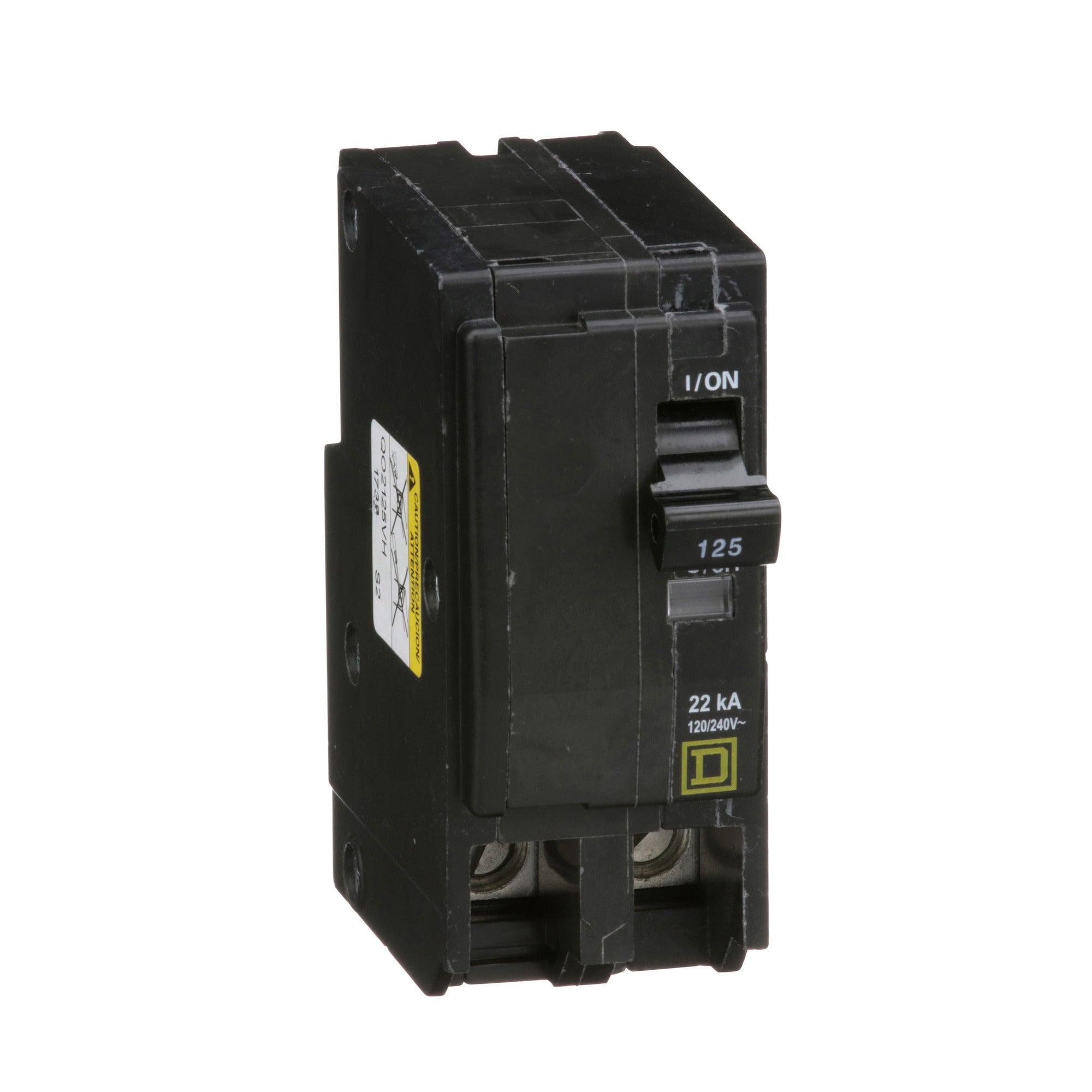

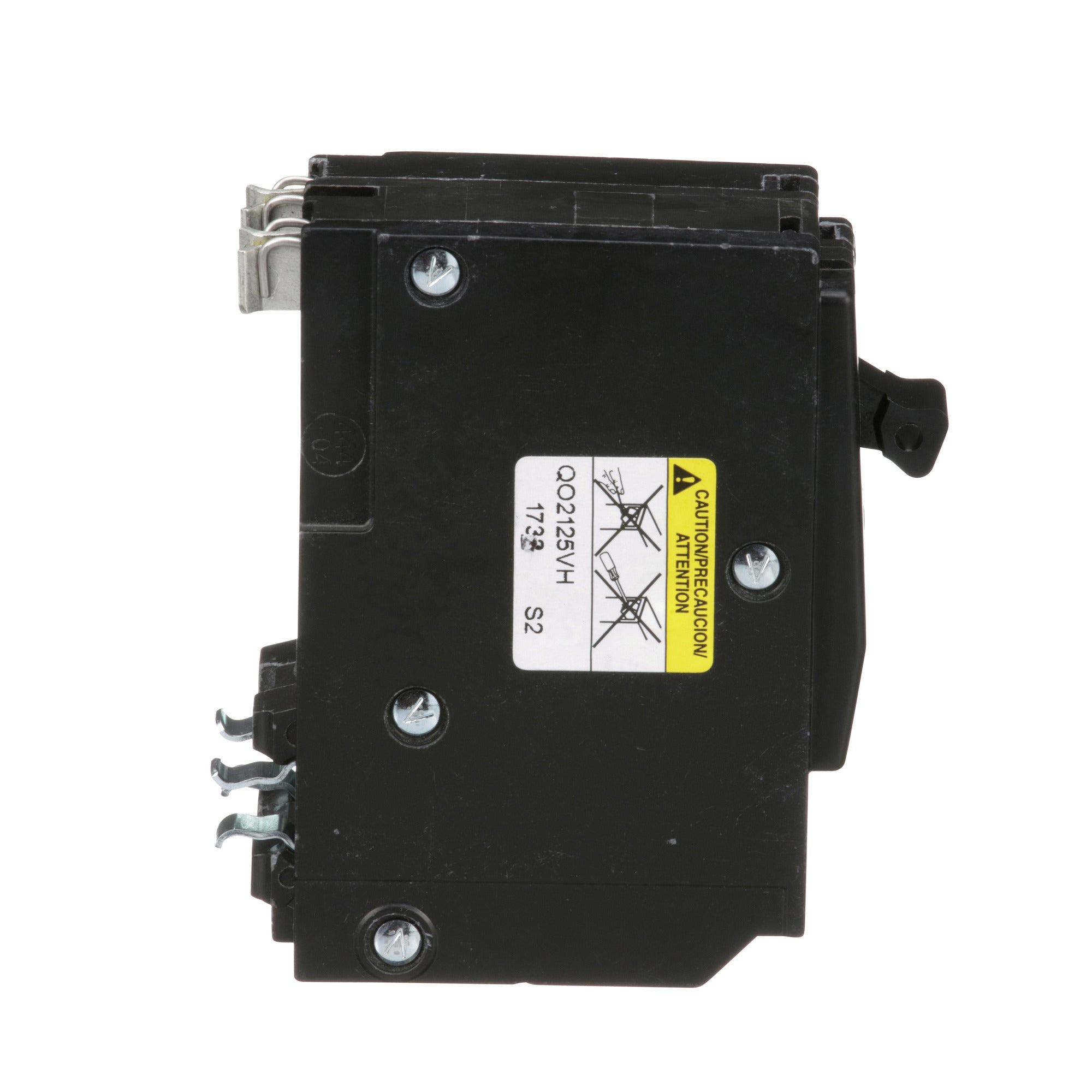

Square D QO2125VH Type QO Plug-In Mini Circuit Breaker 125A 2-Pole 120/240 VAC

Product Description

The Square D QO2125VH mini circuit breaker is designed for overcurrent protection in circuits ranging from AC and DC systems. This two-pole breaker supports a voltage rating of 120/240 VAC and a maximum current rating of one hundred twenty-five amperes. The unit features a thermal magnetic design offering reliable performance in the event of overload or short circuit. The trip-free toggle mechanism allows for quick make and break action, ensuring both safety and reliability in operation.

• Amperage Rating: 125 A
• Interrupt Rating: 22 kAIC
• Voltage Rating: 120/240 VAC

Product Highlights

This circuit breaker includes features designed to enhance safety such as the VisiTrip indication system that visually alerts the user if it has tripped. It is compatible with plug-in mounting systems, making installation straightforward in various applications.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO2125VH
• UPC: 785901054948
• Type: Plug In - Standard Trip
• Width: 1.5 inches
• Height: 3.5 inches
• Depth: 2.91 inches
• Weight: 0.70 pounds
• Material: Thermoplastic
• Country of Origin: United States
• Warranty Description: Contractual Warranty: 18 months
