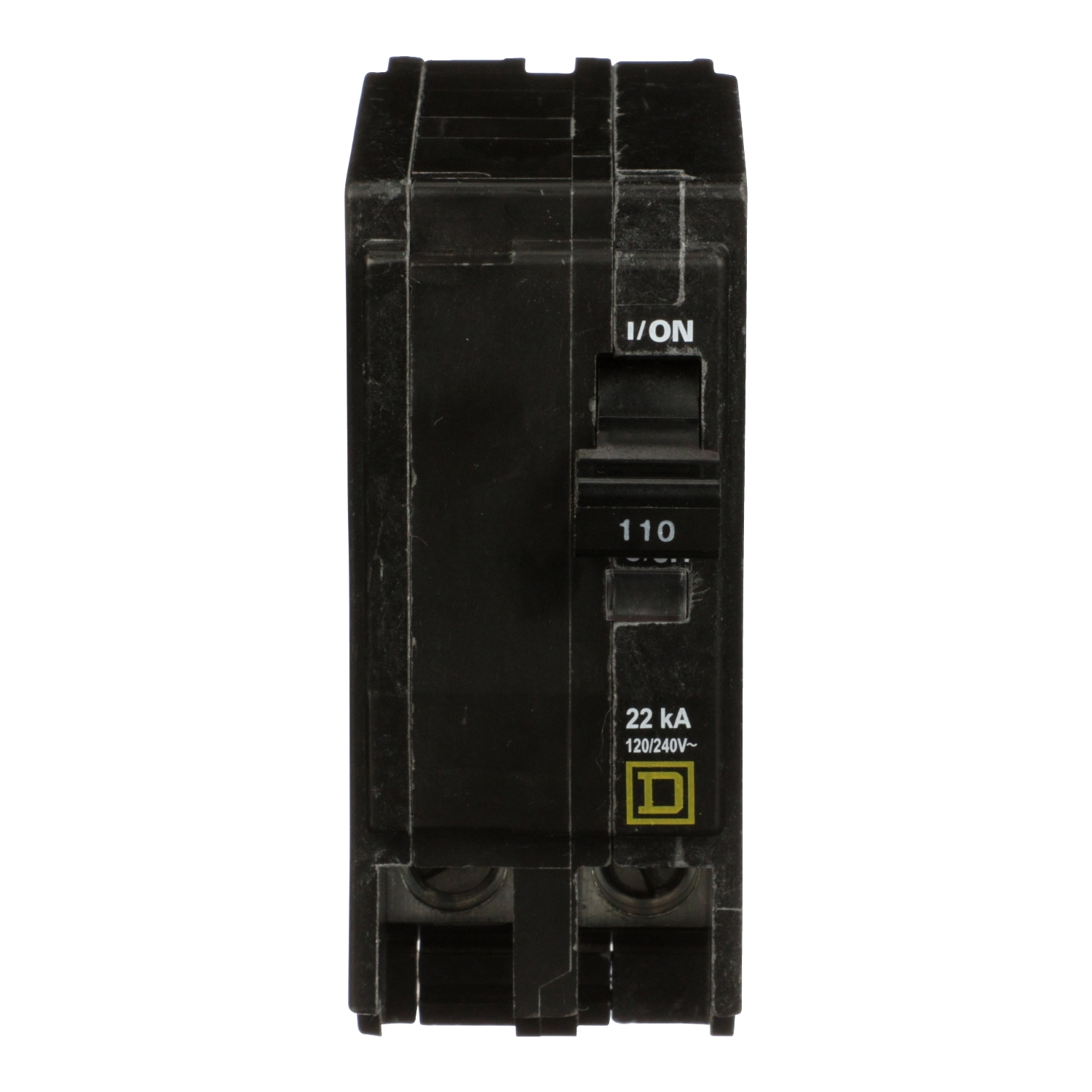

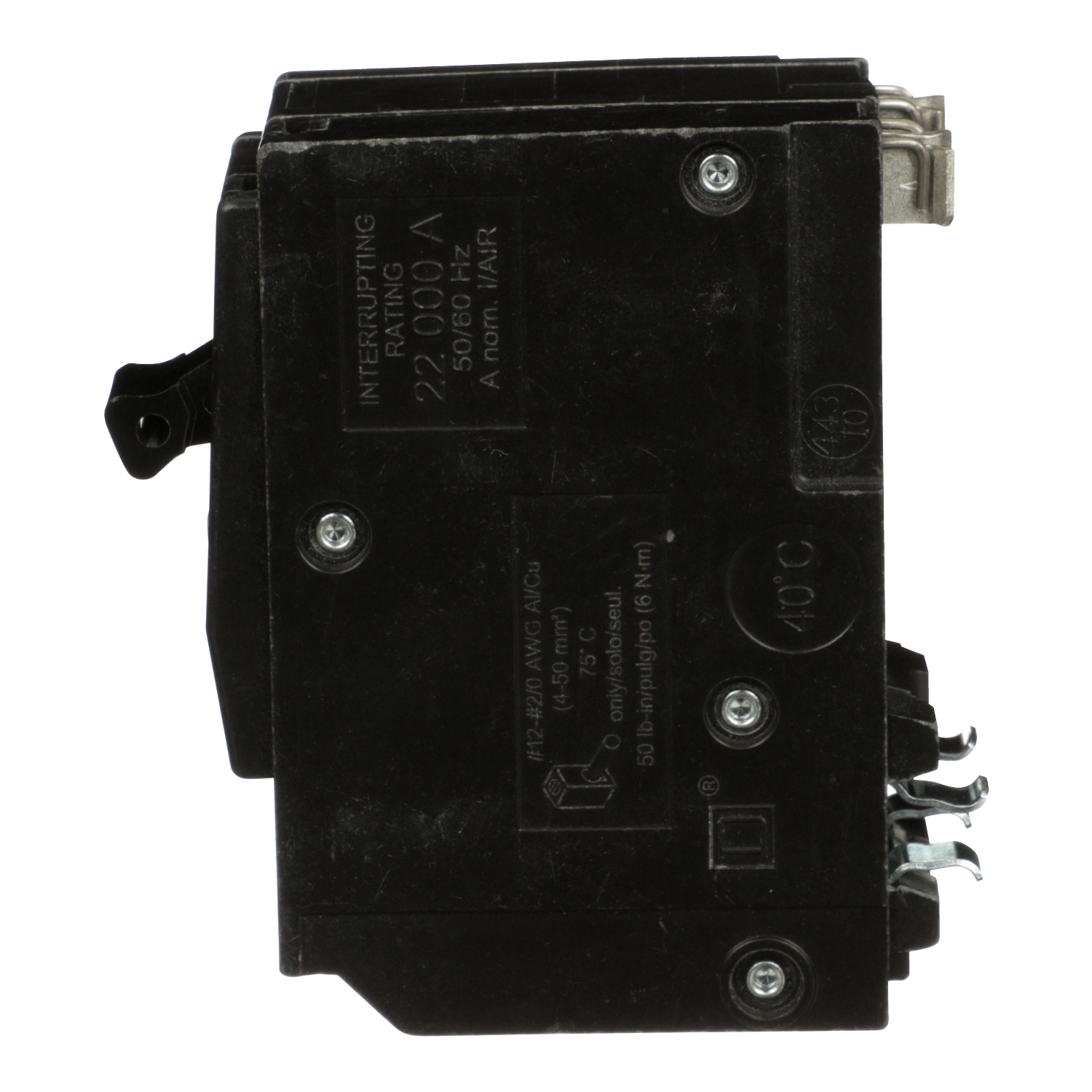

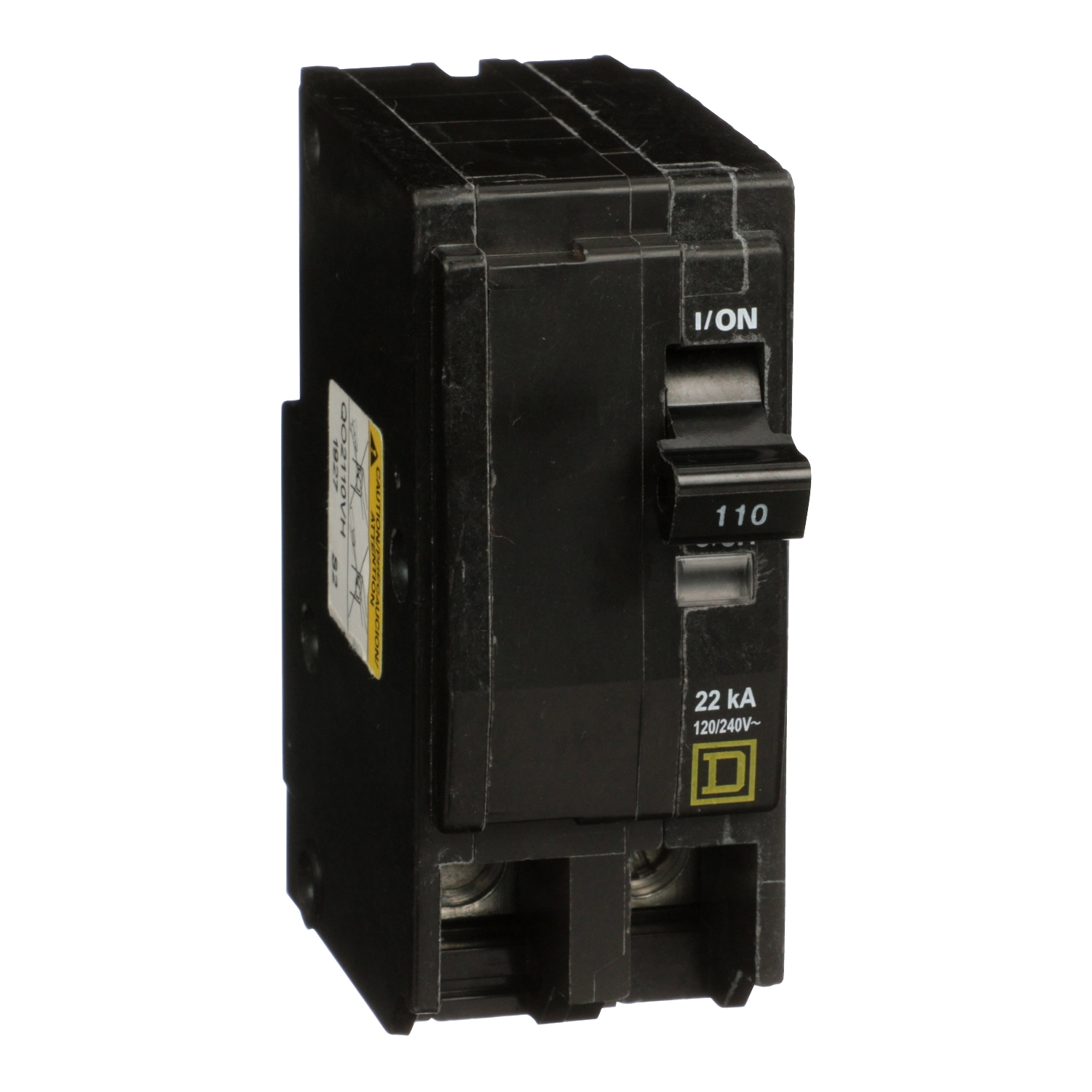

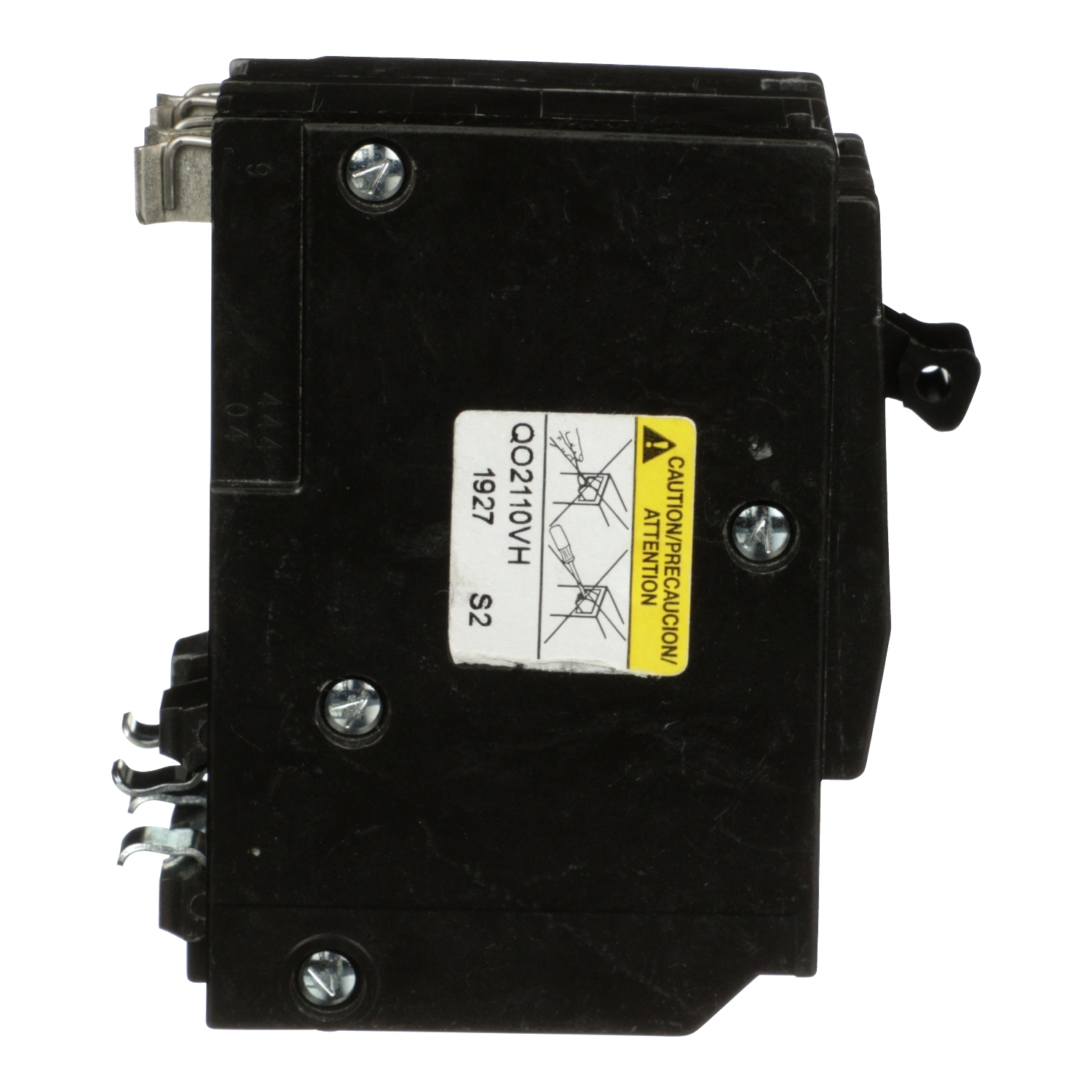

Square D QO2110VH Miniature Circuit Breaker 110 Amp

Product Description

The Square D QO2110VH miniature circuit breaker provides overcurrent protection and switching on AC and DC systems. This thermal magnetic circuit breaker features an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication, as well as VisiTrip trip indication. Rated at 110A at 120/240VAC with 22kA breaking capacity and plug in mounting.

• Provides overcurrent protection and switching on AC and DC systems
• Features quick make, quick break action and positive handle indication
• Offers VisiTrip trip indication

Product Highlights

The Square D QO2110VH is a 2-pole, 110A miniature circuit breaker with a 22kA interrupting rating and plug-in mounting, suitable for QO load centers and NQOD panelboards.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO2110VH
• Country of Origin: Mexico

Technical Specifications

• Type: Miniature circuit-breaker
• Brand: Square D
• Current: 110 Amp
• Voltage: 120 Volt
• Amperage: 110 Amp
• Sub Brand: QO
• Wire Size: AWG 4...300 kcmil copper or aluminium
• Product UPC: 78590105493
• 12-Digit UPC: 785901054931
• Applications: HACR rated
• Mounting Type: Plug-in
• TC Connection: Box lugs
• Certifications: CSA,UL Listed
• Conductor Size: 4 AWG-300 kcmil
• Number of Poles: 2 Pole
• Interrupt Rating: 22 kAIC
• Line Rated Current: 110 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 22 kA
• Voltage Rating: 120/240 VAC at 50/60 HZ
• Current Rating: 110 Ampere
• Interrupting Rating: 22 Kiloampere
• Terminal Type: Box Lug
• Mounting: Plug On
• Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
• Approval: UL, CSA
• Includes: Visi-Trip Indicator
• Range Of Product: QO
• Product Or Component Type: miniature circuit-breaker
• Circuit Breaker Application: HACR rated
• Mounting Mode: plug-in
• Poles Description: 2P
• Electrical Connection: box lugs
• [Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
• Tightening Torque: 5.6-5.6 N.m
• Number Of Spaces Required: 2
• Breaking Capacity: 22 kA 120/240 V AC || 22 kA 120 V AC
• Awg Gauge: AWG 4...300 kcmil copper or aluminium
• Product Certifications: UL Listed || CSA
• Ambient Air Temperature For Operation: 40 °C
• Series: QO
• Features: Mercury Free
• Standards: UL Listed, CSA
• Product Type: Miniature Circuit Breaker 120/240V 110A
• Max. Wire Size: 300 kcmil (Cu/Al)
• Min. Wire Size: 4 AWG (Cu/Al)
• Max. AIR Rating: 22 kA
• AC Voltage Rating: 120/240VAC
• Terminal Connection: Box Lugs
• Circuit Breaker Mounting Style: Plug-In
