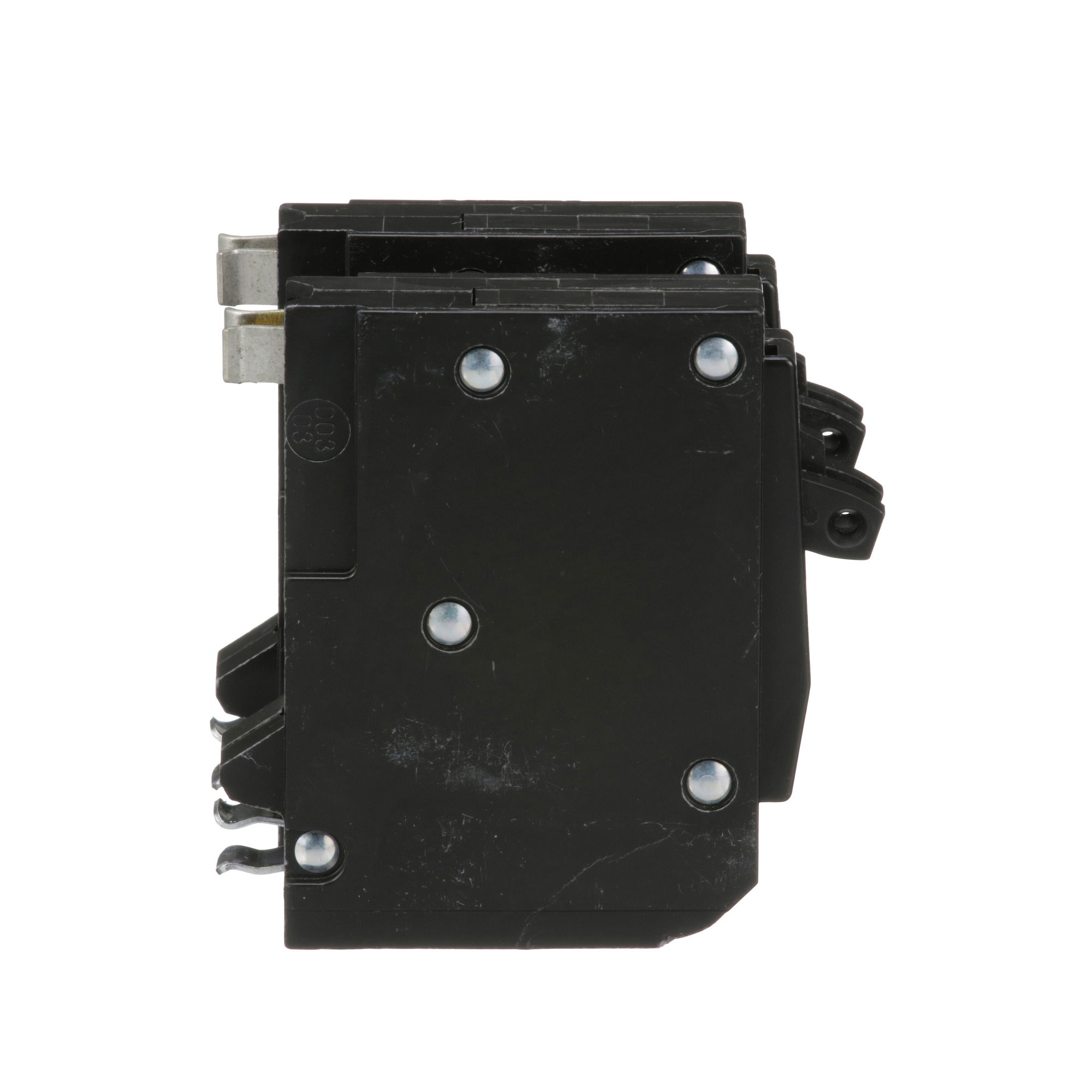

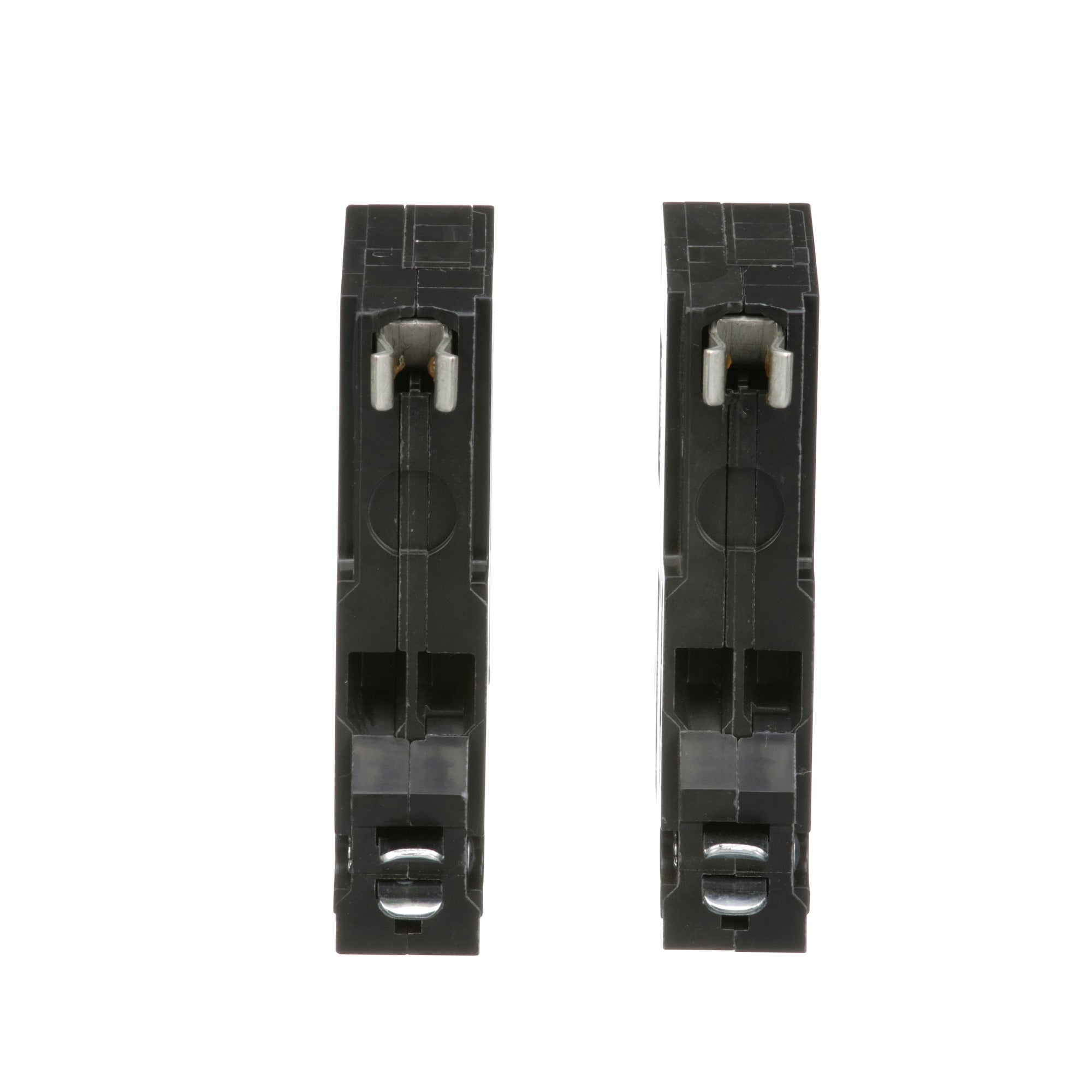

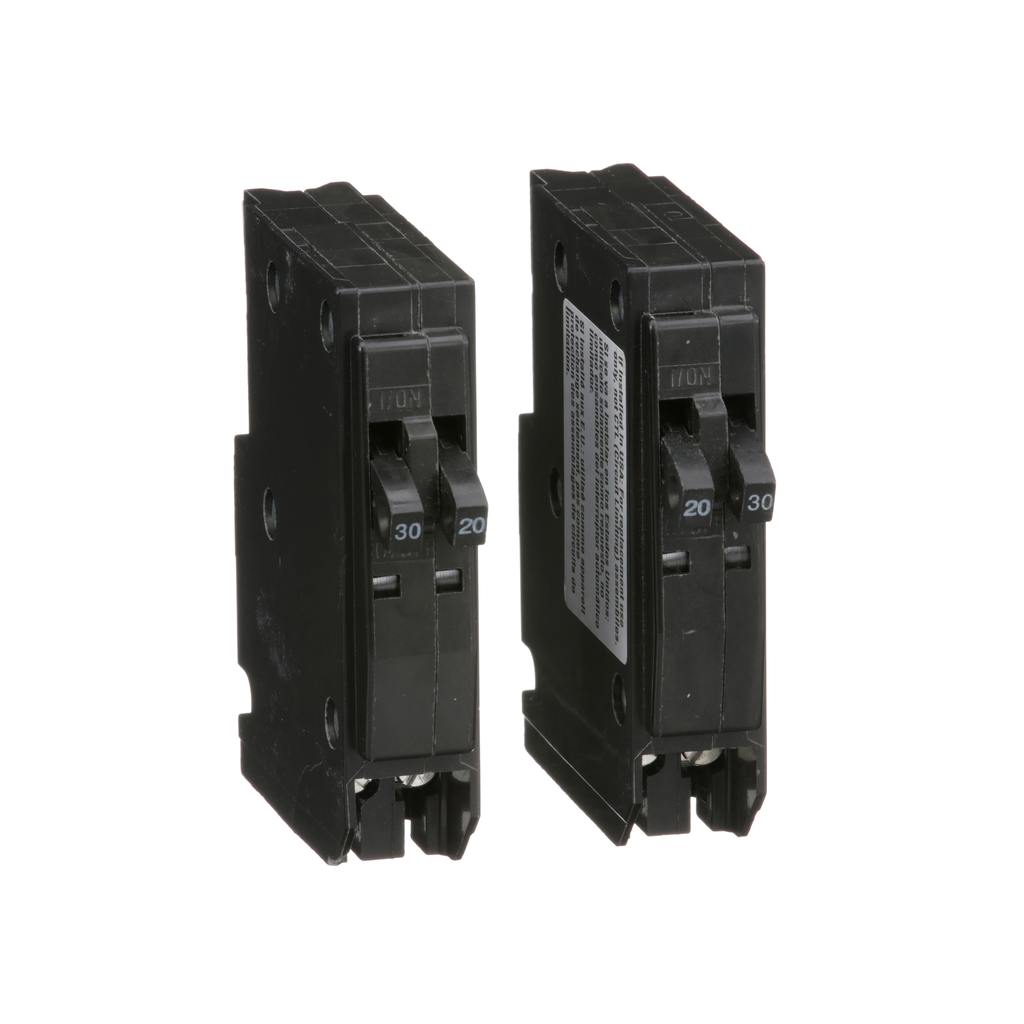

Square D QO20303020 Quad Tandem Circuit Breaker 20/30A 120/240V 2P , PlugOn

Product Description

Square D QO20303020 is a quad tandem circuit breaker designed for providing overcurrent protection in both AC and DC systems. This unit features a combination of two one-pole breakers at twenty amps and two at thirty amps, suitable for 120/240VAC operations. The circuit breaker is equipped with a trip-free toggle mechanism that allows for quick actuation, enhancing safety and reliability. It integrates VisiTrip trip indication, offering a clear visual alert when the breaker has tripped. This tandem mini circuit breaker boasts a ten kA breaking capacity and uses plug-in mounting methods, making installation straightforward.

• Two 20A poles and two 30A poles
• Quick make and break action
• UL Listed and CSA certified for safety

Product Highlights

QO20303020 effectively safeguards electrical systems while providing easy installation and clear indicators for circuit status.

Product Information

Standard Information

• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Catalog Number: QO20303020
• Current: 20 Amp
• Voltage: 120/240 Volt
• Amperage Configuration: 30 Amp, 20 Amp
• Number of Poles: 2 Pole
• Breaking Capacity: 10 kAIC
• Mounting Type: Plug-in
• Country of Origin: Mexico
