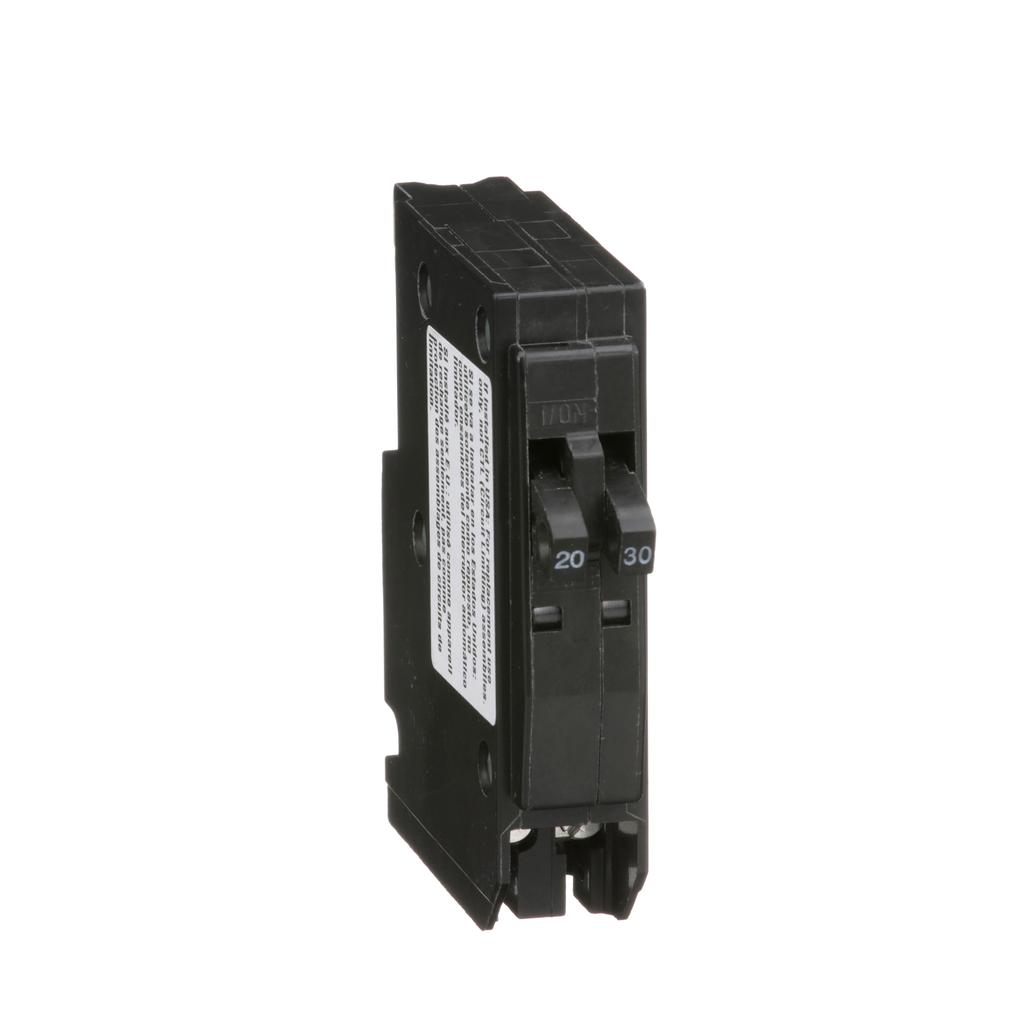

Square D QO2030 Tandem Circuit Breaker 20/30A 120/240V 1Ph Plug-On

Product Description

The Square D QO2030 is a tandem circuit breaker with MPN QO2030, designed to provide overcurrent protection for both AC and DC systems. This unit includes a twenty amp pole and a thirty amp pole for 120 or 240 volts and has a breaking capacity of 10kA. Features include a trip-free toggle mechanism that offers quick make and break actions. The visual trip indication allows users to confirm if the circuit has tripped. This circuit breaker fits into the QO series with plug-on mounting capabilities.

• Tandem breaker configuration for two circuit ratings
• UL Listed and CSA Certified for safety
• Suitable for HACR rated applications

Product Highlights

Durable and reliable performance in electrical systems.

Product Information

Standard Information

• Catalog Number: QO2030
• Manufacturer: Schneider Electric

Technical Specifications

• Voltage: 120/240 Volt
• Current Ratings: 20 Amp and 30 Amp
• Break Capacity: 10 kA
• Number of Poles: 1 Pole
• Mounting Type: Plug-in
• Operating Temperature: 40 Degrees C
• Wire Size: AWG 14 to AWG 8
• Country of Origin: Mexico
