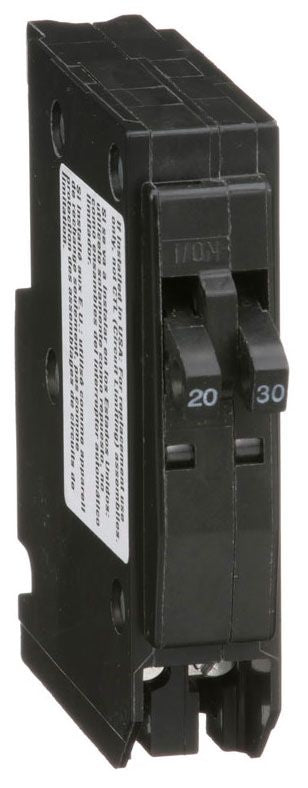

Square D QO2030 Miniature Circuit Breaker 240V 20/30A

Product Description

Square D QO2030 is a miniature circuit breaker with a voltage rating of 240 volts and a current rating of 20/30 amps. This compact breaker features a tandem design and is suitable for use in QO load centers. It can accommodate wire sizes from 14 to 8 AWG for copper and aluminum connections. The product is compliant with UL and CSA standards.

• Tandem miniature type with compact dimensions
• Suitable for QO load center installations
• Includes a Visi-Trip indicator for easy status monitoring

Product Highlights

This product is essential for electrical safety in various installations. It is ideal for managing electrical loads and ensuring the protection of both circuits and connected devices.

Product Information

Standard Information

• Brand: Square D Co.
• Manufacturer: Square D

Technical Specifications

• Catalog Number: QO2030
• Type: Thermal Magnetic
• Voltage Rating: 120/240 VAC at 50/60 Hz
• Current Rating: 20/30 Ampere
• Wire Size: 14 to 8 AWG (Copper/Aluminum), (2) 14 to 10 AWG (Copper)
• Approvals: UL, CSA
• Dimensions: 0.75 Inch W x 2.91 Inch D x 3.23 Inch H
• Interrupting Rating: 10 Kiloampere
• Terminal Type: Pressure Plate
