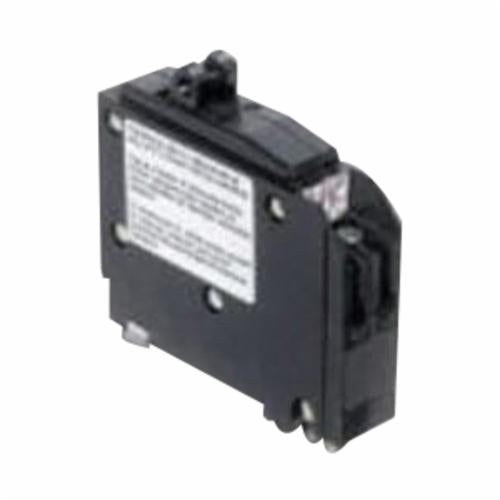

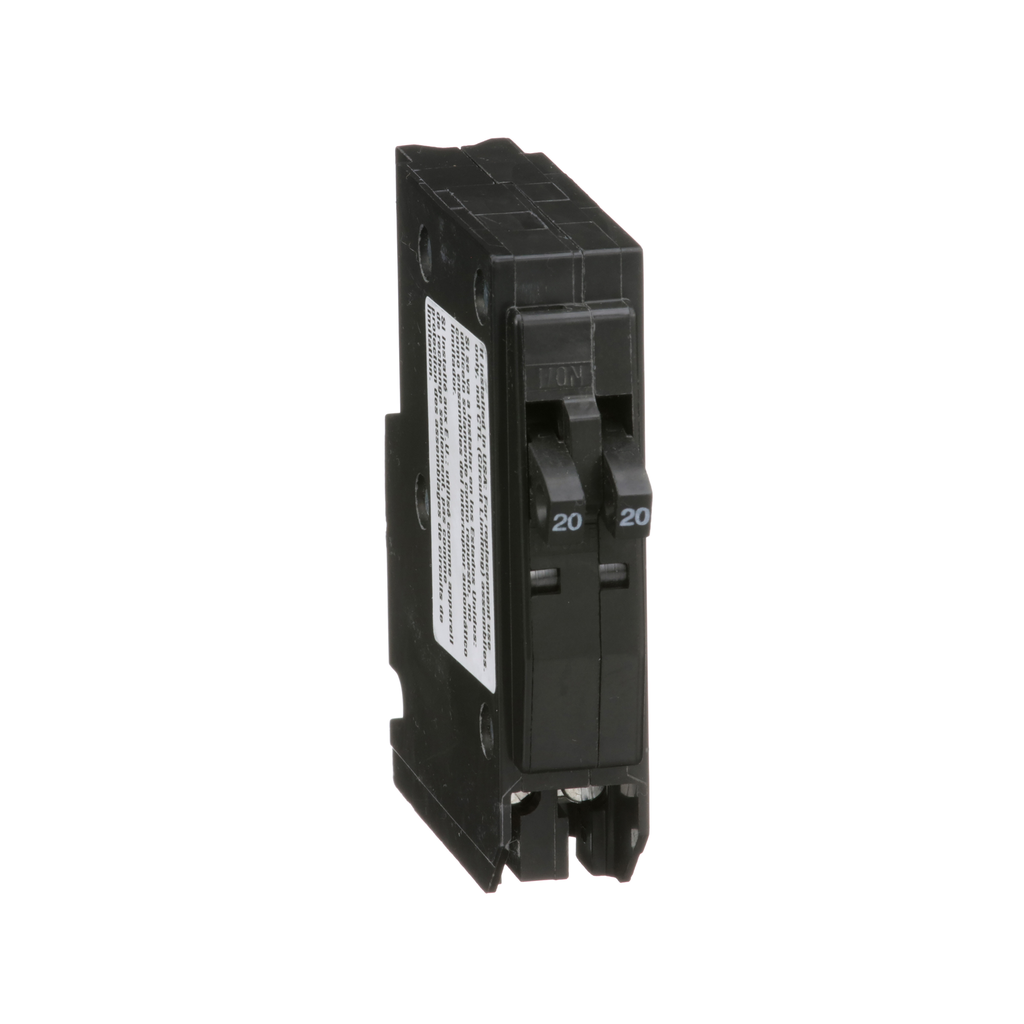

Square D QO2020 Tandem Circuit Breaker 20/20A 120/240V 1Ph

Product Description

The Square D QO2020 Tandem Circuit Breaker is designed for effective overcurrent protection. This circuit breaker operates at twenty amps, suitable for both 120 and 240 volts in single-phase applications. The plug-on design ensures easy installation in compatible load centers.

• Tandem design allows two circuits in one space.
• UL listed and CSA certified for reliability and safety.
• Provides quick trip action and visual trip indication.

Product Highlights

This circuit breaker features a thermal magnetic trip mechanism which enhances protection against overload and short-circuit conditions. The tandem circuit breaker can enhance efficiency in electrical panel space.

Product Information

Standard Information

• Brand: Square D
• MPN: QO2020

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 120/240 Volt
• Interrupt Rating: 10 kA
• Operating Temperature: 40 Degrees C
• Number of Poles: 1
• Wire Size: 14 to 8 AWG
• Width: 0.75 Inch
• Height: 3 Inch
