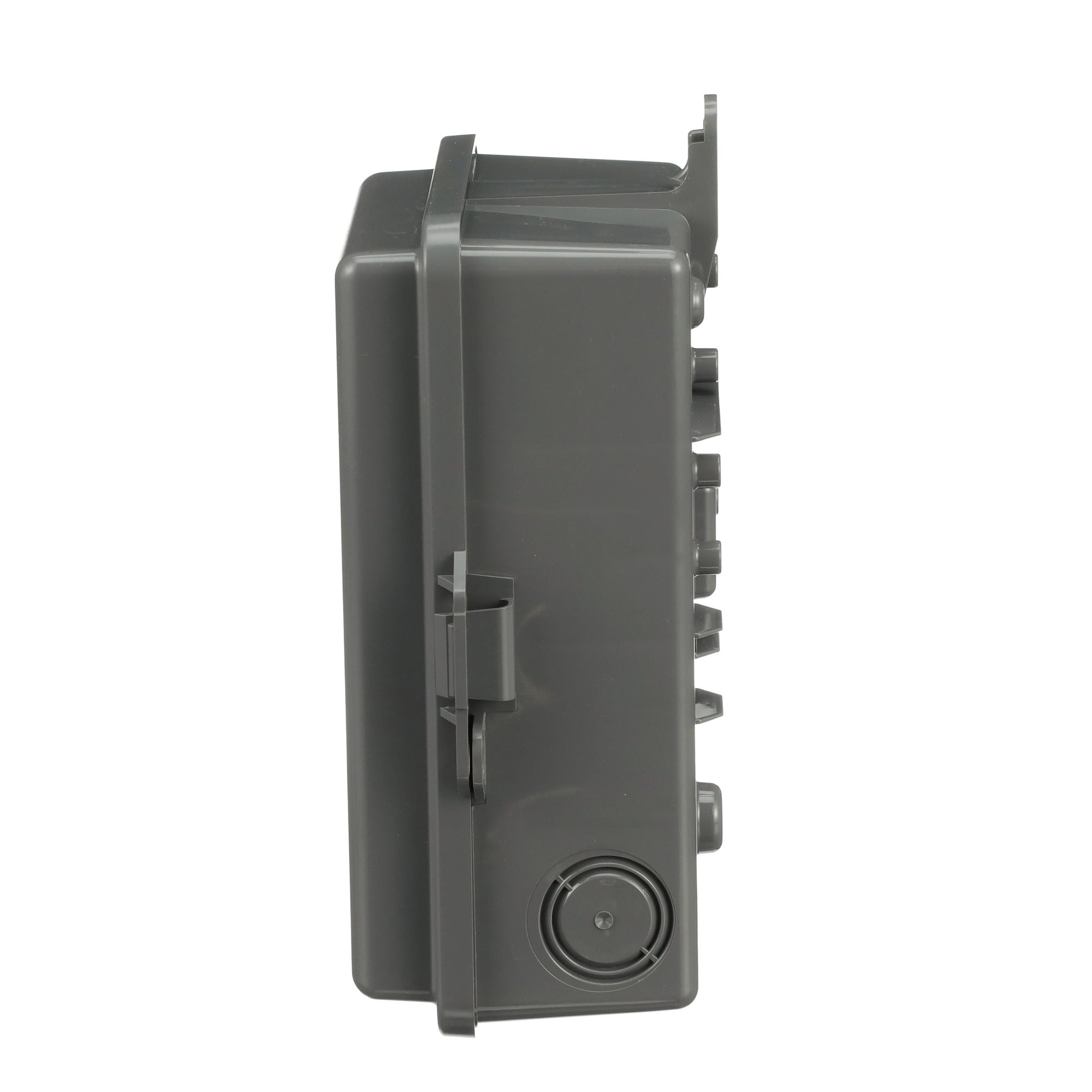

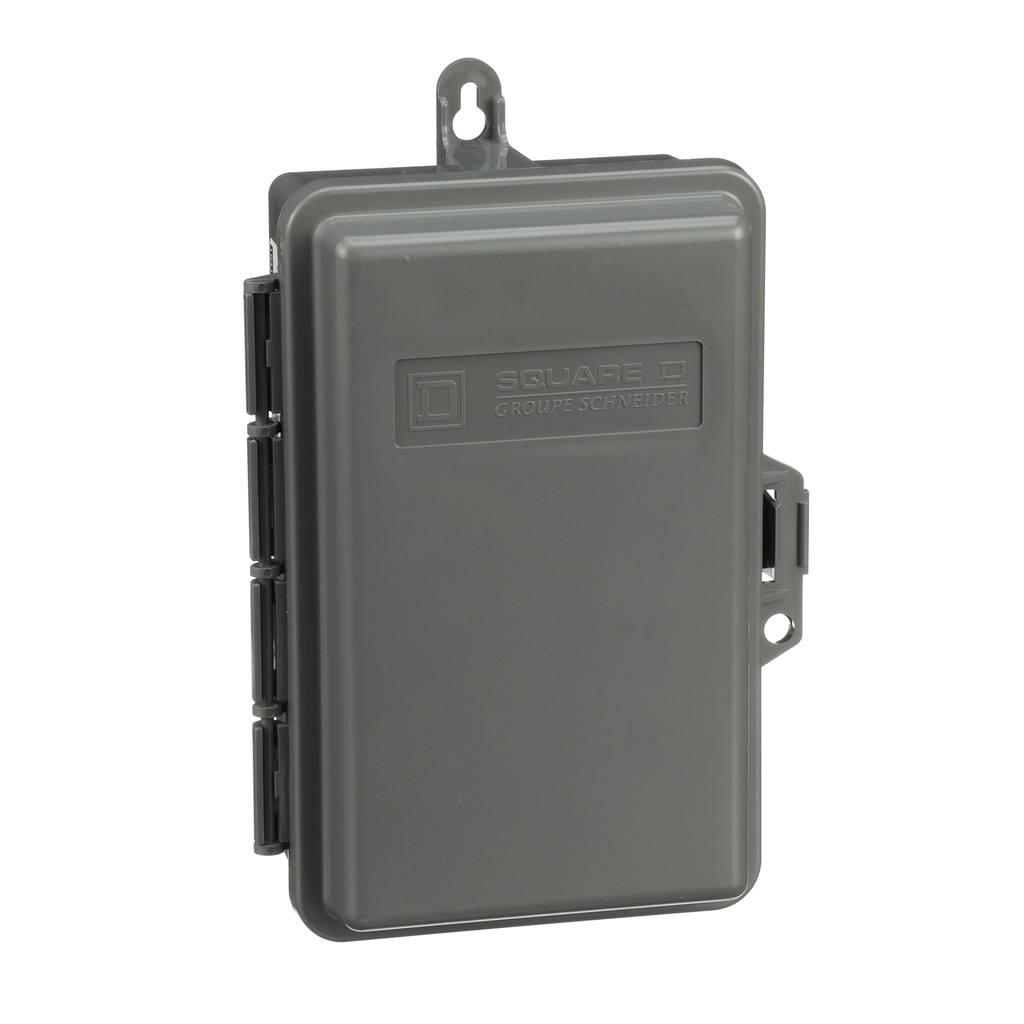

Square D QO200TRNM Molded Case Switch Non-Fusible 60A 240V 1Ph NEMA-3R

Product Description

The Square D QO200TRNM is a non-fusible molded case switch designed for air conditioner applications. This unit features a weatherproof enclosure and is suitable for use in residential and commercial environments. Its UL listing ensures safety and reliability. The NEMA 3R rated enclosure provides protection against rain and ice, making it ideal for outdoor installation.

• Visible blades indicate when the switch is OFF
• Multiple padlock provisions available in OFF position
• Compatible with aluminum or copper conductors

Product Highlights

Reliable and safe, the QO200TRNM is built for long-lasting performance in demanding environments while being easy to install and service.

Product Information

Standard Information

• Catalog Number: QO200TRNM
• Manufacturer: Schneider Electric

Technical Specifications

• Current Rating: 60 Amps
• Voltage Rating: 240 Volts
• Phase: 1 Phase
• Interrupt Rating: 22 kAIC
• Enclosure Type: NEMA 3R
• Dimensions: 8.74 inches (Depth) x 6.5 inches (Width) x 3.9 inches (Height)
• Weight: 1.9 kg
• Country of Origin: Mexico
