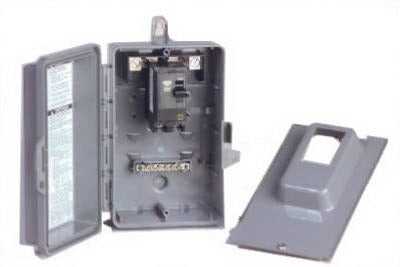

Square D QO200TRNM 60A Non-fused Disconnect 240V

Product Description

The Square D by Schneider Electric QO200TRNM is a 60-amp non-fused disconnect switch rated at 240 volts, housed in a non-metallic enclosure built for use in corrosive or outdoor environments. It features a double-pole configuration with an integrated ground bar and a side-opening door that provides straightforward access during installation and service. Licensed electricians and HVAC technicians install this type of disconnect as a local disconnecting means for air conditioning equipment, heat pumps, and similar motor loads requiring a readily accessible shutoff point at the equipment.

This disconnect is suited for residential and light commercial applications where a non-metallic enclosure is preferred over steel to resist corrosion from moisture, salt air, pool chemicals, or industrial atmospheres. The side-opening door design allows the installer to access the interior wiring compartment without removing the cover entirely, reducing handling time in tight installation locations. Its double-pole switching with a ground bar supports standard single-phase 240-volt equipment connections.

Key Features

• 60-amp continuous rating at 240 volts for single-phase equipment loads
• Non-fused design — overcurrent protection is provided upstream by the branch circuit breaker
• Non-metallic enclosure resists corrosion in harsh or chemically active environments
• Double-pole switching with integrated ground bar for a complete disconnect assembly
• Side-opening door allows easy access to wiring compartment during installation and maintenance
• UL Listed for compliance with applicable electrical safety standards

Compatibility

Designed as an OEM-style replacement or new-installation disconnect for residential and light commercial single-phase 240-volt equipment requiring a local non-fused disconnecting means.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream circuit breaker and verify the absence of voltage before wiring. Mount the enclosure securely to a wall or equipment pad using appropriate fasteners for the substrate. Do not exceed the 60-amp continuous current rating of the disconnect.
