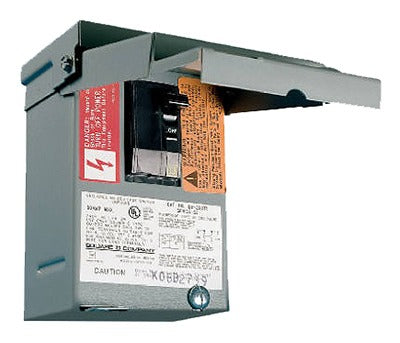

Square D QO200TRCP 60A Non-fused Disconnect 240V

Product Description

The Square D By Schneider Electric QO200TRCP is a 60-amp non-fused disconnect switch rated for 240 volts with a double-pole configuration and an integrated ground bar. It is designed for use as a service disconnect in residential and light commercial electrical systems, typically installed outdoors at AC condensing units, heat pumps, or similar equipment requiring a local lockout point. The rainproof enclosure makes it suitable for exterior installations where the unit is exposed to weather. Licensed electricians install this disconnect as part of NEC-compliant service equipment.

This disconnect is commonly specified for outdoor HVAC equipment installations where local code requires a visible, lockable means of disconnect within sight of the equipment. The double-pole design handles 240-volt single-phase loads, and the included ground bar provides a termination point for equipment grounding conductors, reducing the need for additional field-installed hardware. It is packaged as a single unit and is well-suited for new installations and retrofit service work.

Key Features

• 60-amp non-fused disconnect rated at 240 volts
• Double-pole configuration handles single-phase 240-volt loads
• Integrated ground bar included for equipment grounding conductor termination
• Rainproof enclosure rated for outdoor and exposed installations
• UL Listed for compliance with standard safety requirements

Compatibility

Designed as an OEM-style replacement or new-installation disconnect for residential and light commercial 240-volt single-phase electrical equipment requiring a rainproof, non-fused local disconnect.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Disconnect and lock out all upstream power sources before beginning any wiring work. Mount the enclosure securely to a structural surface and verify that conduit entries are properly sealed to maintain the rainproof rating. Do not exceed the 60-amp continuous current rating of the device.
