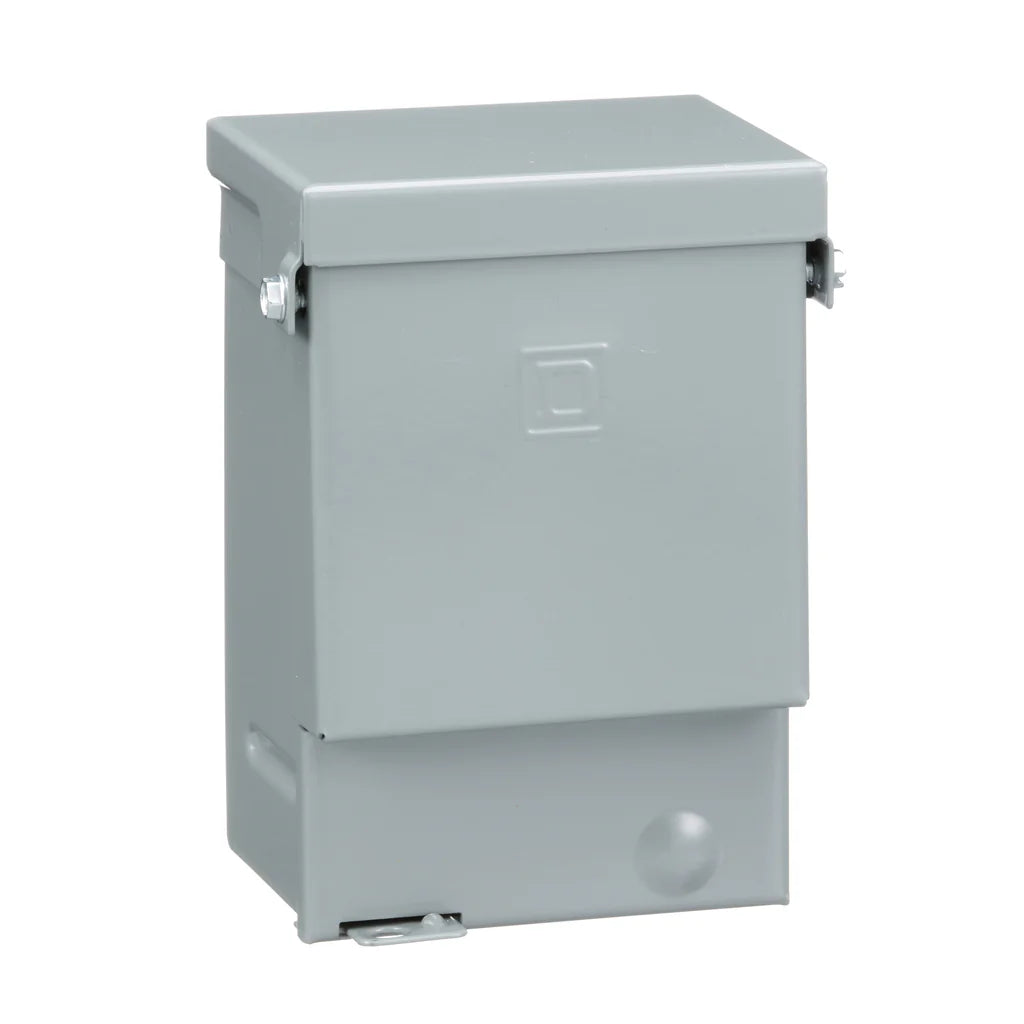

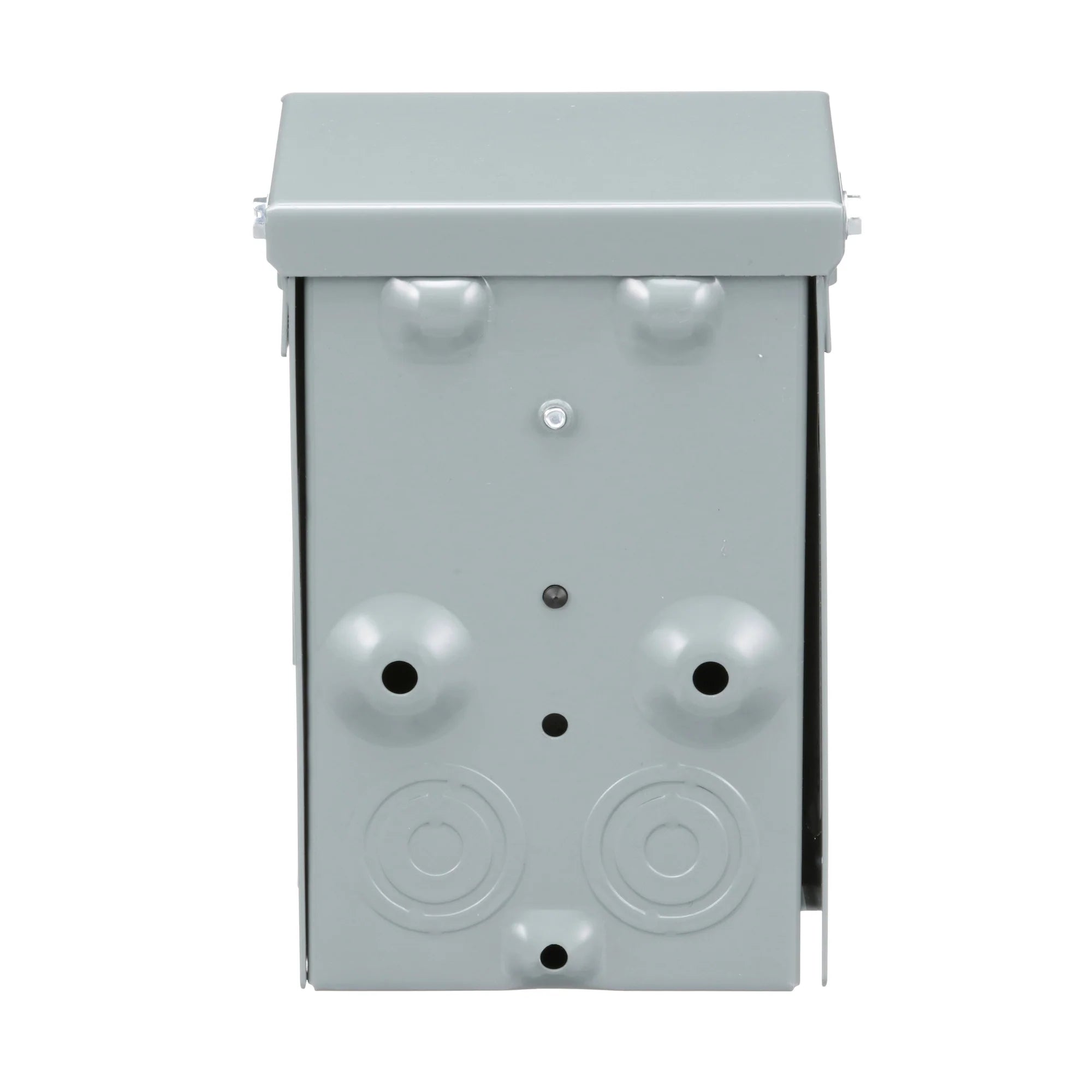

Square D QO200TR Molded Case Switch Non-Fusible 60A 240V 1Ph NEMA--3R

Product Description

Square D QO200TR is a non-fusible molded case switch designed for efficient operation in commercial and industrial applications. This device supports 60 amps at 240 volts and is ideal for air conditioning systems. The switch features a weatherproof enclosure rated NEMA Type 3R, which protects against rain and ice. It allows for easy access to wiring terminals for installation and maintenance.

• Weatherproof NEMA 3R enclosure
• Current rating: 60 amps at 240 volts
• Compact design for easy installation in tight spaces

Product Highlights

This molded case switch meets UL standards and is suitable for various electrical systems.

Product Information

Standard Information

• Catalog Number: QO200TR
• Brand: Square D
• Manufacturer: Schneider Electric

Technical Specifications

• Current: 60 amps
• Voltage: 240 volts
• Phase: 1
• Enclosure Type: NEMA 3R
• Interrupt Rating: 22 kAIC
• Warranty Length: 18 months
• Net Weight: 1.361 kg
• Country of Origin: Mexico
