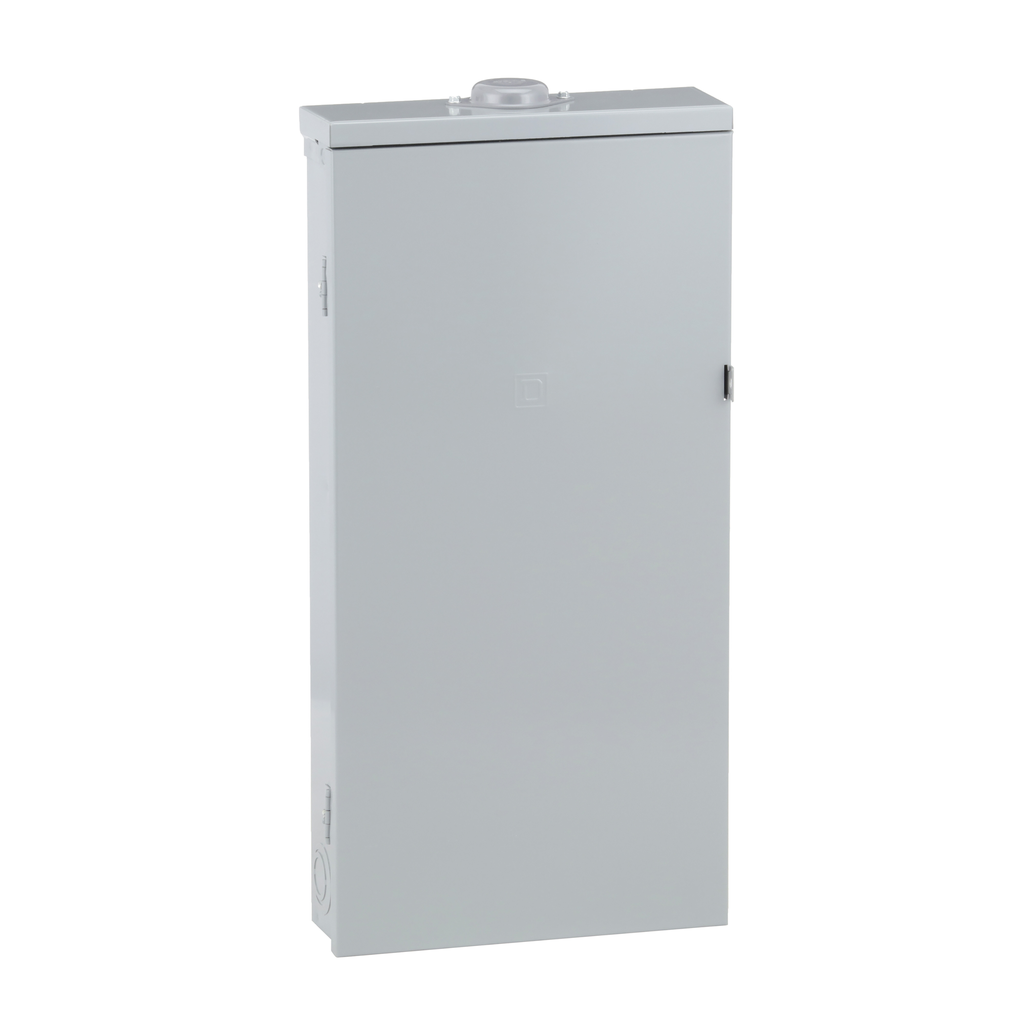

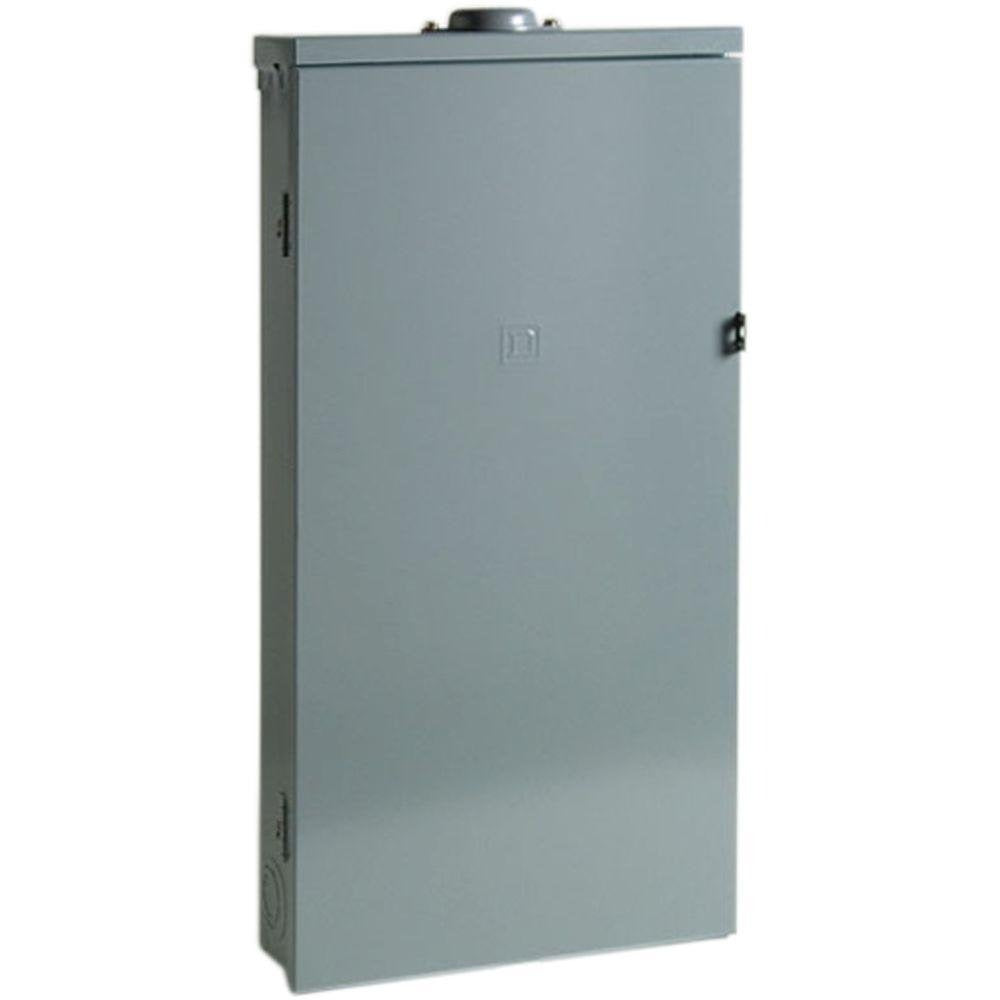

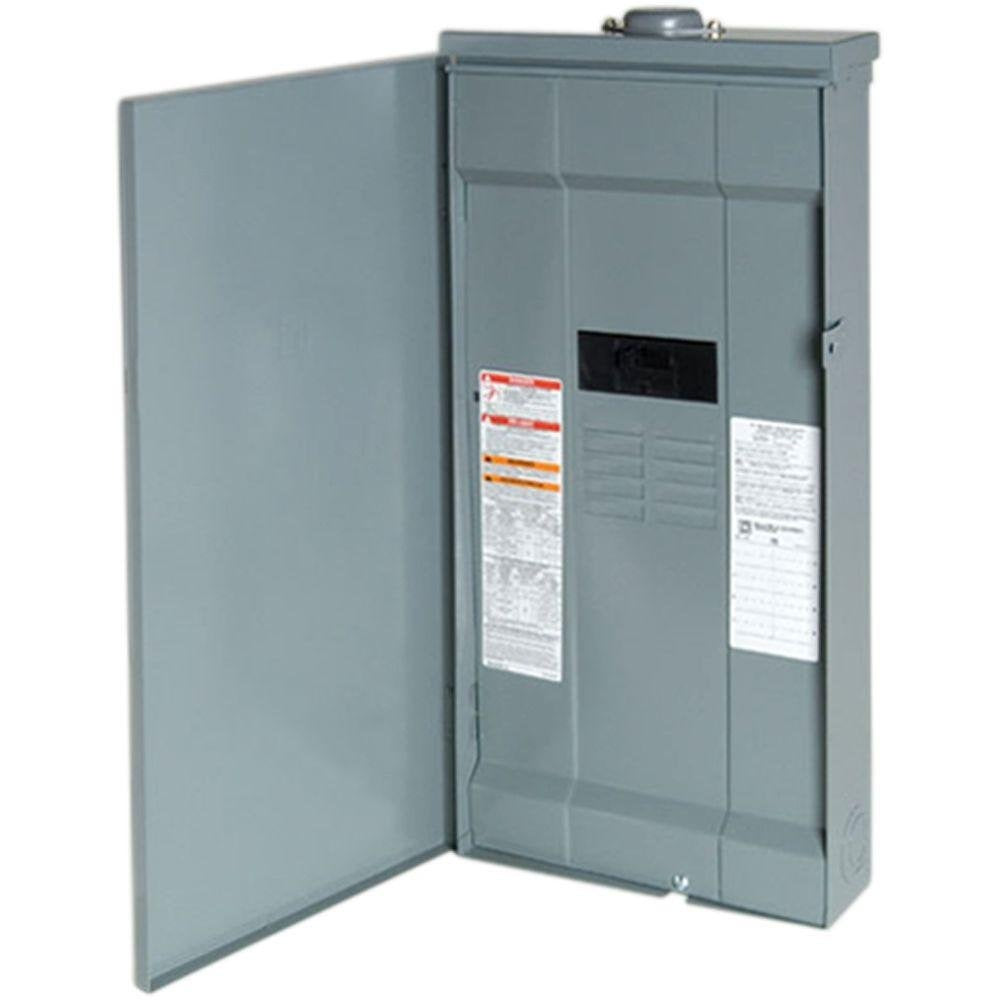

Schneider Electric QO1816M200FTRB Qo load center 200A (8 spaces/16 circuits) QOM2200VH

Product Description

The Schneider Electric QO1816M200FTRB is a QO series load center with a convertible 200A main breaker. It provides 8 spaces for up to 16 circuits, supports 120/240 Vac single-phase service, and features a NEMA 3R raintight enclosure with feed-through lugs and UL listing. The unit uses a tin-plated copper shielded bus, has a 22 kA interrupting rating, accepts QO breakers including tandem types, and is suitable for service equipment applications.

• 200A convertible main breaker; rated for 120/240 Vac single-phase service with 22 kA interrupting rating
• 8 spaces supporting up to 16 circuits; accepts up to 8 tandem breakers and QO GFCI/AFCI/surge arresters
• Raintight NEMA 3R enclosure with feed-through lugs, tin-plated copper shielded bus, UL listed

Product Highlights

200A convertible main, 8 spaces/16 circuits, NEMA 3R raintight enclosure, feed-through lugs, UL listed

Product Information

Standard Information

• Brand: SCHNEIDER ELECTRIC
• Manufacturer Part Number: QO1816M200FTRB
• Country of Origin: United States
