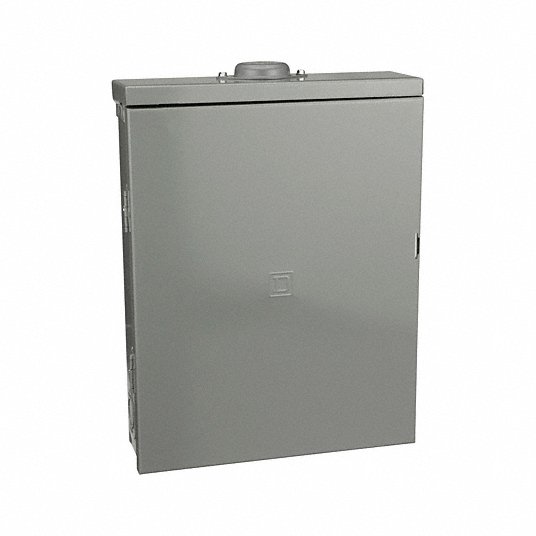

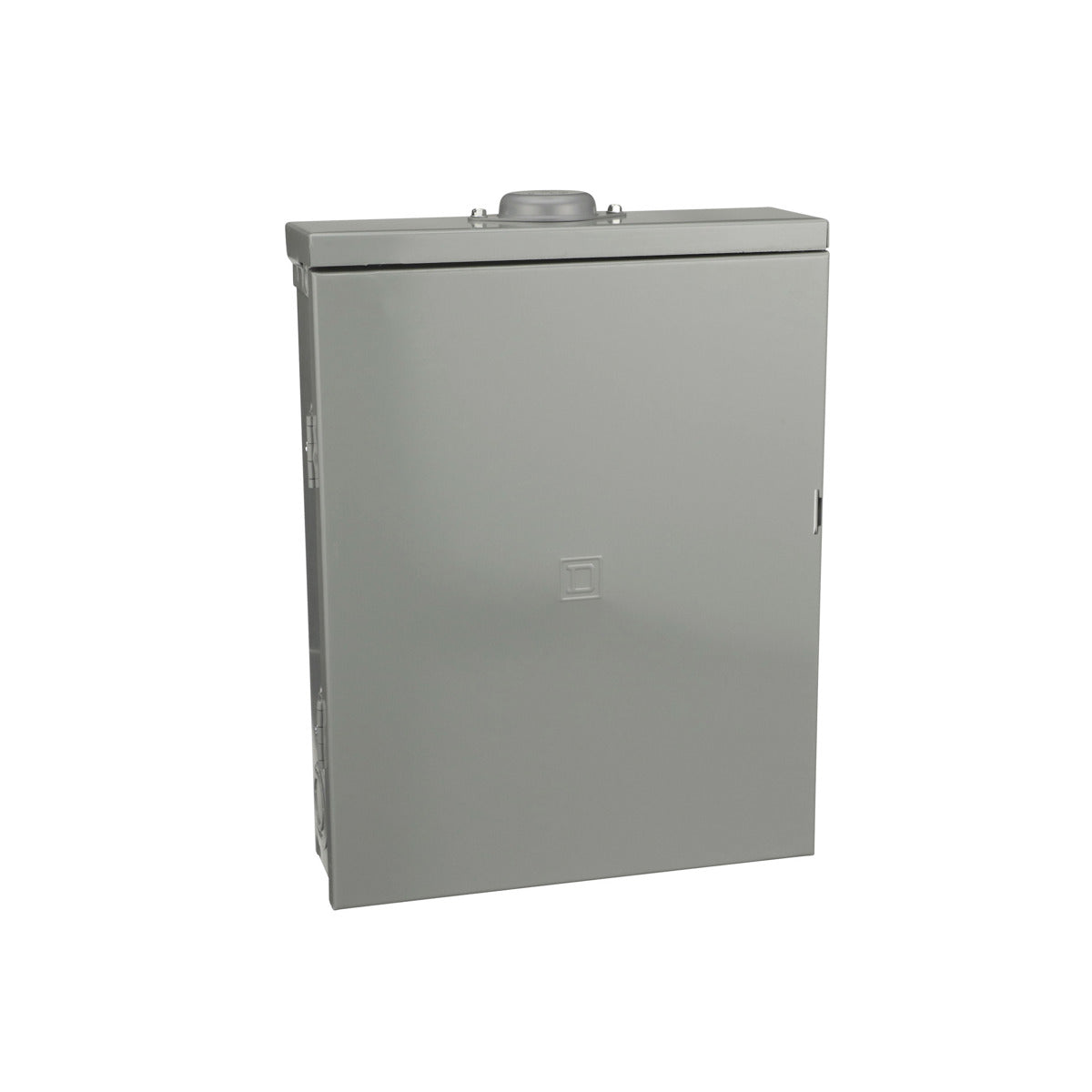

Square D QO1612M125FTRB Load Center 125 Amp

Product Description

The SQUARE D QO1612M125FTRB load center offers premium features, allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. Designed for residential and industrial use, it protects electrical systems, equipment, and people. This 1-phase load center has 6 spaces and 12 circuits with a 125A convertible main breaker in a NEMA 3R enclosure and includes a ground bar. It is also UL Listed.

• Offers premium features for installing various breakers and surge arresters.
• Designed for residential and industrial use to protect electrical systems.
• Features a 125A convertible main breaker in a NEMA 3R enclosure.

Product Highlights

This Square D load center provides reliable protection for electrical systems in residential and industrial settings, with easy installation of breakers and surge protection.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO1612M125FTRB
• Country of Origin: USA

Technical Specifications

• Type: Load Center
• Brand: Square D
• Depth: 108 mm
• Width: 375 mm
• Finish: Baked Enamel
• Height: 492 mm
• Current: 125 Amp
• Voltage: 120/240 Volt
• Amperage: 125 Amp
• Material: Tin Plated Copper: Busbar
• Enclosure: 3R
• NEMA Size: 3R
• Sub Brand: QO
• Wire Size: AWG 4...AWG 2/0 aluminium/copper
• Cable Size: AWG 4...AWG 2/0 aluminium/copper
• Cover Type: Surface cover
• Product UPC: 78590186816
• 12-Digit UPC: 785901868163
• Applications: DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
• Certifications: UL
• Conductor Size: 4-2/0 AWG
• Enclosure Type: Weatherproof enclosure
• Enclosure Rating: 3R
• Interrupt Rating: 22 kAIC
• Number of Phases: 1,3 Phase
• Number of Spaces: 6
• Country of Origin: USA
• Enclosure Material: Steel
• Line Rated Current: 125 A
• Number of Circuits: 12
• Circuit Breaker Type: QO
• Operating Temperature: 23 degrees F (-5 degrees C) || 104 degrees F (40 degrees C)
• Short Circuit Current: 22 kA
• Phase: 1
• Main Breaker Type: QOM1 Main Frame Size
• Breaker Mounting: Bolt-On
• Neutral Type: Split Branch
• Bus Material: Tin Plated Copper
• Feed Location: Top/Bottom
• Main Wire Size: 4 to 2/0 AWG (Aluminum/Copper)
• Enclosure Size Designation: 3R
• Approval: UL, NOM
• Includes: Feed Through Lugs
• Voltage Rating: 120/240 VAC
• Current Rating: 125 Ampere
• Circuit Configuration: 1 Phase 3 Wire
• Maximum Number of Circuits: 12
• Maximum Number of Spaces: 6
• Recommended Ground Bar Kit: 1D374
• Recommended Surface Cover: Included
• Max. Operating Temp.: 104 Degrees F
• Min. Operating Temp.: 23 Degrees F
• Special Features: Mercury Free
• Location: Outdoor
• Standards: RoHS Compliant, UL Listed
• Wiring Configuration: 3-wire
• Electrical Connection: feed-thru lugs
• Cover Attachment Style: Side Hinge
• Enclosure Surface Finish: Enamel
• Included Enclosure Cover: Surface Cover
• Primary/Ambient Air Temp.: -5°C || 40°C
• Max. No. of Tandem Breakers: 6
• Main Circuit Breaker or Main Lug: Convertible, Main Circuit Breaker
