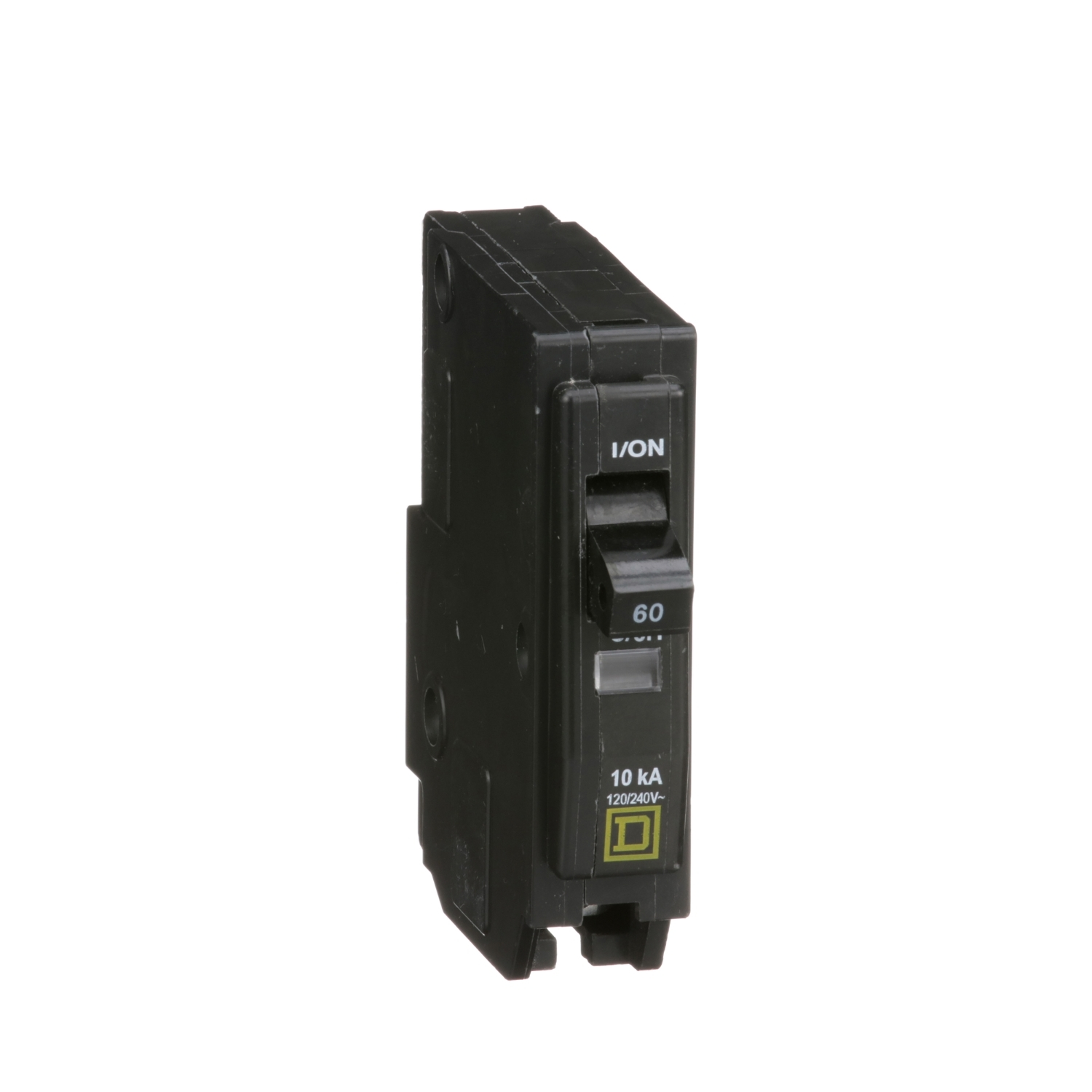

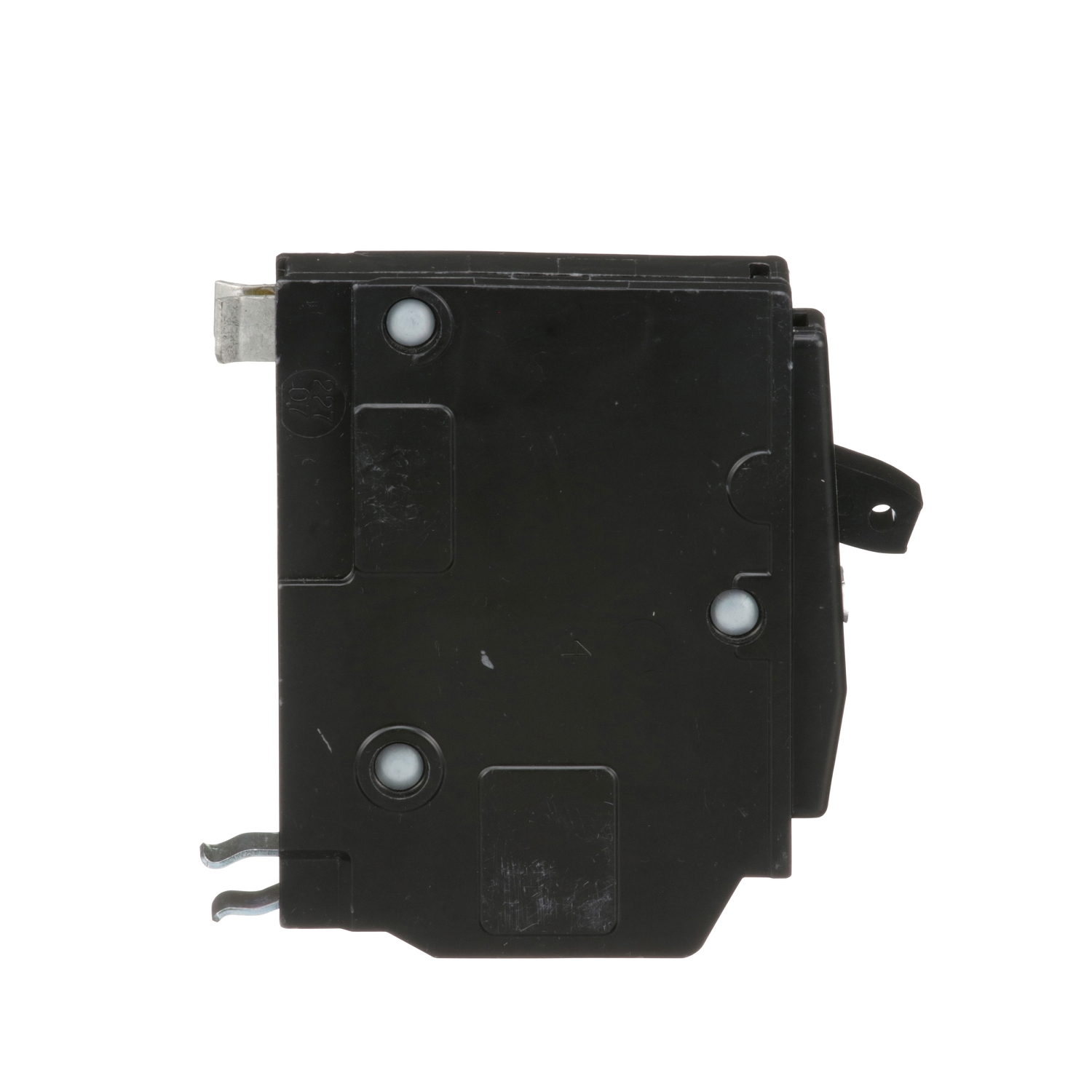

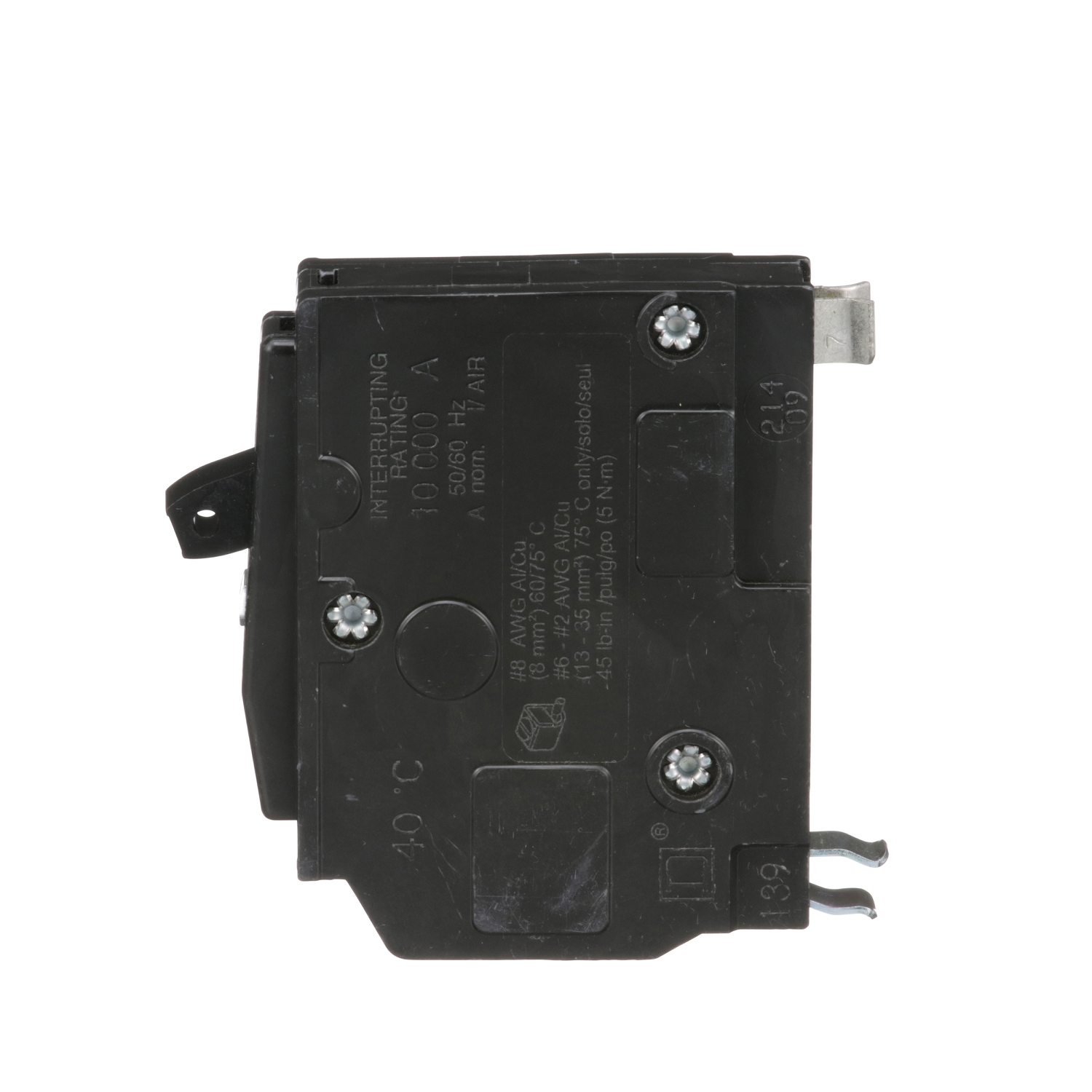

Square D QO160 Miniature Circuit Breaker 60A 120/240V 1Ph 1P Plug-On

Product Description

The Square D QO160 miniature circuit breaker provides overcurrent protection and switching on AC and DC systems. This 60A, 1-pole breaker operates at 120/240VAC with a 10kA breaking capacity and plug-in mounting. It features a trip-free toggle mechanism with quick make, quick break action and positive handle indication. It is suitable for QO load centers and NQ panelboards.

• Provides overcurrent protection and switching on AC and DC systems
• Features VisiTrip trip indication for visual indication of tripped circuit
• Has a trip-free toggle mechanism with quick make, quick break action

Product Highlights

The Square D QO160 is a 60A, 1-pole miniature circuit breaker with plug-in mounting, ideal for overcurrent protection in various applications.

Product Information

Standard Information

• Brand: SQUARE D
• Manufacturer Part Number: QO160
• Country of Origin: United States

Technical Specifications

• Type: MINIATURE CIRCUIT BREAKER
• Brand: Square D
• Range: QO
• Current: 60 Amp
• Voltage: 120/240 VAC
• Amperage: 60 Amp
• Sub Brand: QO
• Wire Size: AWG 8...AWG 2 copper or aluminium
• Applications: HACR RATED
• Mounting Type: Plug-in
• TC Connection: BOX LUGS #8 TO #2 AWG(AL/CU)
• Certifications: CSA,UL Listed
• Conductor Size: 8-2 AWG
• Number of Poles: 1 Pole
• Interrupt Rating: 10 kAIC
• Line Rated Current: 60 A
• Circuit Breaker Type: Standard
• Short Circuit Current: 10 kA
• Catalog Number: QO160
• Manufacturer: Schneider Electric
• Country of Origin: United States
• Made in USA: Yes
• Mounting: Plug On
• Used On: QO Load Center, NQOD Panelboard, OEM Interior/Speed-D Switchboard Distribution Panel
• Approval: UL, CSA
• Includes: Visi-Trip Indicator
• Phase: Single
• Features: Mercury Free
• Standards: CSA Certified, HACR, UL Listed
• Frame Size: 100A/QO
• Application: HACR rated Applications
• For Use With: QO Load Centers and NQ Panelboards
• Product Type: Miniature Circuit Breaker
• Max. Wire Size: 2 AWG
• Min. Wire Size: 8 AWG
• Max. AIR Rating: 10kA at 120/240V AC
• AC Voltage Rating: 120/240V AC
• DC Voltage Rating: 48V DC
• Terminal Connection: Lug
• Circuit Breaker Actuator: Paddle
• Circuit Breaker Mounting Style: Plug In
• Compatible Panelboard/Load Center Series: QO
• MPN: QO160
• Model: QO160
• Inturrupt Rating: 10 Ka
• AIC Rating: 10kA @ 120/240VAC, 5kA @ 48VDC
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 8-2 AWG (Al/Cu)
• Available Options: Padlock Attachment
• Construction Features: Visual Trip Indicator, HACR Rated
• Maximum Amperage: 60 A
• Mounting type: Plug-On
• UNSPSC: 39121603
• Frequency: 50/60 Hz
• Trip Type: Thermal/Magnetic
• Connection: Box Lug
• [Ue] Rated Operational Voltage: 120/240 V AC || 120 V AC
• Tightening Torque: 5-5 N.m
• Number Of Spaces Required: 1
• Breaking Capacity: 10 kA 120/240 V AC || 10 kA 120 V AC
• Awg Gauge: AWG 8...AWG 2 copper or aluminium
• Product Certifications: UL Listed || CSA
• Halogen Content Performance: Halogen free product
• Voltage Type: AC
• Frame Type: QO
